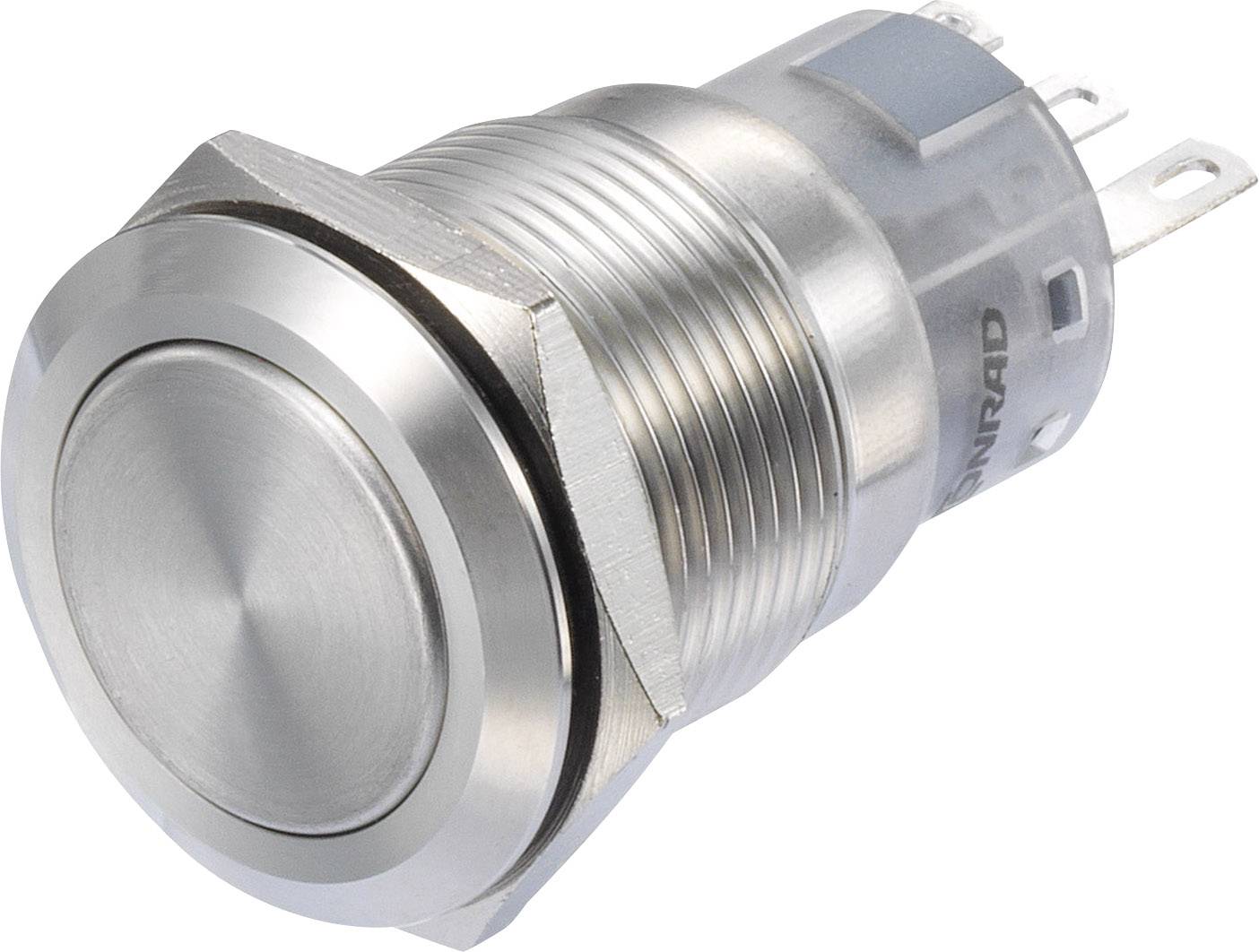

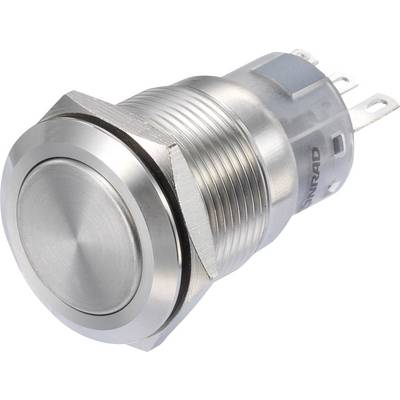

TRU COMPONENTS LAS1-AGQ-11Z/S Pushbutton switch 250 V AC 3 A 1 x On/On latch IP65 1 pc(s)
EAN:
Part number:
Item no:
Product type
Pushbutton switch
Lighting type
None
Switch position
1 x On/On
Contact type
1 breaker
1 maker
Connection
Type C CEE 7/16 plug 2.8 mm
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 9.32
3
6% = € 0.54
€ 8.78
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 9.32 / piece)
€ 9.32
plus VAT.
14-day return policy included
Technical specifications
- Product type
Pushbutton switch
- Switch/button features
Planar
- Casing/button colour
Steel
- Functions
latch
- Lighting type
None
- Switch position
1 x On/On
- Print motif
None
- Contact type
1 breaker
1 maker
- Material
Steel
- Connection
Type C CEE 7/16 plug 2.8 mm
- Switching voltage
250 V AC
- Switching current (max.)
3 A
- Min. temperature
-20 °C
- Shape
Round
- Max. temperature
+55 °C
- Button diameter
22 mm
- Durability
1 000 000 cycles
- Recess diameter
19 mm
- Electrical lifespan
50000 cycles
IP65
- Content
1 pc(s)
- RoHS-compliant
Yes
- Board thickness (max.)
10 mm
- Type
LAS1-AGQ-11Z/S
Documents & Downloads
Datasheet
Datasheet 1272981 TRU COMPONENTS LAS1-AGQ-11Z/S Pushbutton switch 250 V AC 3 A 1 x On/On latch IP65 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1272981 TRU COMPONENTS LAS1-AGQ-11Z/S Pushbutton switch 250 V AC 3 A 1 x On/On latch IP65 1 pc(s)
Description
Hints
Re switch position: content in parentheses describes the n/o and n/c contact constellation
