Buy TRU COMPONENTS TC-11008836 Network cable CAT 7 S/FTP 4 x 2 x 0.24 mm² CPR-Dca classified Orange 305 m

An orange network cable with visible inner conductors of different colours at the cut, insulated by a silver sheath.

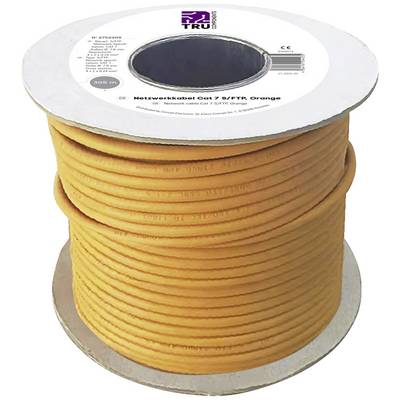

Network cable on a reel, Category 7 S/FTP, orange, length 305 m. Suitable for high-speed data transmission.

Cross-section of an SF/UTP cable with foil shielding, braided shielding, and outer jacket. Different core pairs are colour-coded.

1/3

Product type

Network cable

Specification

CAT 7

Shielding

S/FTP

No. of leads

8 x

Cross section (each core)

0.24 mm²

Datasheet (PDF)

Fast track dispatch on Mon, 14 Sep

69 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Packaging units

Number

Piece(s)

Total (1 m = € 0.79)

€ 239.50

plus VAT.

Report legal concerns

Highlights & Details

TRU COMPONENTS Cat.7 S/FTP Solid Cable 305 m

99.99% oxygen-free copper
CPR-Dca and GHMT certified
Suitable for networks up to 10 Gigabit/s at 600 MHz

Technical specifications

Length: 305 m

Product type: Network cable

: CAT 7

: S/FTP

No. of leads: 8 x

Cross section (each core): 0.24 mm²

Cross section: 4 x 2 x 0.24 mm²

Cable features: double shielding
Metal foil shield
Braided shield

Outside Ø: 7.60 mm

Factory colour: Orange

Max. frequency: 600 MHz

Content: 305 m

AWG max.: 23

Packaged: Yes

Sold per metre: No

Manufacturer part #: TC-11008836

Type: TC-11008836

Insulation material: Foam Skin PE

RoHS-compliant: Yes

Min. temperature range (flexible installation): 0 °C

Max. temperature range (flexible installation): +50 °C

Min. temperature range (fixed installation): -20 °C

Max. temperature range (fixed installation): +75 °C

Standards: CPR-Dca classified

Twisted pair cabling (part 1): Yes (1)

Documents & Downloads

Datasheet

Datasheet 2752209 TRU COMPONENTS TC-11008836 Network cable CAT 7 S/FTP 4 x 2 x 0.24 mm² CPR-Dca classified Orange 305 m

User & Safety Instructions

User & Safety Instructions 2752209 TRU COMPONENTS TC-11008836 Network cable CAT 7 S/FTP 4 x 2 x 0.24 mm² CPR-Dca classified Orange 305 m

Description

Reliable data transfer for your network
The TRU COMPONENTS Category 7 network cables enable data transfer speeds of up to 10000 Mbps - 10x faster than Category 6 and 100x faster than Category 5 cables. Means no more sluggishness during high data volume transfers such as HD streaming and some server applications. Which makes this highly flexible patch cable a viable Wi-Fi alternative. The advantages are obvious: No radiation exposure, maximum security, but above all no speed loss - whatever is fed on one side, comes out on the other side.

Noise Supression Shielding (S/FTP)
The CAT7 network cables from TRU COMPONENTS come with multi-layer shielding. Each pair of cores is shielded by metal film. The cable as a whole comes with a wire mesh jacket. This type of shielding prevents e.g. cross-talk from cables running parallel to each other, thus ensuring data transfer without interference caused by external sources.

Copper Core
The core is the key element of any cable. This one uses copper to ensure optimum data transfer. In addition to low impedance, copper stands for mechanical resilence, excellent bendability and durability. Moreover, copper wire resistance ratings are much lower than those of cables with cheap steel (CCS) or aluminum (CCA) conductors. All of which makes renkforce cables the perfect choice for a speedy and safe data transfer.

This text is machine translated.
