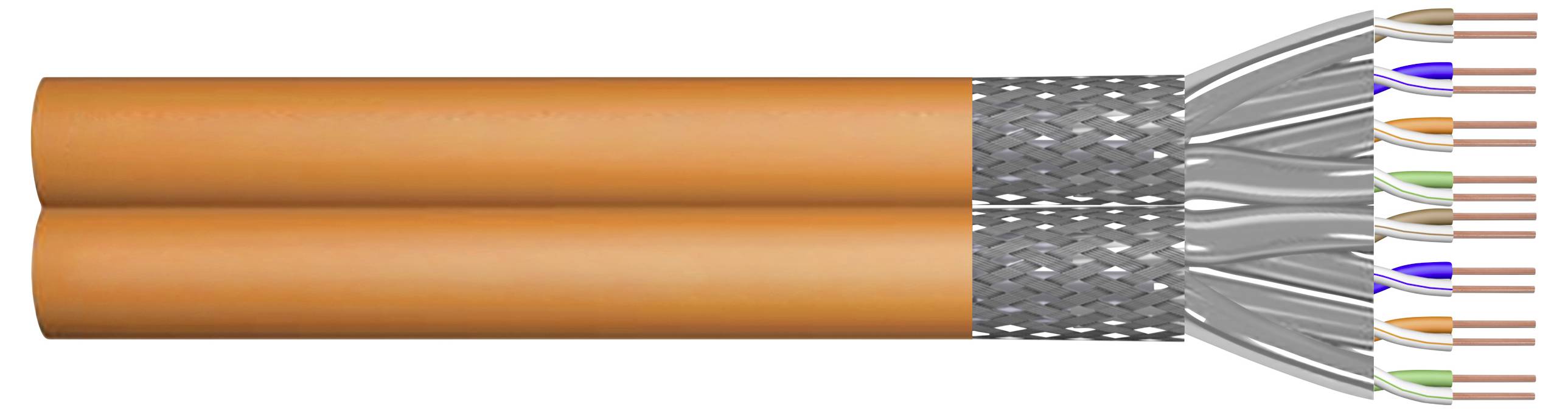

TRU COMPONENTS TC-13576744 Network cable CAT 7 S/FTP 4 x 2 x 0.24 mm² + 4 x 2 x 0.24 mm² Orange 500 m
EAN:
Part number:
Item no:
Product type
Network cable
Specification
CAT 7
Shielding
S/FTP
No. of leads
8 x
Cross section (each core)
0.24 mm²
Datasheet (PDF)
Number
Total (1 m = € 1.45)
€ 726.89
plus VAT.
Highlights & Details
TRU COMPONENTS 500 m Duplex CAT 7 S/FTP network cable 1000 MHz
- Category 7 (tested at 1000 MHz)
- S/FTP (braided and foil shielding)
- Cable cross-section: 4 x 2 x 0.24 mm² + 4 x 2 x 0.24 mm²
- 99.99 % oxygen-free copper
- CPR-Dca certified
Technical specifications
- Product type
Network cable
CAT 7
S/FTP
- No. of leads
8 x
- Cross section (each core)
0.24 mm²
- No. of leads (part 2)
8 x
- Cross section (each core) (part 2)
0.24 mm²
- Cross section
4 x 2 x 0.24 mm² + 4 x 2 x 0.24 mm²
- Cable features
double shielding
Duplex
Flame-retardant
Halogen-free
- Width
15.2 mm
- Height
7.6 mm
- Factory colour
Orange
- Max. frequency
1000 MHz
- Content
500 m
- AWG max.
23
- Manufacturer part #
TC-13576744
- Type
TC-13576744
- Insulation material
Foam Skin PE
- RoHS-compliant
Yes
- Min. temperature range (flexible installation)
-20 °C
- Max. temperature range (flexible installation)
+75 °C
- Min. temperature range (fixed installation)
-20 °C
- Max. temperature range (fixed installation)
+75 °C
- Twisted pair cabling (part 1)
Yes (1)
- Twisted pair cabling (yes/no)
Yes (1)
Documents & Downloads
Datasheet
Datasheet 3394186 TRU COMPONENTS TC-13576744 Network cable CAT 7 S/FTP 4 x 2 x 0.24 mm² + 4 x 2 x 0.24 mm² Orange 500 m
User & Safety Instructions
User & Safety Instructions 3394186 TRU COMPONENTS TC-13576744 Network cable CAT 7 S/FTP 4 x 2 x 0.24 mm² + 4 x 2 x 0.24 mm² Orange 500 m
Description
Features
- Duplex cable for installation
- Tested with network analyzer
- ISO/IEC 11801 Class F, EN 50173 Class F, IEC 61156 CAT7
- 2x4x2xAWG23/1
- 99.99% oxygen-free copper 1/0.55±0.005 mm
- S/FTP, 4x AL-Foil + Braid, Foam-PE insulation
- Round cable, LSZH jacket
- CPR-Dca (s1a,d1,a1) cerified
