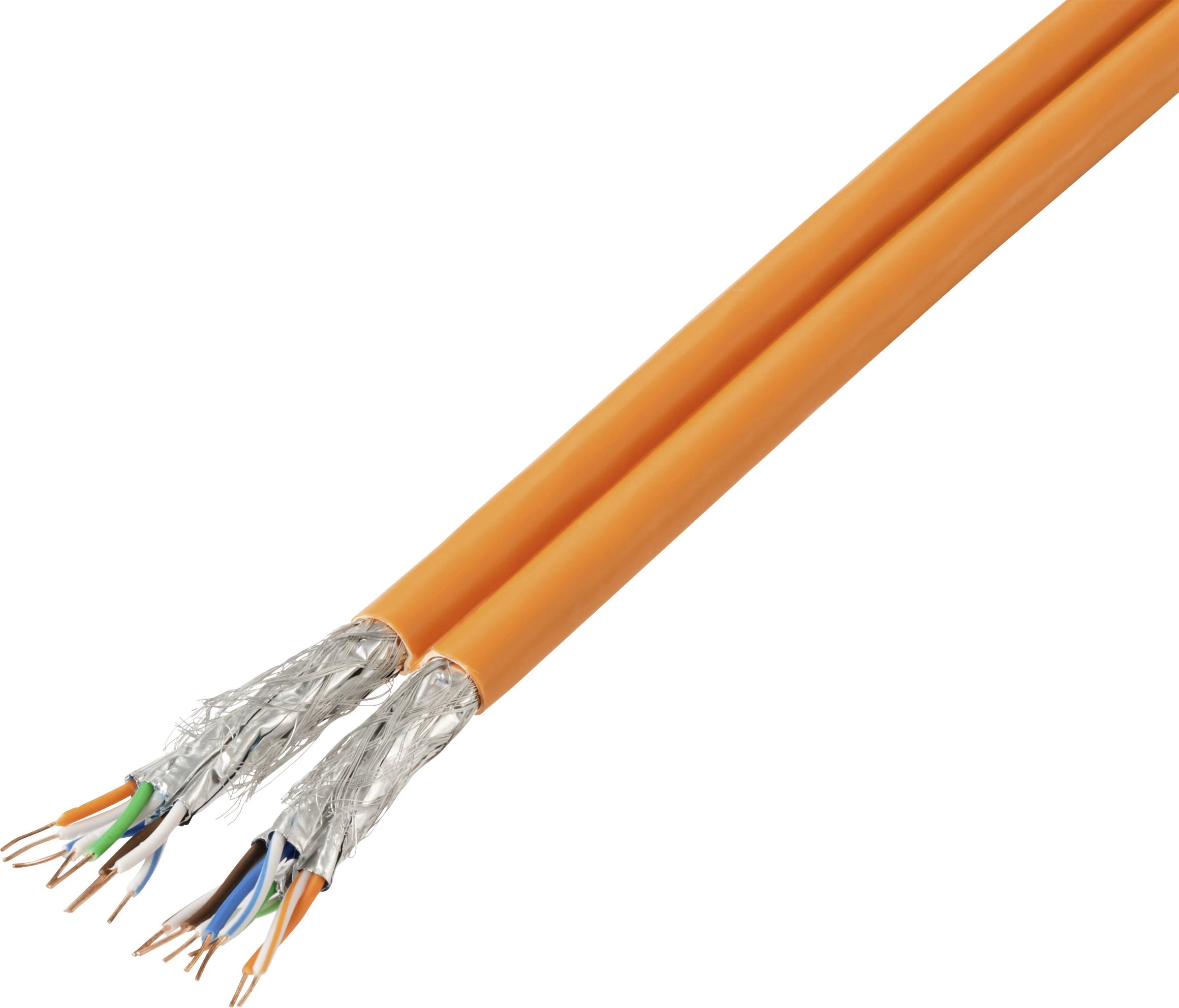

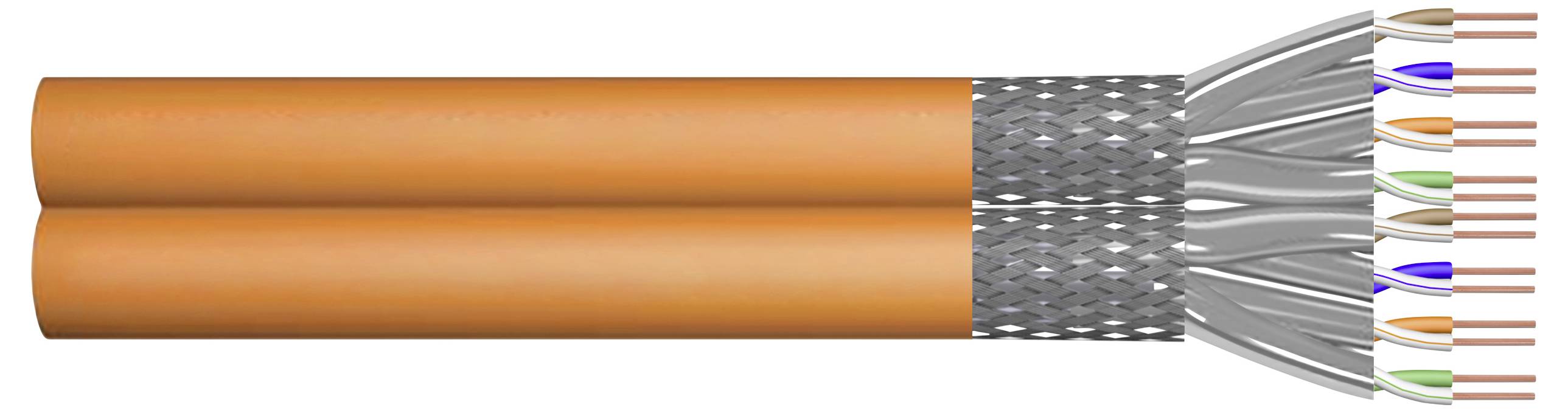

TRU COMPONENTS TC-13576748 Network cable CAT 7a S/FTP 4 x 2 x 0.27 mm² + 4 x 2 x 0.27 mm² Orange 500 m
EAN:
Part number:
Item no:
Product type
Network cable
Specification
CAT 7a
Shielding
S/FTP
No. of leads
8 x
Cross section (each core)
0.27 mm²
Datasheet (PDF)
Number
Total (1 m = € 1.57)
€ 785.71
plus VAT.
Highlights & Details
TRU COMPONENTS 500 m Duplex CAT 7a S/FTP network cable 1300 MHz
- Category 7a (tested at 1300 MHz)
- S/FTP (braided and foil shielding)
- Cable cross-section:4 x 2 x 0.27 mm² + 4 x 2 x 0.27 mm²
- 99.99 % oxygen-free copper
- CPR-Dca certified
Technical specifications
- Product type
Network cable
CAT 7a
S/FTP
- No. of leads
8 x
- Cross section (each core)
0.27 mm²
- No. of leads (part 2)
8 x
- Cross section (each core) (part 2)
0.27 mm²
- Cross section
4 x 2 x 0.27 mm² + 4 x 2 x 0.27 mm²
- Cable features
double shielding
Duplex
Flame-retardant
Halogen-free
- Width
15.5 mm
- Height
7.7 mm
- Factory colour
Orange
- Max. frequency
1300 MHz
- Content
500 m
- AWG max.
23
- Manufacturer part #
TC-13576748
- Type
TC-13576748
- Insulation material
Foam Skin PE
- RoHS-compliant
Yes
- Min. temperature range (flexible installation)
-20 °C
- Max. temperature range (flexible installation)
+75 °C
- Min. temperature range (fixed installation)
-20 °C
- Max. temperature range (fixed installation)
+75 °C
- Twisted pair cabling (part 1)
Yes (1)
- Twisted pair cabling (yes/no)
Yes (1)
Documents & Downloads
Datasheet
Datasheet 3394187 TRU COMPONENTS TC-13576748 Network cable CAT 7a S/FTP 4 x 2 x 0.27 mm² + 4 x 2 x 0.27 mm² Orange 500 m
User & Safety Instructions
User & Safety Instructions 3394187 TRU COMPONENTS TC-13576748 Network cable CAT 7a S/FTP 4 x 2 x 0.27 mm² + 4 x 2 x 0.27 mm² Orange 500 m
Description
Features
- Duplex round cable for installation
- S/FTP PiMF
- 2x4x2xAWG23/1
- 99.99% oxygen-free copper 1/0.585±0.005 mm
- Foam-PE insulation
- 2 cores to a pair
- 4 pairs to a core
- Single pairs with AL-Foil
- Overall braid
- Jacket: LSZH
- CPR-Dca (s1a,d0,a1) certified
