Name: TRU COMPONENTS TC-8400644 Network cable CAT 7 S/FTP 4 x 2 x 0.24 mm² Orange 100 m
Brand: TRU COMPONENTS
SKU: 2100161
Availability: InStock

An orange network cable with eight exposed copper wires in various colours is shown.

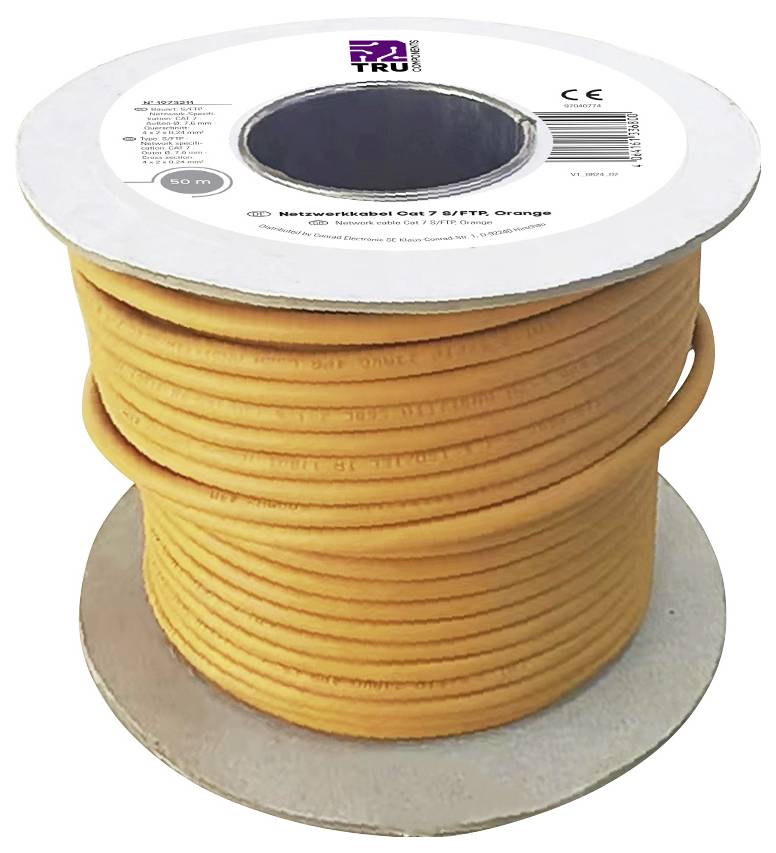

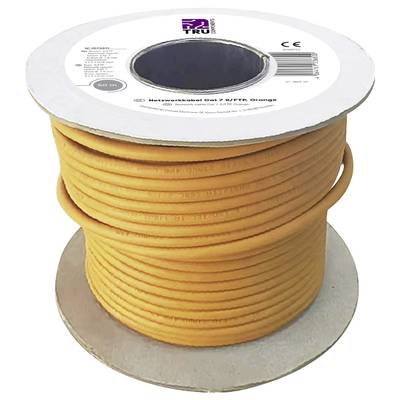

Reel of orange network cable, 50 m, on a cardboard spool. Top surface displays manufacturer information and CE marking.

1/2

Product type

Network cable

Specification

CAT 7

Shielding

S/FTP

No. of leads

8 x

Cross section (each core)

0.24 mm²

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

49 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (1 m = € 1.15)

€ 114.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

TRU COMPONENTS Cat.7 S/FTP Solid Cable 100 m

BC conductor 23 AWG
CPR Eca certified
LSZH jacket

Our service for you

Technical specifications

Product type: Network cable

: CAT 7

: S/FTP

No. of leads: 8 x

Cross section (each core): 0.24 mm²

Cross section: 4 x 2 x 0.24 mm²

Cable features: double shielding
Metal foil shield
Braided shield
Flame-retardant

Outside Ø: 7.60 mm

Factory colour: Orange

Max. frequency: 1000 MHz

Content: 100 m

AWG max.: 23

Manufacturer part #: TC-8400644

Type: TC-8400644

Insulation material: Foam Skin PE

RoHS-compliant: Yes

Min. temperature range (flexible installation): 0 °C

Max. temperature range (flexible installation): 50 °C

Min. temperature range (fixed installation): -20 °C

Max. temperature range (fixed installation): 75 °C

Standards: CPR-Eca certified

Halogen-free: Yes

Max. length sold by the metre: 100 m

Twisted pair cabling (part 1): Yes (1)

Documents & Downloads

Datasheet

Datasheet 2100161 TRU COMPONENTS TC-8400644 Network cable CAT 7 S/FTP 4 x 2 x 0.24 mm² Orange 100 m

User & Safety Instructions

User & Safety Instructions 2100161 TRU COMPONENTS TC-8400644 Network cable CAT 7 S/FTP 4 x 2 x 0.24 mm² Orange 100 m

Features

Low smoke
Halogen free
Flame retardant
Supports IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt

Scope of delivery

Solid cable

Description

Features

Low smoke
Halogen free
Flame retardant
Supports IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt

Scope of delivery

Solid cable
