USB 3.0 mounting socket Socket, built-in 490113.0030 490113.0030 Lütze Content: 1 pc(s)

USB 3.0 cable and connector with cover for front mounting, black, showing the connector and open cover.

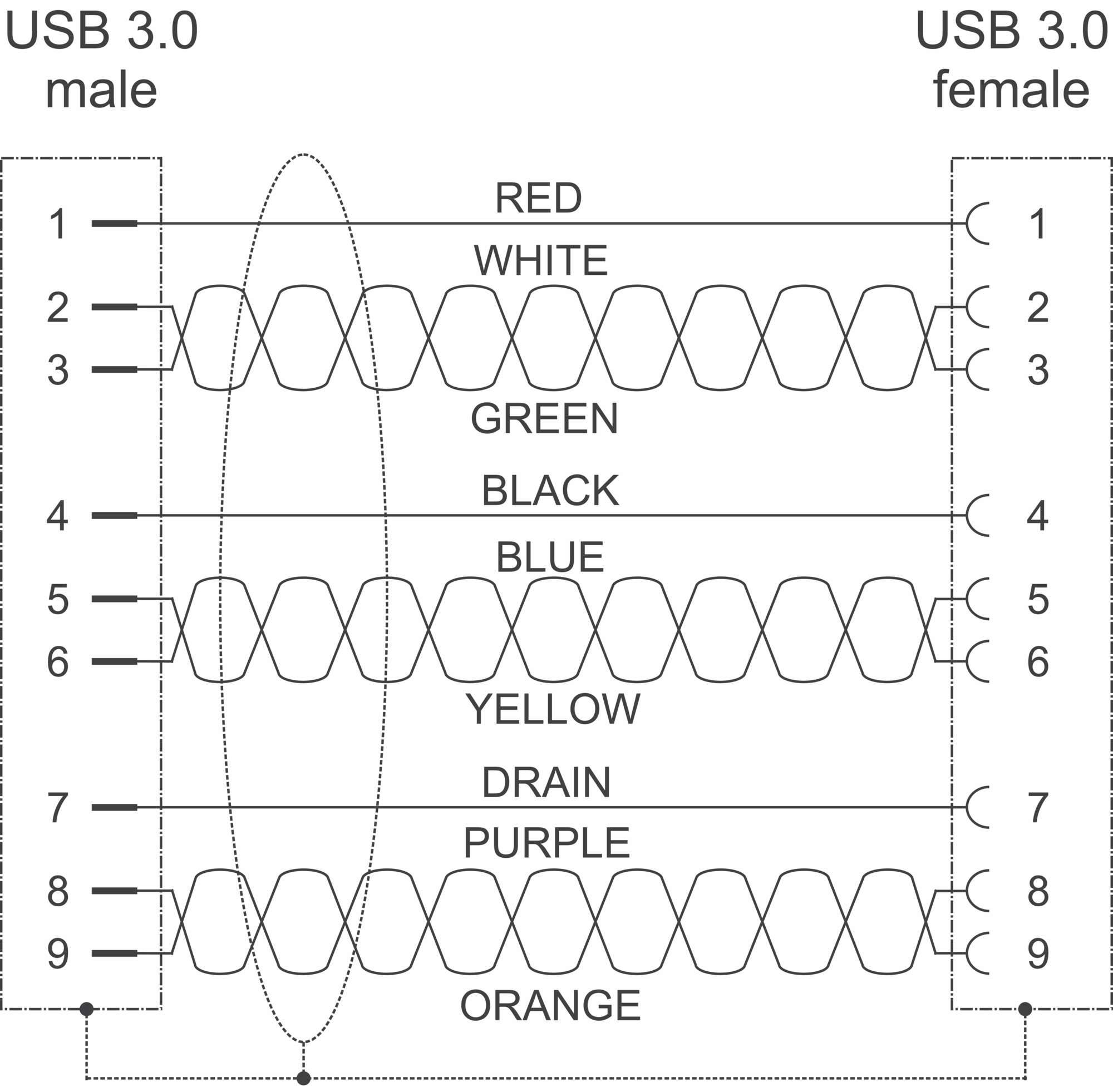

Diagram of a USB 3.0 cable with colour-coded wires: Red, White, Green, Blue, Yellow, Drain, Purple, Orange; signalling male to female connection.

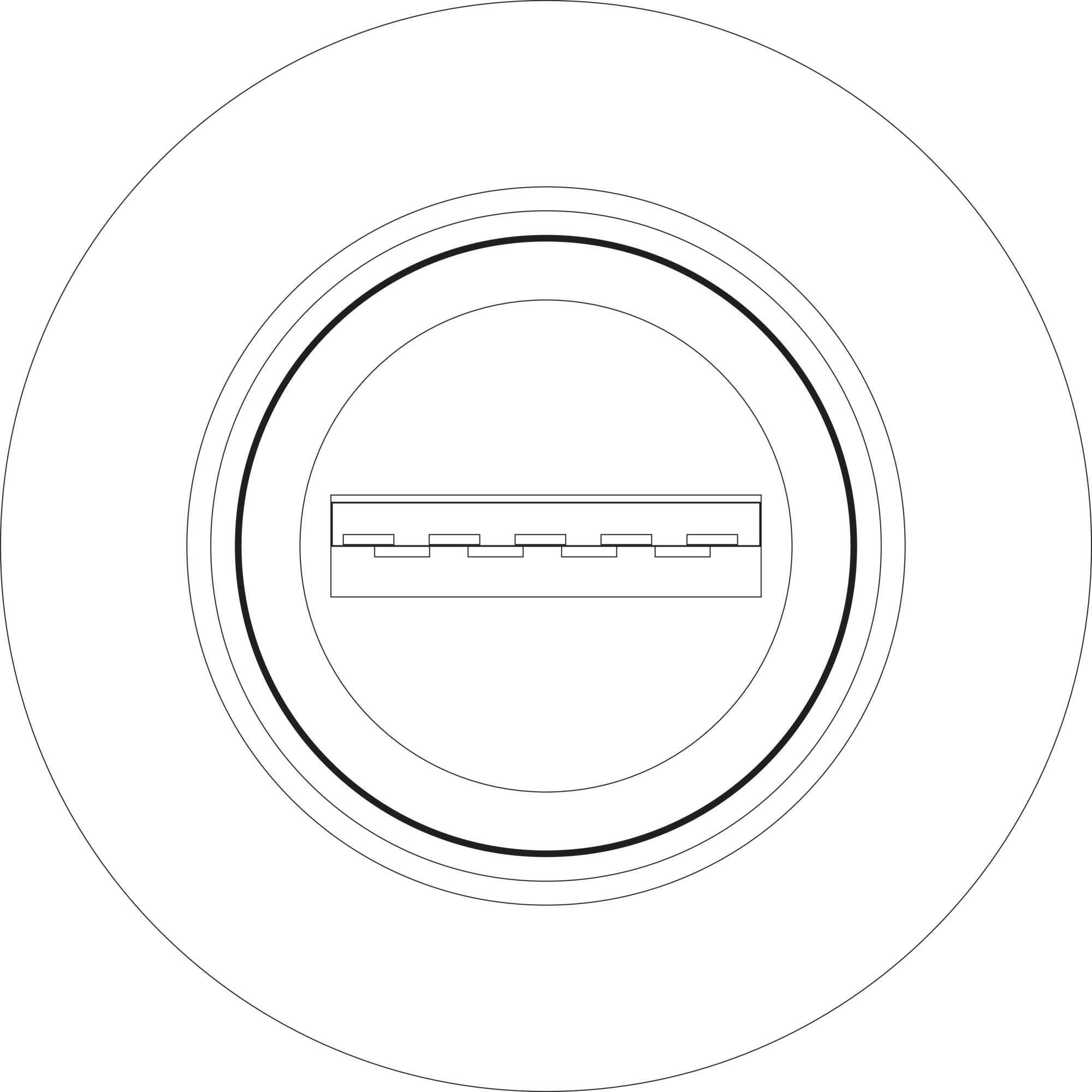

A simple, circular switch with a horizontal rectangle in the middle, likely for controlling a device.

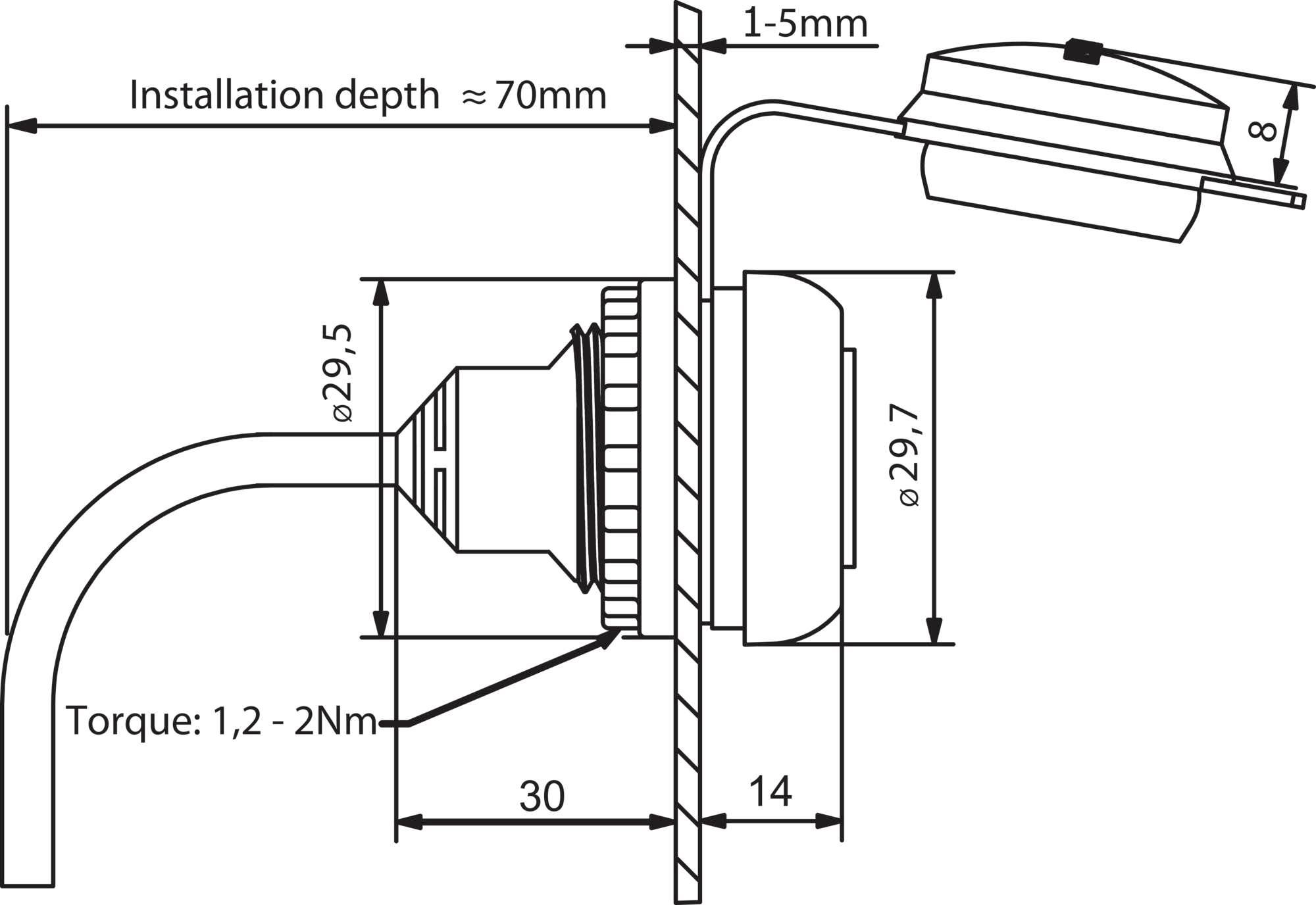

Diagram shows installation of a round device in a wall. Dimensions: Installation depth approx. 70mm, torque 1.2-2Nm, additional detailed specifications.

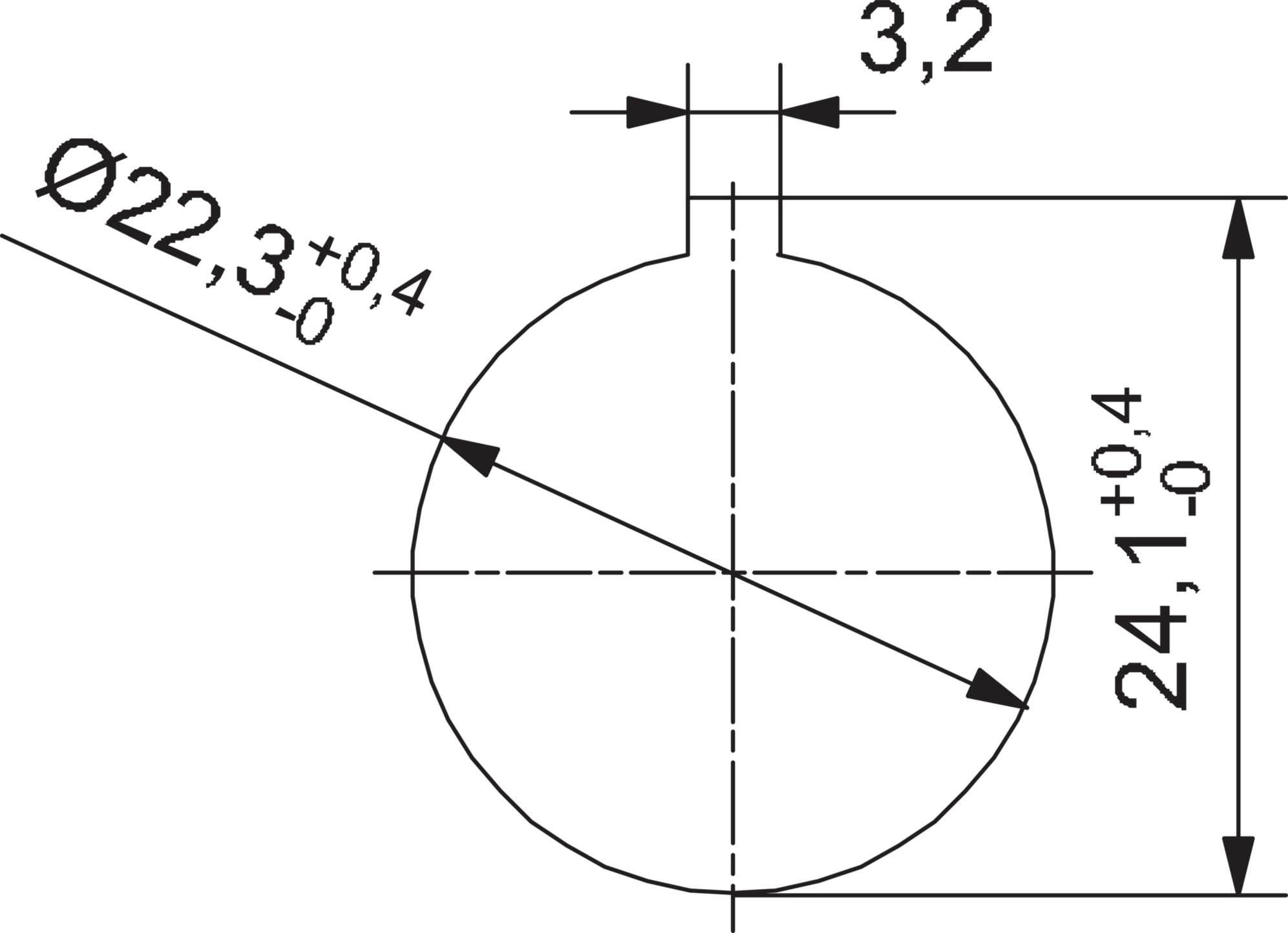

Technical drawing of a circle with a diameter of 22.3 mm ±0.4 and a countersunk hole at the top of 3.2 mm. Height: 24.1 mm ±0.4.

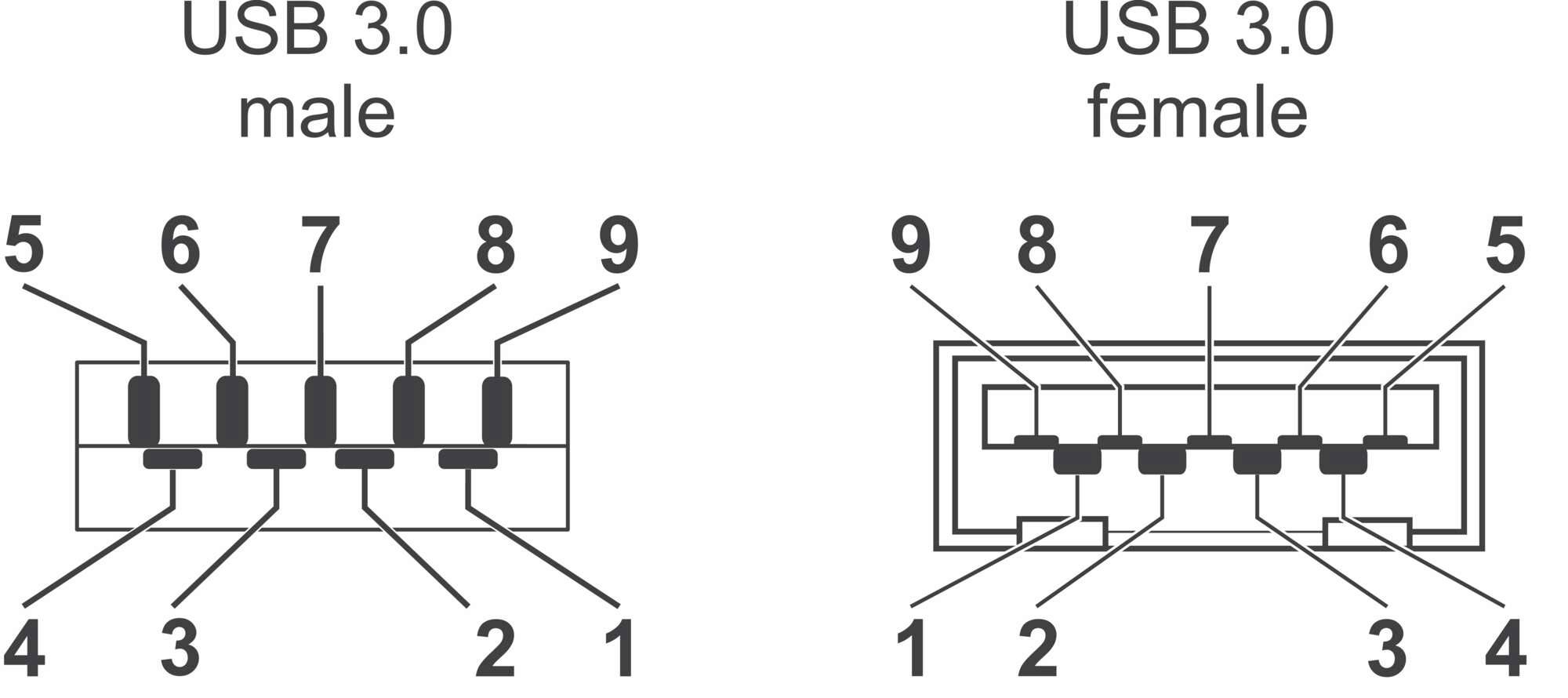

Diagram of USB 3.0 Plug Types: On the left, the male plug with pins 1 to 9, on the right the female socket with the same pin designations.
1/6
Product type
Junction box
Connector type
Socket, built-in
Connector standard
USB 3.2 1st Gen (USB 3.0)
Type
490113.0030
Connection
For front mounting with thread M22
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Wed 11 Nov
717 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 27.99 / piece)
€ 27.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
Only available for business customers
14-day return policy included
Report legal concerns

Technical specifications

Type

490113.0030

Product type

Junction box

Connector type

Socket, built-in

Connector standard

USB 3.2 1st Gen (USB 3.0)

Connection

For front mounting with thread M22

Type A

USB 3.2 1st Gen port A (USB 3.0)

Type B

USB 3.2 1st Gen connector A (USB 3.0)

Bore Ø

22.3 mm

Manufacturer part #

490113.0030

Content

1 pc(s)

Cable length

30.00 cm

Contact material

CuSn, gold plated

Material (details)

Socket: PVC, plug: PBT, cover: TPU

IP20 (when connected)

IP65 (closed)

Temperature range

-25 - +80 °C

UKCA

not relevant

Documents & Downloads

Datasheet

Datasheet 409416 USB 3.0 mounting socket Socket, built-in 490113.0030 490113.0030 Lütze Content: 1 pc(s)

User & Safety Instructions

User & Safety Instructions 409416 USB 3.0 mounting socket Socket, built-in 490113.0030 490113.0030 Lütze Content: 1 pc(s)

Conformity certificate

Conformity certificate 409416 USB 3.0 mounting socket Socket, built-in 490113.0030 490113.0030 Lütze Content: 1 pc(s)

Description

With captive protective cap.
