VOLTCRAFT VC-519 Clamp meter Calibrated to (ISO standards) Digital CAT III 600 V Display (counts): 2000
EAN:
Part number:
Item no:
Number
Total (€ 84.03 / piece)
€ 84.03
plus VAT.
Only 1 Piece(s) available
Highlights & Details

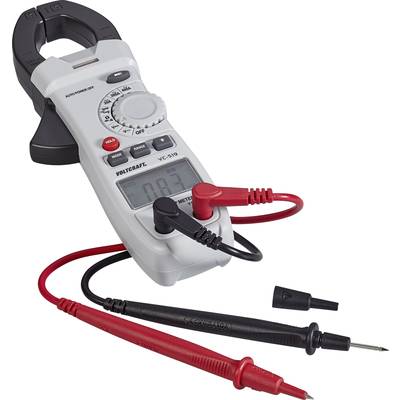

Clamp-on ammeter multimeter VC-519
- CAT III 600 V
Technical specifications
- Voltage reading range DC (min.)
0.1 mV
- Product type
Clamp meter
- Voltage DC reading range (max.)
600 V
- V AC reading range (min.)
0.1 mV
- V AC reading range (max.)
600 V
- A AC reading range (min.)
10 mA
- Amperage reading range AC (max.)
400 A
- Reading range - resistance
0.1 Ω – 20 MΩ MΩ
- Frequency reading range
50 Hz - 60 Hz
- DC resistance
10 MΩ
- AC resistance
10 MΩ
- Basic accuracy
1.5 %
- Measurement type (details)
Average
- Frequency range
50 - 60 Hz
- Power supply (details)
9 V battery
- Height
230 mm
- Width
82 mm
- Length
40 mm
- Weight
230 g
ISO standards
- Reading category
CAT III 600 V
- Voltage metering
AC/DC
- Current reading
AC
- Type
VC-519
- Display
Digital
- Display (counts)
2000
- Dim
(L x W x H) 40 x 82 x 230 mm
- Temperature reading range (max.)
+760 °C
- Temperature reading range (min.)
-20 °C
- Opening range of current clamps
30 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1590176 VOLTCRAFT VC-519 Clamp meter Calibrated to (ISO standards) Digital CAT III 600 V Display (counts): 2000
Warranty Terms
Warranty Terms 1590176 VOLTCRAFT VC-519 Clamp meter Calibrated to (ISO standards) Digital CAT III 600 V Display (counts): 2000
Description
This text is machine translated.

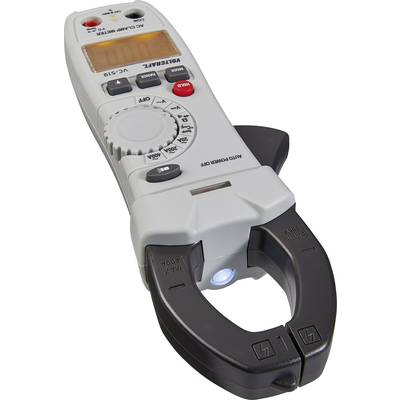

Compact AC current clamp with multimeter functions. The clamp-on ammeter multimeter allows contactless measurement of alternating current, without having to break the circuit. An integrated torch allows the measuring point illumination in low light conditions. Despite the small size, is a good one-handed operation even with gloves.
Reliable readings thanks to ISO calibration
Diagnostics tools used in an environment that complies with ISO 9001 standards require ISO calibration. Moreover, most safety inspectors as well as accredited testing and certification bodies need to use ISO-certified equipment.
Compact AC current clamp with multimeter functions. The clamp-on ammeter multimeter allows contactless measurement of alternating current, without having to break the circuit. An integrated torch allows the measuring point illumination in low light conditions. Despite the small size, is a good one-handed operation even with gloves.
Reliable readings thanks to ISO calibration
Diagnostics tools used in an environment that complies with ISO 9001 standards require ISO calibration. Moreover, most safety inspectors as well as accredited testing and certification bodies need to use ISO-certified equipment.
Features
- Measurement functions: ac/dc voltage
- Alternating current
- Resistance
- Temperature
- Diode testing
- Acoustic continuity test
- Auto switch-off
- Battery status indicator
- Non-contact AC voltage testing
- Automatic/Manual selection of measuring range
- Selectable display backlighting
- Hold function

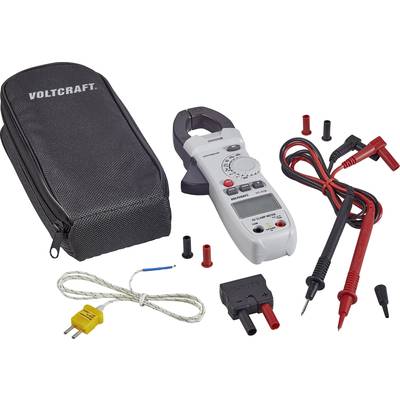

Scope of delivery
- 2x safety test lead
- TE-wire temperature sensor (-20 to +230 °C)
- TE-measuring adapter
- Batteries
- Bag
- User manual
- ISO calibration certificate.
