VOLTCRAFT WM-500 Multi tester
EAN:
Part number:
Item no:
Number
Total (€ 126.04 / piece)
€ 126.04
plus VAT.
Highlights & Details
Liquid measurement device WM-500

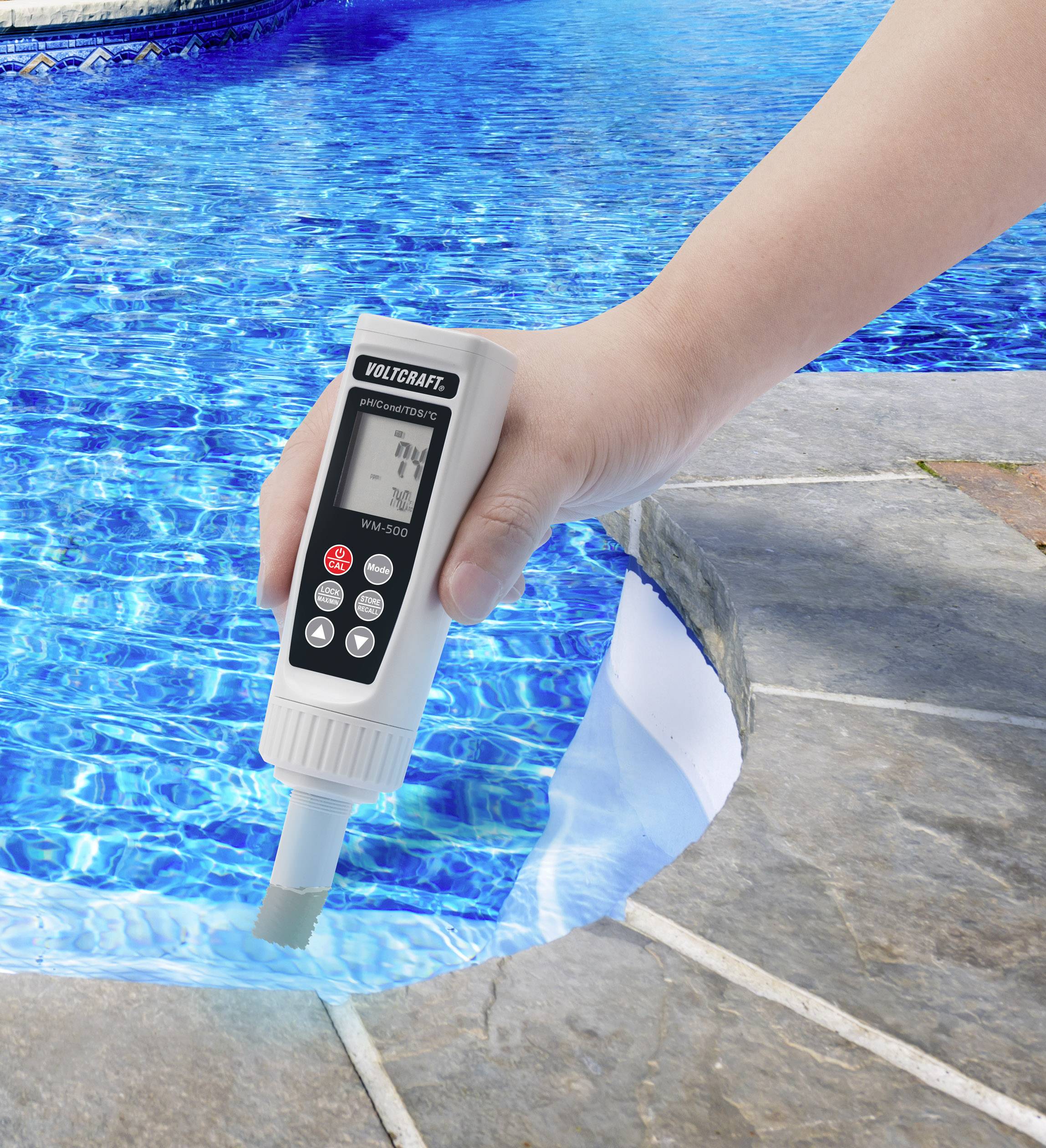

- Ideal for swimming pools and other waters
- 5 in 1 measured value analysis: pH, conductivity, dissolved particles (TDS), salinity, temperature

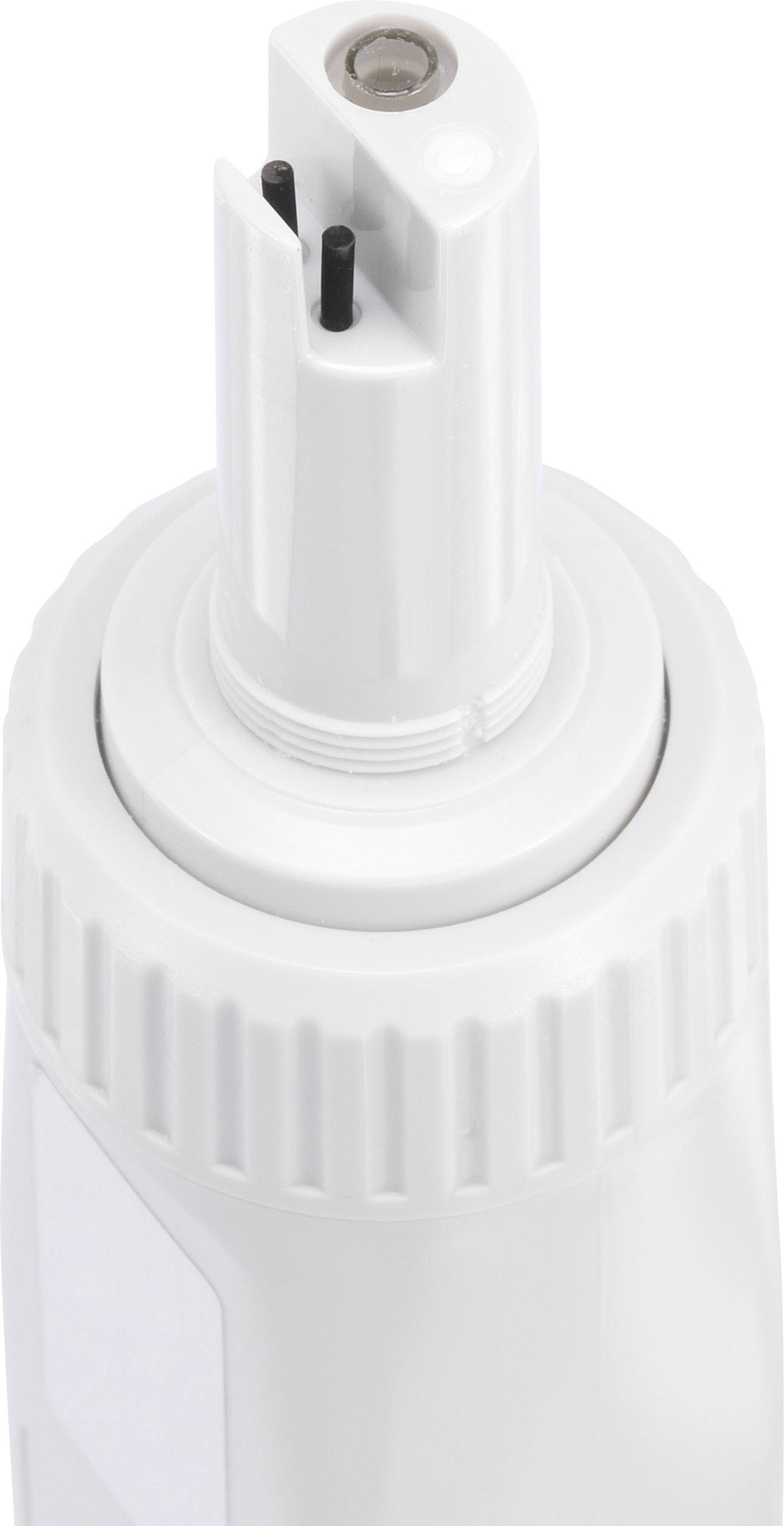

- Interchangeable 3 in 1 multi-function electrode
Technical specifications
- Measurement range for salinity: 0.0 ppm 50.0 ppt
- Accuracy for salinity: 2 % FS
- Measuring range ORP: -1999 to 2000 mV
- Accuracy ORP: 2+1 digit
- "Accuracy, pH: 0.01 pH
- Accuracy temperature ± 1 °C
- Conductivity accuracy: 2% FS.
- Product type
Multi tester
- Display
Digital
- Dim
(L x W x H) 33 x 42 x 183 mm
- Conductivity reading range
0 µS - 100 mS
- Conductivity reading range (max.)
100 mS
- Conductivity reading range (min)
0 µS
- TDS reading range
0 ppm - 66 ppt
- TDS reading range (max.)
66 ppt
- TDS reading range (min.)
0 ppm
- Temperature reading range
0 up to 110 °C
- Temperature reading range (max.)
110 °C
- Temperature reading range (min.)
0 °C
- pH reading range
-2 - 16 pH
- pH reading range (max.)
16 pH
- pH reading range (min.)
-2 pH
- Width
42 mm
- Height
183 mm
- Length
33 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1424764 VOLTCRAFT WM-500 Multi tester
Conformity certificate
Conformity certificate 1424764 VOLTCRAFT WM-500 Multi tester
Security datasheet
Security datasheet 1424764 VOLTCRAFT WM-500 Multi tester
Warranty Terms
Warranty Terms 1424764 VOLTCRAFT WM-500 Multi tester
Description
This text is machine translated.
The multi-functional meter enables the measurement of 5 parameters with only one electrode. The electrode with your 3 integrated sensors can be replaced and wear simply must be replaced. The operation is done via water-protected membrane keys.
The multi-functional meter enables the measurement of 5 parameters with only one electrode. The electrode with your 3 integrated sensors can be replaced and wear simply must be replaced. The operation is done via water-protected membrane keys.
Features
- Automatic temperature compensation.
- Auto switch-off
- Interchangeable 3 in 1 electrode
- 150 Measured value memory
- Min/max memory.
- Data hold
- Battery status indicator
- Auto switch-off
- Double display (measured value + temperature)
- Simple calibration via keypad
- Splash-water protected according to IP57.

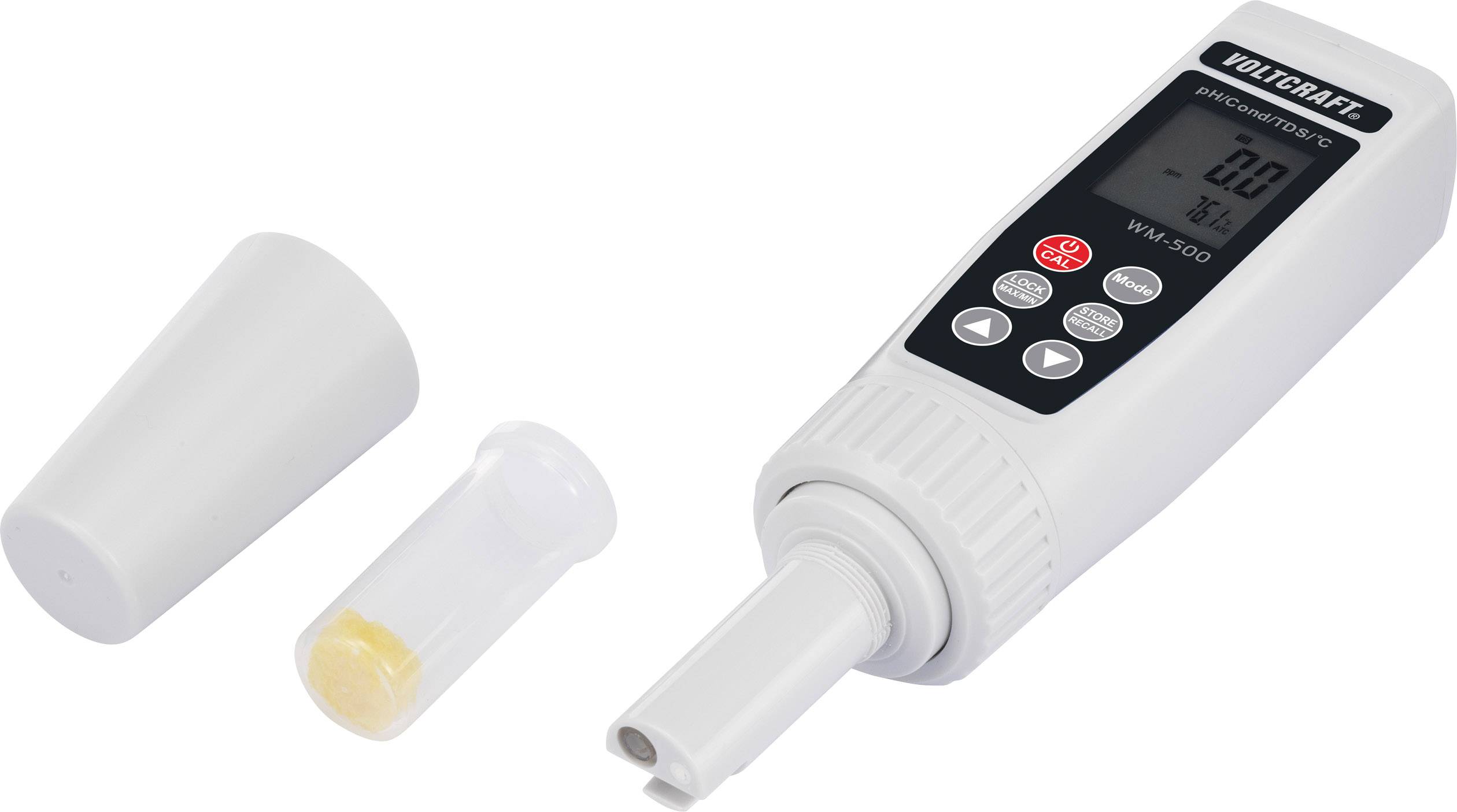

Scope of delivery
- Liquid measurement device
- 3 in 1 electrode
- Batteries
- Buffer solution pH4 (50 ml)
- Buffer solution pH7 (50 ml)
- Calibration solution 1413 µS (50 ml)
- Calibration solution of 12880 µS (50 ml)
- Storage solution (5 ml)
- Storage case
- User manual.
Hints
Redox (ORP)-electrode not included in the delivery. For use in the industrial area (eg galvanotechnics). The measuring device is not suitable.
