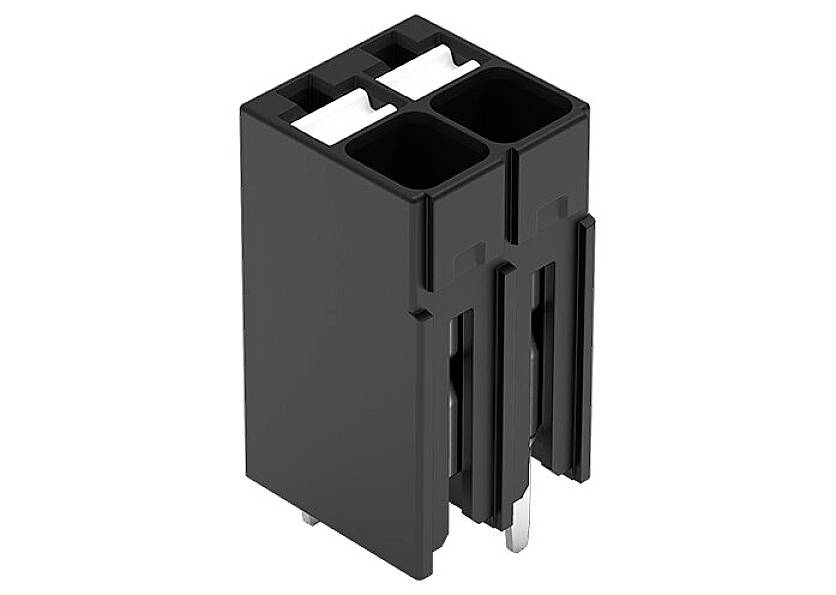

WAGO 2086-1122 Print terminal 1.50 mm² Number of pins 2 Black 1 pc(s)
Product type
Print terminal
CS
3.50 mm
Pins per row
2
Number of pins
2
Connection
Spring-loaded heavy duty connector
EAN:
Part number:
Item no:
Number
Minimum order quantity: 7
Total (€ 0.58 / piece)
€ 0.58
incl. VAT
14-day return policy included
Highlights & Details
THR PCB terminal; pusher; 1.5 mm²; pitch 3.5 mm; 2-pole; Push-in CAGE CLAMP®; 1.50 mm²; black
Our service for you
Technical specifications
- Type
2086-1122
- Product type
Print terminal
- CS
3.50 mm
- No. of rows
1
- Pins per row
2
- Number of pins
2
- Min. stripping length
8 mm
- Stripping length (max.)
9 mm
- Connection
Spring-loaded heavy duty connector
- Nominal current
17.5 A
- Cross section (flexible) (min.)
0.14 mm²
- Nominal current - rounded value
17.5 A
- Cross section (inflexible) (min.)
0.14 mm²
- Cross section (flexible) (max.)
1.50 mm²
- Cross section (inflexible) (max.)
1.50 mm²
- AWG (min.)
24
- AWG max.
16
- Factory colour
Black
- Manufacturer part #
2086-1122
- Content
1 pc(s)
- Nominal voltage
630 V
- Width
7.7 mm
- Height
16 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2624739 WAGO 2086-1122 Print terminal 1.50 mm² Number of pins 2 Black 1 pc(s)
