WAGO 2086-1128/300-000 Print terminal 1.50 mm² Number of pins 8 Black 1 pc(s)

Rectangular, black plastic connector with multiple parallel slots and metal contacts, used for electrical connection.
Black plastic connecting element with ten rectangular openings. Suitable for electrical contacts or electronic circuit boards.

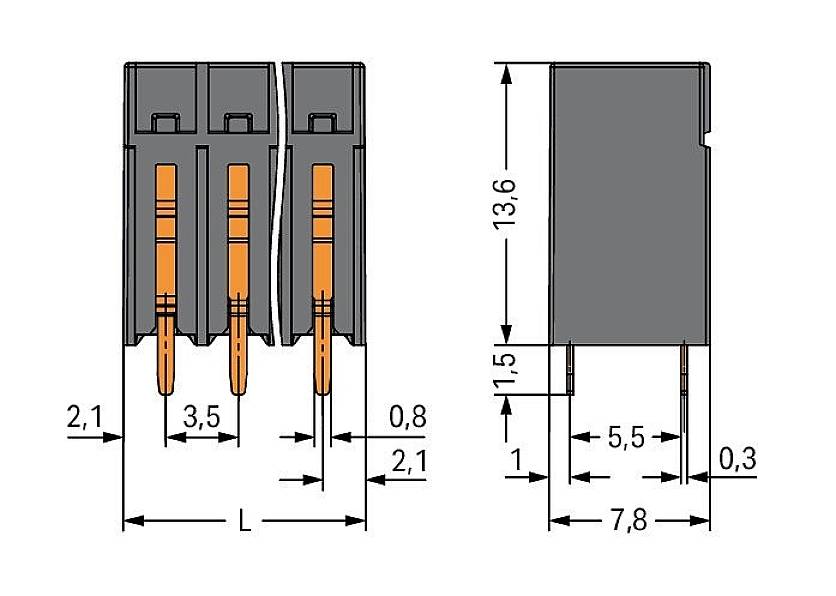

Figure of a connector with dimensions: height 13.6 mm, width 7.8 mm, pin spacing 2.1 mm. Detailed dimensional information shown.

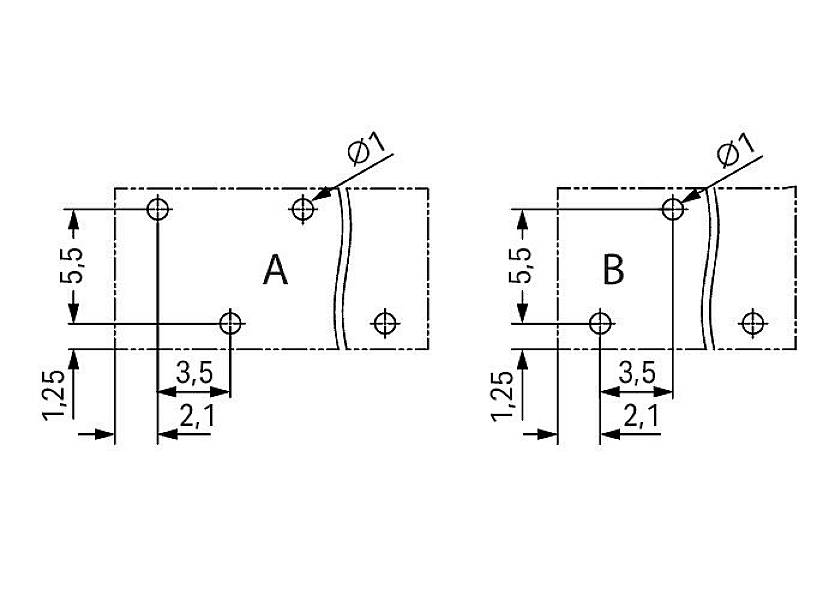

Technical drawing of two rectangular components, A and B, with identical dimensions and holes: 5.5 x 3.5 x 2.1 mm.
1/4
Product type
Print terminal
CS
3.50 mm
Pins per row
8
Number of pins
8
Connection
Spring-loaded heavy duty connector
EAN:
Part number:
Item no:
Fast track dispatch on Thu 29 Oct
154 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Minimum order quantity: 2
Total (€ 1.99 / piece)
€ 3.98
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

THR PCB terminal; pusher; 1.5 mm²; pitch 3.5 mm; 8-pin; Push-in CAGE CLAMP®; soldering pin length 1.5 mm; 1.50 mm²; black

  • Content 1 pc(s)

Our service for you

Technical specifications

Type

2086-1128/300-000

Product type

Print terminal

CS

3.50 mm

No. of rows

1

Pins per row

8

Number of pins

8

Min. stripping length

8 mm

Stripping length (max.)

9 mm

Connection

Spring-loaded heavy duty connector

Nominal current

17.5 A

Cross section (flexible) (min.)

0.14 mm²

Nominal current - rounded value

17.5 A

Cross section (inflexible) (min.)

0.14 mm²

Cross section (flexible) (max.)

1.50 mm²

Cross section (inflexible) (max.)

1.50 mm²

AWG (min.)

24

AWG max.

16

Factory colour

Black

Manufacturer part #

2086-1128/300-000

Content

1 pc(s)

Nominal voltage

630 V

Width

28.7 mm

Height

15.1 mm

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2624752 WAGO 2086-1128/300-000 Print terminal 1.50 mm² Number of pins 8 Black 1 pc(s)
