WAGO 280-583 Actuator terminal 5 mm Pull spring Configuration: L Grey 50 pc(s) Piece

A grey electrical terminal block for connecting wires. Shows a complex internal structure with multiple connection options.

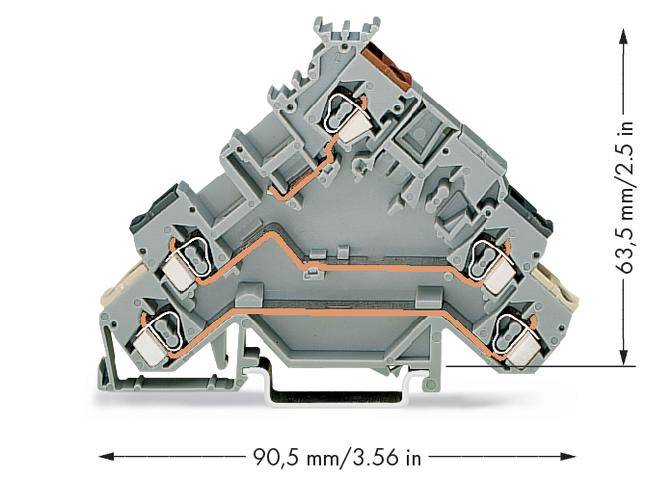

A grey-orange terminal block adapter on a white background. Dimensions: 90.5 mm wide, 63.5 mm high. Electrical contacts visible.

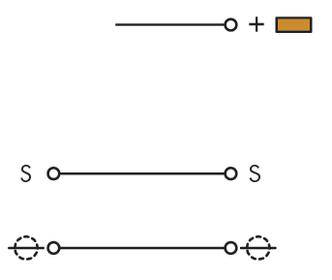

'Three electrical circuit diagrams: Simple circuit with battery; Double circuit with "S" marking; Interrupted circuit with dashed ends.'
1/3
Packaging type
Piece
Product type
Actuator terminal
Connection
Pull spring
Cross section (flexible) (max.)
2.50 mm²
Cross section (inflexible) (max.)
2.50 mm²
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Fri 20 Nov
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number (Package size 50 pc(s))
Total (€ 5.90 / piece)
€ 295.00
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Actuator terminal block

  • 280-583
  • Industrial packaging, pack of 50

Technical specifications

  • 3-CONDUCTOR ACTUATOR TERMINAL BLOCK
Packaging type

Piece

Product type

Actuator terminal

Connection

Pull spring

Configuration

L

Cross section (flexible) (min.)

0.08 mm²

Cross section (flexible) (max.)

2.50 mm²

Cross section (inflexible) (min.)

0.08 mm²

Cross section (inflexible) (max.)

2.50 mm²

AWG (min.)

28

AWG max.

14

Clamp width

5 mm

No. of rows

3

Number of pins

5

Factory colour

Grey

Nominal current

20 A

Nominal current - rounded value

20 A

Nominal voltage

400 V

Min. stripping length

8 mm

Stripping length (max.)

9 mm

Manufacturer part #

280-583

Content

50 pc(s)

Industrial packaging

Yes

Type

280-583

Dim

(L x W x H) 5 x 5 x 63.50 mm

Width

5 mm

Height

63.50 mm

Length

5 mm

Contamination level

3

Connector colour

Grey

UKCA

not relevant

Documents & Downloads

Datasheet

Datasheet 535929 WAGO 280-583 Actuator terminal 5 mm Pull spring Configuration: L Grey 50 pc(s) Piece

User & Safety Instructions

User & Safety Instructions 535929 WAGO 280-583 Actuator terminal 5 mm Pull spring Configuration: L Grey 50 pc(s) Piece

Description

With shield conductor continuity, for actuators with shield conductor continuity for thermo-switch, gray.
