WAGO 280-683 N terminal 5 mm Pull spring Configuration: L Grey 50 pc(s)

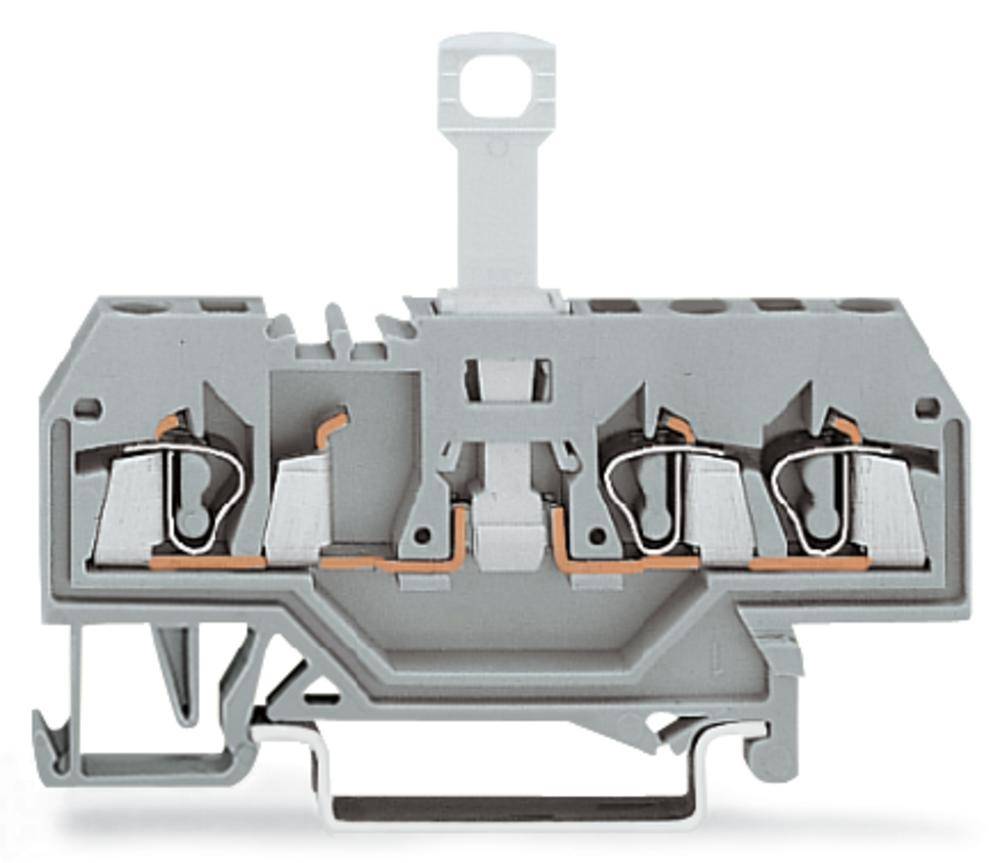

Grey electronic terminal block with multiple connection terminals and copper conductors in a cross-sectional view.

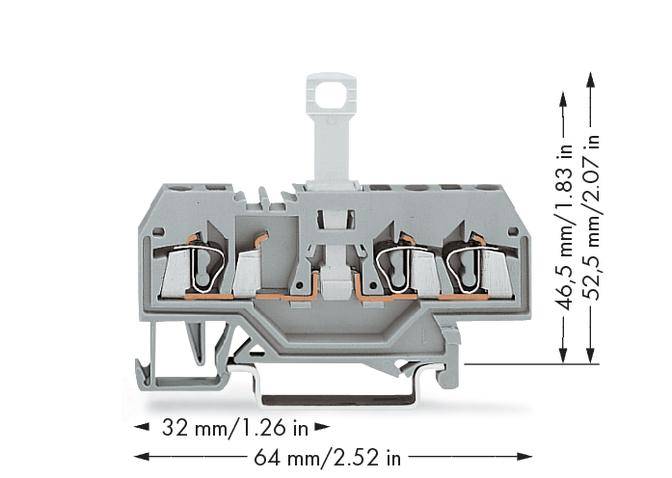

Grey-orange terminal block with dimensions: Length 64 mm (2.52 in), Height 46.5 mm (1.83 in) and 52.5 mm (2.07 in), Width 32 mm (1.26 in).
1/2
Product type
N terminal
Connection
Pull spring
Cross section (flexible) (max.)
2.50 mm²
Cross section (inflexible) (max.)
2.50 mm²
Nominal current - rounded value
10 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Tue, 12 Jan 2027
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number (Package size 50 pc(s))
Total (€ 2.80 / piece)
€ 139.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

3-conductor disconnect terminal block

  • 280-683

Technical specifications

  • 3-CONDUCTOR DISCONNECT TERM. BLOCK
Product type

N terminal

Features

+ separator

Connection

Pull spring

Configuration

L

Cross section (flexible) (min.)

0.08 mm²

Cross section (flexible) (max.)

2.50 mm²

Cross section (inflexible) (min.)

0.08 mm²

Cross section (inflexible) (max.)

2.50 mm²

AWG (min.)

28

AWG max.

14

Clamp width

5 mm

No. of rows

1

Pins per row

3

Number of pins

3

Factory colour

Grey

Nominal current

10 A

Nominal current - rounded value

10 A

Nominal voltage

400 V

Min. stripping length

8 mm

Stripping length (max.)

9 mm

Manufacturer part #

280-683

Content

50 pc(s)

Industrial packaging

Yes

Type

280-683

Dim

(W x H) 5 mm x 52.50 mm

Width

5 mm

Height

52.50 mm

Contamination level

3

Flammability rating

V0

Connector colour

Grey

Insulation material

Thermoplastic

UKCA

not relevant

Documents & Downloads

Datasheet

Datasheet 536098 WAGO 280-683 N terminal 5 mm Pull spring Configuration: L Grey 50 pc(s)

User & Safety Instructions

User & Safety Instructions 536098 WAGO 280-683 N terminal 5 mm Pull spring Configuration: L Grey 50 pc(s)

Description

+ separator, gray.
