WAGO 285-607 PG terminal 16 mm Pull spring Configuration: Terre Green, Yellow 15 pc(s)

Electrical terminal block in yellow and green with metal connections, showing a cross-sectional view to illustrate its internal structure.

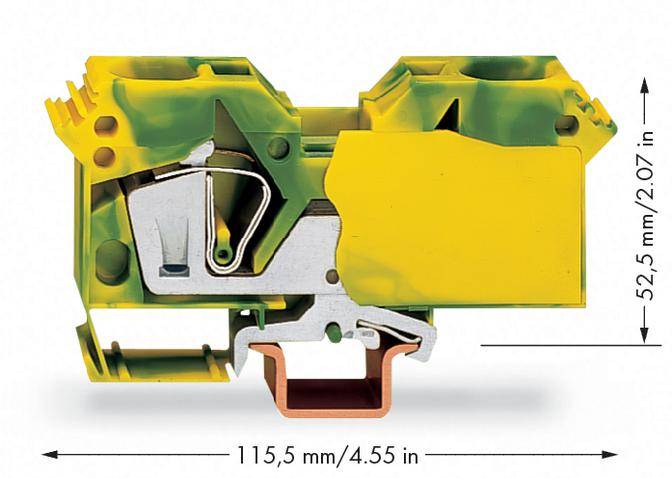

Switching terminal cut model in Yellow-Green with dimensional specifications: Width 115.5 mm (4.55 inches), Height 52.5 mm (2.07 inches).
1/2
Product type
PG terminal
Connection
Pull spring
Cross section (flexible) (max.)
35 mm²
Cross section (inflexible) (max.)
35 mm²
Content
15 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Wed 18 Nov
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number (Package size 15 pc(s))
Total (€ 45.93 / piece)
€ 689.00
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

2-conductor ground terminal block

  • 285-607
  • Industrial packaging with 15 pieces

Technical specifications

  • 2-COND. PE TERM.BL.35 SQMM F. TS35
Product type

PG terminal

Connection

Pull spring

Configuration

Terre

Cross section (flexible) (min.)

6 mm²

Cross section (flexible) (max.)

35 mm²

Cross section (inflexible) (min.)

6 mm²

Cross section (inflexible) (max.)

35 mm²

AWG (min.)

10

AWG max.

2

Clamp width

16 mm

No. of rows

1

Pins per row

2

Number of pins

2

Factory colour

Green

Yellow

Min. stripping length

16 mm

Stripping length (max.)

23 mm

Manufacturer part #

285-607

Content

15 pc(s)

Industrial packaging

Yes

Type

285-607

Dim

(W x H) 16 mm x 52.50 mm

Width

16 mm

Height

52.50 mm

Flammability rating

V0

Insulation material

Thermoplastic

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 537207 WAGO 285-607 PG terminal 16 mm Pull spring Configuration: Terre Green, Yellow 15 pc(s)

User & Safety Instructions

User & Safety Instructions 537207 WAGO 285-607 PG terminal 16 mm Pull spring Configuration: Terre Green, Yellow 15 pc(s)

Description

Green-yellow.
