Name: WAGO 736-706 2-tier terminal 2.50 mm² Number of pins 12 Grey 28 pc(s)
Brand: WAGO
SKU: 544352
Availability: BackOrder

Grey, right-angled connector with multiple pin rows and white terminals.

'Current Load Curve: Shows current in A against ambient temperature in °C for 2-, 4-, 6-, 12-pole. Reduction factor 1.'

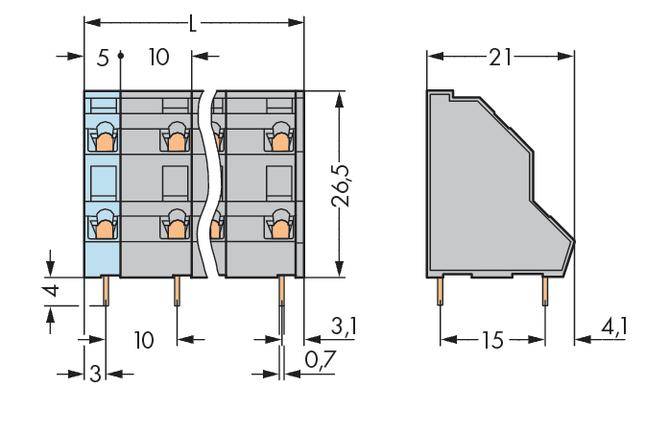

Technical drawing of a component with dimensions in millimetres. Shows front and side view along with connector positions.

Two parallel rectangles with dashed lines, connected by straight lines and circular markings; designated as part '1'.

1/4

Product type

2-tier terminal

10 mm

Pins per row

Number of pins

Connection

Spring-loaded terminal

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Fri 4 Dec

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number (Package size 28 pc(s))

Set(s)

Total (€ 7.68 / piece)

€ 214.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

DBL DECK PCB

Type: 736-706

Product type: 2-tier terminal

Features: + CAGE CLAMP®

CS: 10 mm

No. of rows: 2

Pins per row: 6

Number of pins: 12

Series: 736

Min. stripping length: 8 mm

Stripping length (max.): 6 mm

Connection: Spring-loaded terminal
Print

Cross section (flexible) (min.): 0.08 mm²

Cross section (inflexible) (min.): 0.08 mm²

Cross section (flexible) (max.): 2.50 mm²

Cross section (inflexible) (max.): 2.50 mm²

AWG (min.): 28

Connector orientation: At an angle (to the PCB)

AWG max.: 12

Contact material: Cathode copper, tin plated

Factory colour: Grey

Wire protection: Yes

Manufacturer part #: 736-706

Industrial packaging: Yes

Content: 28 pc(s)

Nominal voltage: 1000 V

Width: 56.00 mm

Height: 30.50 mm

Length: 21.00 mm

UKCA: not relevant

Variants(All information include VAT, plus shipping costs)

Pins per row

Number of pins

Factory colour
