Name: WAGO 737-216 3-tier terminal 2.50 mm² Number of pins 48 Grey 12 pc(s)
Brand: WAGO
SKU: 544398
Availability: BackOrder

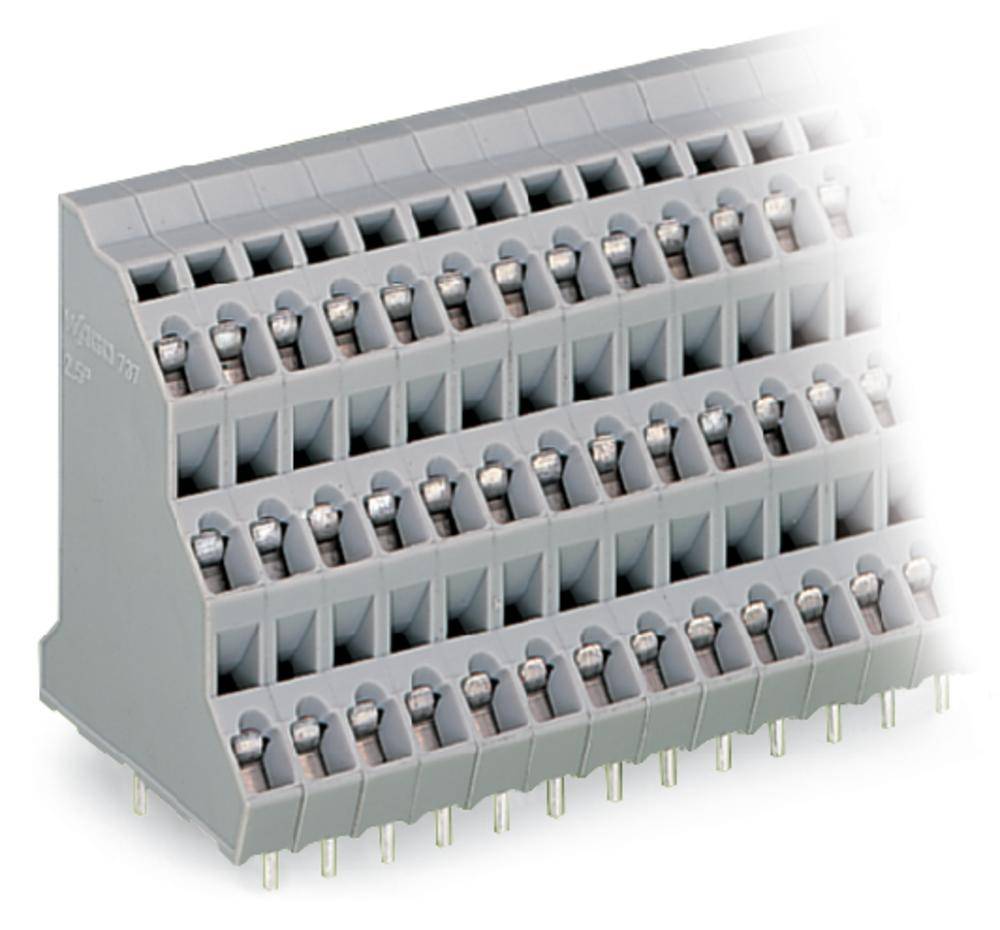

Grey, multi-row connection module with numerous terminal blocks for electronic connections. It features metallic pins on its underside.

Diagram of Current Carrying Capacity with Conductor Cross-Section 2.5 mm². Axes: Current in A, Ambient Temperature in °C. Shows Curves for 2-, 4-, 6-, 12-pole.

Diagram of an electronic component with dimensions: height 40 mm, width 31 mm. Shows front and side views with connector pins.

Technical drawing of a striped pattern with continuous lines and round markings. Arrows point to specific points.

1/4

Product type

3-tier terminal

5 mm

Pins per row

Number of pins

Connection

Spring-loaded terminal

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Fri 4 Dec

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number (Package size 12 pc(s))

Set(s)

Total (€ 26.25 / piece)

€ 315.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Triple-deck PCB terminal strip

Content 12 pc(s)

Technical specifications

T. DECK OFF LINE 5MM GREY

Type: 737-216

Product type: 3-tier terminal

Features: + CAGE CLAMP®

CS: 5 mm

No. of rows: 3

Pins per row: 16

Number of pins: 48

Series: 737

Min. stripping length: 8 mm

Stripping length (max.): 6 mm

Connection: Spring-loaded terminal
Print

Cross section (flexible) (min.): 0.08 mm²

Cross section (inflexible) (min.): 0.08 mm²

Cross section (flexible) (max.): 2.50 mm²

Cross section (inflexible) (max.): 2.50 mm²

AWG (min.): 28

Connector orientation: At an angle (to the PCB)

AWG max.: 12

Contact material: Cathode copper, tin plated

Factory colour: Grey

Wire protection: Yes

Manufacturer part #: 737-216

Industrial packaging: Yes

Content: 12 pc(s)

Nominal voltage: 320 V

Width: 81.00 mm

Height: 44.00 mm

Length: 31.00 mm

UKCA: yes
