Name: WAGO 741-310 Spring-loaded terminal 2.50 mm² Number of pins 10 Grey 60 pc(s)
Brand: WAGO
SKU: 545178
Availability: BackOrder

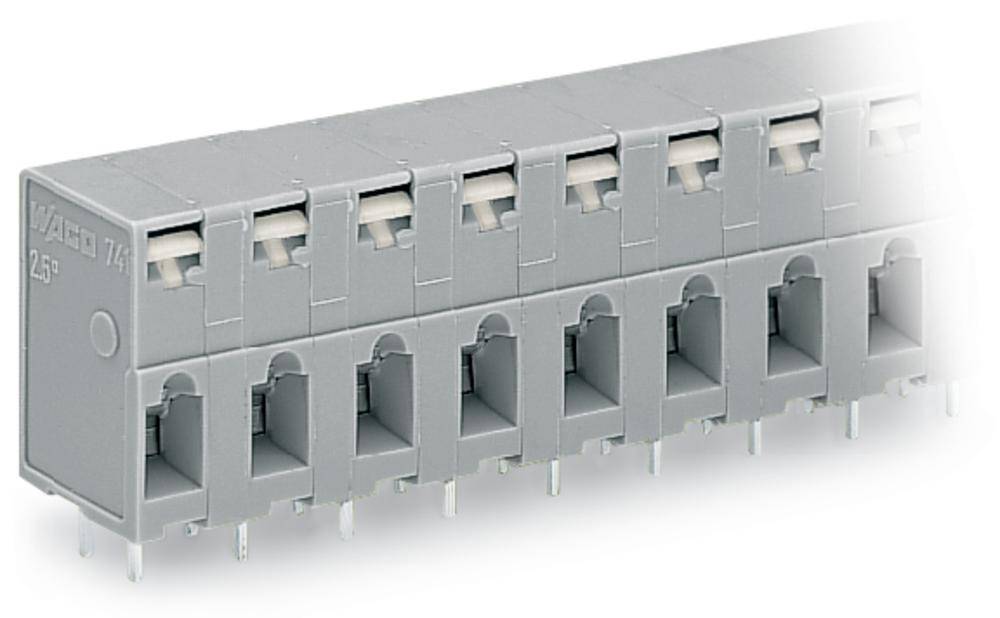

A grey modular connector system with multiple slots, suitable for use in electrical engineering for secure conductor connection.

'Technical drawing of an electrical relay with precise dimensional specifications in millimetres. Shows detailed view of circuit components and pins.'

1/2

Product type

Spring-loaded terminal

7.50 mm

Pins per row

Number of pins

Connection

Spring-loaded terminal

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Tue 24 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number (Package size 60 pc(s))

Set(s)

Total (€ 7.75 / piece)

€ 465.00

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

GDS-DURCHFüHRUNGSLEISTE 10-POL.RM7,5

Type: 741-310

Product type: Spring-loaded terminal

Features: + CAGE CLAMP®

CS: 7.50 mm

No. of rows: 1

Pins per row: 10

Number of pins: 10

Series: 741

Min. stripping length: 8 mm

Stripping length (max.): 6 mm

Connection: Spring-loaded terminal
Print

Nominal current: 16 A

Cross section (flexible) (min.): 0.08 mm²

Nominal current - rounded value: 16 A

Cross section (inflexible) (min.): 0.08 mm²

Cross section (flexible) (max.): 2.50 mm²

Cross section (inflexible) (max.): 2.50 mm²

AWG (min.): 28

Connector orientation: Parallel (to the PCB)

AWG max.: 12

Contact material: Cathode copper, tin plated

Enclosure material: Polyamide

Factory colour: Grey

Wire protection: Yes

Actuation direction: Parallel (to the PCB)

Manufacturer part #: 741-310

Industrial packaging: Yes

Content: 60 pc(s)

Nominal voltage: 630 V

Width: 74.00 mm

Height: 22.50 mm

Length: 12.80 mm
