Name: WAGO 770-844/060-000 Mains connector WINSTA MIDI Socket, vertical vertical Total number of pins: 4 25 A Grey 50 pc(s)
Brand: WAGO
SKU: 1642506
Availability: BackOrder

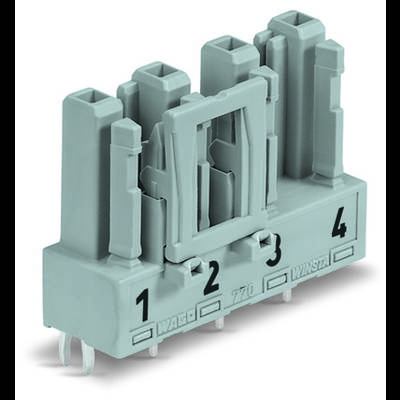

A four-pole, grey-white plug connector with numbering 1 to 4, suitable for electrical connections; manufacturer-WAGO, series-770 WINSTA.

'Drawing of hole patterns in straight and angled design. Dimensional specifications: 10 mm spacing between holes, 1.4±0.1 mm hole diameter.'

A grey electrical connector with four numbered inputs, marked with 'WAGO' and 'WINSTA', for mounting purposes.

1/3

Product type

Mains connector

Connector type

Socket, vertical vertical

Total no. of pins

Connection

Soldering

Nominal voltage

400 V

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Wed 2 Dec

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number (Package size 50 pc(s))

Set(s)

Total (€ 3.60 / piece)

€ 179.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Socket

770-844/060-000
Industrial packaging, pack of 50
This text is machine translated.

Technical specifications

Product type: Mains connector

Connector type: Socket, vertical vertical

Total no. of pins: 4

Connection: Soldering

Nominal voltage: 400 V

Factory colour: Grey

Content: 50 pc(s)

Nominal current: 25 A

Nominal current - rounded value: 25 A

Manufacturer part #: 770-844/060-000

Industrial packaging: Yes

Coding: B

Contact material: Copper alloy

Number of pins: 4

Width: 37 mm

Height: 26 mm

Series: WINSTA MIDI

Type: 770-844/060-000

UKCA: yes
