Name: WAGO 770-875/073-000 Mains connector WINSTA MIDI Plug, vertical mount Total number of pins: 5 25 A Light green 50 pc(s)
Brand: WAGO
SKU: 1642516
Availability: BackOrder

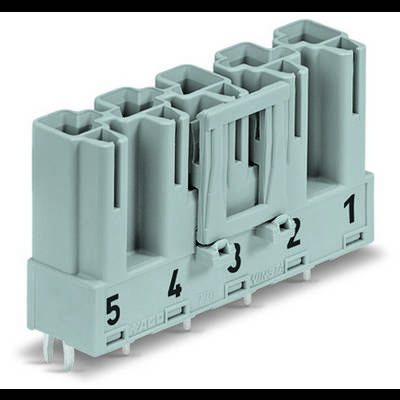

A grey electrical connector with numbered inputs 1 to 5, suitable for the secure connection of electrical cables.

Two technical diagrams currently show straight and angled structural forms with dimensions. The hole diameter is 1.4 ±0.1 mm.

Green connector with six numbered terminals, two of them marked with a frame. Suitable for electrical installations.

1/3

Product type

Mains connector

Connector type

Plug, vertical mount

Total no. of pins

Connection

Soldering

Nominal voltage

400 V

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Wed 2 Dec

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number (Package size 50 pc(s))

Set(s)

Total (€ 3.40 / piece)

€ 169.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Connector

770-875/073-000
Industrial packaging, pack of 50
This text is machine translated.

Technical specifications

Product type: Mains connector

Connector type: Plug, vertical mount

Total no. of pins: 5

Connection: Soldering

Nominal voltage: 400 V

Factory colour: Light green

Content: 50 pc(s)

Nominal current: 25 A

Nominal current - rounded value: 25 A

Manufacturer part #: 770-875/073-000

Industrial packaging: Yes

Coding: B

Contact material: Copper alloy

Number of pins: 5

Width: 47 mm

Height: 26 mm

Series: WINSTA MIDI

Type: 770-875/073-000

UKCA: yes
