WAGO Socket housing cable 231 Total number of pins 11 Contact spacing: 5 mm 231-111/031-000 25 pc(s)

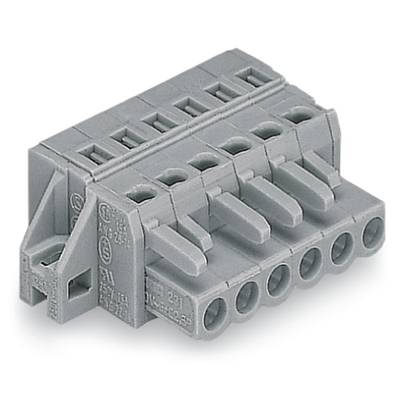

Grey-orange electrical terminal block with six connection openings and terminals, used for wiring electrical circuits.
The derating curve shows current (A) against ambient temperature (°C) for 2-, 4-, 6-, 12-, 24-pole connections. Current decreases as temperature rises.

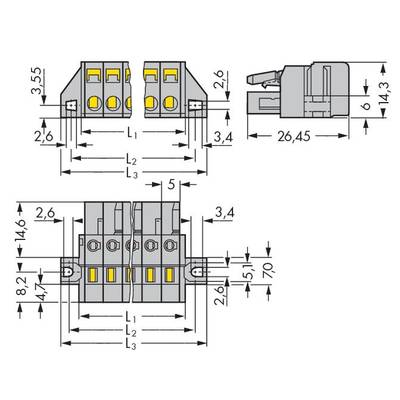

Technical drawing of a three-pole terminal strip with detailed dimensions in millimetres, shown in side and top views.
1/3
Product type
Socket housing cable
Connector type
Socket, straight
No. of rows
1
Series
231
CS
5 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Mon 7 Dec
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number (Package size 25 pc(s))
Total (€ 9.60 / piece)
€ 239.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Female connector

  • Content: 25 pc(s)
  • No. of rows: 1
  • Total number of pins: 11

Technical specifications

  • FEDERL.M.KODN.U.BEF-FLANSCH 5,00 MM
Product type

Socket housing cable

Connector type

Socket, straight

No. of rows

1

Connector system

wire-to-board

Series

231

Features

+ actuator

+ sleeve

CS

5 mm

Pins per row

11

Total number of pins

11

Width

69.80 mm

Nominal current

15 A

Nominal current - rounded value

15 A

Content

25 pc(s)

AWG max.

12

AWG (min.)

28

Stripping length (max.)

9.00 mm

Dim

(L x W x H) 14.30 x 69.80 x 26.45 mm

Connection

Spring-loaded terminal

Case material

Polyphthalamide (PPA GF)

Manufacturer part #

231-111/031-000

Factory colour

Grey

Industrial packaging

Yes

Contact material

Cathode copper

Connector contact surface

Tin plated

Nominal voltage

320 V

Height

26.45 mm

Length

14.30 mm

max. cross section

2.5 mm²

Min. cross section

0.08 mm²

Connector orientation

Parallel (to the PCB)

Type

231-111/031-000

UKCA

not relevant

Documents & Downloads

Datasheet

Datasheet 727064 WAGO Socket housing cable 231 Total number of pins 11 Contact spacing: 5 mm 231-111/031-000 25 pc(s)

User & Safety Instructions

User & Safety Instructions 727064 WAGO Socket housing cable 231 Total number of pins 11 Contact spacing: 5 mm 231-111/031-000 25 pc(s)

Description

With mounting flanges, 4-pin 5 mm pitch, coding, with 2 latching jacks, for surface mounting, for screw mounting or similar fixing methods, with coding flange, with latch flange, grey.
