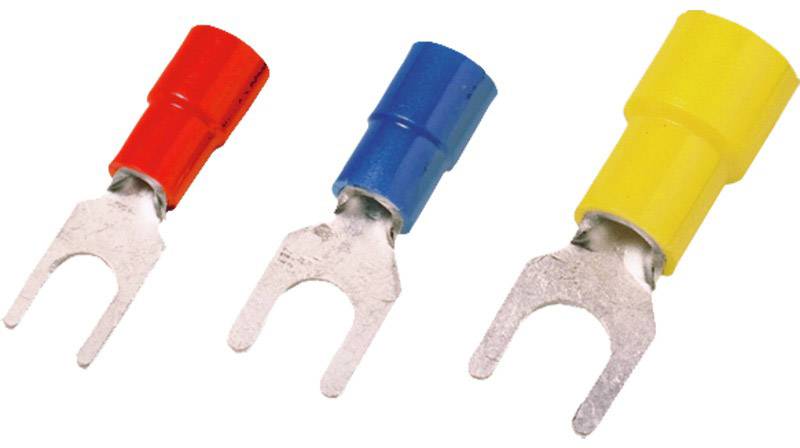

Weidmüller 1491350000 U terminal 16 mm² Hole Ø=5.8 mm Partially insulated Blue 50 pc(s) Piece
Packaging type
Piece
Product type
U terminal
Hole Ø
5.8 mm
Insulation type
Partially insulated
Contact material
Copper
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
- Blue
- Cross section (max.): 16 mm²
Our service for you
Technical specifications
- Connection length (I): 32.2 mm
- bore: C 6
- inside diameter flange (D2): 6.5 mm
- inside diameter collar (D4): 11 mm
- Packaging type
Piece
- Product type
U terminal
- Factory colour
Blue
- Hole Ø
5.8 mm
- Insulation type
Partially insulated
- Contact material
Copper
- Content
50 pc(s)
- Manufacturer part #
1491350000
- Type
KQIG-M6/-16
- max. cross section
16 mm²
- Insulation material
PA
- Cross-section range
16 mm² (max)
- RoHS-compliant
Yes
- Inside diameter
5.8 mm
- Outside Ø
11 mm
- UKCA
not relevant
