Weidmüller SAI-4-M-MVV-M12 1:1 2009620000 Sensor & actuator box (passive) M12 splitter +steel thread (shielded) 1 pc(s)

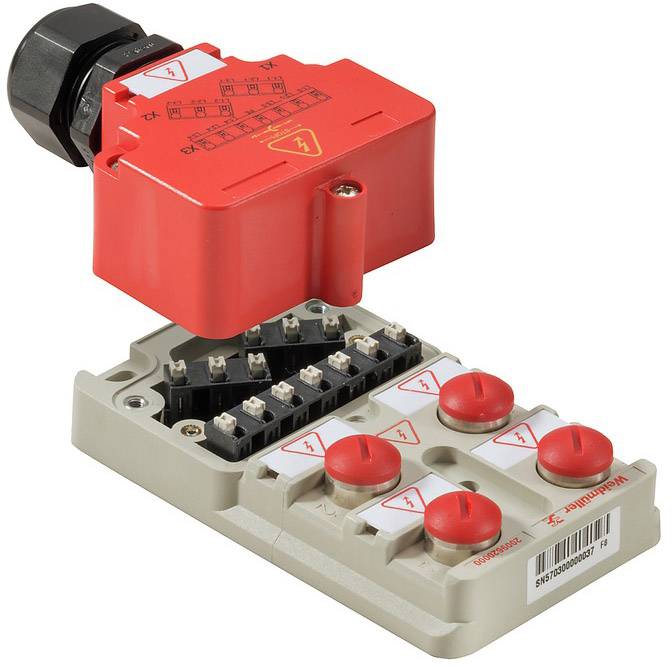

A red electrical safety switch is slightly open, revealing its internal wiring. Warning and operation symbols are visible.
Image similar
Packaging type
Piece
Product type
Sensor & actuator box (passive)
No. of signal spaces
4
No. of splitters
4-way
Type
SAI-4-M-MVV-M12 1:1
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Fri 13 Nov
5 Set(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 345.00 / piece)
€ 345.00
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
Only 5 Set(s) available
14-day return policy included
Report legal concerns

Technical specifications

  • Distributor material: Plastic
  • cover sealing material: Viton
  • contact material: CuZn
  • threaded bushes: CuZn, nickel-plated
  • contact carrier material: PBT (UL 94 V0)
  • Connection thread: M12
  • mating cycles: ≥ 50
  • stripping insulation length: 40 mm
  • distribution outlet: Hood version
  • External conductor diameter: 10 mm - 14 mm
  • : M20
  • nominal voltage: 400 V
  • Potential separation available: No
  • Towing chain suitability: Screwing No.
Packaging type

Piece

Product type

Sensor & actuator box (passive)

No. of signal spaces

4

Type

SAI-4-M-MVV-M12 1:1

Trunk line

No

No. of splitters

4-way

Status indicator

LED

Signal type

Universal

Connection

Screws

IP68

Max. power rating per slot

36 A

Total current (direct supply)

144 A

Max. temperature

+80 °C

Min. temperature

-20 °C

Connector cross section (max.)

1.5 mm²

Connector cross section (min.)

0.2 mm²

Case material

Polyester

Total no. of pins

4

Weight

100 g

Manufacturer part #

2009620000

Factory colour

Grey

Content

1 pc(s)

Number of pins

4

Power rating per I/O

12 A

UKCA

yes
