Buy Weller T0053450199 Thermometer 0 - 400 °C

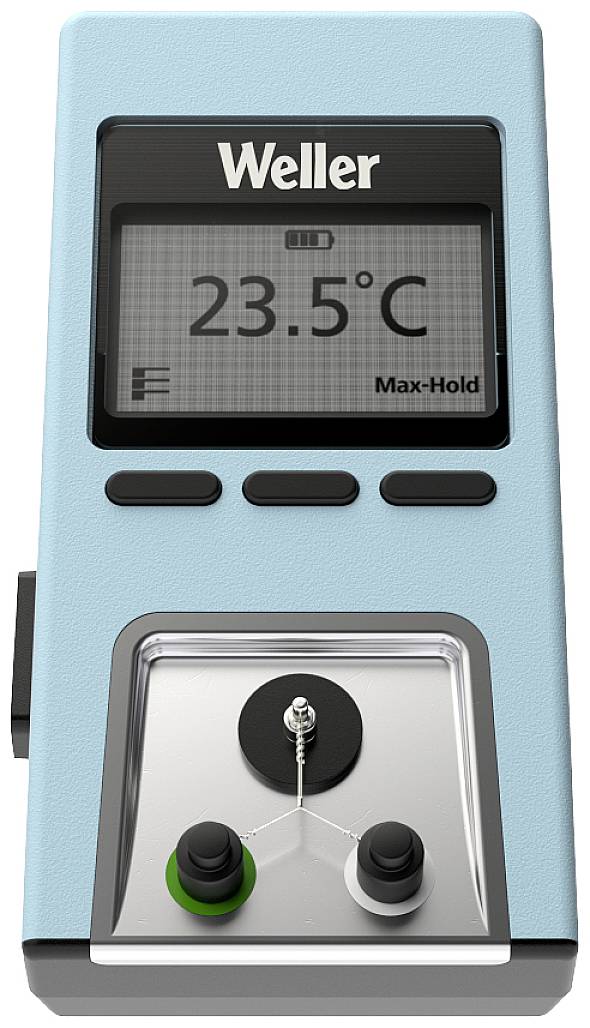

A Weller temperature measuring device displays '23.5°C'. The display has functions for battery status and max hold.

A temperature measuring device in a light blue casing displays '23.5 °C' on a digital display.

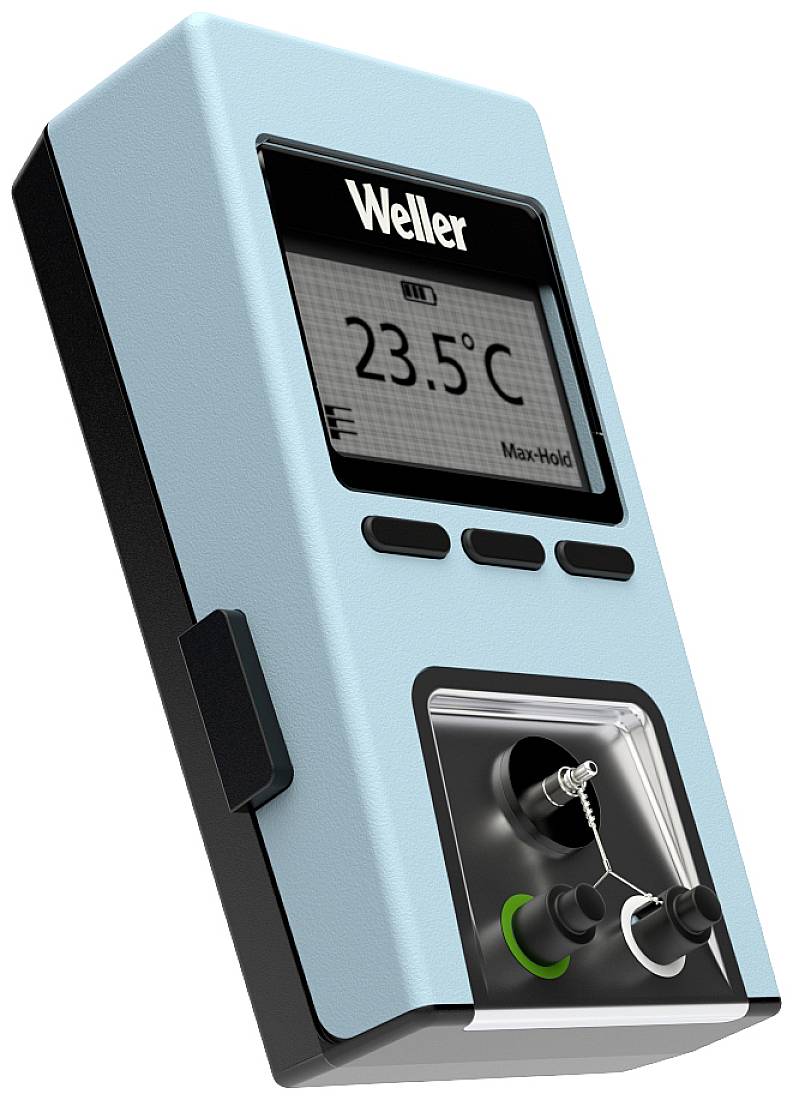

Electronic device with display showing '23.5°C'. Blue casing with black border, buttons, and ports.

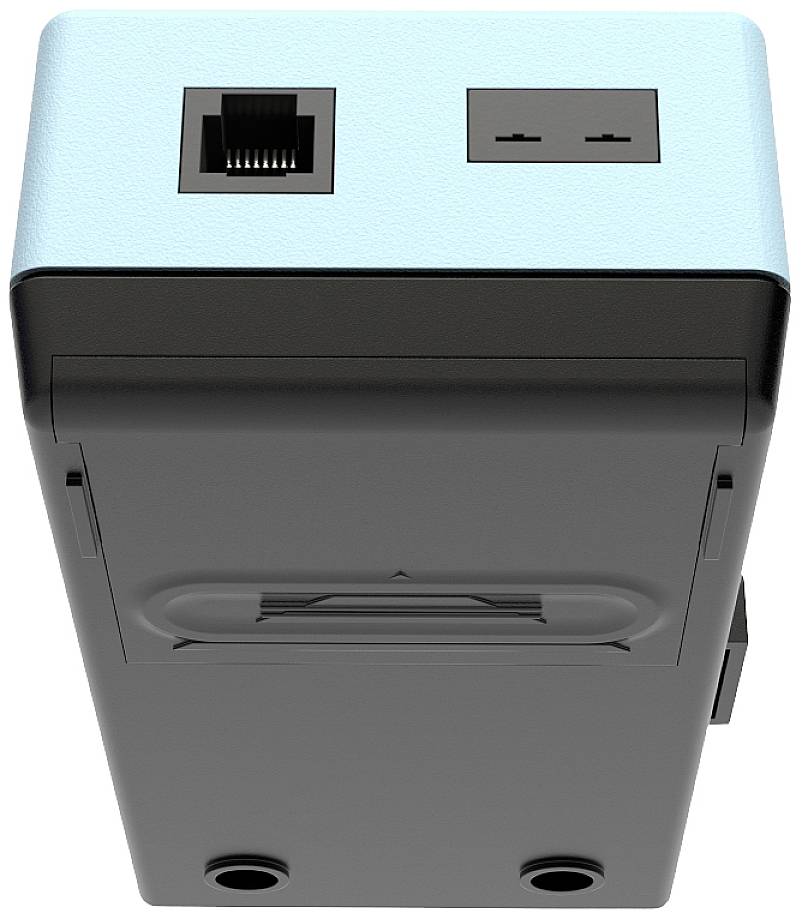

A rectangular electrical device with an Ethernet port and two slots on the top surface, likely for data connection.

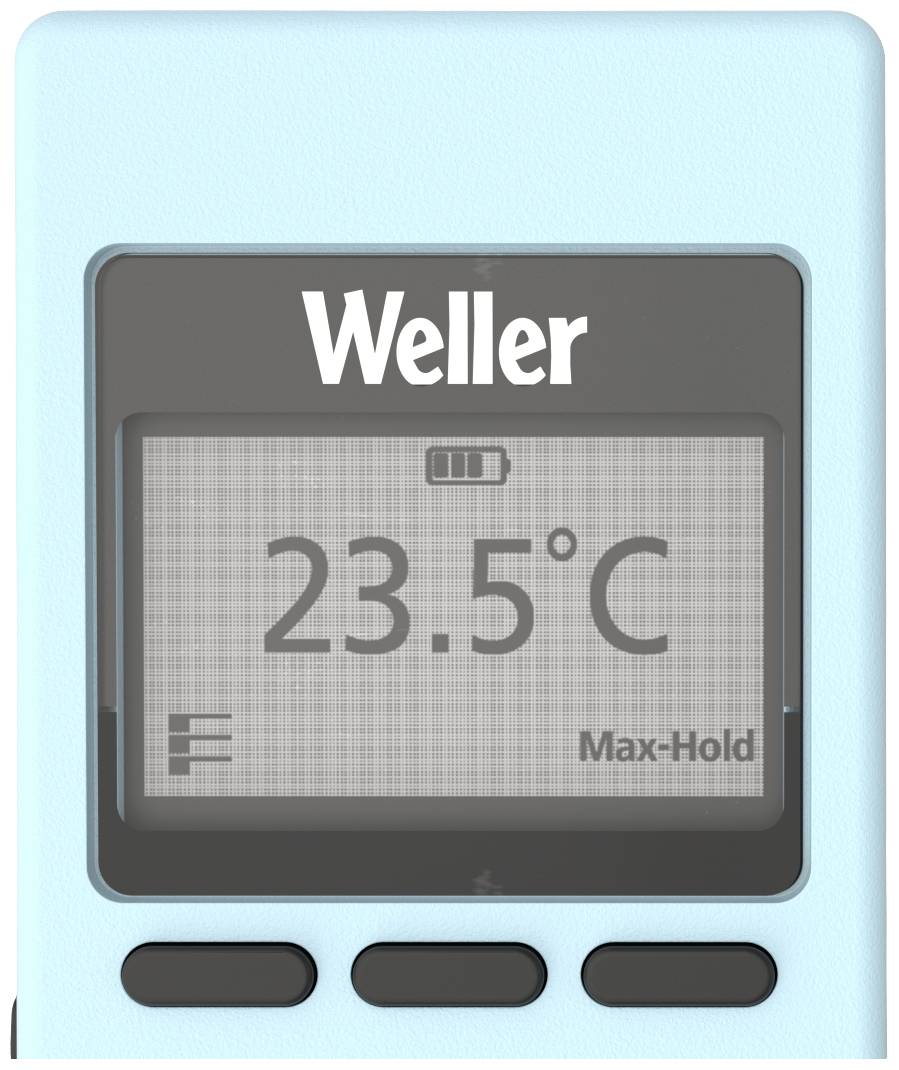

Digital display of a Weller thermometer showing 23.5°C, battery indicator nearly depleted, in 'Max-Hold' mode.

A navy blue and black electronic device with an Ethernet port and a smaller port on the top. It is compact and rectangular in shape.

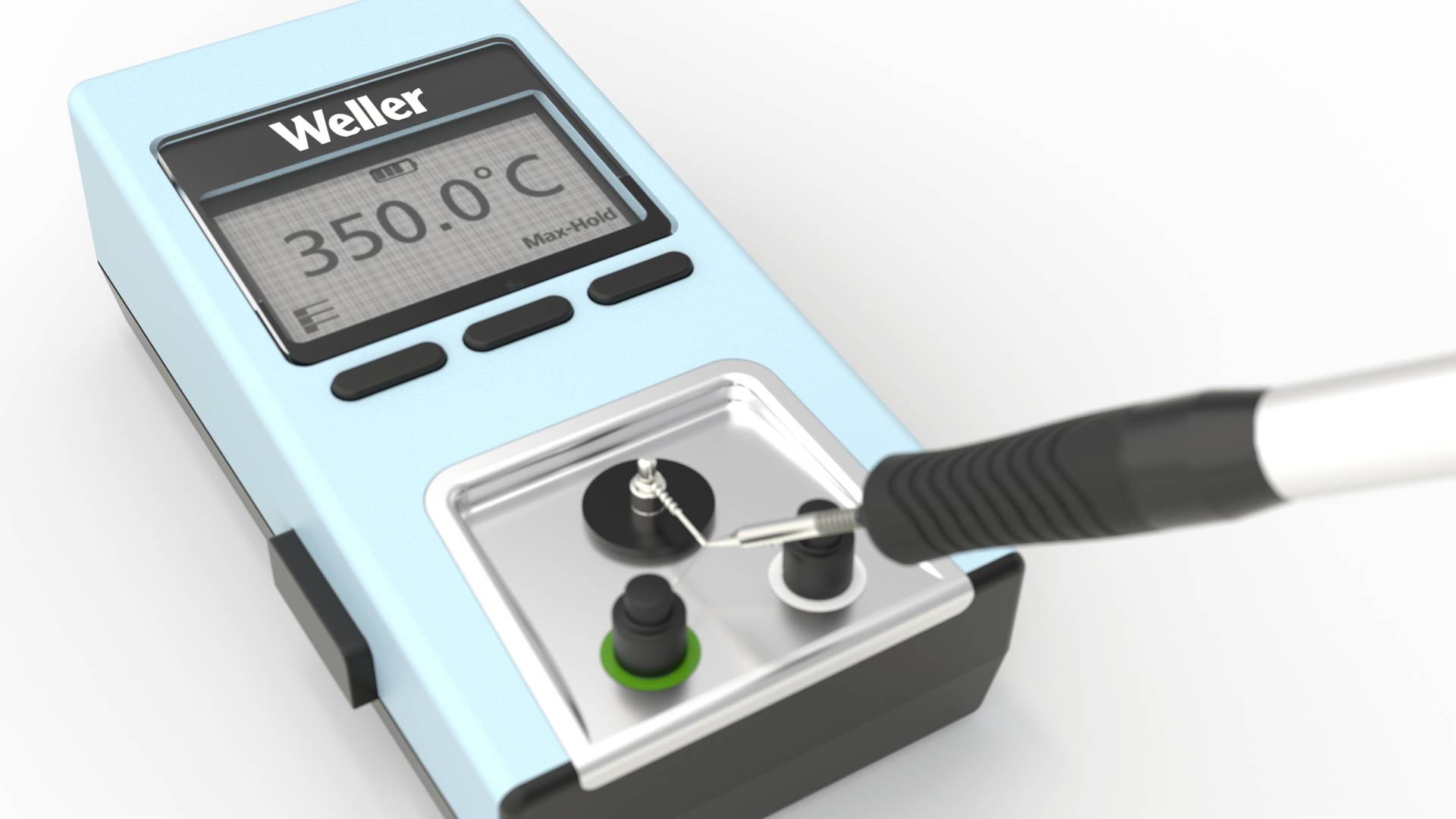

A soldering iron is used at 350°C on a blue soldering station.

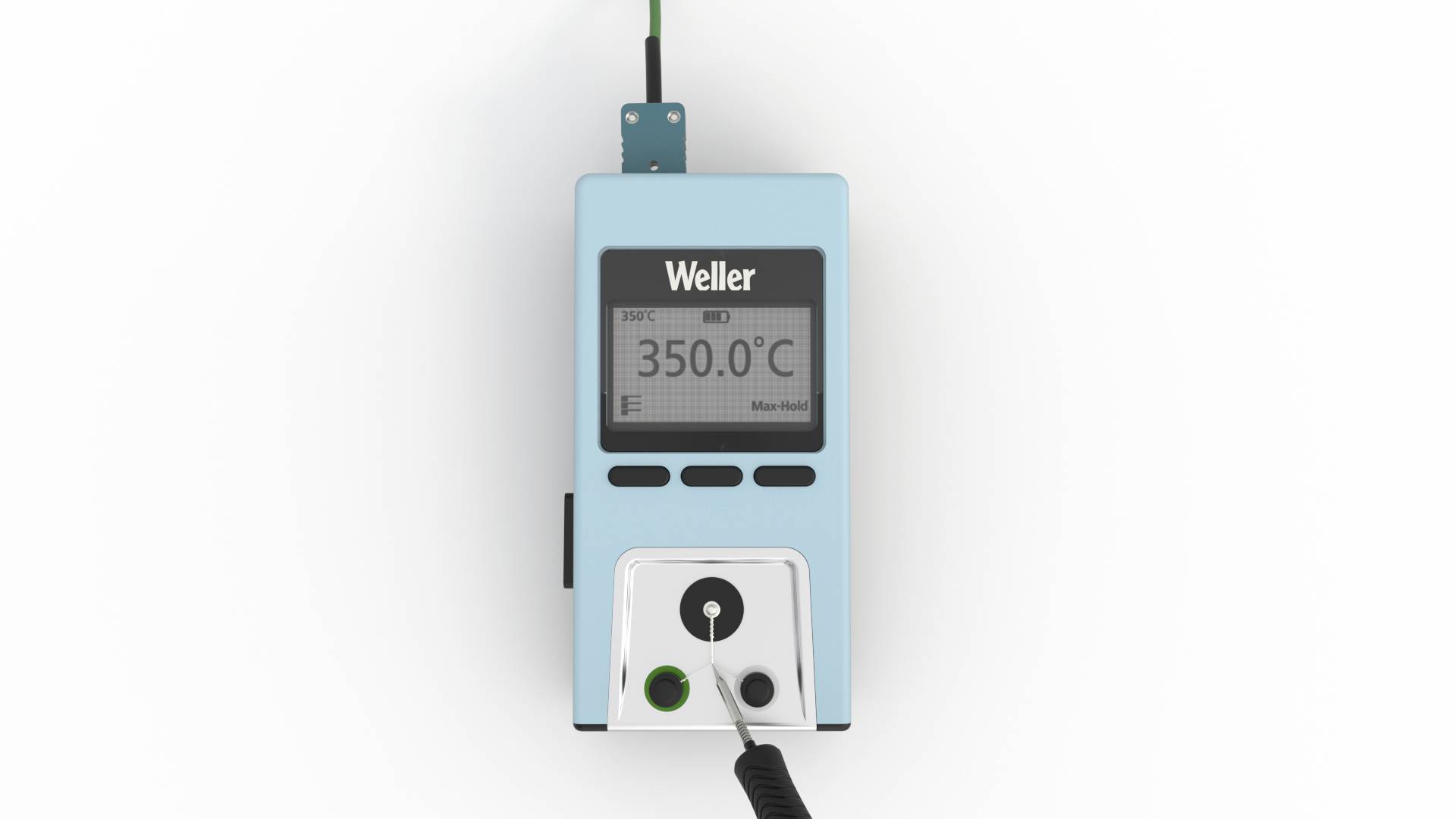

A Weller soldering iron controller shows '350.0°C' on the display. A soldering iron is connected.

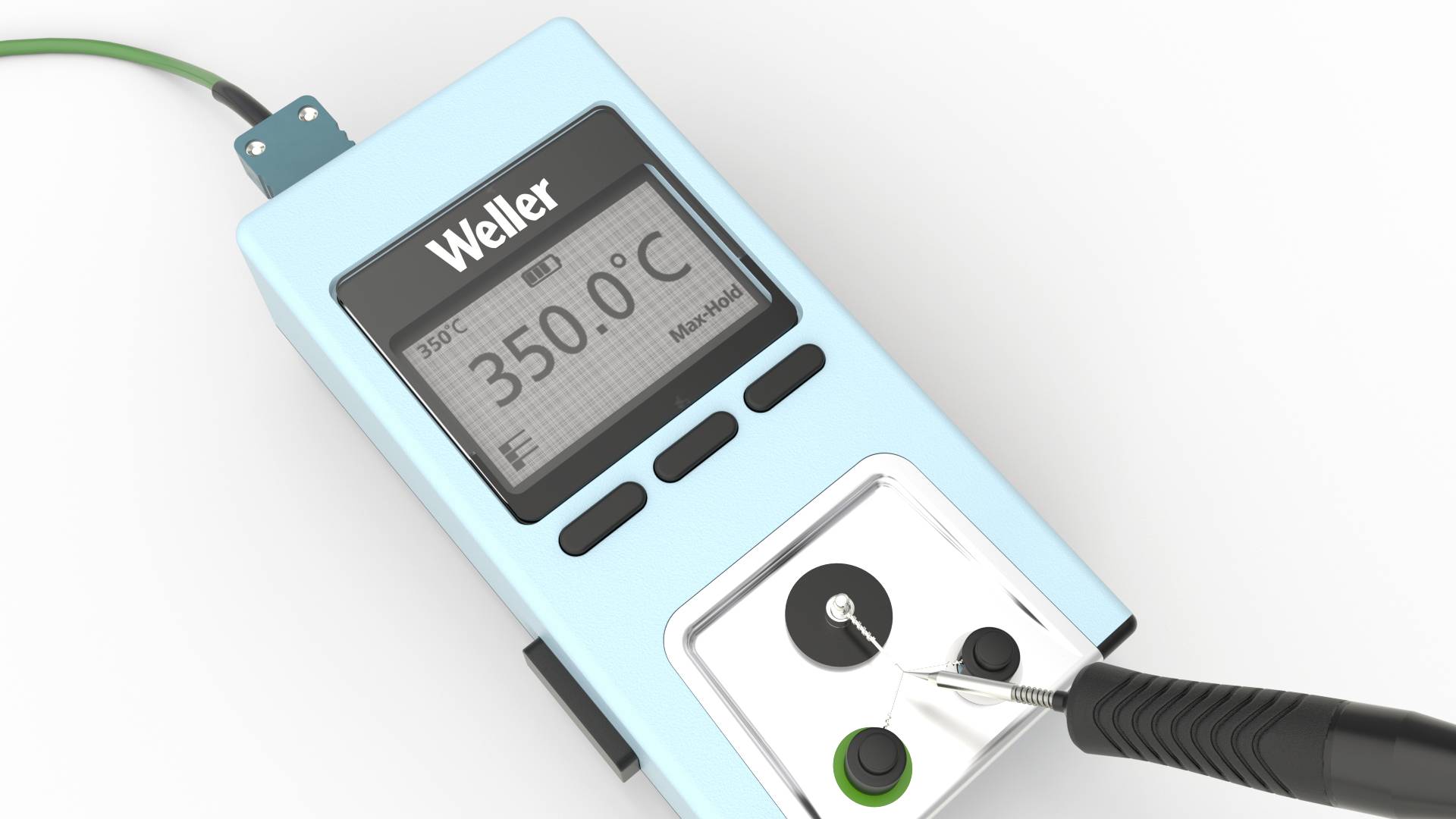

A digital soldering iron from Weller displays a temperature reading of 350.0°C. A soldering tip is connected and ready for use.

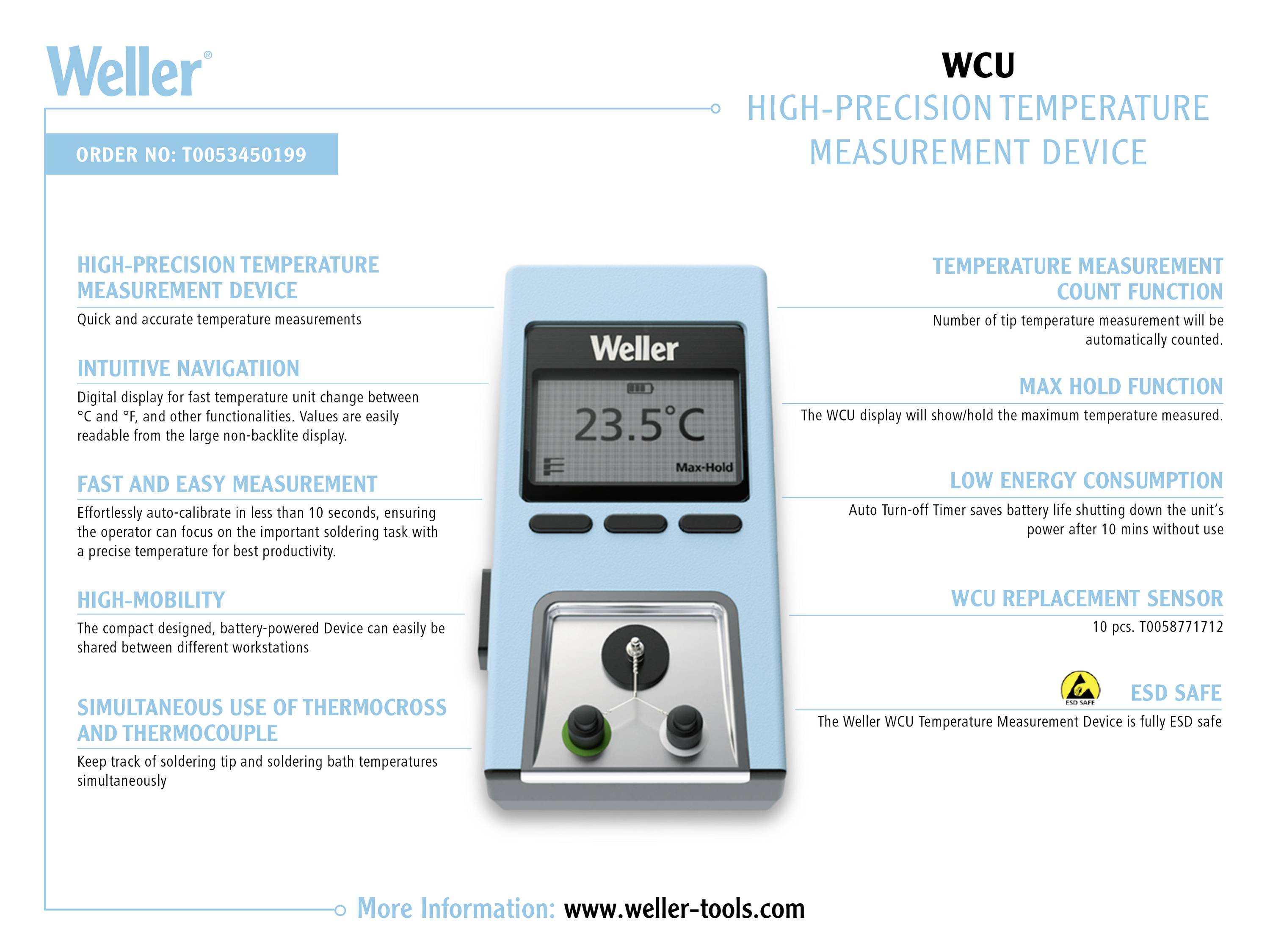

Weller T0053450199 Thermometer 0 - 400 °C-9

1/10

Datasheet (PDF)

Fast track dispatch on Fri, 18 Sep

9 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 402.52 / piece)

€ 402.52

plus VAT.

Only 9 Piece(s) available

Report legal concerns

Highlights & Details

Weller high-precision temperature meter

High-precision thermometer - fast and accurate temperature measurementsEffortless auto-calibration in less than 10 seconds so the operator can concentrate on the important soldering tasks and get a precise temperature for best productivityThe auto-calibration function can be used with WX 1, WX 2, WXD 2, WXA 2, WXR 3, WXsmartHigh mobility - the battery-operated, high-precision and compact temperature measuring device from Weller can be used without any problem at different workplacesIntuitive navigation - fast change of temperature unit between °C and °F and other functionalitiesThe values can be easily read on the large display without background lightingSimultaneous use of thermo-cross and thermocouple - simultaneous monitoring of the temperatures of soldering tip and solder bathTemperature measurement count - Number of peak temperature measurements is automatically counted, this function can be useful for monitoring the sensorsMax Hold function - the WCU display shows and maintains the maximum measured temperatureLow energy consumption - Auto switch-off timer switches the device off after 10 minutes without use and thus saves energyESD-safe - Weller WCU's high-precision temperature measuring device is ESD-safeReplacement sensor WCU 10 pcs. T0058771712

Technical specifications

Product type: Thermometer

Max. temperature: 400 °C

Accuracy ± °C: 3 °C

: Manufacturer's standards (no certificate)

Dim: (L x W x H) 138 x 73 x 43 mm

Weight: 120 g

Width: 73 mm

Height: 43 mm

Length: 138 mm

Min. temperature: 0 °C

Type: T0053450199

Documents & Downloads

Datasheet

Datasheet 2619298 Weller T0053450199 Thermometer 0 - 400 °C

User & Safety Instructions

User & Safety Instructions 2619298 Weller T0053450199 Thermometer 0 - 400 °C

Description

Weller's compact and highly accurate WCU temperature meter allows you to quickly take accurate temperature measurements.

This text is machine translated.

Features

High-precision thermometer Effortless auto calibration in less than 10 seconds Auto-calibration function (can be used with WX 1, WX 2, WXD 2, WXA 2, WXR 3, WXsmart)Rapid change of temperature unit between °C and °F and other functionalitiesLarge display without backlightSimultaneous monitoring of soldering tip and solder bath temperatures(Weller K-type thermocouple Ø 0, 1 mm T0058755782)(Weller K-type thermocouple Ø 0, 5 mm T0053119099)The number of peak temperature measurements is counted automaticallyMax Hold functionAuto switch-off timer switches the device off after 10 minutes without use and thus saves energyESD protection.

Hints

An RS-232 cable (order number: T0058764710) must be purchased separately for the auto calibration function.
