Name: Wera Kraftform Kompakt VDE 60 i 0,8 x 4,0 x 157 mm TIE Electrician Slot Interchangeable bit 4.0 mm
Brand: Wera
SKU: 3165478
Price: 6.49 EUR
Availability: InStock

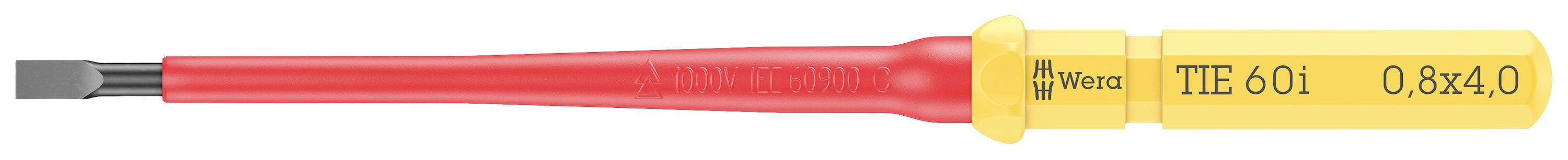

'Wera Screwdriver TIE 601 with insulated yellow handle and red shaft, 0.8x4.0mm, suitable for electrical work.'

An analogue voltmeter indicates a voltage of approximately 9 kV. It is part of a device with a blue casing and several buttons.

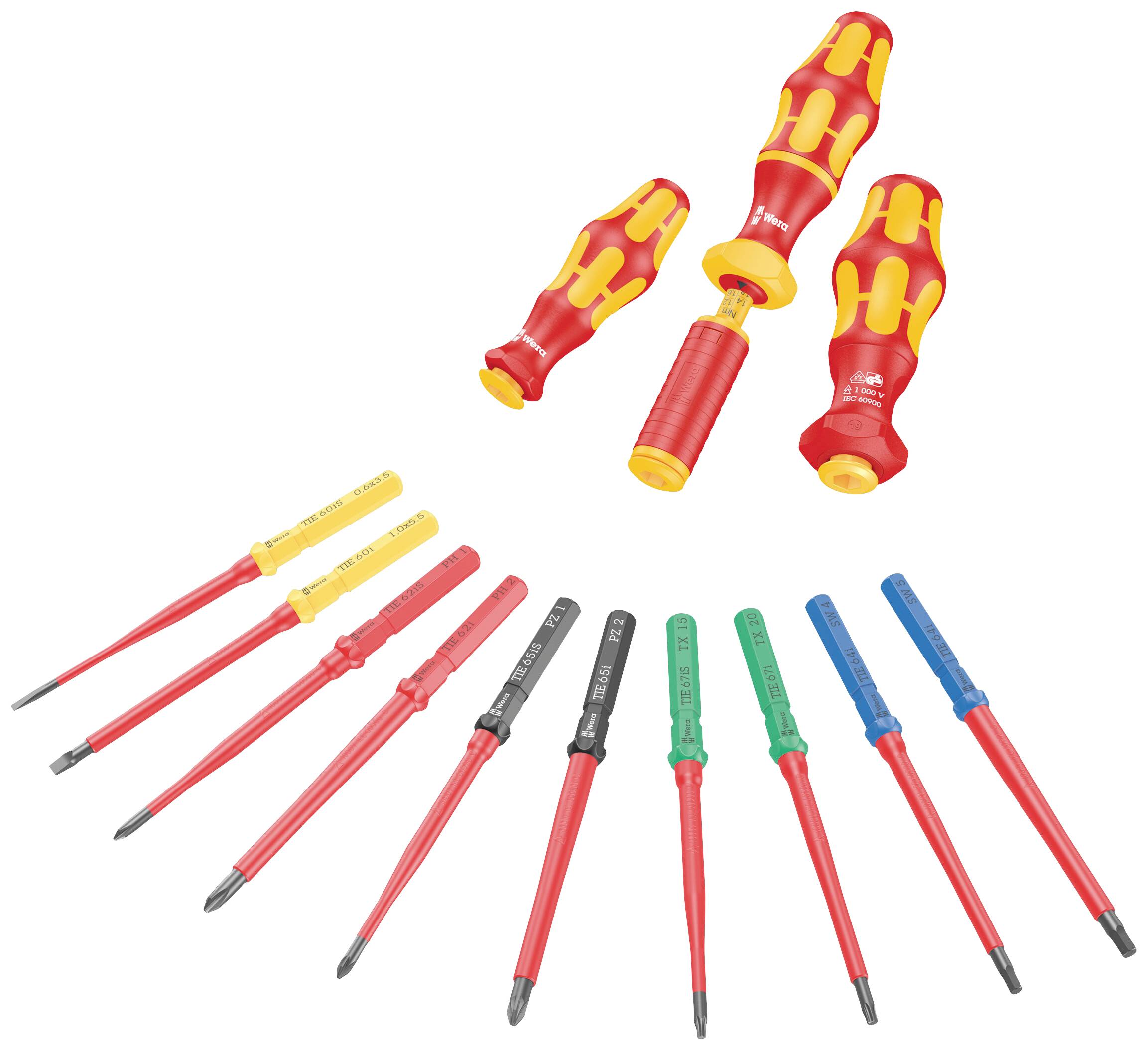

Insulated screwdriver set with various handles and blades in red, yellow, black, green and blue for different screw types.

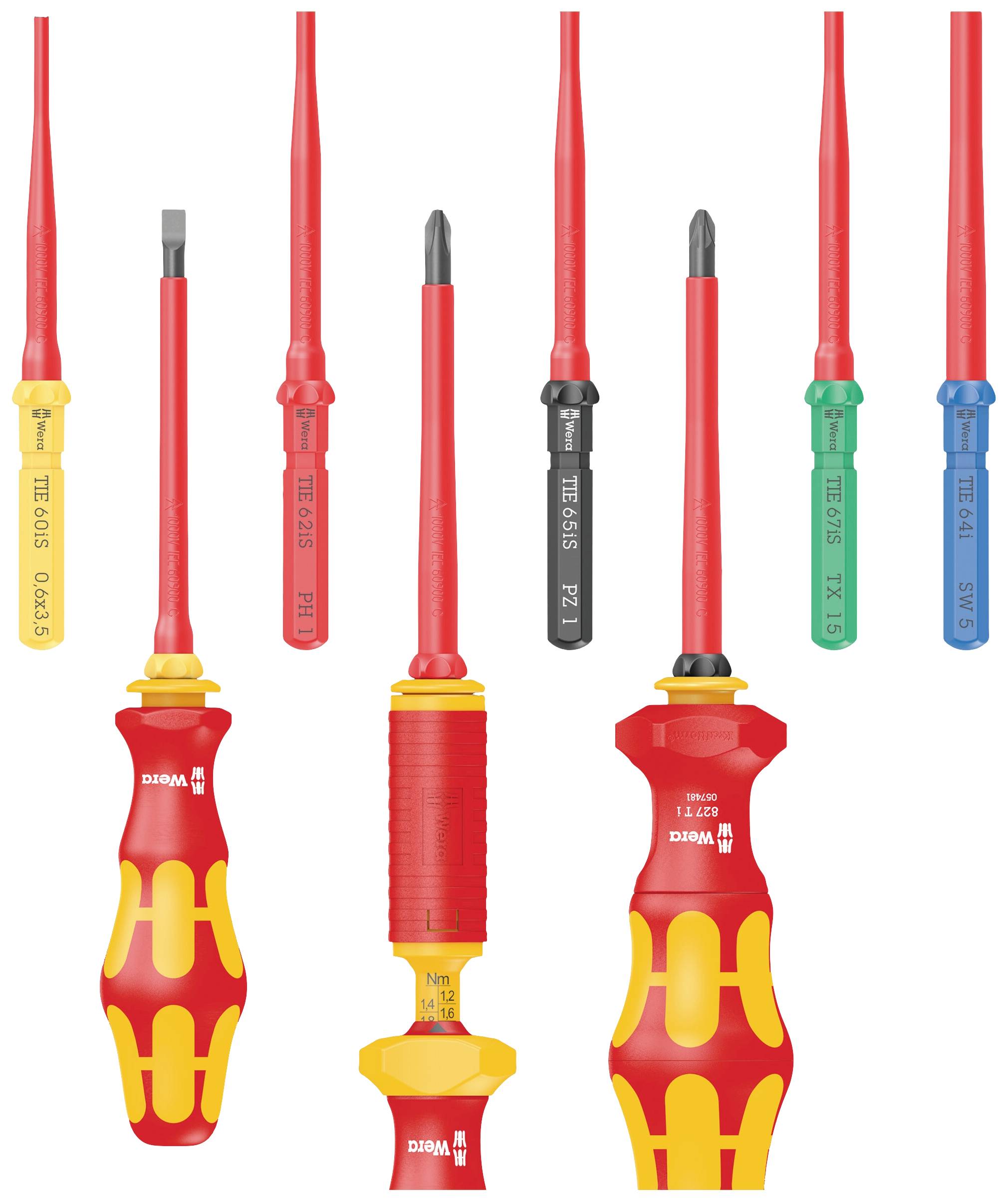

'Insulated screwdrivers and bits in various sizes and colours, suitable for electrical work, on a white background.'

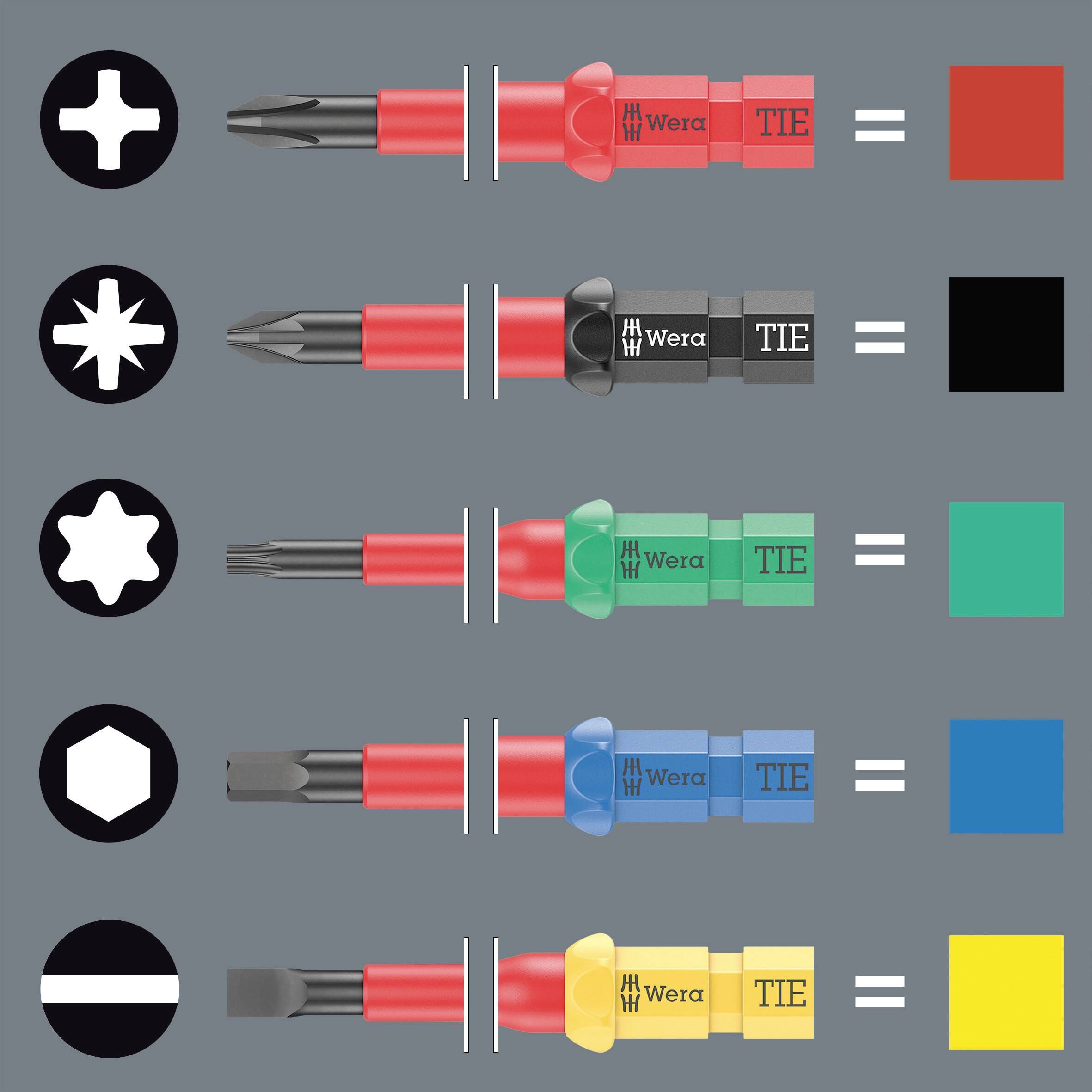

Wera Kraftform Kompakt VDE 60 i 0,8 x 4,0 x 157 mm TIE Electrician Slot Interchangeable bit 4.0 mm-4

A yellow vacuum cleaner plug over a white line with a red X beside it. Text on the plug: 'REMOVE BEFORE USE'.

A hand is holding a yellow pencil with a red eraser at the end, against a grey background.

'VDE', 'GS', 'Verified Safety', '1000 V', 'VDE Tool' on a black background; Symbols for electrical safety standards.

A stylised tool against a black background with the text 'TAKE IT EASY TOOL FINDER' underneath.

1/9

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 12 Nov

25 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 6.49 / piece)

€ 6.49

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Kraftform compact VDE 60 i Take it easy, 0.8 x 4 x 157 mm

VDE Interchangeable blade for flat-tip screws 0.8x4.0x157

Technical specifications

Product type: Interchangeable bit

Range of use: Electrician

Downforce: Slot

Blade width: 4.0 mm

Blade thickness: 0.8 mm

Length: 157 mm

Height: 12 mm

Width: 12 mm

Weight: 16 g

Dim: (L x W x H) 157 x 12 x 12 mm

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3165478 Wera Kraftform Kompakt VDE 60 i 0,8 x 4,0 x 157 mm TIE Electrician Slot Interchangeable bit 4.0 mm

User & Safety Instructions

User & Safety Instructions 3165478 Wera Kraftform Kompakt VDE 60 i 0,8 x 4,0 x 157 mm TIE Electrician Slot Interchangeable bit 4.0 mm

Description

VDE blade for power form Compact handle / replacement blade system for lightning fast replacement of the blade without special tool. Tested tools according to IEC 60900 Routine test at 10,000 V for safe working at the approved voltage of 1,000 V. With rolling protection and tool finder Take it easy: Colour labeling according to profiles as well as lasered size specification.

This text is machine translated.

Features

Kraftform compact VDE Interchangeable blade for slotted screws
Insulated, piece-tested according to IEC 60900
9 mm hexagonal drive with guide edge
Conical cutting
The Wera black point tip offers form-fitting accuracy and optimized corrosion protection

Scope of delivery

VDE Interchangeable blade for flat-tip screws 0.8x4.0x157

Description

Features

Kraftform compact VDE Interchangeable blade for slotted screws
Insulated, piece-tested according to IEC 60900
9 mm hexagonal drive with guide edge
Conical cutting
The Wera black point tip offers form-fitting accuracy and optimized corrosion protection
