Name: Wisualarm DHI-HY-GA20A-R8 Gas detector network-compatible mains-powered detects Methane
Brand: Wisualarm
SKU: 3782458
Availability: InStock

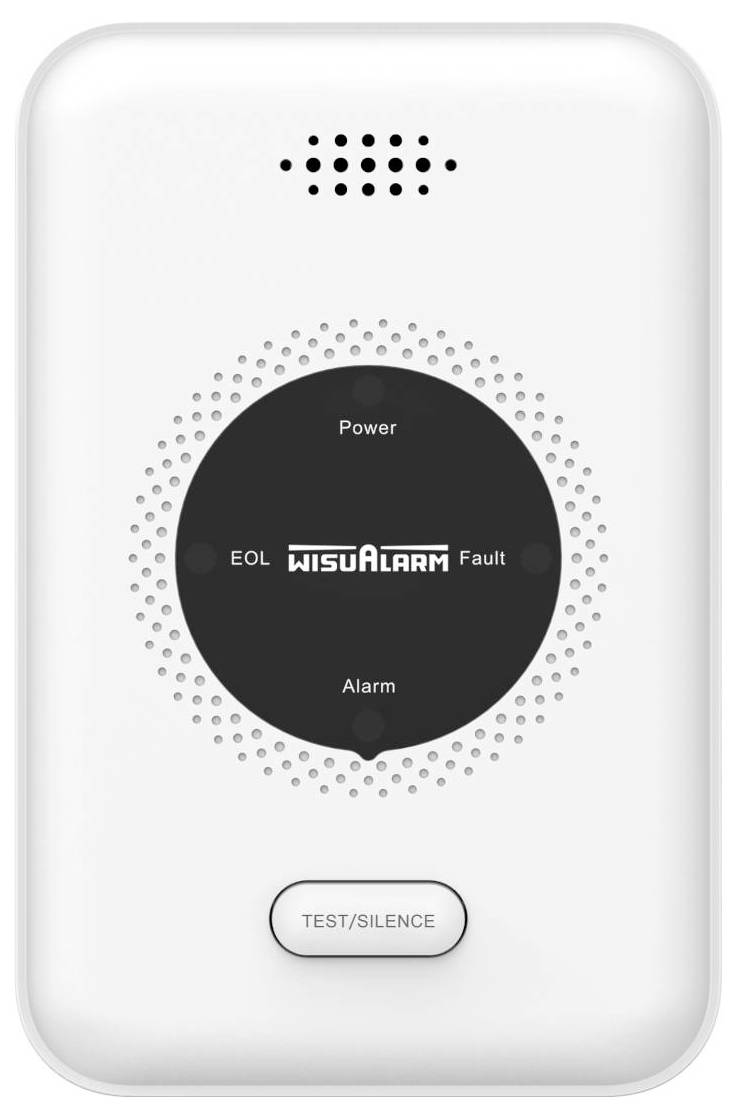

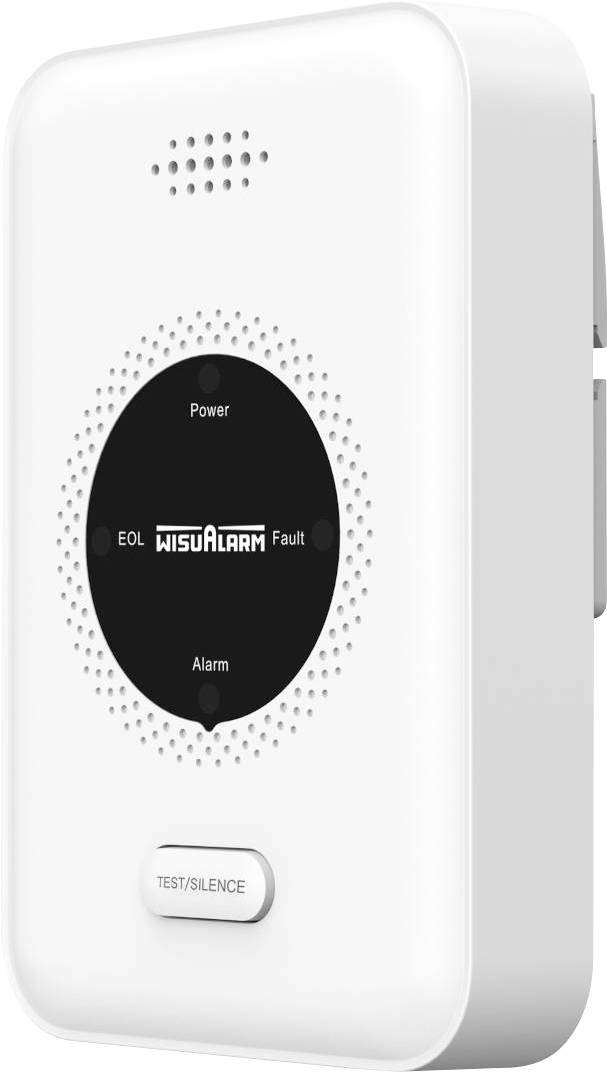

White wall-mounted WisaAlarm smoke detector with central black status panel labeled Power, EOL, Fault, Alarm, and a TEST/SILENCE button<br>

Wisualarm DHI-HY-GA20A-R8 Gas detector network-compatible mains-powered detects Methane-1

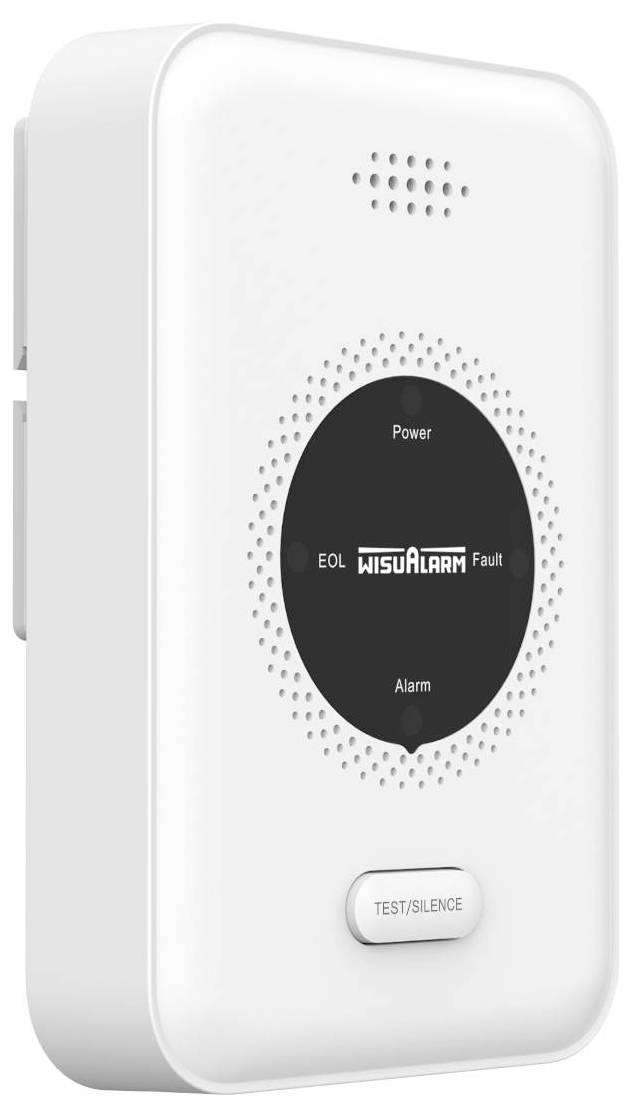

Wisualarm DHI-HY-GA20A-R8 Gas detector network-compatible mains-powered detects Methane-2

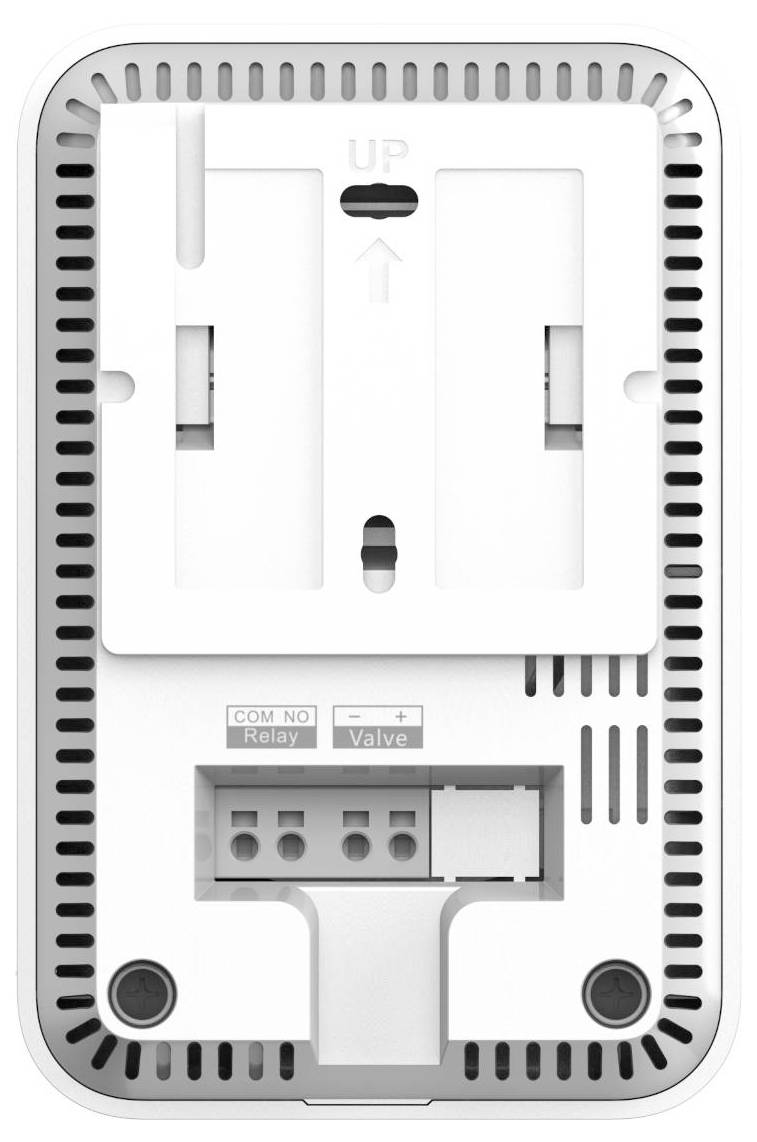

White wall-mounted thermostat backplate with vent slots and labeled terminal blocks for relay and valve wiring, showing an 'UP' arrow.<br>

Wisualarm DHI-HY-GA20A-R8 Gas detector network-compatible mains-powered detects Methane-4

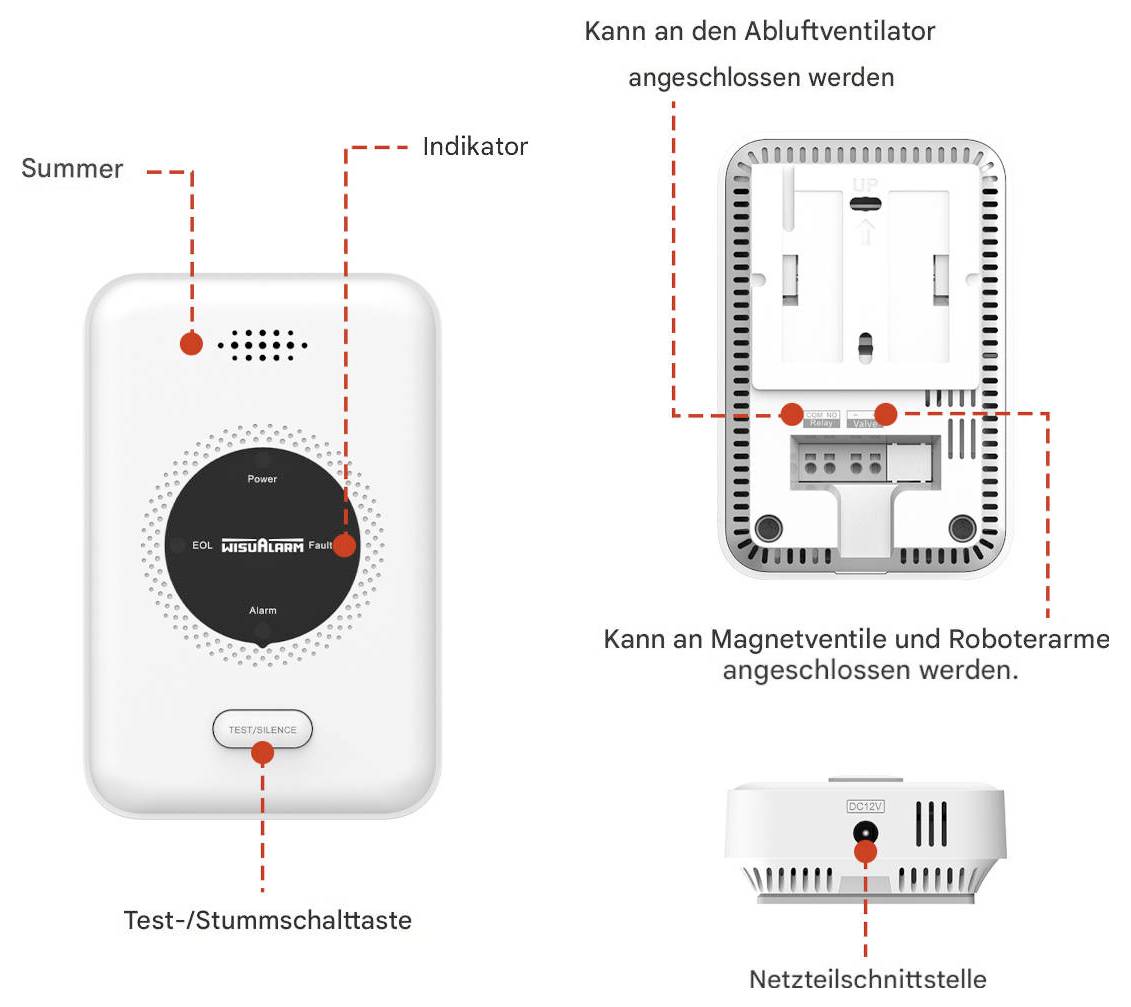

Diagram showing a smoke alarm with labeled parts: summer, indicator, and test/mute button; a back view and power interface, noting connections for exhaust fan, magnetic valve, and robot arm.

Wisualarm DHI-HY-GA20A-R8 Gas detector network-compatible mains-powered detects Methane-6

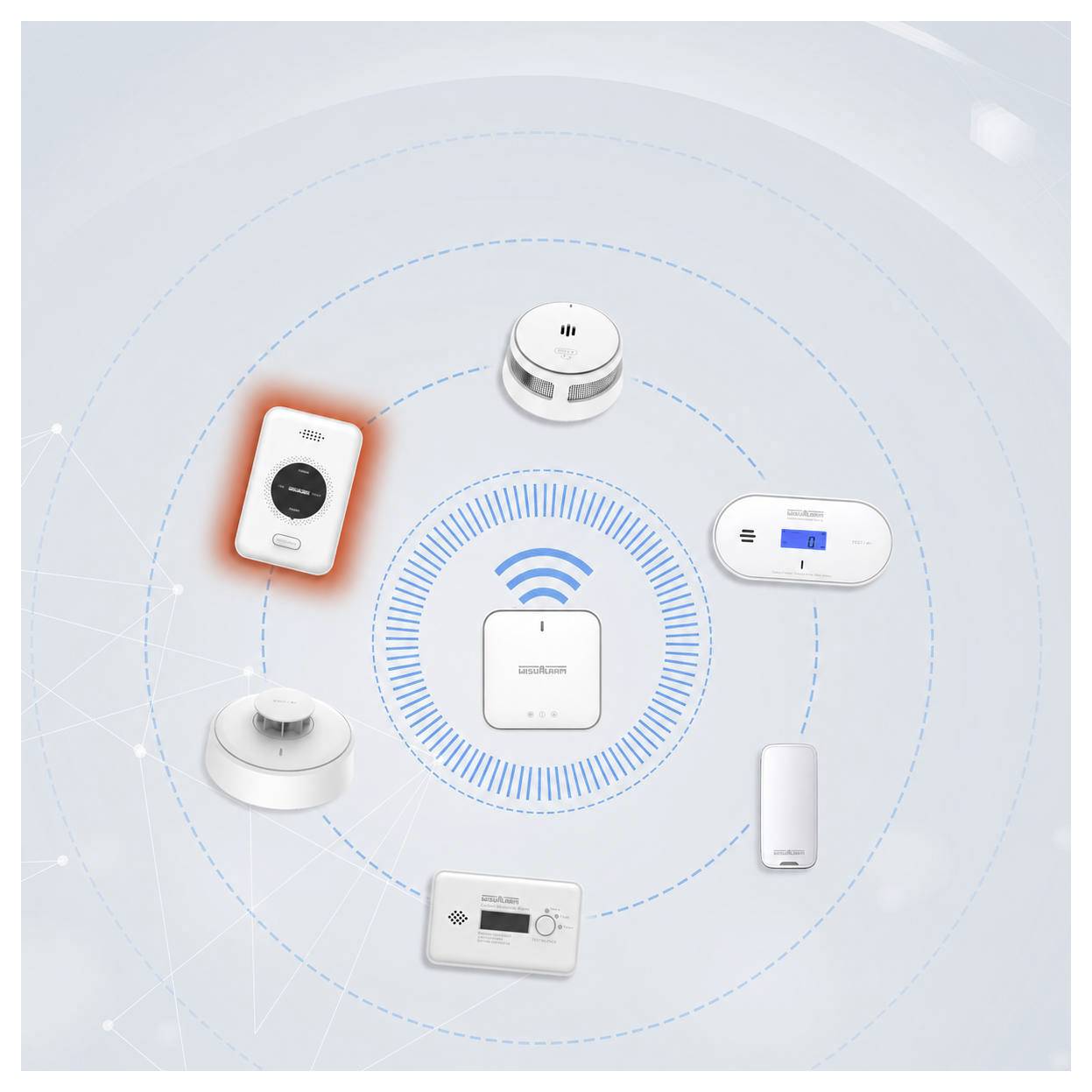

Wireless smart home devices connected around a central Wi‑Fi hub, with one remote sensor highlighted in orange.<br>

Wisualarm DHI-HY-GA20A-R8 Gas detector network-compatible mains-powered detects Methane-8

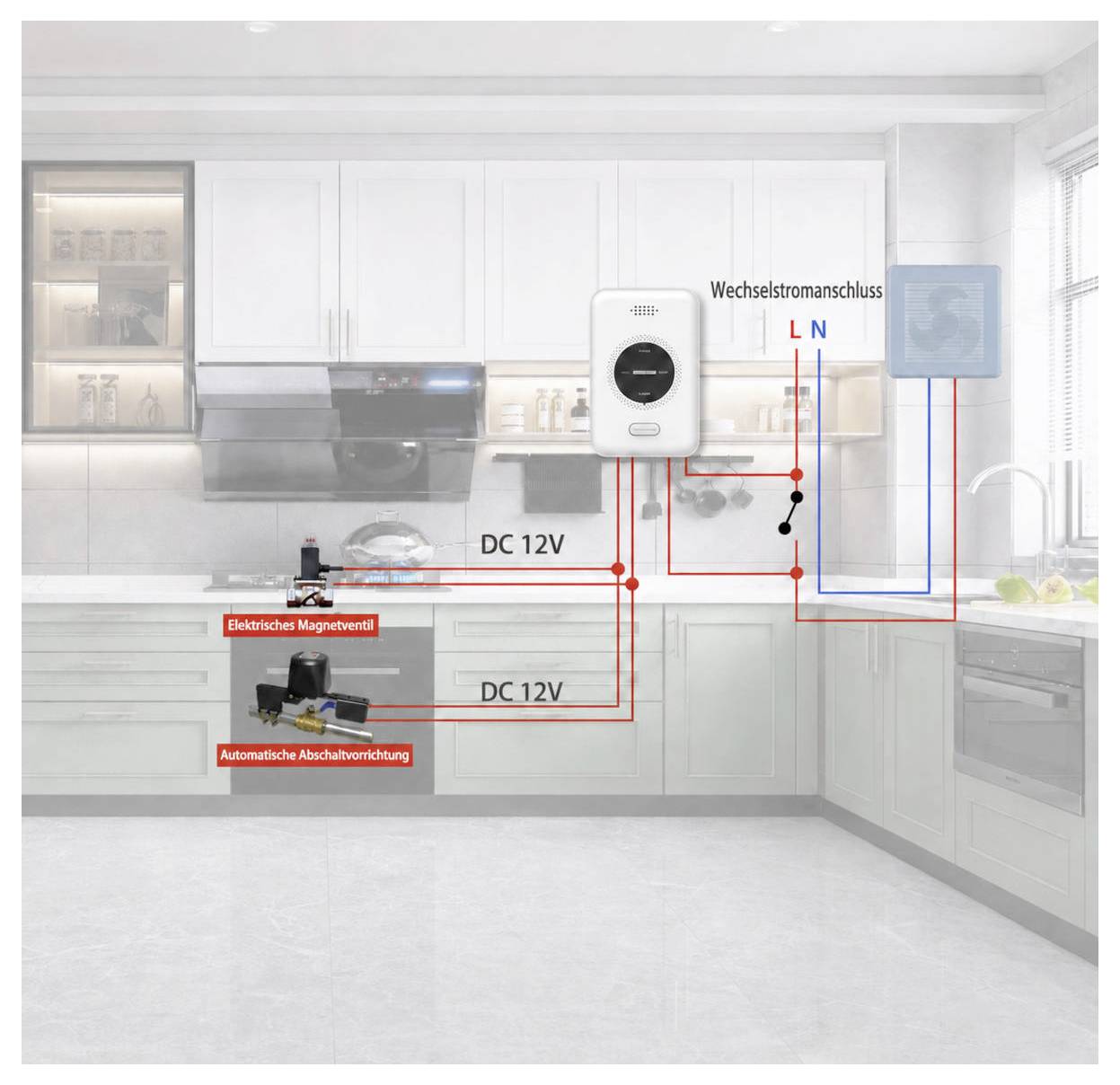

Kitchen installation diagram showing an appliance connected to 'Wechselstromanschluss' with L and N wiring and two DC 12V lines labeled 'Elektrisches Magnetventil' and 'Automatische Abschaltvorrichtung'.

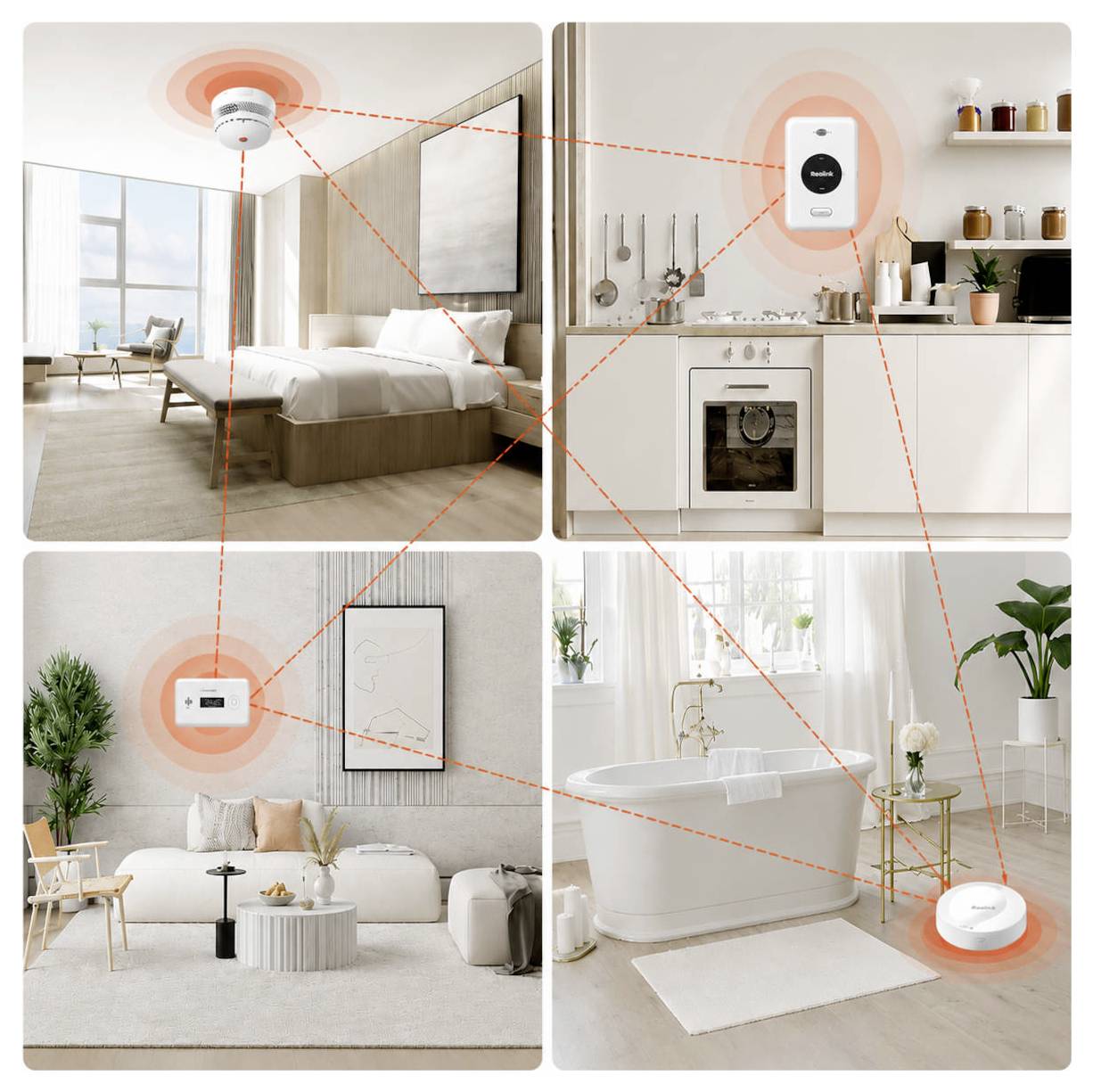

Smart home alarm system with connected devices—smoke detector, kitchen hub, thermostat, and round sensor—linked by dotted lines across bedroom, kitchen, living room, and bathroom.

1/11

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

4 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 31.99 / piece)

€ 31.99

incl. VAT

Only 4 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Wisualarm by Dahua DHI-HY-GA20A-R8 Wireless-networked methane/natural gas detector

Highly sensitive sensor for the early detection of methane/natural gas
Wireless networking with up to 24 devices
Alarm tone with 70 dB(A) at a distance of 1 m and LED signaling
Status display for alarm, fault, operation and end of life
Up to 5 years sensor service life
Supports valve and relay output
Compact design for indoor mounting
APP connectivity and push notifications in conjunction with Wisualarm WLAN base station, sold separately

Technical specifications

Radio frequency: 868 MHz
Alarm volume of 70 dB(A) at a distance of 1 m and LED signaling

Product type: Gas detector

Detector features: network-compatible

Alarm at gas/gas mixture: 8% LEL

detects: Methane

Power supply (LOV): mains-powered

Width: 78 mm

Height: 118 mm

Depth: 33.7 mm

Weight: 123 g

Content: 1 pc(s)

Dim: (W x H x D) 78 x 118 x 33.7 mm

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3782458 Wisualarm DHI-HY-GA20A-R8 Gas detector network-compatible mains-powered detects Methane

User & Safety Instructions

User & Safety Instructions 3782458 Wisualarm DHI-HY-GA20A-R8 Gas detector network-compatible mains-powered detects Methane

Description

The Wisualarm DHI-HY-GA20A-R8 is a wirelessly networked natural gas detector for the detection of methane (CHs) in interiors. The device reacts with high sensitivity to increased methane concentrations and thus supports the early detection of potential gas leaks.
When the alarm value is reached, the detector activates an acoustic and visual alarm and simultaneously informs all linked devices within the radio network.
The integrated semiconductor sensor was designed for a stable detection with low false alarm rate. The alarm is triggered by an integrated signal transmitter with a volume of 70 dB(A) at a distance of one meter.
In addition, the LED displays inform about the current operating status, detected errors and the reaching of the end-of-life of the sensor.
The device is suitable for use in apartments, restaurants, hotels and other interior spaces where methane recognition is required.
The detector can be paired with a separate Wisualert WLAN Base Station DHI-HY-GW01A and used with the Wisualarm APP. The base station serves as a central connection unit for compatible Wisualarm and WisuLink wireless products and enables the APP connection of the networked detectors. When an alarm is triggered, the detector emits an alarm signal; in addition, push notifications can be transmitted to a smartphone in combination with the base station. Up to 24 compatible WisuLink wireless products can be integrated per base station. The coupling is done via the pairing button on the gateway as well as the TEST/MUTE button on the respective detector. The base station is not included in the delivery and is available separately.

Technical data

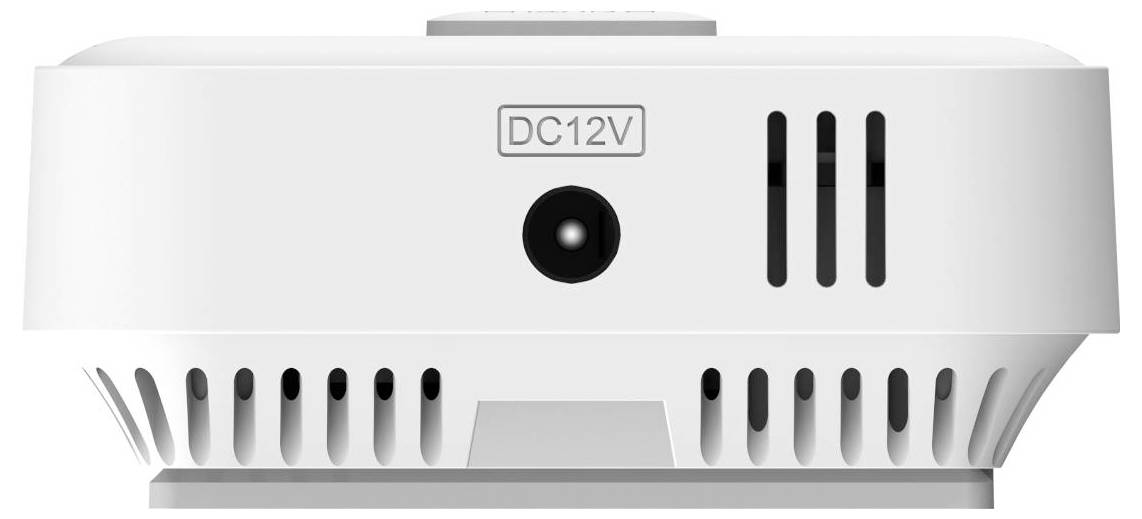

Power supply: DC 12 V
Sensor type: Semi-conductor sensor
Detection type: Methane (CHspurst)
Sampling interval 200 ms
Alarm types: Gas Alarm, error warning, warning at end of life
Alarm volume of 70 dB(A) at a distance of 1 m.
Alarm mode: Audible and visual alarms
1 x valve output, 1 x relay output
Mute function: Supported
LED indicators: Alarm: Red / Error: Yellow / Operation: Green / Life End: Yellow
Operating environment: Interior
Operating temperature: -10 °C to + +55 °C.
Relative humidity: ≤ 95% RH (non-condensing)
Radio frequency 868 MHz (-R8), 925 MHz (-R9)
Maximum number of connected devices: 24
PC + ABS casing
Colour: White
Mounting type: Wall mounting
Product weight 123 g
Product dimensions 118.0 × 78.0 × 33.7 mm
