Wisualarm DHI-HY-SA30A Smoke detector incl. 10-year battery battery-powered (Ø x H) 98 mm x 43.1 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 15.99 / piece)
€ 15.99
incl. VAT
Only 9 Piece(s) available
Highlights & Details
Wisualarm Smoke detector DHI-HY-SA30A DHI-HY-SA30A incl. 10-year battery
- Standalone smoke detector for monitoring the smoke concentration
- Split-spectrum sensor technology with 9 s scanning interval
- Loud alarm signal with 85 dB(A) at a 3 m distance and LED signal
- Test and mute function via a central button
- Low battery warning signal
- Permanently integrated battery and easy ceiling mounting
Technical specifications
- Product type
Smoke detector
- Power supply (LOV)
battery-powered
- Detector features
incl. 10-year battery
- SPL
85 dB
- Dim
(Ø x H) 98 mm x 43.1 mm
- Certification
EN14604
Q-Label
TCO 06
- Content
1 pc(s)
- Weight
136 g
- Height
43.1 mm
- (Ø)
98 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3782465 Wisualarm DHI-HY-SA30A Smoke detector incl. 10-year battery battery-powered (Ø x H) 98 mm x 43.1 mm
User & Safety Instructions
User & Safety Instructions 3782465 Wisualarm DHI-HY-SA30A Smoke detector incl. 10-year battery battery-powered (Ø x H) 98 mm x 43.1 mm
Description

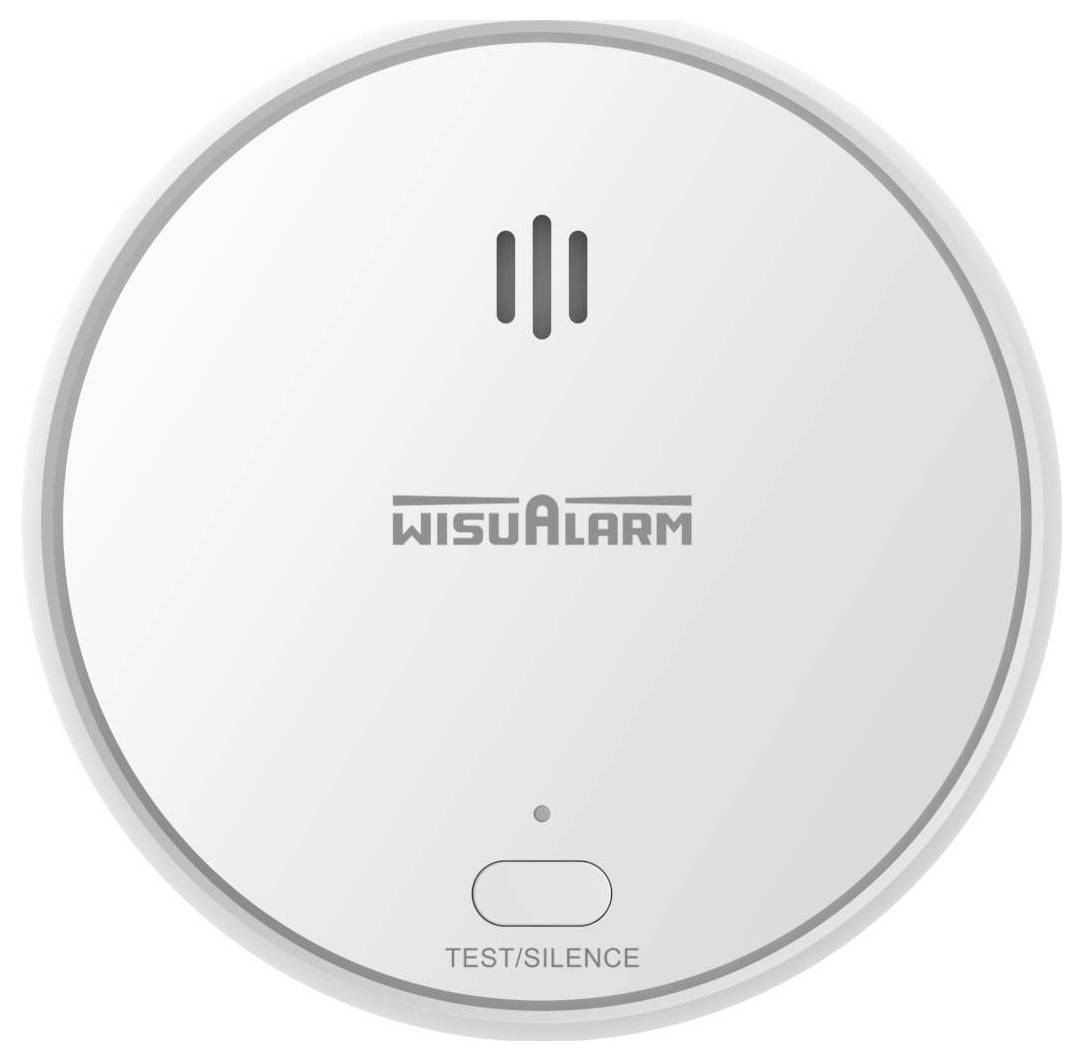

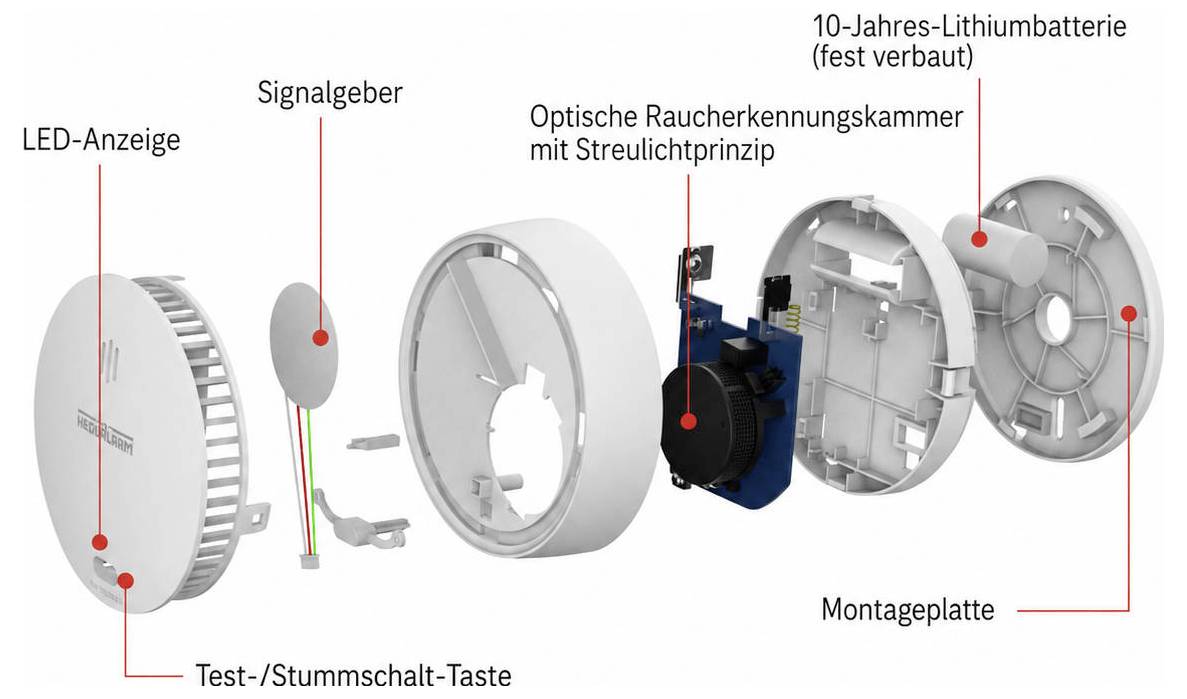

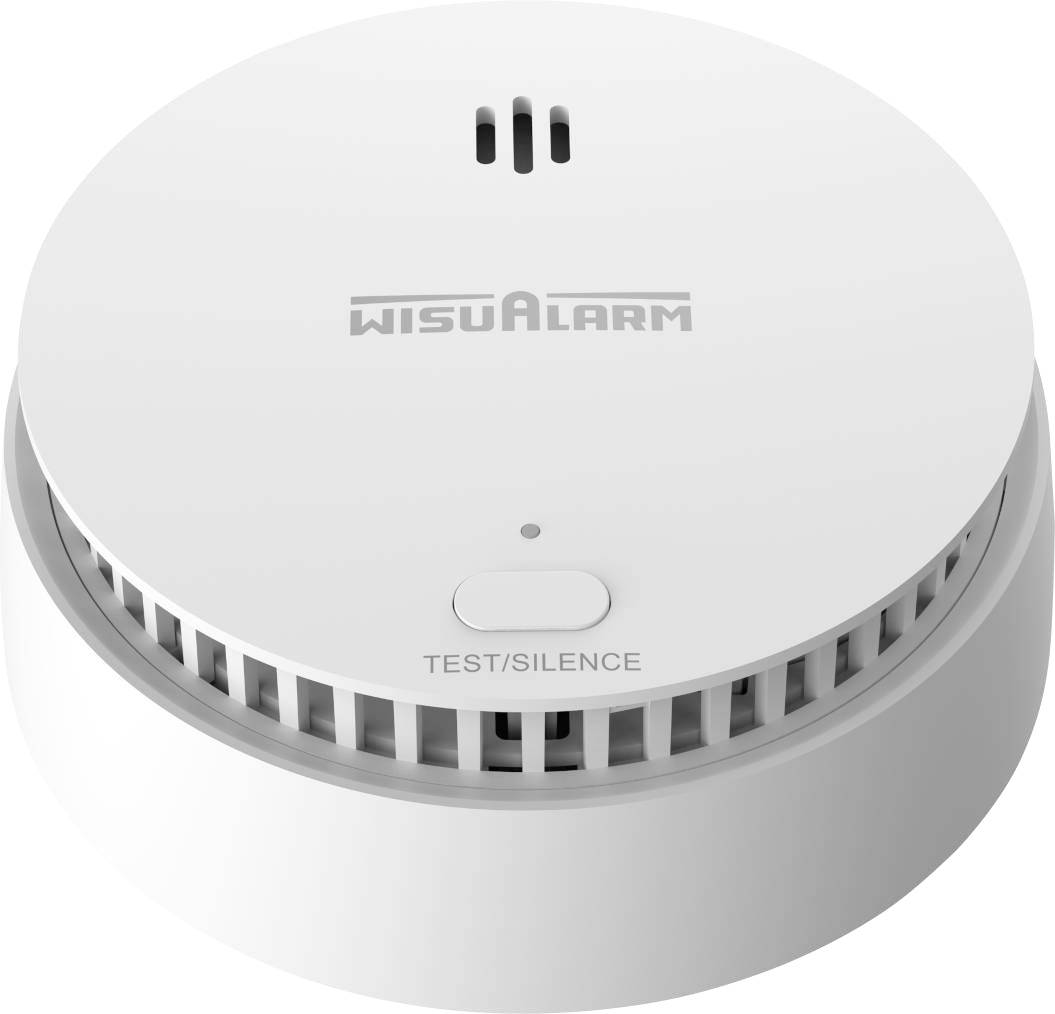

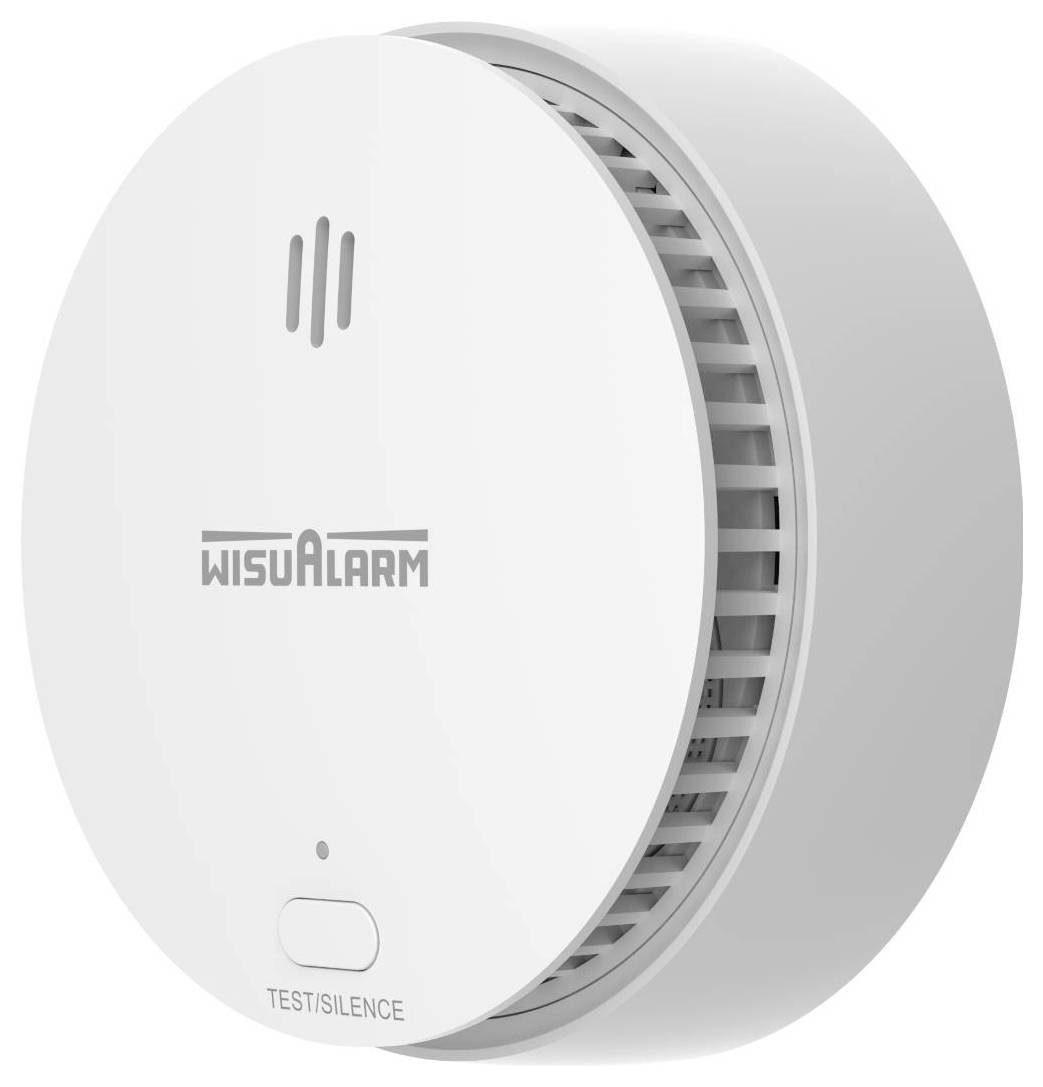

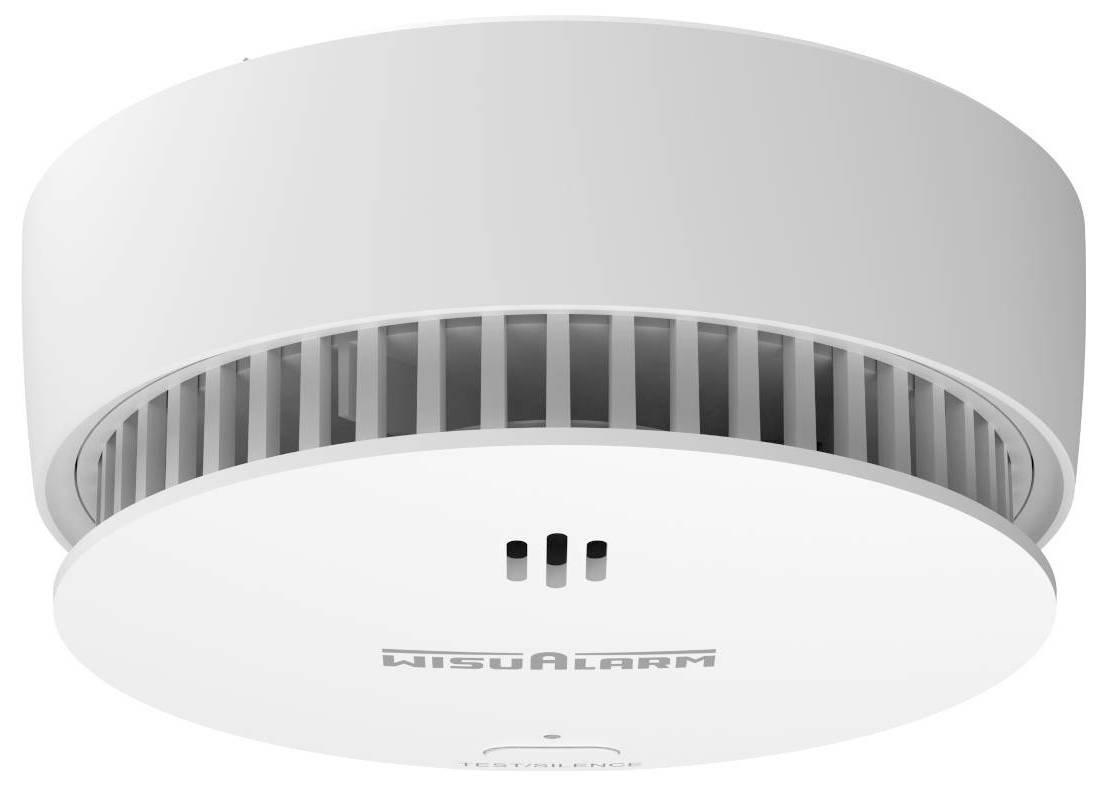

The Wisualarm DHI-HY-SA30A is a self-contained smoke detector for continuous indoor smoke monitoring. Through the split-spectrum sensor technology, the device detects smoke reliably and triggers a loud acoustic alarm with additional optical LED signaling when the alarm level is reached.
The smoke detector is intended for use in households and similar residential areas, for example in single-family houses, apartments and houses. Typical areas of use include living rooms, bedrooms and corridors.
The test and mute function is combined in one central key. The mute function is activated for approximately 12 minutes and can be used to temporarily suppress the alarm in appropriate situations.
The detector works with a low standby current and gives a warning signal with low battery status. The power is supplied by a permanently integrated 3 V CR123A lithium battery; the specified battery life is 10 years.
LED and signal indicator displays inform about standby, alarm, malfunction and low battery status. For a ceiling height of less than 8 m, a protection area of 20 m² to 40 m² is specified for a device.
Technical data
Detection type: Smoke
Scanning interval 9 s
Sensor type: Photoelectric
Alarm types: Smoke alarm, false alarm, low battery warning
Alarm volume of 85 dB(A) at a distance of 3 m.
Alarm mode: Audible and visual alarms
Mute function: Supported
Mute time: Approx. 12 minutes
Alarm trigger threshold of 0.2 dB/m up to 0.3 dB/m.
Display: Alarm, error and power indicator
LED indicators: Standby: Green LED flashes once per minute / Alarm: Red LED flashes once per second / Error: Red LED flashes once per minute / Low battery status: Red LED flashes once per minute
Protection area: For a height of less than 8 m: 20 m² to 40 m² per device
Battery service life 10 years.
Power supply: 3 V CR123A lithium battery (non-replaceable)
Operating current: Monitoring current: ≤ 15 35 μA / alarm current: ≤ mA
Operating environment: Interior
Operating temperature: -10 °C to + +55 °C.
Relative humidity: ≤ 95% RH (non-condensing)
Colour: White
Housing material: Plastic
Product dimensions: Ø 98.0 × H 43.1 mm
Product weight 136 g

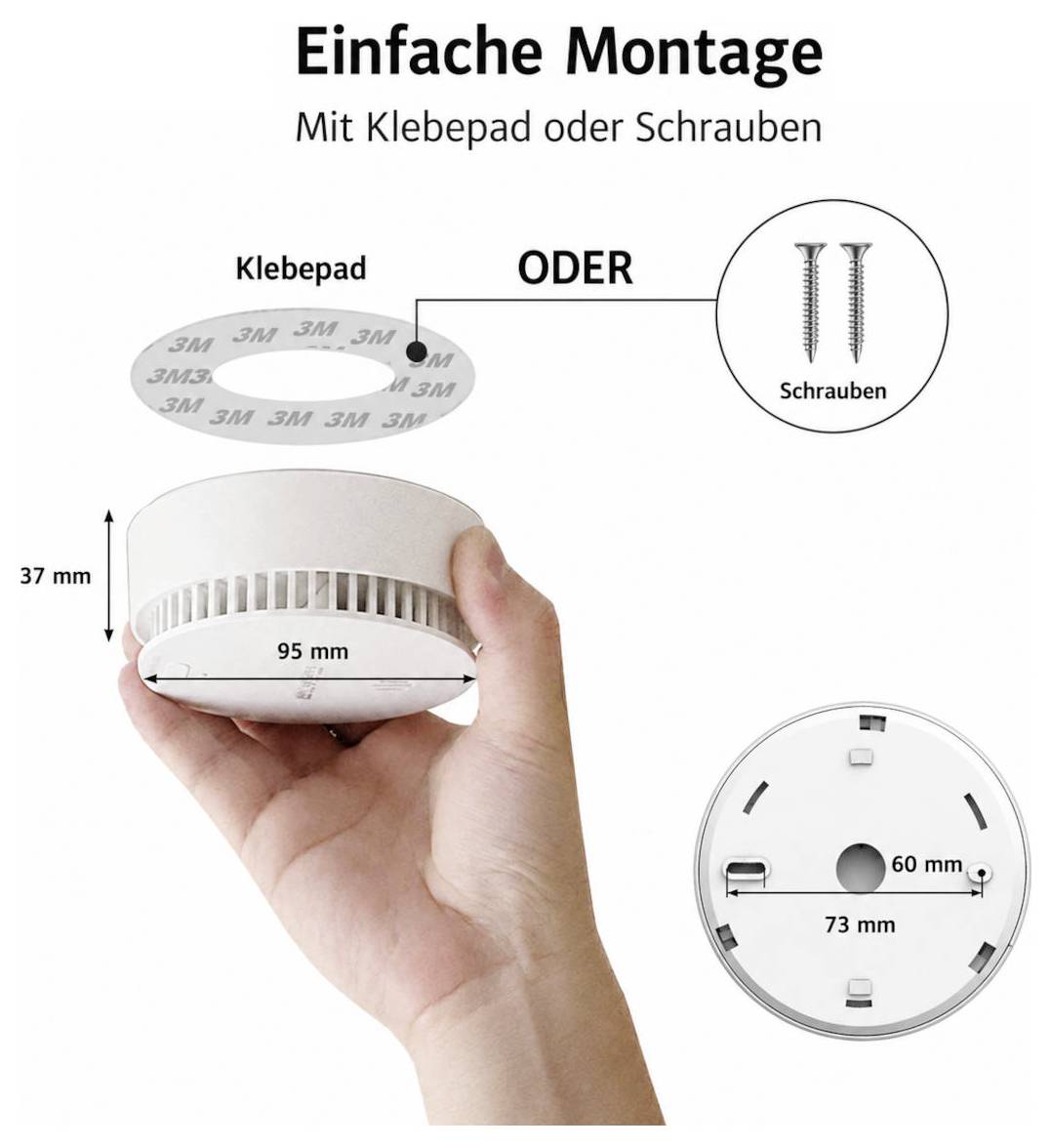

Mounting: Ceiling mounting
EN 14604:2005, AS 3786:2014
This text is machine translated.
The smoke detector is intended for use in households and similar residential areas, for example in single-family houses, apartments and houses. Typical areas of use include living rooms, bedrooms and corridors.
The test and mute function is combined in one central key. The mute function is activated for approximately 12 minutes and can be used to temporarily suppress the alarm in appropriate situations.
The detector works with a low standby current and gives a warning signal with low battery status. The power is supplied by a permanently integrated 3 V CR123A lithium battery; the specified battery life is 10 years.
LED and signal indicator displays inform about standby, alarm, malfunction and low battery status. For a ceiling height of less than 8 m, a protection area of 20 m² to 40 m² is specified for a device.
Technical data
Detection type: Smoke
Scanning interval 9 s
Sensor type: Photoelectric
Alarm types: Smoke alarm, false alarm, low battery warning
Alarm volume of 85 dB(A) at a distance of 3 m.
Alarm mode: Audible and visual alarms
Mute function: Supported
Mute time: Approx. 12 minutes
Alarm trigger threshold of 0.2 dB/m up to 0.3 dB/m.
Display: Alarm, error and power indicator
LED indicators: Standby: Green LED flashes once per minute / Alarm: Red LED flashes once per second / Error: Red LED flashes once per minute / Low battery status: Red LED flashes once per minute
Protection area: For a height of less than 8 m: 20 m² to 40 m² per device
Battery service life 10 years.
Power supply: 3 V CR123A lithium battery (non-replaceable)
Operating current: Monitoring current: ≤ 15 35 μA / alarm current: ≤ mA
Operating environment: Interior
Operating temperature: -10 °C to + +55 °C.
Relative humidity: ≤ 95% RH (non-condensing)
Colour: White
Housing material: Plastic
Product dimensions: Ø 98.0 × H 43.1 mm
Product weight 136 g
Mounting: Ceiling mounting
EN 14604:2005, AS 3786:2014
This text is machine translated.
Scope of delivery
- Wisualarm DHI-HY-SA30A smoke detector
- Fixings
- User manual
