VOLTCRAFT Thermometer in Comparison

The product range of temperature measurement technology is becoming ever wider and it takes a lot of time to get an overview. For this reason, we have created a thermometer comparison in which you can select the right measuring device for you in the shortest possible time. All important parameters are clearly presented in tabular form, making the selection process much easier.

Non-contact IR thermometers and temperature measuring devices with wired probes are listed and operational requirements can be covered quickly and comprehensively.

Advantages of meeting demand with VOLTCRAFT

Fast availability
Huge selection
Calibrated variants available
Wide range of probes
More than 40 years of experience
Field-proven technology
Consistently high quality

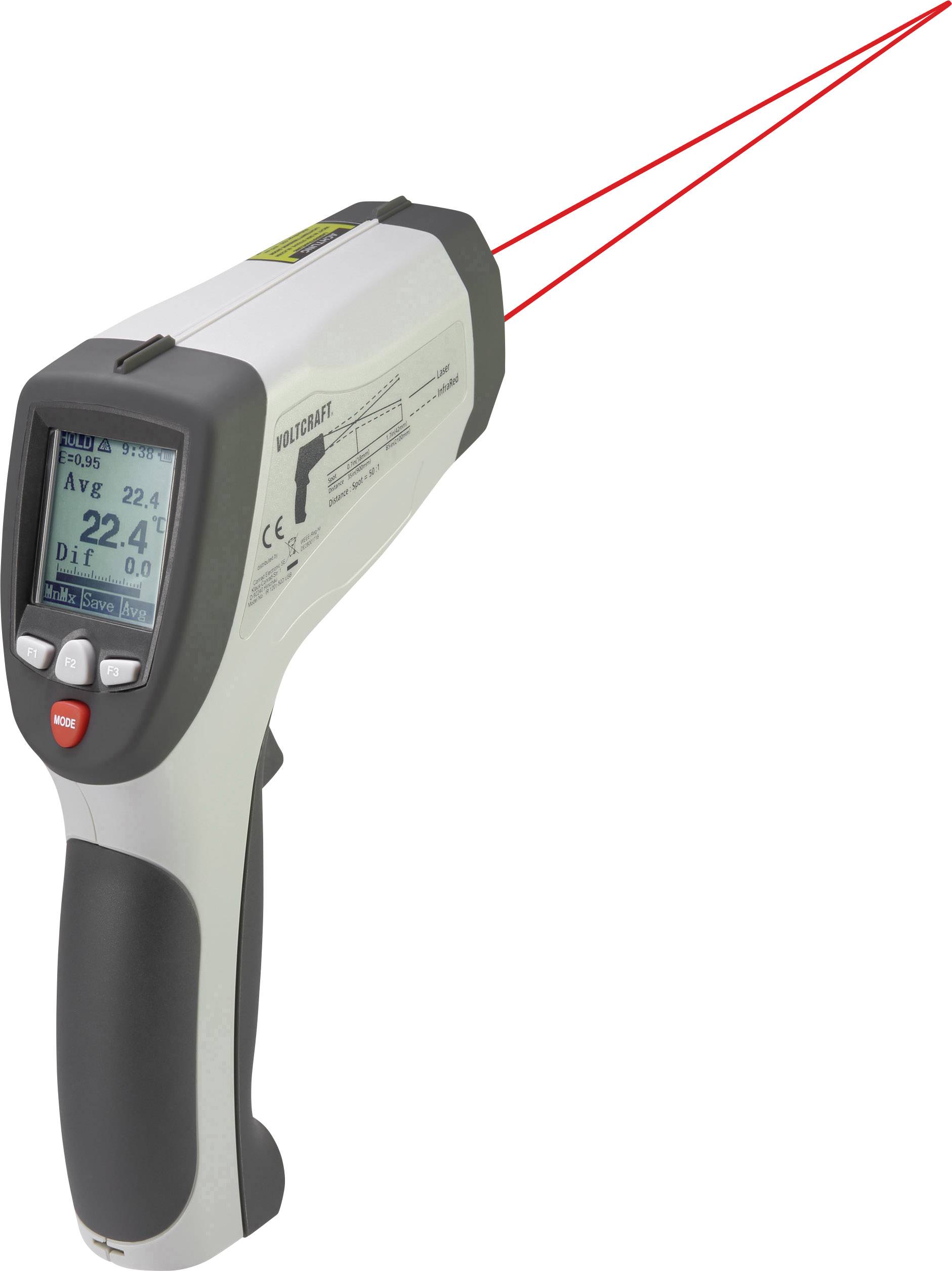

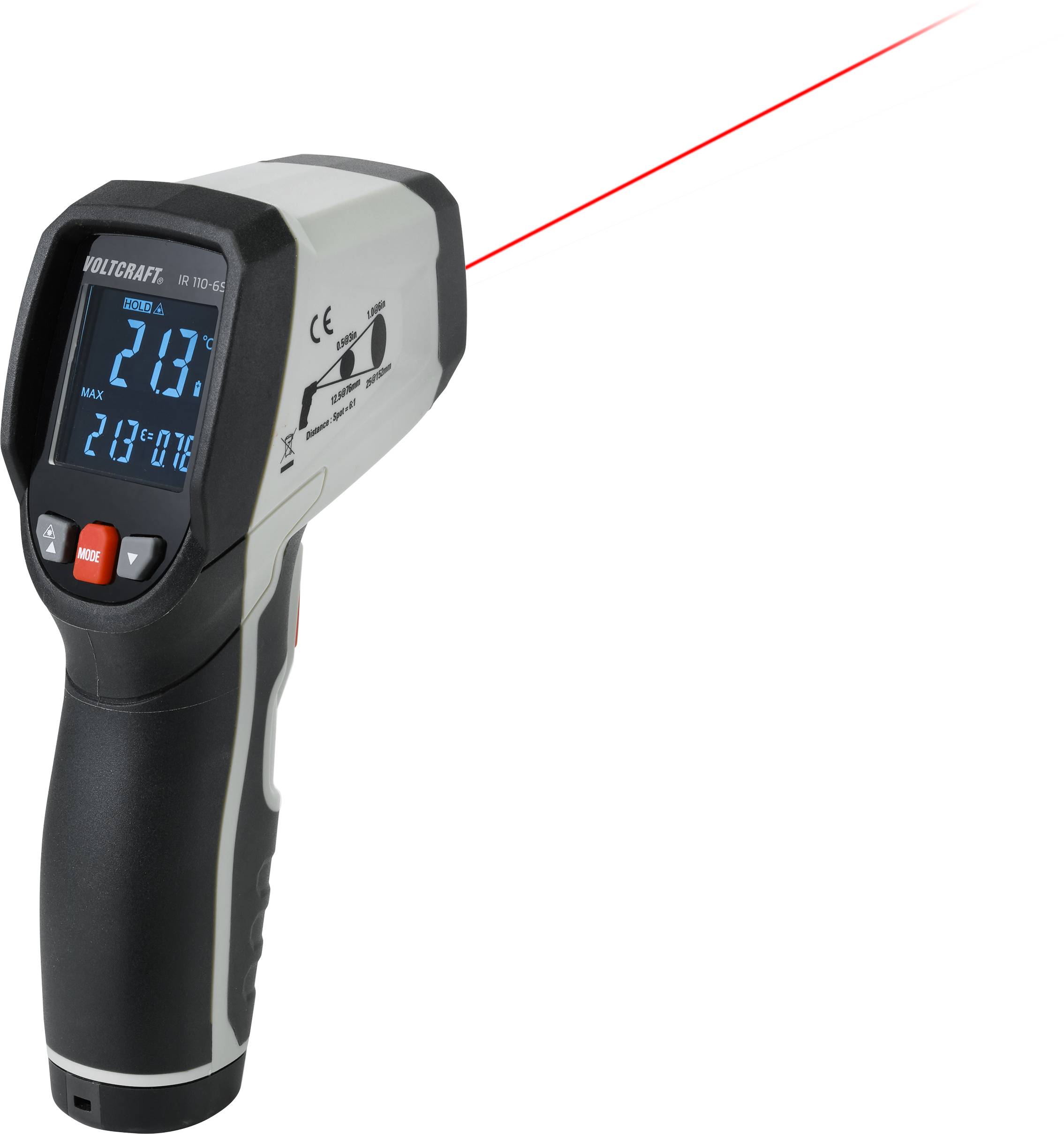

IR radiation in your sights - infrared thermometer with targeting laser

For the safe measurement of hot or cold surfaces. Particularly suitable for rotating machines. On models with a single laser beam, only the measuring direction can be seen. Devices with two beams or circular lasers also provide information about the perfect measuring distance and the actual size of the measuring spot at a specific distance. This prevents incorrect measurements due to incorrect operation.

Model

Max. Temperature

110 °C

500°C

650°C

800°C

1200°C

2200°C

Accuracy ± °C

0.3 °C
highly precise

3 °C

2 °C

1.5 °C

Optics

6:1

12:1

16:1

20:1

50:1

Emission adjustable

✓

Reaction speed

normal

fast

Alarm temperature display

✓

Bar graph

✓

Data logger

✓

Interface

USB

Connection for K-type sensor

✓

Storage

Bag

Hard-shell case

Item no.

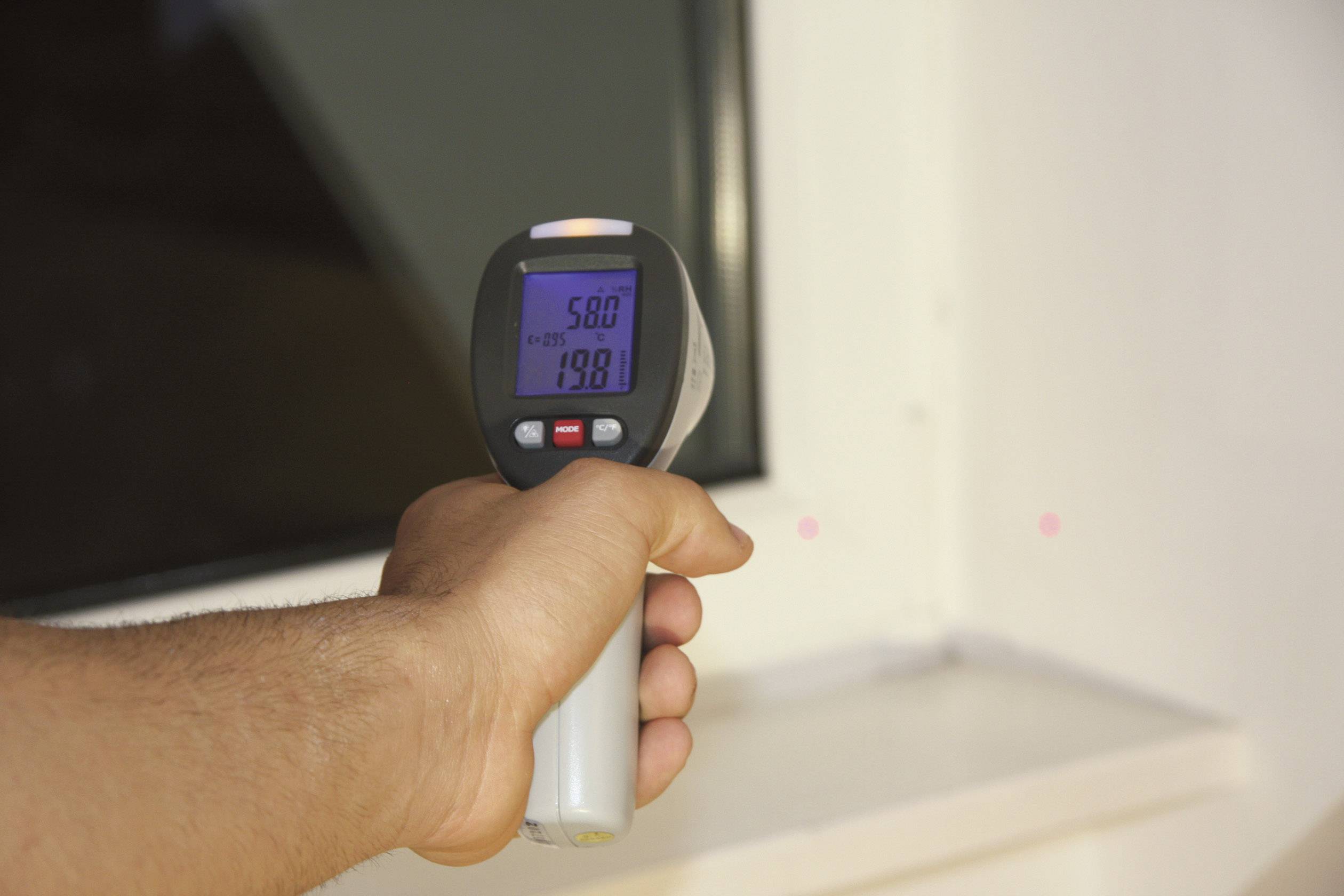

Recognizing the risk of mould before it develops

Moisture condenses easily on cold surfaces. Humidity and surface temperature play a role here. Moisture then begins to condense above the so-called dew point.

In addition to the surface temperature, these measuring devices also determine the dew point and thus the risk of mold growth.

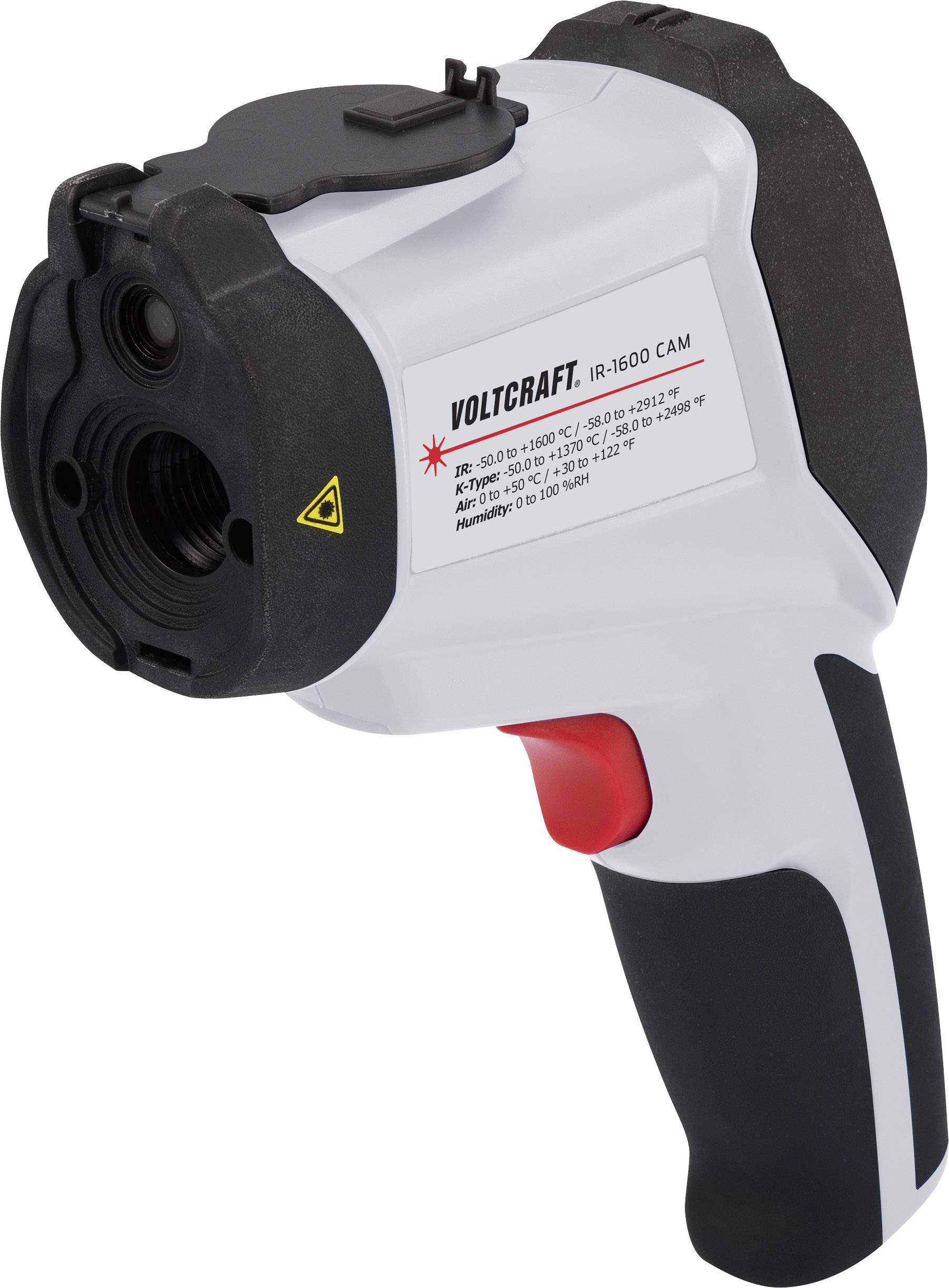

Model	IR-SCAN-350	IR-1600
Max. temperature	+380°C	+1600°C
Accuracy ± °C	5 °C	1 °C
Optics	20:1	50:1
Emission adjustable	-	✓
Alarm temperature display	-	✓
Display aids	Traffic light system	Real image overlay
Data logger	-	✓
Interface	-	✓
Connection for K-type sensor	-	✓
Storage	Carrier bag	Hard case
Item no.	1405828	1274960

The specialists for high temperatures - K-type measuring devices from VOLTCRAFT

Precisely measure high temperatures up to +1370 °C, even across multiple channels - no problem with the K100 and K200 series from VOLTCRAFT. If you are looking for a waterproof temperature measuring device, the VOLTCRAFT K-300 is the perfect choice. The K-300 offers IP67 water and dust resistance and the highlight is that the K-type connector on the device is also waterproof. If you want to connect other temperature sensors to the K-300, you can do this easily using the supplied adapter.

Model	K 101	K 102	K 201	K 204	K 300
Max. temperature	1370°C	1370°C	1370°C	1370°C	1370 °C
Accuracy ± °C	1 °C	1 °C	1 °C	1 °C	2 °C
Channels	1	2	1	4	-
Channels displayed simultaneously	1	2	1	4	-
Sensor enclosed	-	-	1	2	1
Sensor type	-	-	Wire sensor up to 200°C	Wire sensor up to 200°C	-
Delta measurement on the same channel	✓	✓	✓	✓	-
Delta measurement between 2 channels	-	-	-	✓	-
Min Max function	✓	✓	✓	✓	-
Timer function	-	-	✓	-	✓
IP67 waterproof/dustproof	-	-	-	-	✓
Interface	-	-	RS-232 with sep. cable	RS-232 with sep. cable	-
Mains operation possible	-	-	✓	✓	-
Storage	-	-	Bag	Bag	-
Item no.	100311	100312	100385	100806	1650576

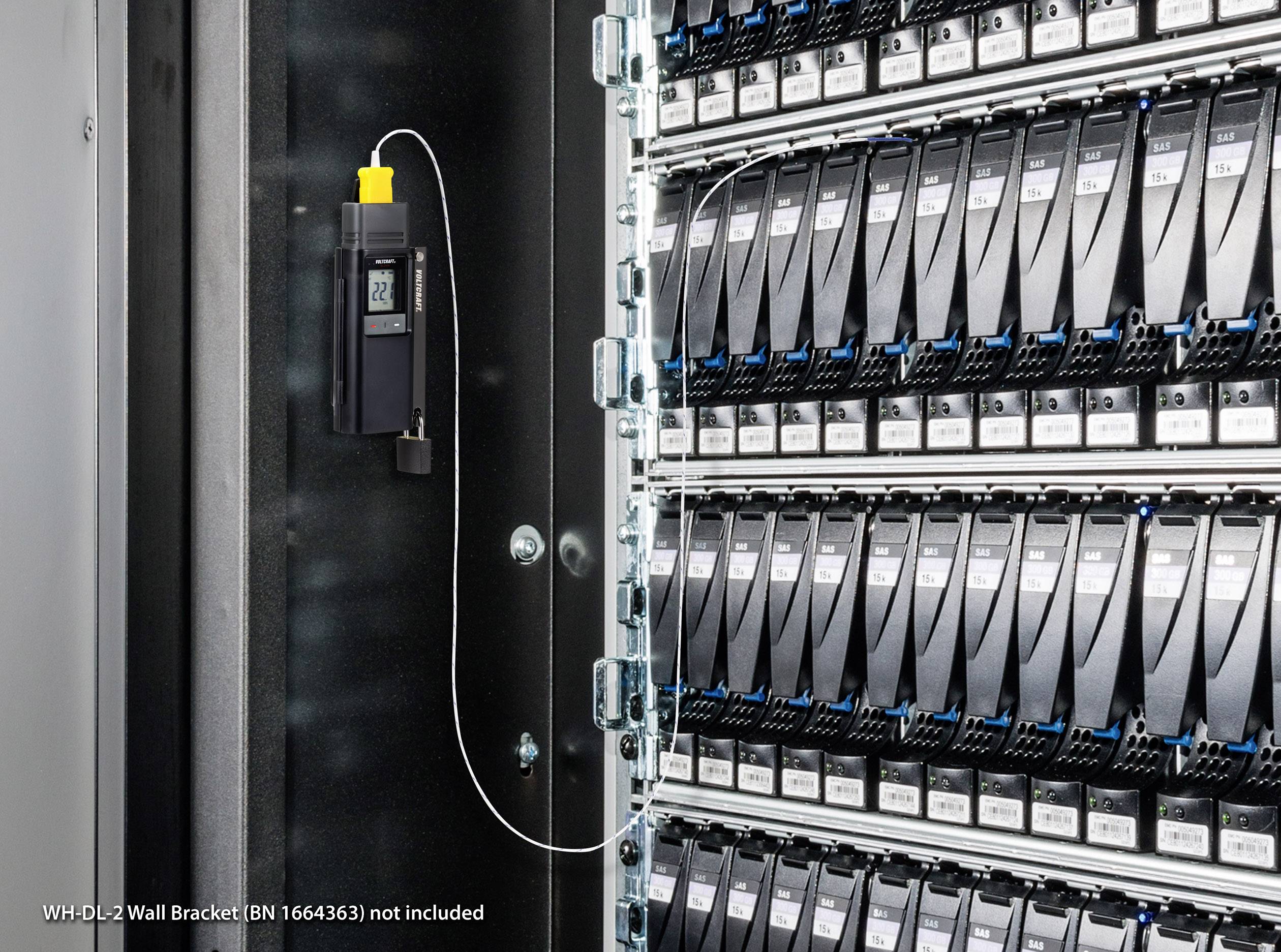

K-type thermometer with data logger function

This series is suitable for long-term measurements. All devices can alternatively be supplied with a separately available plug-in power supply, have a tripod thread and can store up to 16,000 values.

Model	DL-240K	K202	K204
Max. temperature	1372 °C	1370°C	1370°C
Accuracy ± °C	1.5 °C	1 °C	1 °C
Channels	1	2	4
Channels displayed simultaneously	-	2	4
Sensor enclosed	1	2	2
Sensor type	Wire sensor up to 200°C	Wire sensor up to 200°C	Wire sensor up to 200°C
Delta measurement between 2 channels	-	✓	✓
Min Max function	✓	✓	✓
Timer function	✓	-	-
Interface	-	RS-232 enclosed	RS-232 enclosed
Mains operation possible	-	✓	✓
Storage	-	Suitcase	Suitcase
Item no.	1931526	100428	100518

Thermocouple measuring devices for K and J sensors

This series can be used universally with different sensor types. The display is in °C or °F or °K. In addition to min-max values, the average value of the measurement series can also be called up. Measuring devices with several measuring channels, data logger function and USB interface for data transfer are also available in this series.

Model	PL120 T1	PL-120 T2	PL-125 T2	PL-125 T4
Max. temperaturt	+1372°C	+1372°C	+1372°C	+1372°C
Accuracy ± °C	1 °C	1 °C	1 °C	1 °C
Channels	1	2	2	4
Channels displayed simultaneously	1	2	2	2
Wire sensor up to 250°C enclosed	1	2	2	4
Delta measurement between 2 channels	-	✓	-	✓
Min Max function	✓	✓	✓	✓
Data logger	-	-	✓	✓
USB Interface	-	-	✓	✓
Item no.	123401	123402	1012836	1013036

Temperature measuring devices of the PTM series

Temperature measuring devices with maximum accuracy

The PTM series delivers very accurate readings. Although the temperature range is not as wide as that of K-type measuring devices, the PTM devices deliver impressive accuracy within the specified measuring range. Thanks to the PT1000 measuring resistor used, the resistance of the connecting cable is negligible and the IP65 protection is a further advantage of this series in practice.

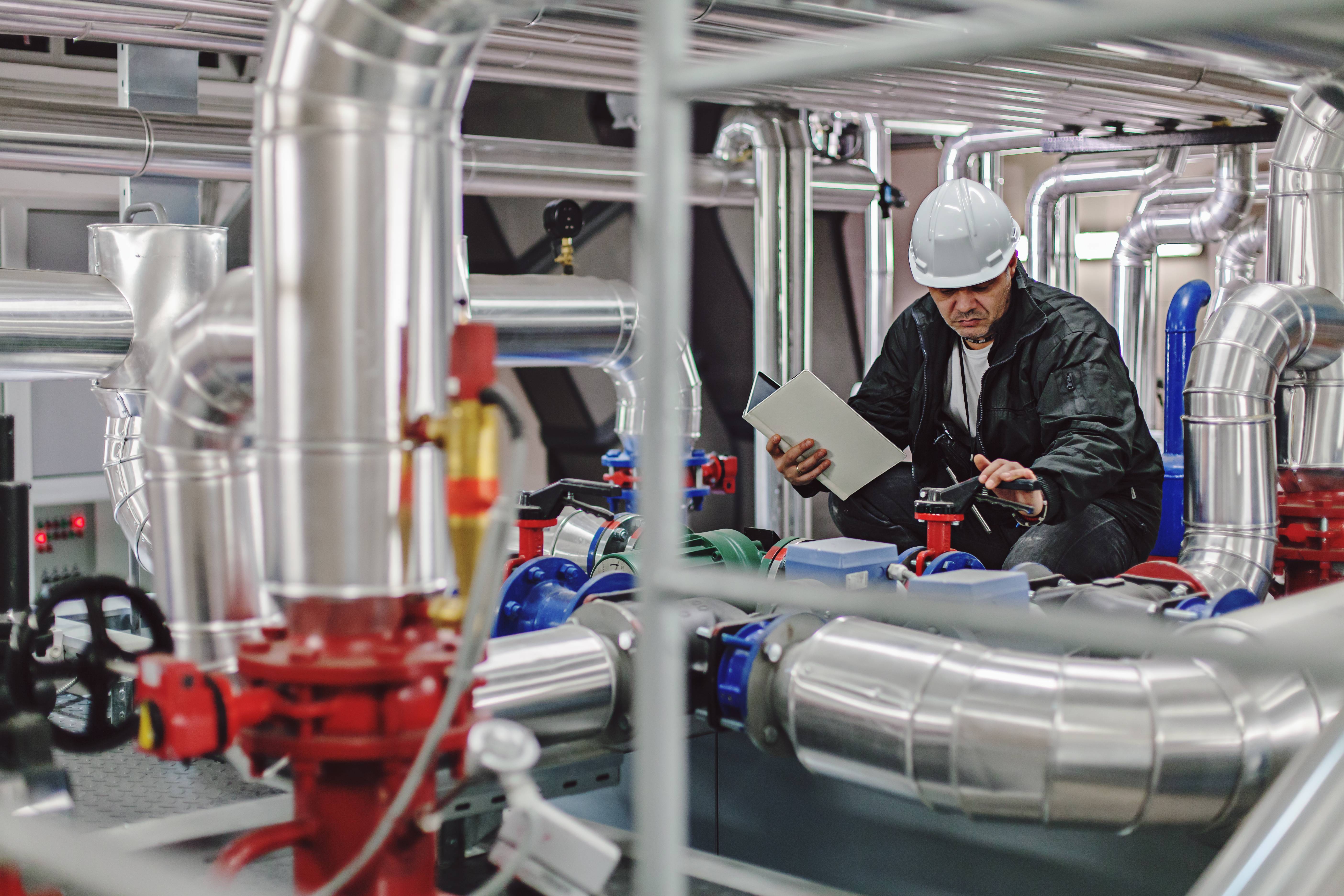

Temperaturmessung an Heizungs- und Klimaanlagen

Model	PTM 100	PTM 120	PTM 130
Max. temperature	450°C	250°C	250°C
Accuracy ± °C	0.1 °C	0.1 °C	0.1 °C
Sensor enclosed	-	1	1
Sensor type	Pt 1000	Pt 1000	Pt 1000
Sensor Ø	-	3 mm	1.5 mm
Sensor version	pluggable	hard	hard
IP 65 waterproof	✓	✓	✓
Item no.	1720714	1720716	1720717
