Name: ABUS IPCS34611A LAN IP CCTV camera 2688 x 1520 p
Brand: ABUS
SKU: 3088896
Availability: SoldOut

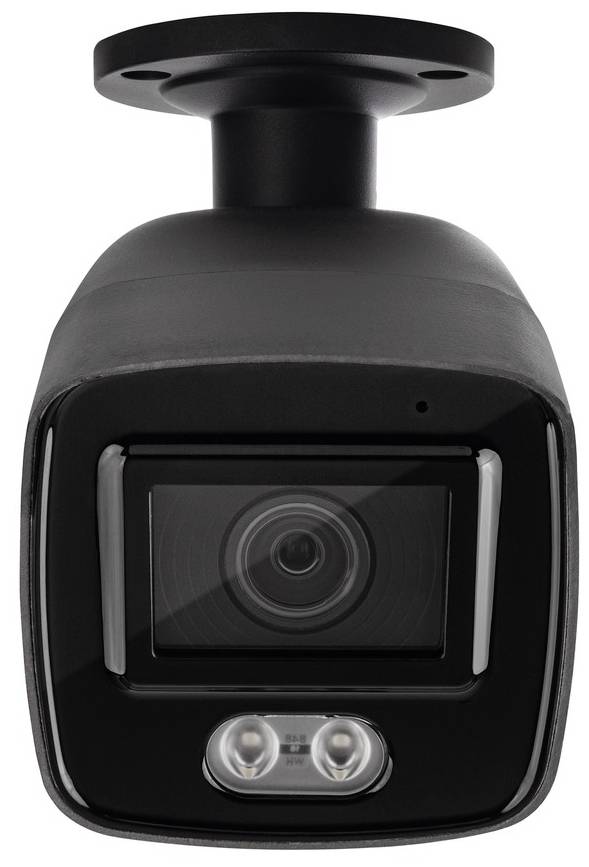

Security camera in a black housing with integrated LED light, pictured from the front.

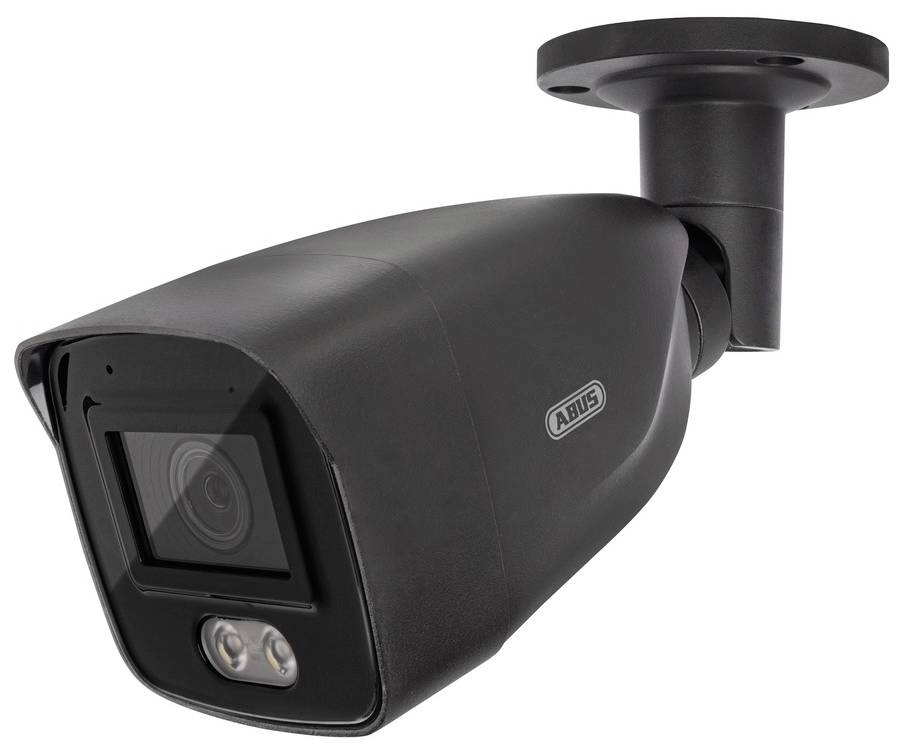

'Black surveillance camera with wall mount, lens and LED lights. Suitable for security systems in indoor and outdoor areas.'

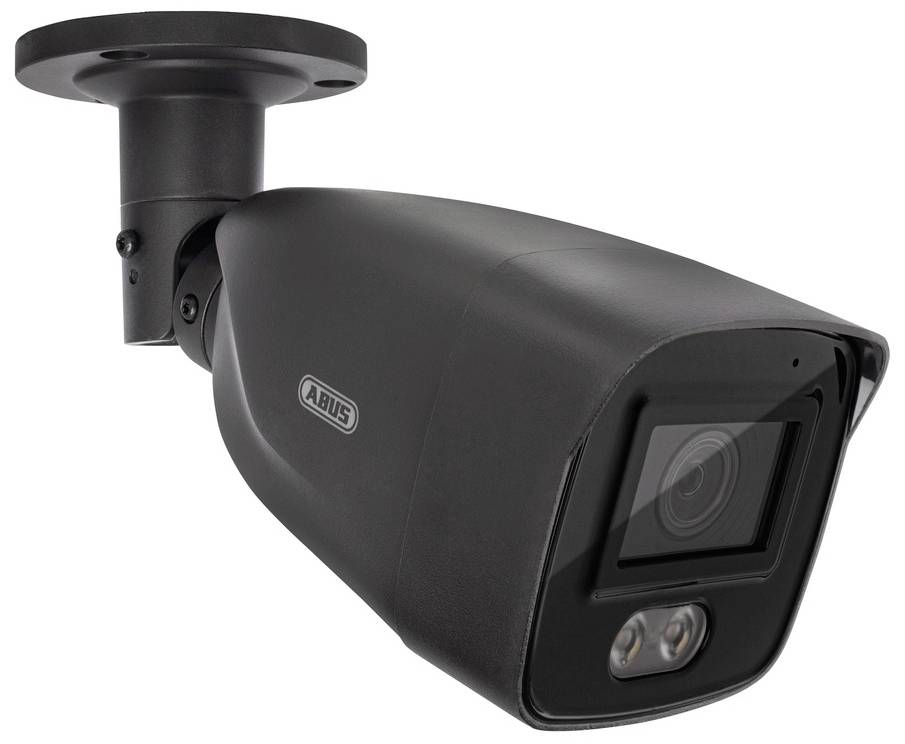

Black surveillance camera with rectangular housing and lens in the centre. Mounted via bracket at the top.

1/3

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 305.00 / piece)

€ 305.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

LAN IP-Bullet camera;2688 x 1520 p;ABUS;IPCS34611AOutdoors

4 MPx Resolution (2,688 x 1,520 @ 25 fps)
2.8 mm fixed lens (108° viewing angle)
Object detection (People & Vehicle)

Technical specifications

Connections 1 x RJ45, 1 x DC
Number of users: 32
Number of streams: 3
Minimum light (color): 0.0005 lx
Aperture at minimum illumination (color): F1.0
Case material: metal
PoE standard IEEE 802.3af
Private zones: 4

Product type: CCTV camera

Series: ABUS Professional

Camera type: Bullet camera

Power supply: PoE (Power over Ethernet)

Resolution (max.): 2688 x 1520 p

Viewing angle: 108° horizontal, 55° vertical

App compatibility: Yes

Transfer type: LAN

Used at: Outdoors

Width: 85 mm

Height: 85 mm

Dim: (L x W x H) 223 x 85 x 85 mm

Weight: 500 g

Factory colour: Black

: IP67

Signal standard: IP

Camera type: IP camera

Length: 223 mm

Focal length: 2.8 mm

IR coverage: 30 m

Microphone: Yes

Sensor: 1/1.8" Progressive Scan CMOS

Additional IR light: Yes

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3088896 ABUS IPCS34611A LAN IP CCTV camera 2688 x 1520 p

User & Safety Instructions

User & Safety Instructions 3088896 ABUS IPCS34611A LAN IP CCTV camera 2688 x 1520 p

Description

SMALL CAMERA, BIG DETAILS AT NIGHT
This IP mini tube is a compact LAN camera with full color day/night function and delivers images in 4 MPx resolution. With its white-light LEDs in IP67 housing, it can be used indoors and outdoors during day and night. Mobile access to the camera via ABUS link station APP.
Subtle monitoring: Powerful in darkness
Clear color images in absolute darkness thanks to the full color day/night technology – rich in detail for a sound evidence. The low-light intensity is effectively amplified by the special lens and the extra-light-sensitive image sensor. The white-light LEDs provide extra light with fine dosing for the image sensor, hardly visible for the eye.
2 versions for max. Flexibility
The camera is available with 2 focal lengths: 2.8 mm / 108° field of view (IPCS34511A) and 4 mm / 95° (IPCS34511B).
Automatically Object detection
The security camera differentiates relevant movements (people, vehicles) from interferences (branches, light, etc.) – And minimizes unnecessary motion alarms.
Recording and compatibility
The recording is done on ABUS NVR, VMS or microSD card. The camera is compatible with ABUS Secvest, Secoris and WLX pro.
Easy to set up
Mounting with protected cable via installation box (TVAC32600). The software ABUS IP-Installer simplifies the setup on the network.
Notes: Without power supply, since PoE. The effective LED range varies depending upon the location of use.

This text is machine translated.

Features

4 MPx resolution (2,688 x 1,520 @ 25 fps) for solid surveillance images
2.8 mm fixed lens for larger distances (108° viewing angle)
Highly detailed, well usable color pictures in darkness thanks to the full color day/night technology
Automatically amplifies minimum ambient light using a special lens and very light-sensitive image sensor
Subtle illumination of the field of vision with white light LEDs (up to 30 m range) for rich color images in total darkness (e.g. interior)
Finely dosed illumination for the light-sensitive image sensor (hardly visible for the human eye)
Object detection (people & vehicle): Video content analysis with fully automatic distinction between people / vehicles and interference (branches, lights, etc.)
Intelligent video analysis with automatic Scene recognition (smart events) for precise motion alarms, recording and process optimization
Output of 3 video streams in ideal resolution for e.g. live images, recording, mobile access, etc.
Robust, weatherproof housing (IP67)
Supports H.264, H. 265, MJPEG (inc. Dynamic GOP)
MicroSD card slot for internal data storage, encrypted for high data security (optional)
12 V DC & PoE (802.3af)
Digital Zoom

Scope of delivery

1x IP Mini Tube 4 MPx, black (2.8 mm, WL)
1x quick instructions
1x safety instructions

Hints

Memory card and power supply not included in delivery
