ABUS Lightcam PPIC36520 LAN, Wi-Fi IP CCTV camera 1920 x 1080 p

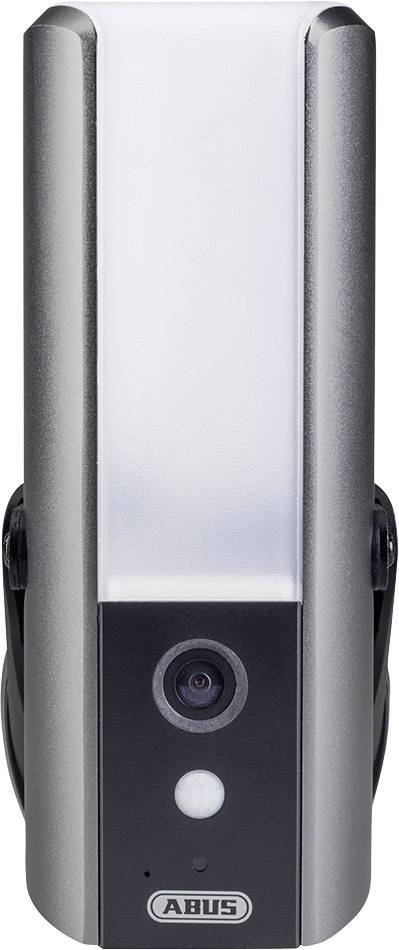

A black and silver surveillance camera with a camera lens and motion sensor, integrated into a rod-shaped housing.
A person in a green jacket is installing a round wall-mounted device, possibly a thermostat, using a screwdriver.
A person is showing another person a mobile phone app. Both are in a kitchen. The app displays a landscape photograph.
'System overview of the Smart Security World with Smartvest central unit, cameras, motion sensors and alarm systems, ready for Smart Friends.'

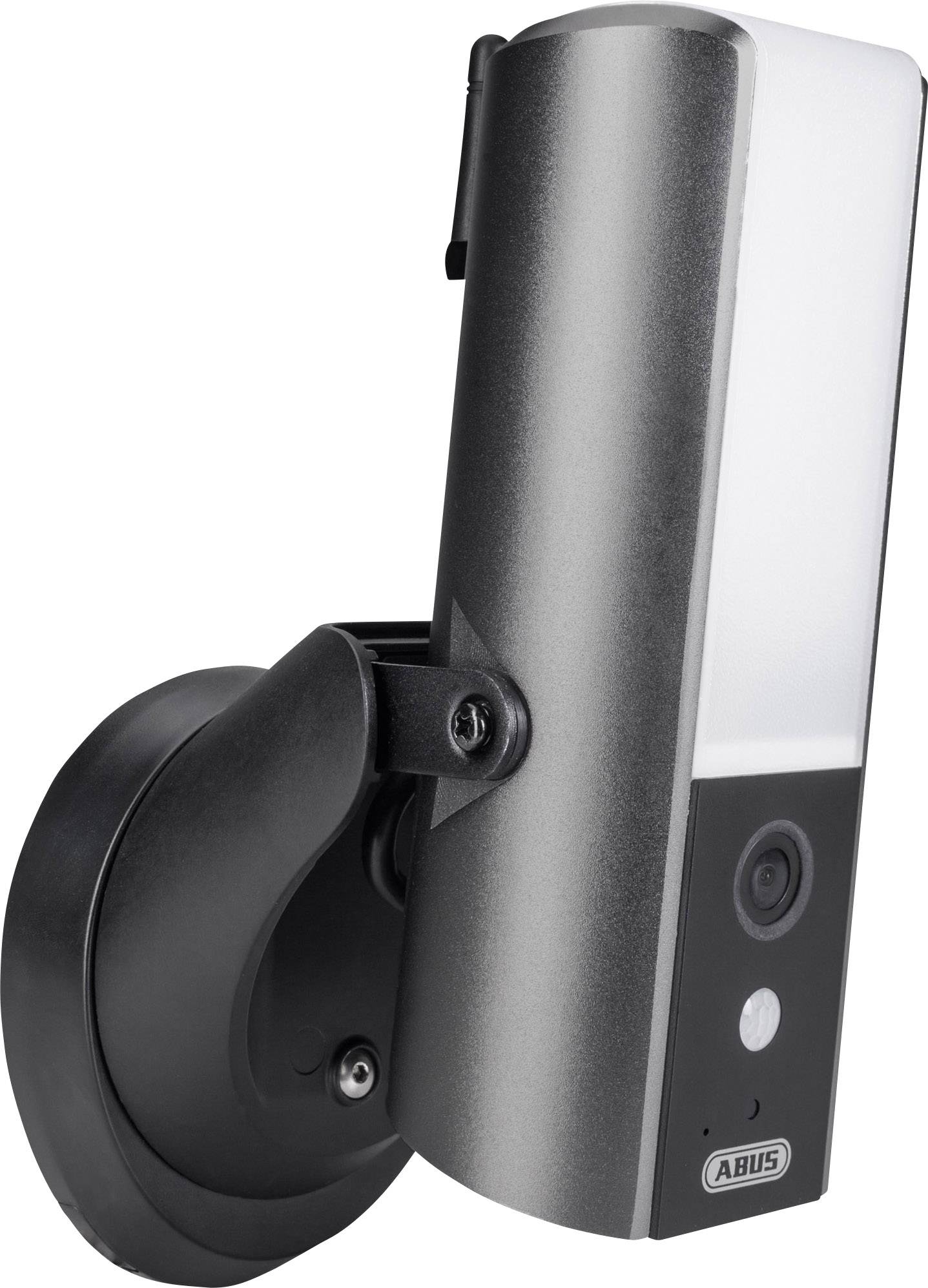

A black and silver outdoor surveillance camera mounted on a wall bracket, featuring an integrated LED light.

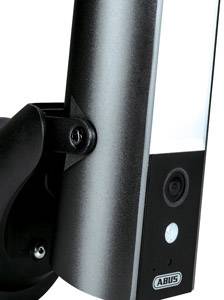

A silver surveillance camera with a black mount, lens, and motion sensor. The 'ABUS' logo is visible at the bottom.
Smartphone displays security camera footage of a person in the garden at night. Below it, an app interface for controlling lighting.
A couple stands in the evening in front of a modern house entrance under lighting, with the door closed.
A man and a woman enter a modern house through the front door at dusk. Exterior lighting illuminates the entrance area.

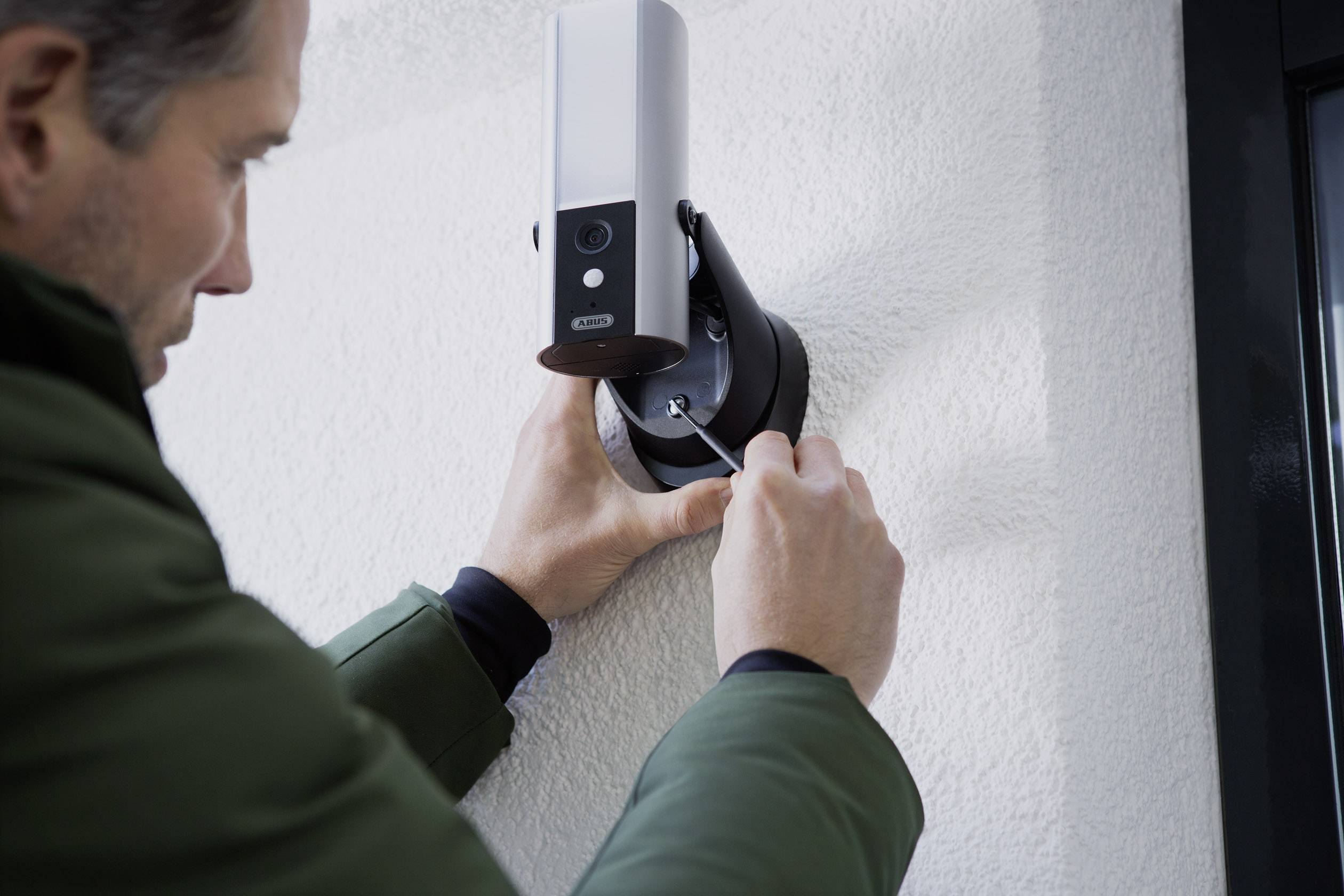

A person is installing a surveillance camera on a house wall. They are wearing a dark green jacket and securing the camera with a screwdriver.
Exterior lighting on a building wall at dusk, surrounded by dark trees in the background.
A masked individual stands in front of a house at night, shining a torch.<br><br>Note: I used "torch" instead of "flashlight" as this is the standard British English term for a handheld portable light source.
A person in a green jacket is installing a round wall-mounted device, possibly a thermostat, using a screwdriver.
A person dressed in dark clothing is running up a staircase in the darkness. The environment is poorly lit, creating an air of mystery.
A man in a green jacket is installing a round, electronic device on a white wall. He is holding a screwdriver in his hand.
Exterior view of a modern building facade with a small surveillance camera beside a glass door; clean, minimalist architecture.
1/16
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 285.00 / piece)
€ 285.00
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

LAN, Wi-Fi IP-Compact camera;1920 x 1080 p;ABUSLightcam;PPIC36520Outdoors

  • For monitoring, illuminating and intercom in the entrance area
  • Full HD 1080p resolution with wide angle (120°) and IR night vision
  • High-performance LED with 950 lumens (adjustable light intensity)
  • 'Smart Security World': Logo featuring a stylised padlock, lightbulb, and information symbol. Theme: Security and Technology.

Technical specifications

  • Power consumption 17 W
  • Brightness white light LED 950 lm
  • Colour temperature: 3,000 K
Product type

CCTV camera

Series

ABUS Smart Security World

CCTV features

Saves footage on SD card

IR LEDs

Speaker

Microphone

2-way communication

White spotlight

Motion detector

Camera type

Compact camera

Resolution (max.)

1920 x 1080 p

Sensor size

9.4 mm (1/2.7")

Sensor type

CMOS

Max. viewing angle hor.

120°

Vertical viewing angle

62°

App compatibility

Yes

Transfer type

LAN

Wi-Fi

Wi-Fi standard

IEEE802.11b

IEEE802.11g

IEEE802.11n

Light sensitivity (+ IR)

0 lx

Light sensitivity (- IR)

1 lx

IR range (max.)

8 m

Used at

Outdoors

Type

microSD card (up to 128 GB)

Width

181 mm

Height

135 mm

Depth

70 mm

Dim

(W x H x D) 181 x 135 x 70 mm

Weight

1035 g

IP55

Signal standard

IP

Documents & Downloads

Datasheet

Datasheet 1762495 ABUS Lightcam PPIC36520 LAN, Wi-Fi IP CCTV camera 1920 x 1080 p

User & Safety Instructions

User & Safety Instructions 1762495 ABUS Lightcam PPIC36520 LAN, Wi-Fi IP CCTV camera 1920 x 1080 p

Information

Information 1762495 ABUS Lightcam PPIC36520 LAN, Wi-Fi IP CCTV camera 1920 x 1080 p

Description


ABUS Smart Security World WLAN Light camera:
Front door and entrance area at night perfectly in view
The ABUS Smart Security World Light-Camera serves for effective monitoring of input areas via app. Thanks to Full HD 1080p resolution, infrared night vision function and 140° wide angle, it delivers brilliant image quality and covers a large range. The white light LED spotlight improves the view at night and serves as a deterrent. The camera is suitable for outdoor use (protection class IP66).

All-in-One: Camera, PIR motion detector and outdoor light
The light camera is a loyal guardian, which reliably protects your entrance area or garden. It is a surveillance camera with motion sensor, LED spotlight and intercom function. If the PIR sensor is triggered, the light goes on and starts video recording. Regardless of this, the device also serves as a pure outdoor light, which switches on and off via the motion sensor – and can replace an outdoor wall lamp.

app for video surveillance
Operation and access to this app camera is only possible via the app – completely without PC, web browser or additional software. This allows you to view live images, saved recordings, intercom and settings. The network is hardly loaded thanks to strong data compression.

smart Security World Ready
The ABUS Smart Security World Light camera is part of smart security world and thus fully integrated into the Smartvest system and the app – for maximum comfort in operation as well as the intuitive step-by-step installation. If required, the camera serves as an outdoor siren of a Smartvest alarm system (loudspeaker generates alarm tone).

Note on night vision function
The effective IR range depends on the place of use.

This text is machine translated.

Features

  • ideal for the input range for monitoring and illumination with intercom function
  • Full HD 1080p resolution with hohem wide-angle (120°) and infrared night vision function
  • Integrated microphone and speaker for app-speaking
  • Existing cable connections for replacing an outdoor light
  • Professional motion detection for outdoor use (integrated PIR sensor)
  • Robust, weatherproof camera housing (IP55)
  • Direct notification via email and push service
  • Automatic recording (with set motion detection)
  • Guided step-by-step installation via app (iOS, Android)
  • Up to GB SD card recording (accessory)

Scope of delivery

  • ABUS WLAN-Light camera
  • Antenna
  • Wall bracket
  • Drill template
  • Fitting Material
  • User manual.
