ABUS PPIC90000 + PPIC90600 Wi-Fi IP-CCTV camera set 2-channel incl. 1 camera 1920 x 1080 p

Solar panel and surveillance camera; the solar panel on the left with a black surface, camera on the right in white with lens and sensors.
Surveillance camera with a black and white front panel and lens, alongside a white, oval unit. Branding visible on both devices.
A white, oval electrical adapter with writing, a socket, and switches for 'Reset' and 'Pair'.
The image depicts a black surveillance camera with lenses, sensor, and LED light, mounted on a white base.
White surveillance camera on a wall mount, for monitoring indoor or outdoor areas.
Close-up of a surveillance camera sensor with visible lens and sensor details.
Back of an electronic device with a USB-C port, microSD card slot, and red cover. CE marking visible.
'Two white plastic mountings, each with a central thread and three screw holes, show different views.'
White, round mounting bracket with a metal connection in the centre. Used for attaching devices to smooth surfaces.
Garden with a lawn, patio, table with chairs, parasols, wooden benches, and swings in the background.
A delivery person in a yellow uniform is carrying a package to the front door of a house. In the background, a car and a closed garage can be seen.

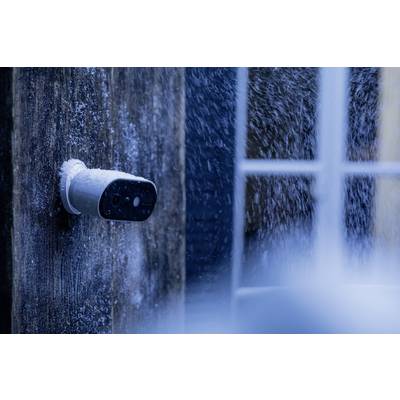

A snow-covered surveillance camera is mounted on a house wall, with snow falling in the background.

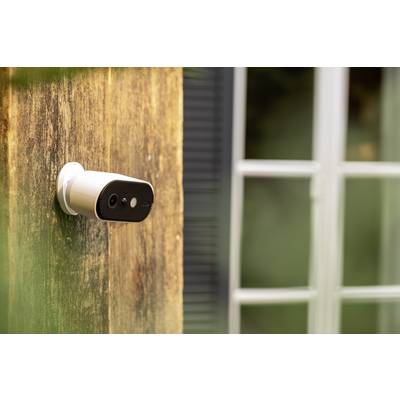

A security camera is mounted on the exterior wall of a house, with a window visible in the background.
A fixed security camera mounted on a wall focused on a garden at dusk, with lights switched on.
Front door with a security glass canopy and a surveillance camera mounted on the wall.
A Wi-Fi repeater is plugged into the wall socket. A blurry football lies on the floor in the background.

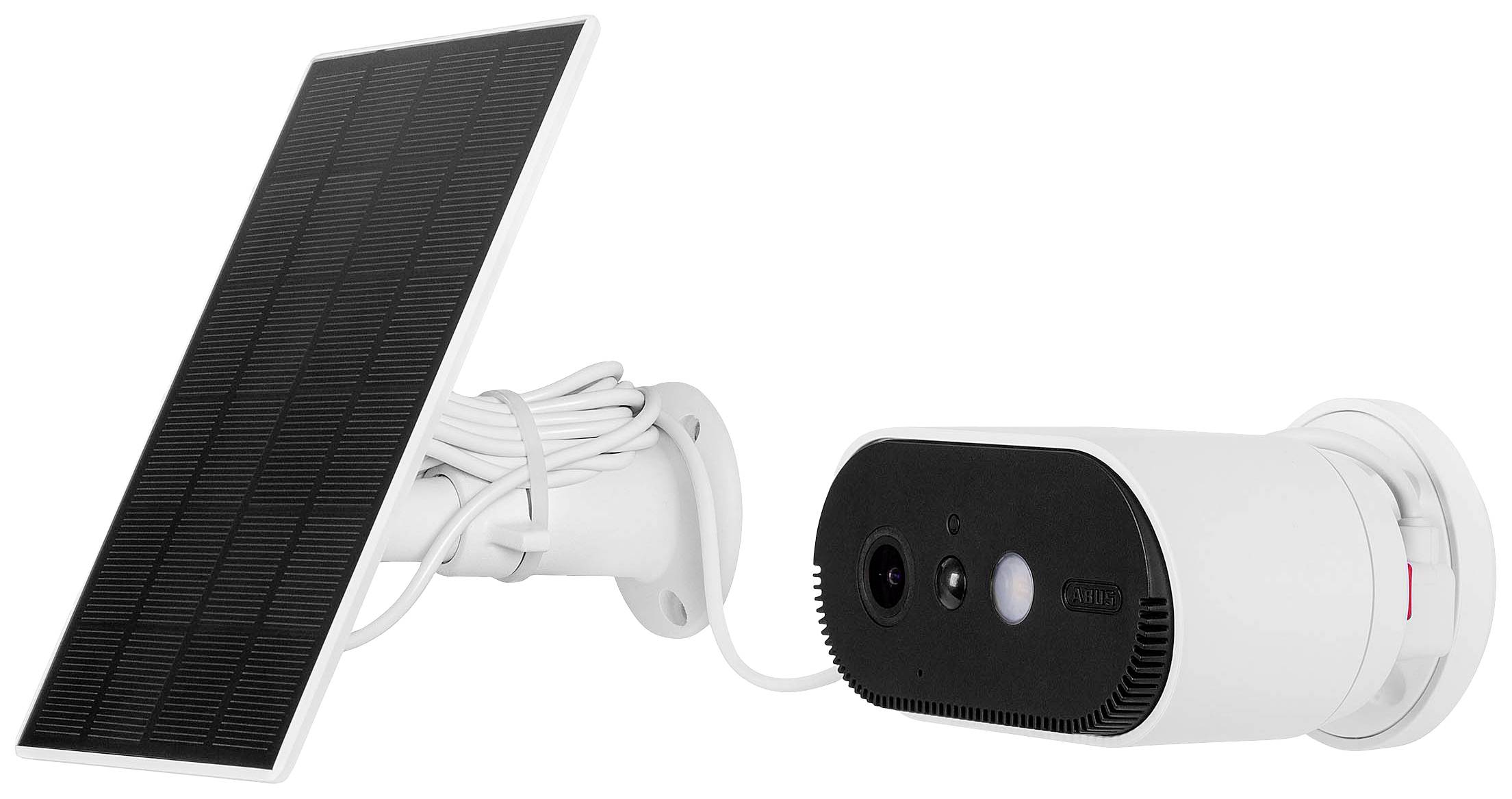

Solar-powered security camera with cable connection. Camera designed to enhance outdoor security.

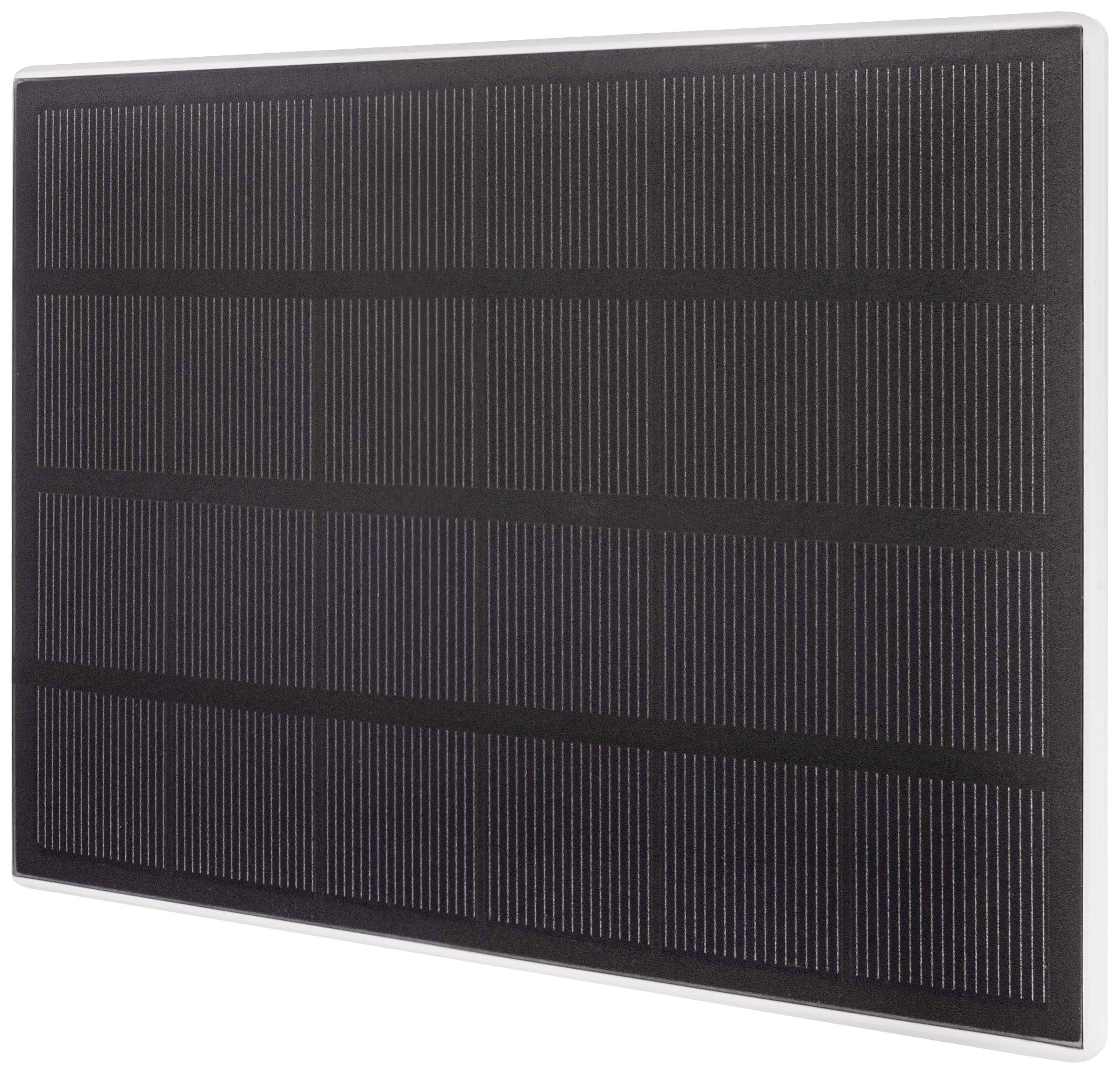

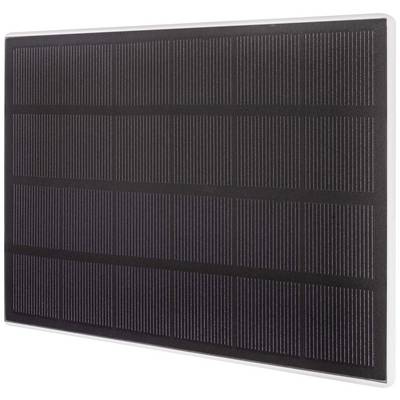

ABUS PPIC90000 + PPIC90600 Wi-Fi IP-CCTV camera set 2-channel incl. 1 camera 1920 x 1080 p-17

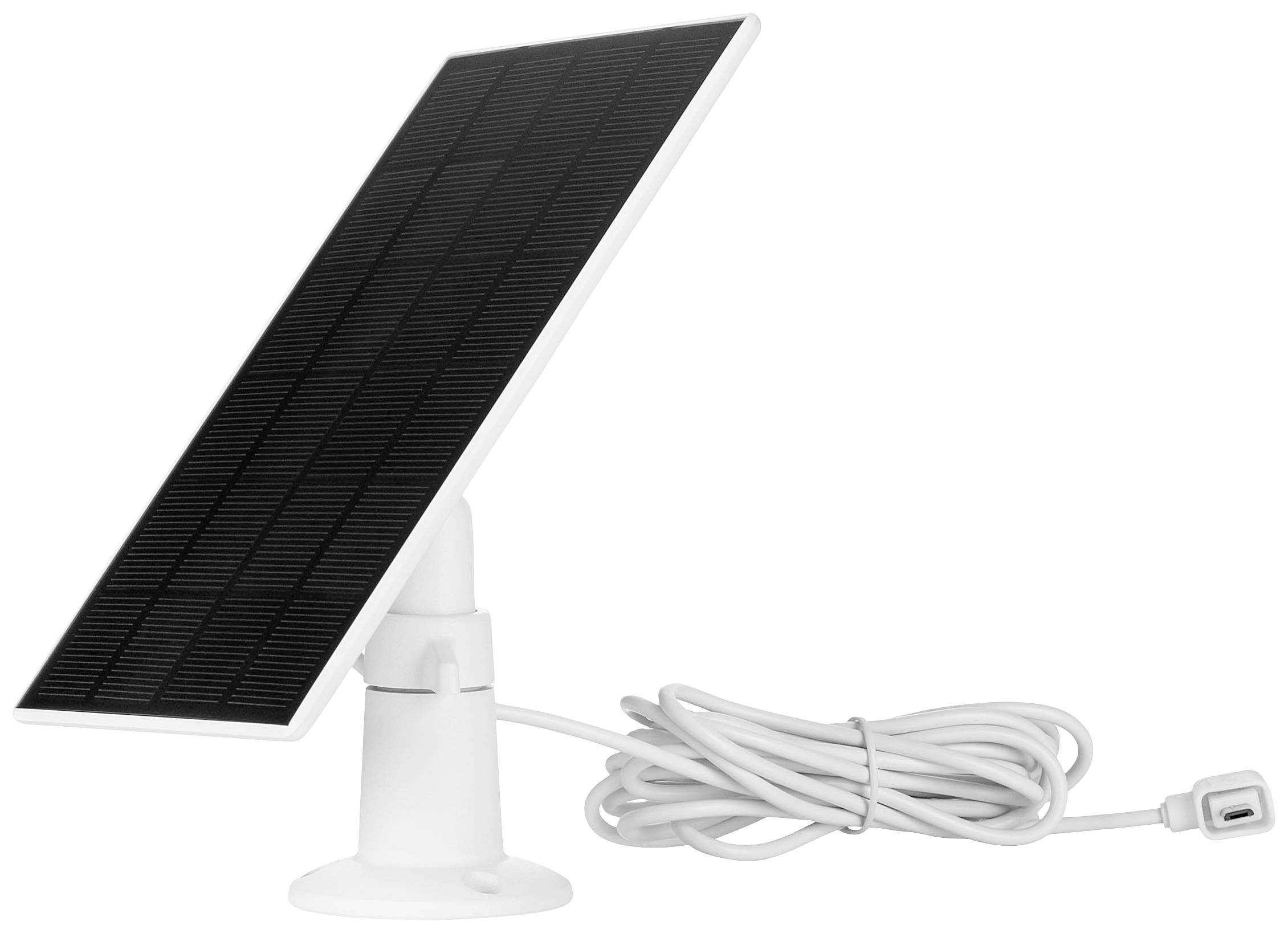

A black solar panel on a white stand with a long white cable.

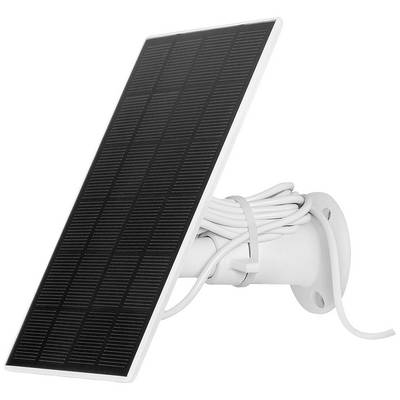

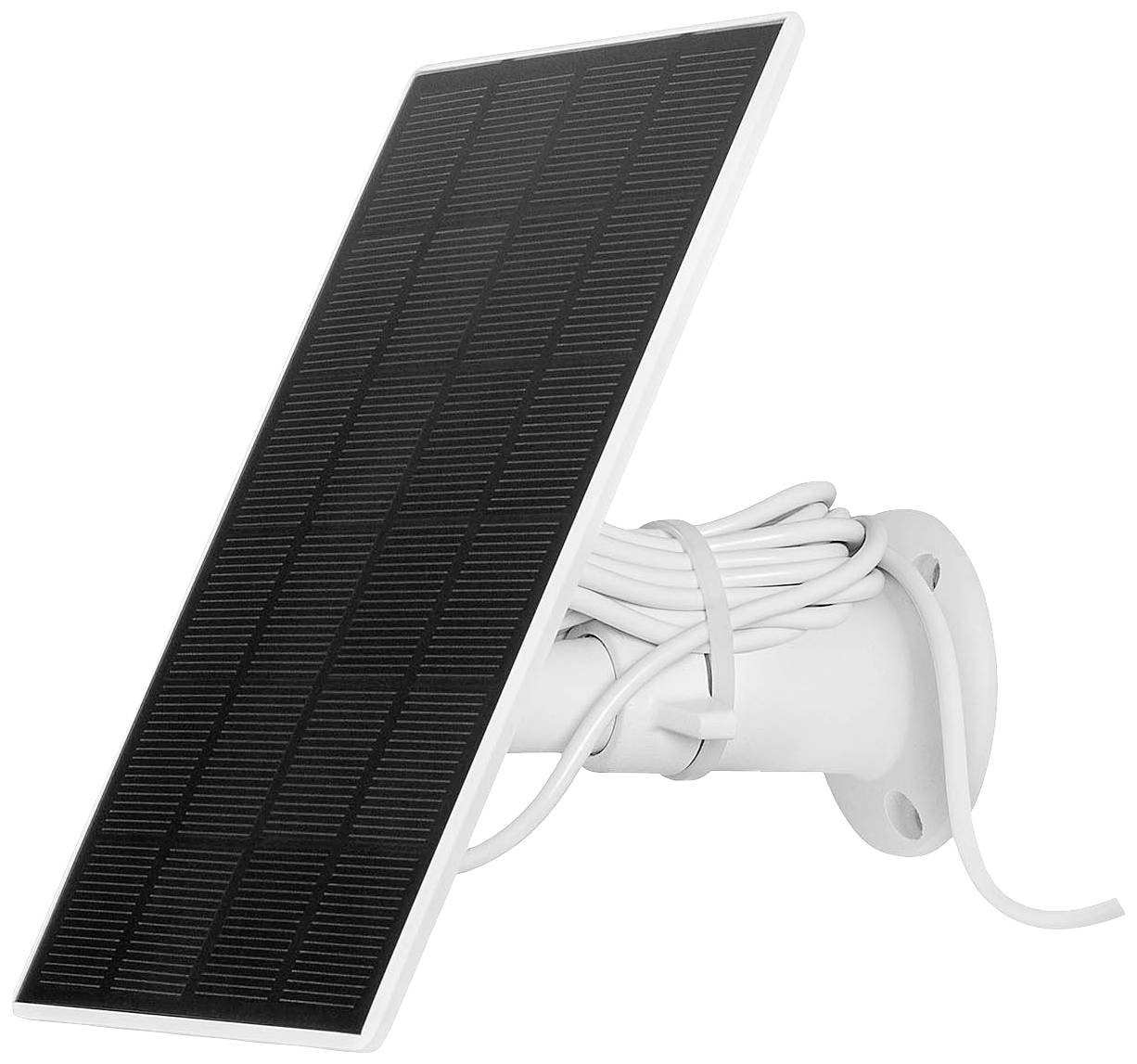

Solar panel for wall mounting with transparent cable, suitable for powering small devices or lighting.

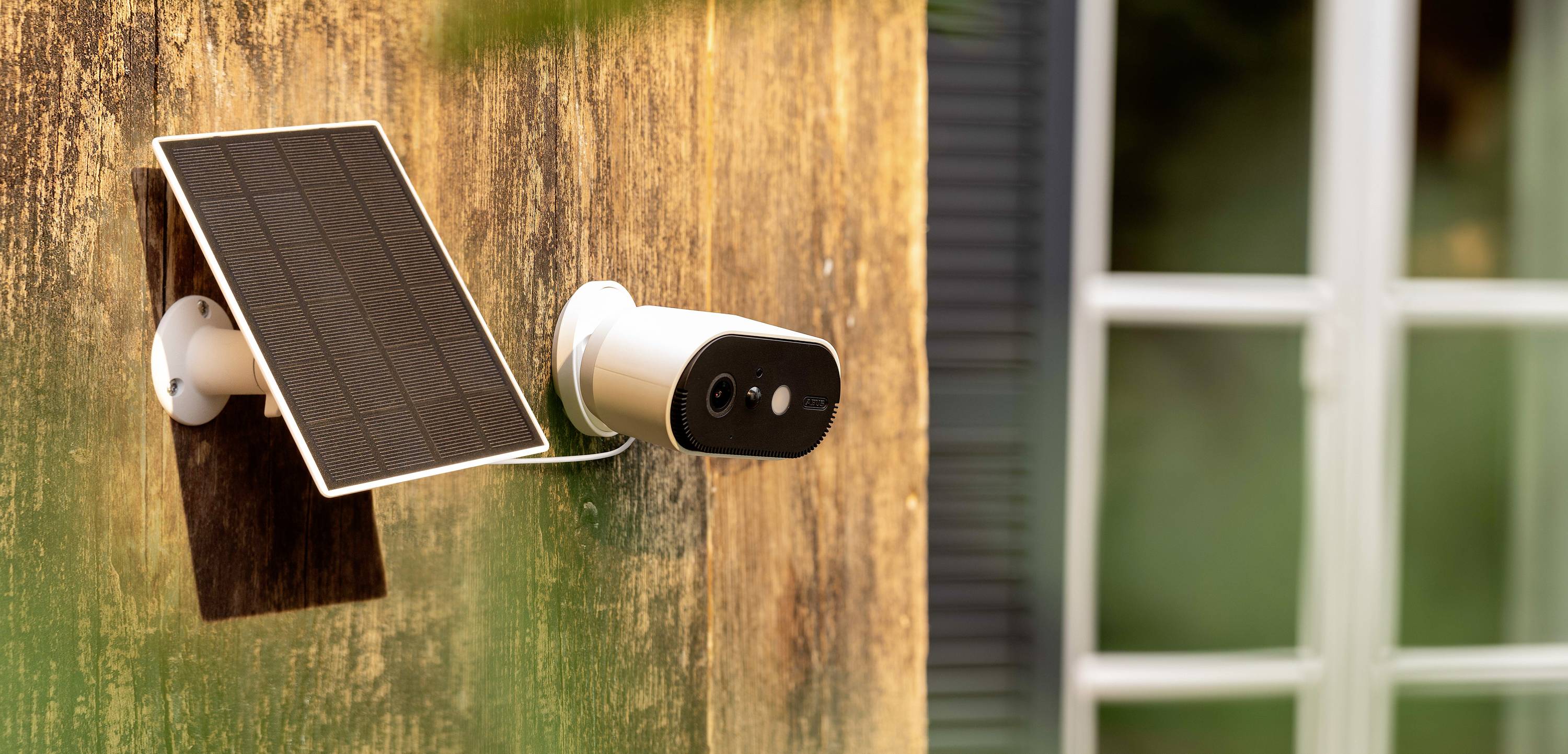

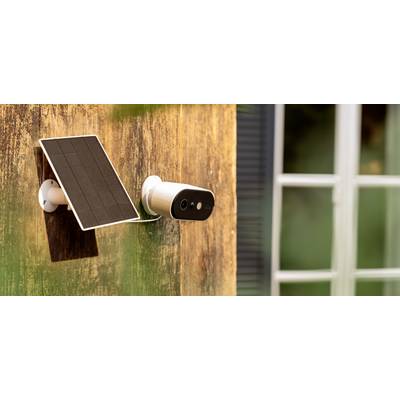

A security camera with a solar panel is mounted on a wooden house wall, with a window in the background.

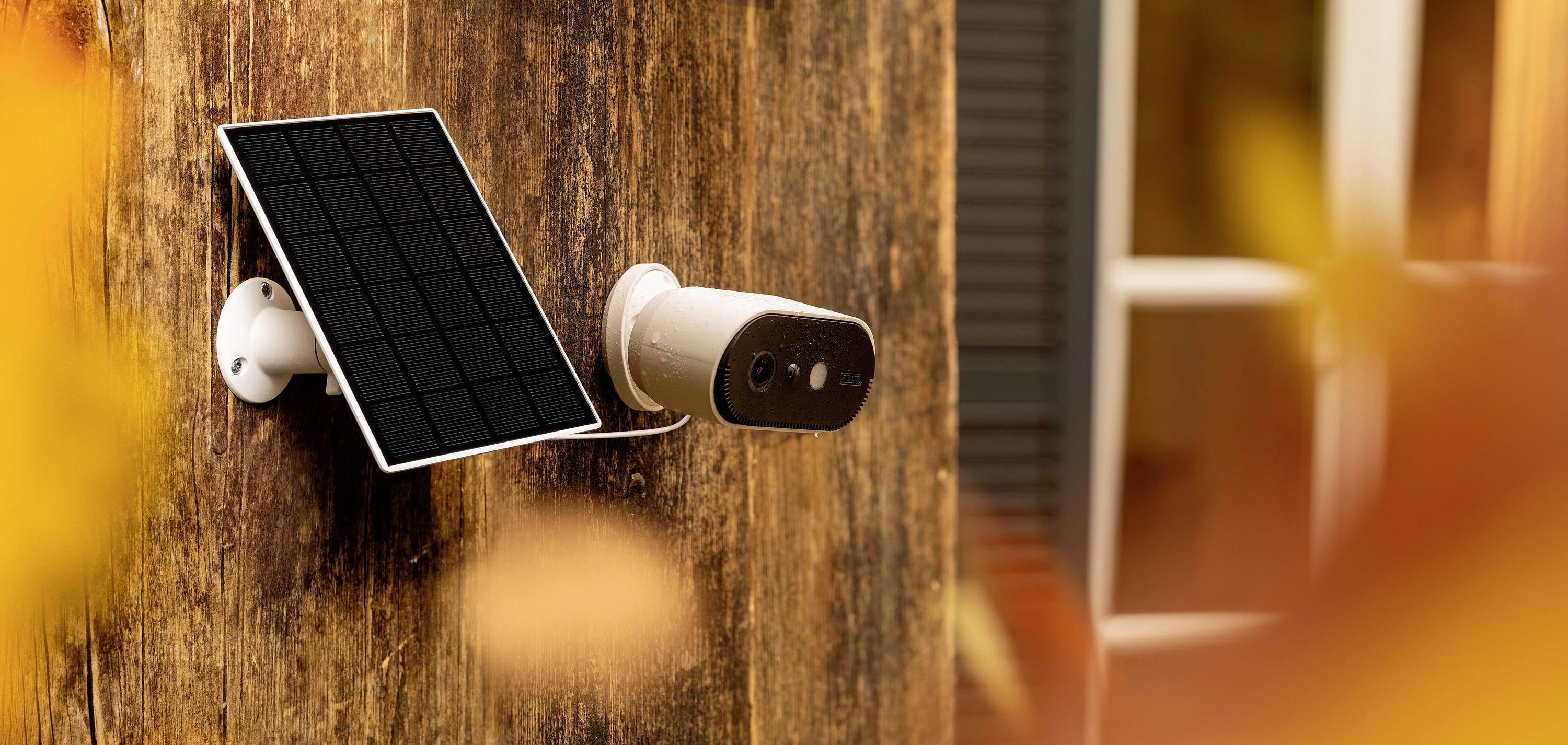

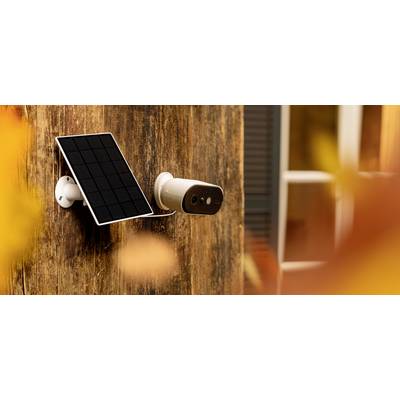

A white security camera with a solar panel is mounted on a wooden facade. Blurred autumn leaves are visible in the foreground.

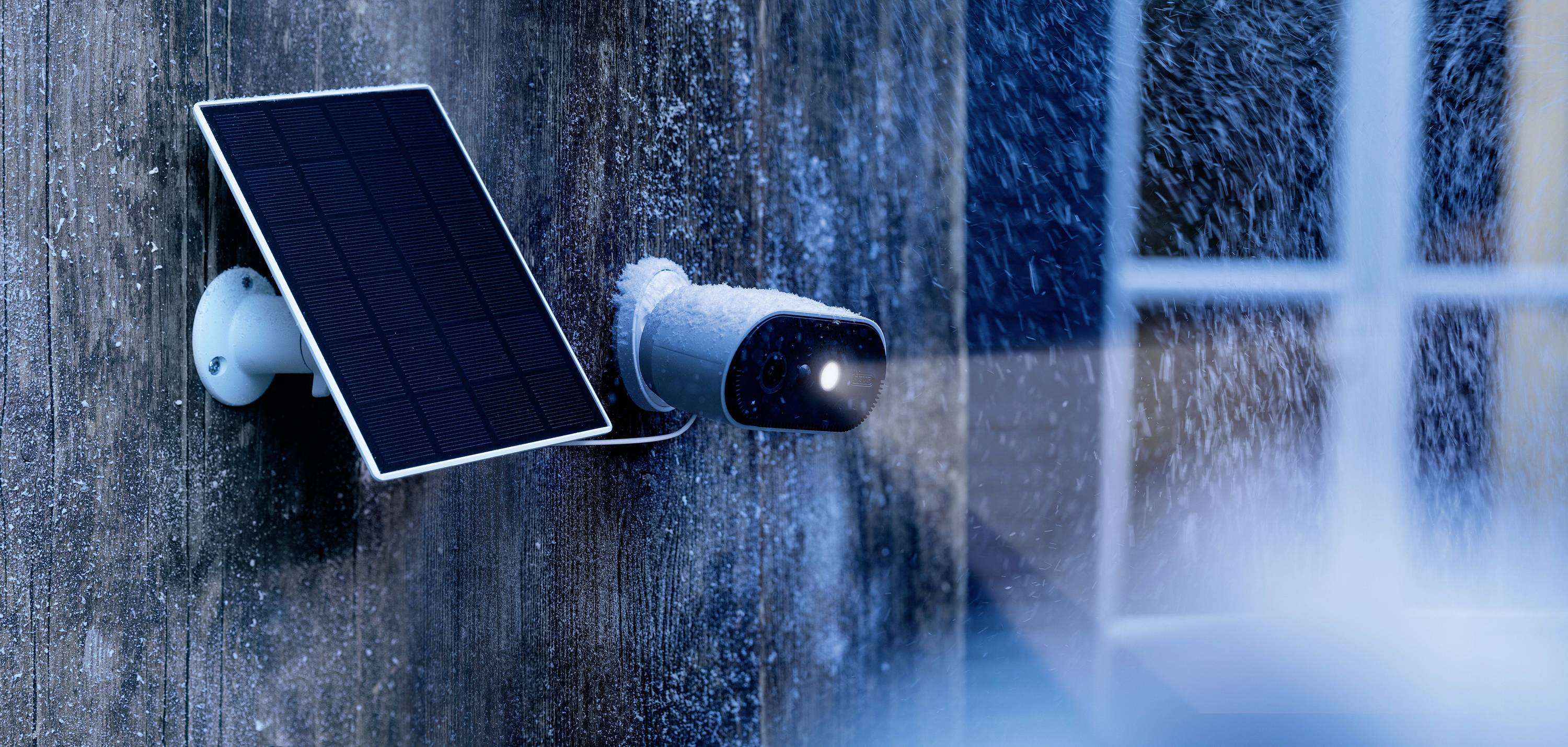

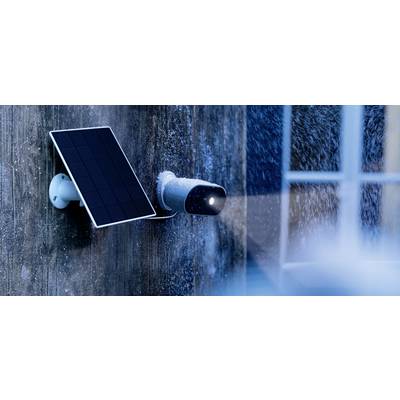

Security camera with solar panel, installed on a house wall during snowfall, illuminating an area in the foreground.

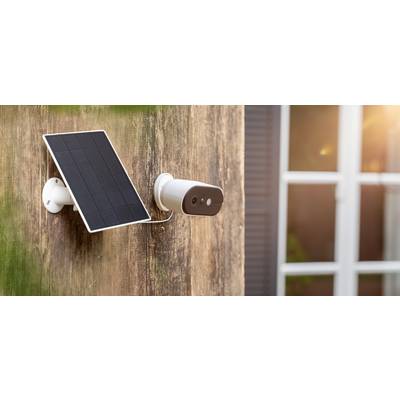

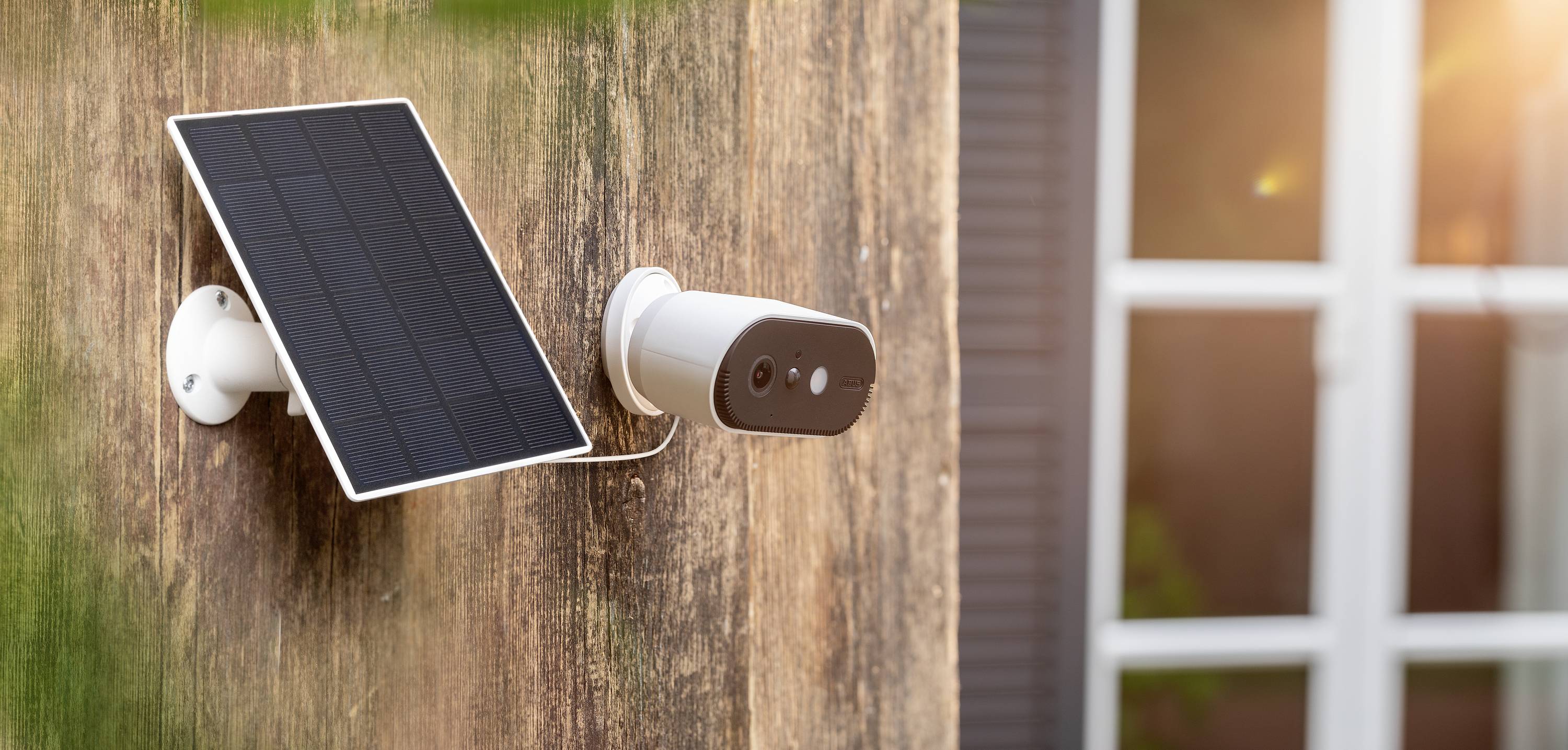

Outside camera and solar panel mounted on a house facade, with a window in the background.

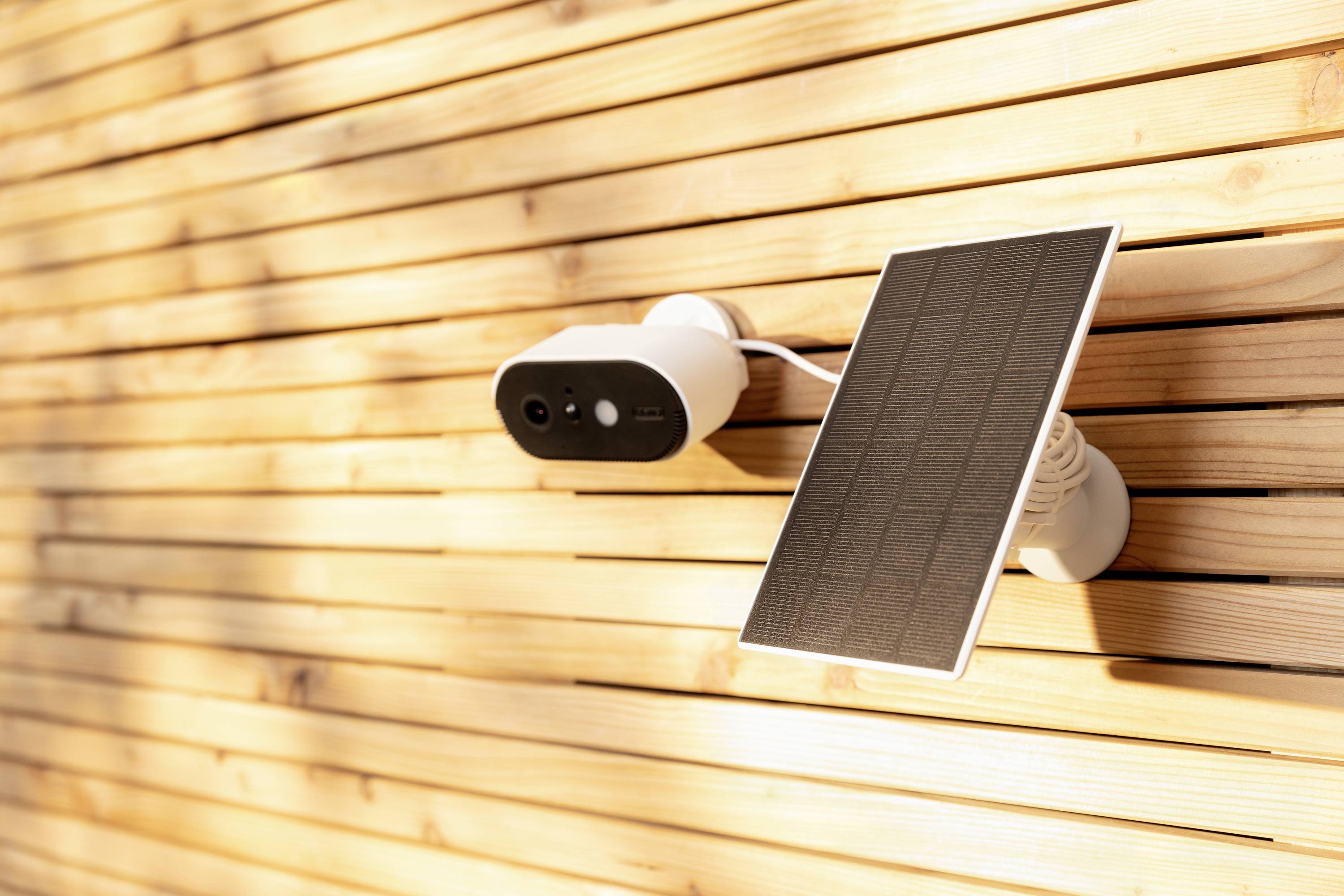

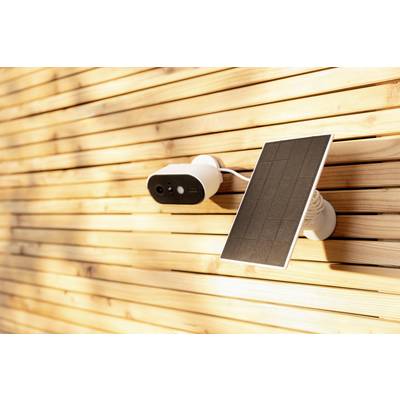

Solar-powered security camera mounted on a wooden facade, surrounded by warm sunlight, symbolising sustainable surveillance.

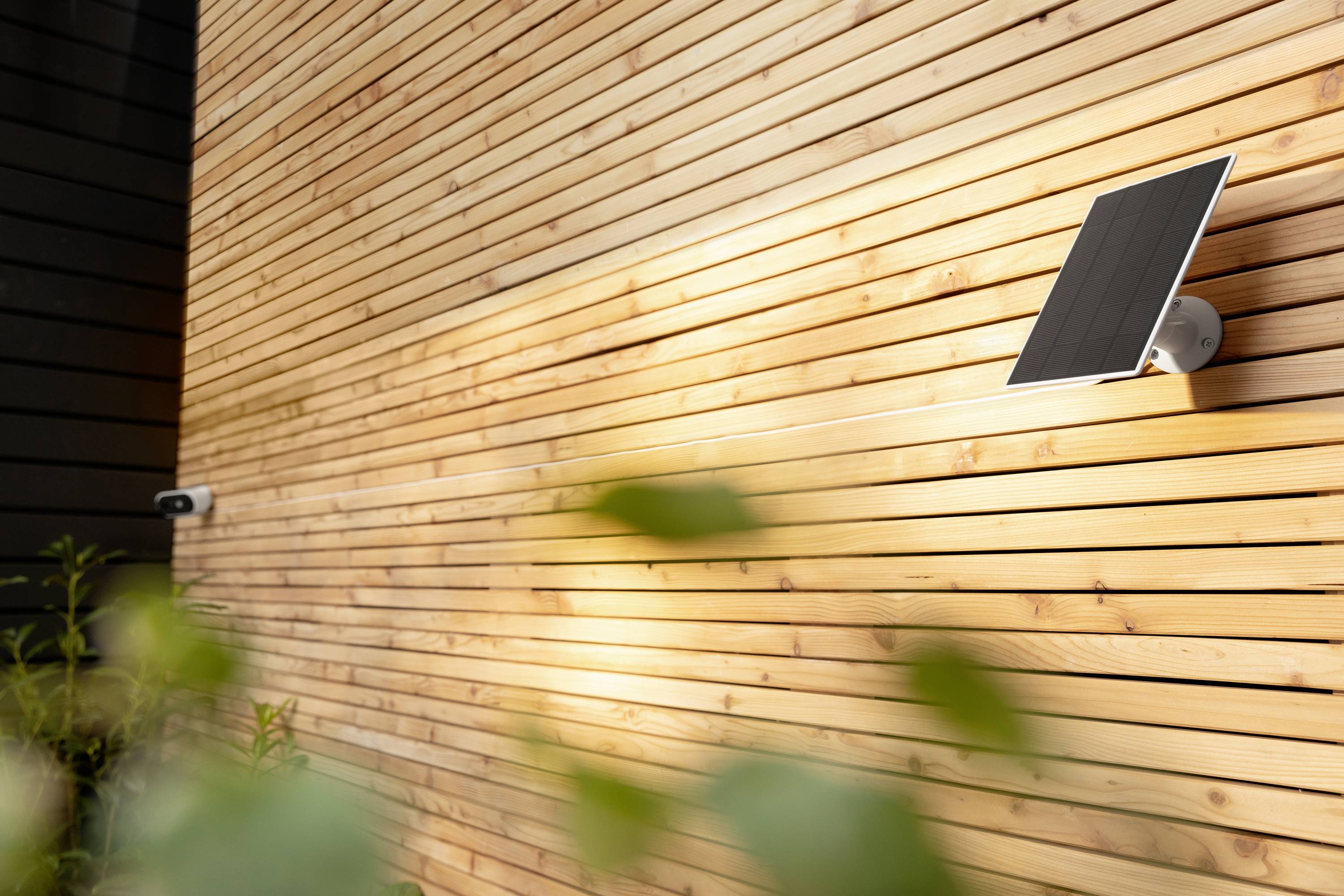

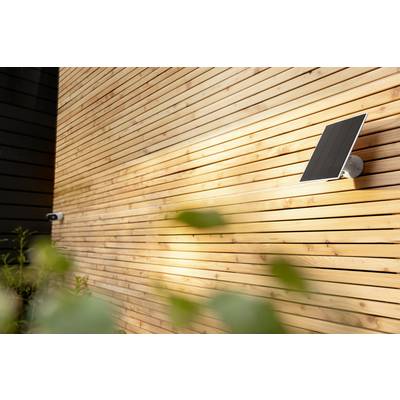

Solar panel on a modern wooden facade, illuminated by sunlight. A camera beside it. Vegetation in the foreground.

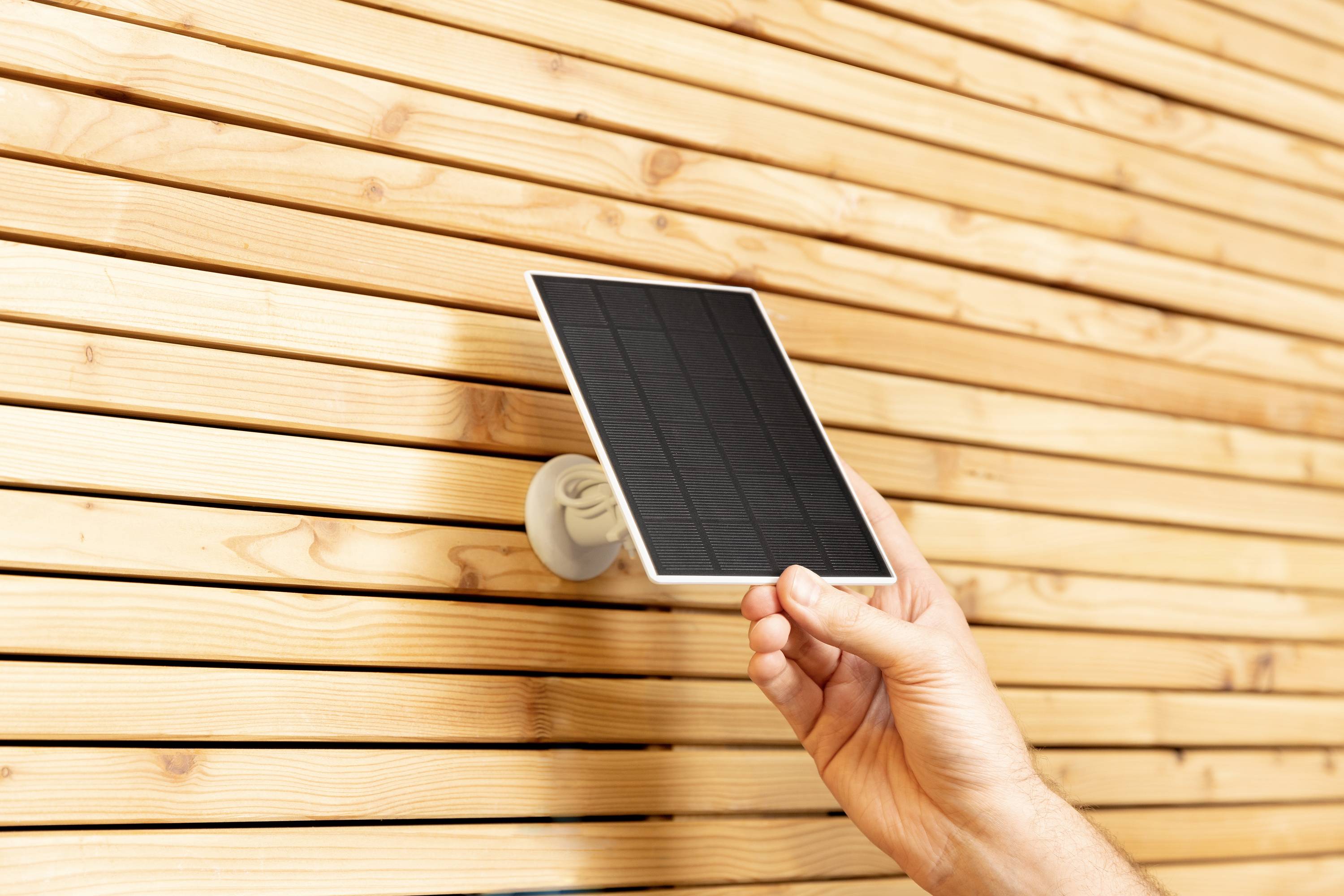

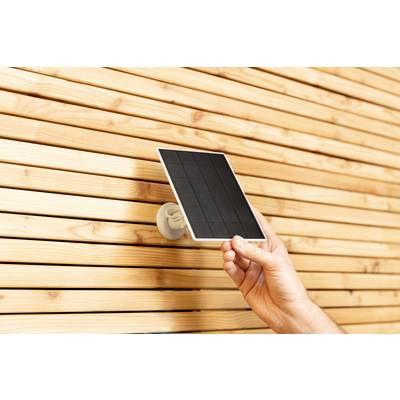

A hand holds a small solar panel in front of a wooden lattice wall.

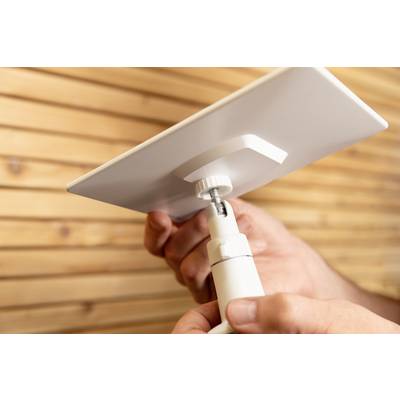

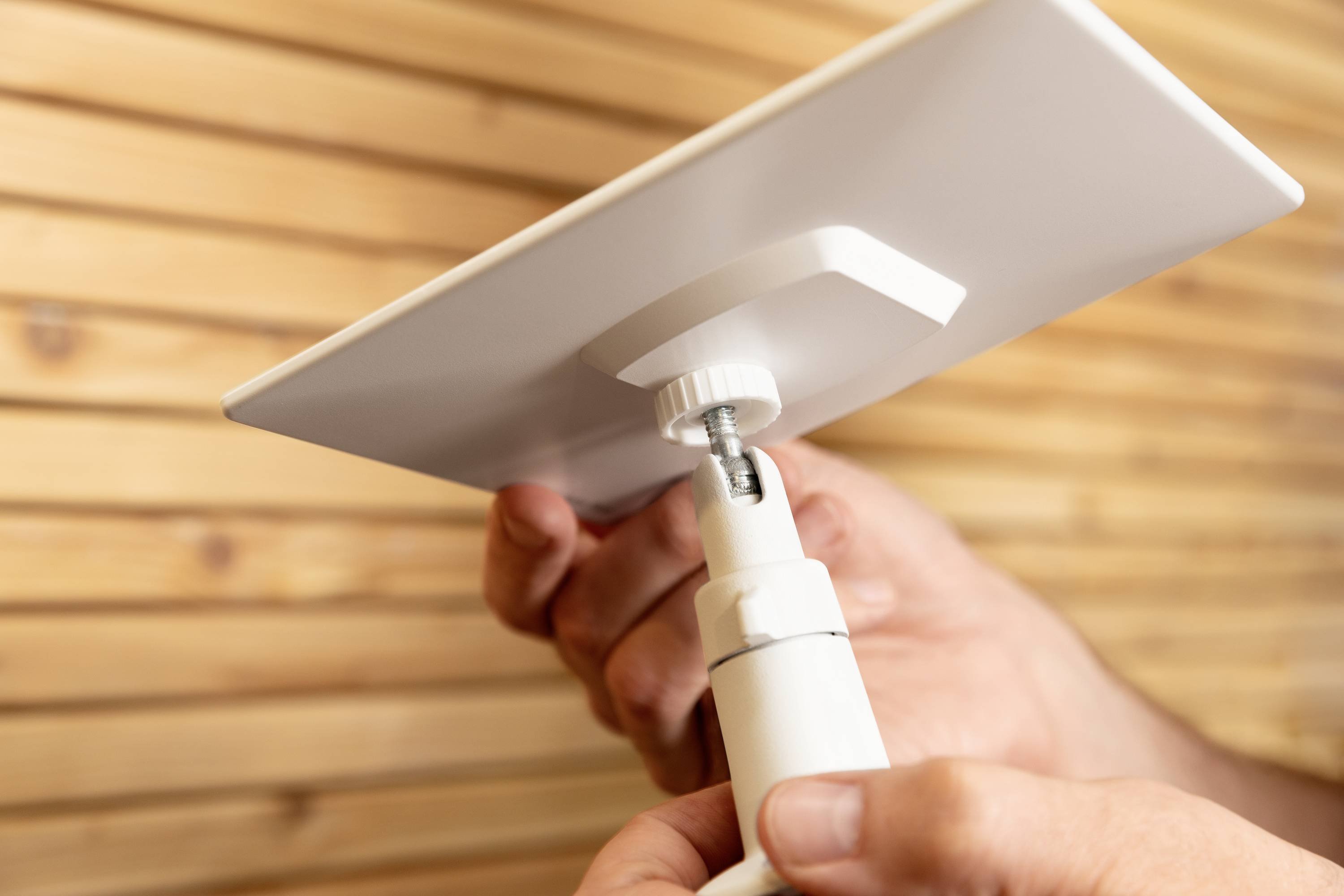

A person is holding and adjusting a rectangular, white satellite dish in front of a wooden wall.
1/28
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Highlights & Details

ABUS 2-channel IP CCTV camera set incl. 1 camera for Outdoors, Indoors

  • Camera can be used flexibly thanks to WLAN & batteryReady to use in just a few steps, without registrationFully automatic motion detection, push message, detailed color images even at nightCharge with solar panel independant of the electricity price
  • Logo of the Plus X Awards with the text 'Awarded: Best Product of the Year 2020'
  • 'Plus X Award' logo with red plus and cross symbol. 2020 awarded for: High Quality, Design, Ease of Use, Functionality. Website: www.plusxaward.de.
  • Red and white 3D logo of a curved ball, next to the text 'reddot winner 2020'.

Technical specifications

  • Video compression: H.264
  • Number of users: 3
  • Base station:
  • Recording modes: Max. 1080p
  • Loudspeaker 85 dB @ 10 cm
  • Storage medium: MicroSD card up to 128 GB
  • Audio compression: PCM
  • Power consumption 180 W
  • Encryption: AES
  • Operating temperature: -10 to + 40 °C.
  • Dim. (W x H x D) 54 x 101 x 15 mm
  • Battery Cam:
  • Sony IMX307 image sensor
  • Max. Resolution @ Frame rate: Full HD (1080p) @ 15fps
  • Operating temperature: -20 - 50 °C.
  • Number of white light LEDs: 1
  • Encryption: WPA2
  • 112° PIR angle of view
  • Audio compression: G711
  • Protection system: IP65
  • Storage medium: MicroSD card (up to 128 GB)
  • Lens mount: 5G
  • Minimum lighting (color): 1 lx
  • White balance: AWB
  • PIR range: 8 m
  • Plug type: Micro-USB
  • DSP: Ingenic T30
  • Dim. (W x H x D) 103 x 54 x 51 mm
  • Solar panel:
  • Dim. (W x H x D) 120 x 170 x 10 mm
  • Weight 170 g
  • Cable length 3 m
  • Protection system: IP65
Product type

CCTV camera set

CCTV features

2-way communication

Microphone

Speaker

IR LEDs

Saves footage on SD card

Battery-powered

Solar panel

Signal standard

IP

Channels

2

Camera type

Compact camera

Transfer type

Wi-Fi

Wi-Fi standard

IEEE802.11b

IEEE802.11g

IEEE802.11n

Used at

Outdoors

Indoors

Recording mode

Movement detection

Manual

Focal length

2,9 mm

Max. viewing angle hor.

115°

Vertical viewing angle

75°

Frequency

2.4 GHz

Factory colour

White

App compatibility

Yes

Resolution (max.)

1920 x 1080 p

Hub

Required, included

Power supply

PSU

Documents & Downloads

Datasheet

Datasheet 2622856 ABUS PPIC90000 + PPIC90600 Wi-Fi IP-CCTV camera set 2-channel incl. 1 camera 1920 x 1080 p

Datasheet 2622856 ABUS PPIC90000 + PPIC90600 Wi-Fi IP-CCTV camera set 2-channel incl. 1 camera 1920 x 1080 p

Datasheet 2622856 ABUS PPIC90000 + PPIC90600 Wi-Fi IP-CCTV camera set 2-channel incl. 1 camera 1920 x 1080 p

User & Safety Instructions

User & Safety Instructions 2622856 ABUS PPIC90000 + PPIC90600 Wi-Fi IP-CCTV camera set 2-channel incl. 1 camera 1920 x 1080 p

Information

Information 2622856 ABUS PPIC90000 + PPIC90600 Wi-Fi IP-CCTV camera set 2-channel incl. 1 camera 1920 x 1080 p

Information 2622856 ABUS PPIC90000 + PPIC90600 Wi-Fi IP-CCTV camera set 2-channel incl. 1 camera 1920 x 1080 p

Description

ABUS WLAN Akku Cam with base station plus ABUS Solar panel The multi-talent with solar panel Practical. Simple. Sure.The ABUS WLAN Akku Cam is there to protect your home and your loved ones. With the App2Cam Plus mobile app, you always get an info when you notice a movement based on body heat. With a simple tap of your finger in the app, you open a channel to the camera to talk to each other and to clarify situations quickly. To detect events and intruders in the best possible way, you get detailed color pictures even in the dark. The battery life without a solar panel is up to 6 months (with an average of four accesses per day, average distance of the camera to the base station and average number of heat/cold days).Economical. Climate friendly. Flexible.The camera's battery-operated and base station, which is placed inside the building and extends your WLAN, make it more flexible to position the camera outdoors. The solar panel supplies the camera with climate-friendly and free solar energy – for a maximum battery life. Download the current firmware version to your ABUS WLAN Akku Cam via App2Cam Plus and change the operating mode to Solar – you're ready to go.Once connected, the practical ABUS solar panel provides the camera's battery with absolutely independant free and environmentally friendly eco-power – for a completely full battery, a few hours of sunshine are usually enough between 0 and 45° C. Convenient, because this extends the battery life, you have to charge the battery much less manually – no longer at all under ideal conditions. Align the solar panel optimally with the sun? Simple: The practical ball head of the holder and the 3 meter connection cable to the camera position the panel as best as possible to the sun. The powerful panel is 17 x 12 cm small, easy to install, robust and best suited for use in wind & weather.

This text is machine translated.

Features

  • Surveillance camera with practical WLAN base station & solar panel for charging an autonomous batteryPush message on motion alarmFull HD resolution, color images even at nightFree access via mobile phone and tablet app App2Cam PlusCamera can be placed flexibly thanks to battery and WLAN operationCompact, powerful solar panel for climate-friendly, automatic charging and max. battery life, independant of the electricity priceWeatherproof housing (IP65 rating)Convenient base station extends the WLAN range (placed inside at free socket)Carries a microSD card (accessory, up to GB) if required to store camera recordings on site (no cloud, no subscription)Quick to use thanks to simple commissioningEncrypted access in own WLAN and while traveling on live stream, memory as well as all functions (motion detector, white light LED, 2-way audio through loudspeaker & microphone etc.)Fully automatic motion detectionPush notification and recording (ignores movements of e.g. Branches/sheets)Intelligent battery management; standard battery life of up to 6 months (with around 4 shots/accesses per day; with more frequent/longer use, heat/frost or greater distance to the base station, the runtime is reduced) Recognize important details, at any time of the year, in any weather, even in darkness through detailed color pictures thanks to the integrated white light LEDFull HD resolution (1080p/2MP) and further 120-degree viewing angleJust tap the finger in the app and the intercom function is active to quickly clarify situations on site by changing a few wordsRed Dot Award, German Design Award and Plus X Award for "Best Product of the Year 2020"Part of ABUS Comfort-Line & smart security worldCompatible with Smartvest wireless alarm system.

Scope of delivery

  • Battery-operated camera
  • Base station
  • EU-charging plug
  • Wall bracket
  • Fitting Material
  • Micro-USB charging cable
  • Quick Guide
  • Solar panel.

Hints

Compatible with ABUS Smartvest wireless alarm system.
