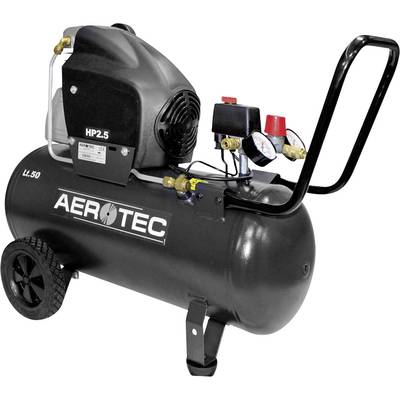

Aerotec Air compressor 310-10-50 50 l 10 bar
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 318.49 / piece)
€ 318.49
plus VAT.
Highlights & Details
Compressor 310-10-50
- Flow rate: 170 l/min
- with large transport wheels
Technical specifications
- Product type
Air compressor
- No. of cylinders
1
1800 W
- Vaccum power
280 l/min
- Flow rate
170 l/min
- Operation pressure
10 bar
- Rotational speed (max.)
2880 U/min
- Boiler volume
50 l
- Operating voltage
230 V
- Length
850 mm
- Width
325 mm
- Height
700 mm
- Weight
38 kg
Documents & Downloads
Datasheet
Datasheet 431377 Aerotec Air compressor 310-10-50 50 l 10 bar
User & Safety Instructions
User & Safety Instructions 431377 Aerotec Air compressor 310-10-50 50 l 10 bar
Description
Features
- Wheeled piston compressor in oil-lubricated design
- Direktgeflanschtes 1 Cylinder Longlife unit
- included a large pressure reducer for exact output pressure setting
- load at start-up via Condor Pressure Switch
- Low center of gravity and large hard rubber wheels ensures the stand is safe and easy transportation
- two feet on the front for stability
- With ball valve to the condensate drain
- Extra large pressure regulator and 63 mm Manometer for good readability of the boiler and output pressure
- The perfect compressor for the ambitious amateur.
Hints
This text is machine translated.
