Name: Aerotec Air compressor 600-90 TECHLINE 90 l 10 bar
Brand: Aerotec
SKU: 556178
Availability: InStock

Highlights & Details

Compressor 600-90 TECHLINE

Contents: 90 l

Technical specifications

Product type: Air compressor

No. of cylinders: 2

: 3000 W

Vaccum power: 600 l/min

Flow rate: 375 l/min

Operation pressure: 10 bar

Rotational speed (max.): 1250 U/min

Boiler volume: 90 l

Operating voltage: 400 V

Length: 975 mm

Width: 390 mm

Height: 800 mm

Weight: 75 kg

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 556178 Aerotec Air compressor 600-90 TECHLINE 90 l 10 bar

User & Safety Instructions

User & Safety Instructions 556178 Aerotec Air compressor 600-90 TECHLINE 90 l 10 bar

Certificate

Certificate 556178 Aerotec Air compressor 600-90 TECHLINE 90 l 10 bar

Description

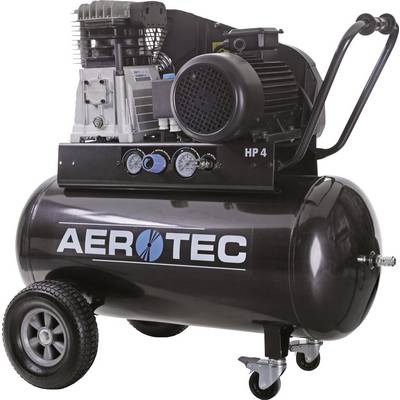

Wheeled piston compressor in oil-lubricated design with v-belt-driven 2-cylinder unit. Load at start-up via pressure switch control. With large profiled, ball-bearing rubber wheels and castors for easy handling. The condensate drain is done with the ball valve. Protected pressure display and control unit. The TECHLINE models have a protected pressure display and control unit. The 63 mm large tank pressure and output pressure gauge are including large handy pressure regulator in the console to store. Thus, the user has all the necessary pressure compact information at a glance, also protects the steel console active against damage.

Features

Ball valve
ball-bearing rubber wheels
Pressure controller
63 mm Manometer
2-cylinder unit with aluminum pistons.

Scope of delivery

Phase inverter plug.

Hints

This text is machine translated.
