Buy ATEX BEAM PL-AT800 Work light Ex Zoning: 1, 2, 21, 22 275 lm

A portable charger is mounted on the wall of a warehouse, next to a fire extinguisher and a trolley with equipment.

Portable LED lamp with handle, shines brightly. Housing is black and has technical specifications printed on it.

Portable spotlight standing upright, with handle on top, black casing. Suitable for outdoor lighting.

Black portable torch 'ATEXBEAM Model: PL-AT800' with a QR code and bendable handle, suitable for industrial use.

A robust ATEX-certified work light with carry handle, powerful beam and IP54 protection rating, suitable for hazardous areas.

A portable LED lamp with a robust housing, suitable for use in potentially explosive areas in accordance with CE 0035 and IP54.

Portable black LED spotlight with hand grip, model 'ATEXBEAM PC-71100', suitable for professional lighting, IP54 certified.

Black portable work light with handle and red switch, suitable for hazardous areas, in accordance with ATEX certification.

Portable ATEX-certified explosion-protected mobile light with robust handle, suitable for use in hazardous areas.

Stable load light with charging station and mains adapter, suitable for use in harsh environments.

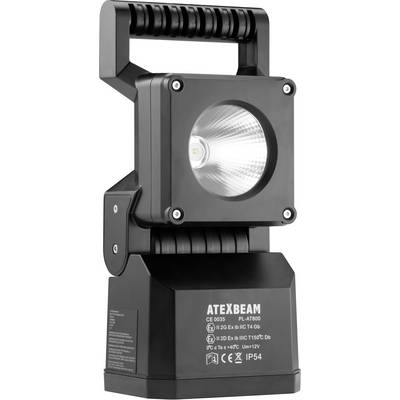

Black portable LED spotlight 'ATEXBEAM', Model PL-AT800, with robust housing and integrated handle. Suitable for hazardous locations.

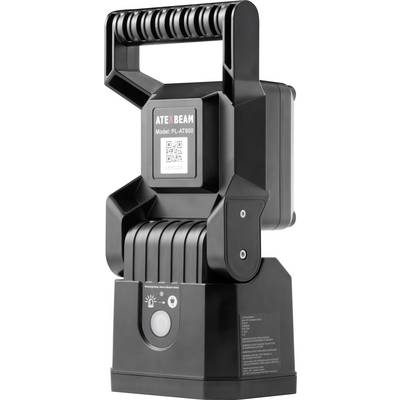

Portable black LED lamp with handle, model 'PL-AT800', by ATEXBEAM. Suitable for various applications requiring strong illumination.

'Black charger with red accents and three metal contacts. Labelled with the text "ATE BEAM".'

Black charging base 'Atexbeam' for LED work lamp with red buttons and golden contact pins, Model PL-A7800, Input voltage 12V DC.

1/16

Fast track dispatch on Fri, 11 Sep

2 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 382.35 / piece)

€ 382.35

plus VAT.

Only 2 Piece(s) available

Report legal concerns

Highlights & Details

Ex-protected LED WORK LAMP ATEX BEAM PL-AT 800, 3W, Li-ion battery

Explosion protection in accordance with Directive 2014/34/EU
Suitable for zones 1, 2, 21, 22
2 brightness levels
Lighting duration max. 20 h

Technical specifications

Battery: 5.8 Ah
Charging time: maximum 11 h
Durability LED: 30,000 h
Color temperature: 4500 K - neutral white

Product type: Work light

Ex Zoning: 1
2
21
22

Factory colour: Black

Dim: (L x W x H) 95 x 122 x 272 mm

ATEX no.: EX II 2G Ex ib IIC T4 Gb, EX II 2D Ex ib IIIC T150°C Db

LEDs: 1 pc(s)

Operating voltage: 7.4 V

Weight: 1.07 kg

Weight, information: incl. rechargeable battery

Light duration (high): 20 h

Light duration (low): 9 h

Bulb type: LED (monochrome)

Luminous flux (range): 200 lm - 499.9 lm

Luminous flux (high): 275 lm

Material: Polycarbonate (PC)

Width: 122 mm

Height: 272 mm

Length: 95 mm

: IP67

Power supply (LOV): rechargeable

Temperature range: 0°C to 40°C °C

Waterproof: No

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1668359 ATEX BEAM PL-AT800 Work light Ex Zoning: 1, 2, 21, 22 275 lm

Conformity certificate

Conformity certificate 1668359 ATEX BEAM PL-AT800 Work light Ex Zoning: 1, 2, 21, 22 275 lm

Warranty Terms

Warranty Terms 1668359 ATEX BEAM PL-AT800 Work light Ex Zoning: 1, 2, 21, 22 275 lm

Description

The explosion-protected LED work light beam PL-AT 800has been developed according to the latest ATEX ATEX 95 Directive 2014/34/EU for explosion protection. Approved for the danger zones 1, 2, 21 and 22, it offers safety during maintenance work as well as inserts from rescue and security forces in explosive environments, caused by flammable gases, fog, vapors or dust.
The robust safety lamp is equipped with an advanced and long-lasting LED technology. The highly efficient and lightweight rechargeable Li-ion battery guarantees up to 20 hours reliable working light. Thanks to the 3W high power LED, 2 brightness levels and a 120° swivelling light head the lighting can be adapted to the individual needs of the user.
The integrated emergency light function is ensured in the event of a power failure a reliable emergency lighting. The anti-static housing is impact and shock-resistant, high temperatures and is in accordance with IP54 protection against dust and splash-proof.

This text is machine translated.
