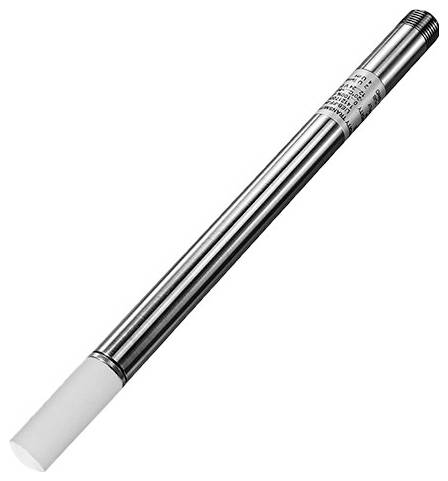

B + B Thermo-Technik 0551 3140 Humidity probe -20 up to +80 °C 0 up to 100 RH
EAN:
Part number:
Item no:
Number
Total (€ 130.24 / piece)
€ 130.24
plus VAT.
Only 7 Piece(s) available
Highlights & Details
Compact sensor humidity and temperature | 0...10V
- -20 up to +80 °C
Technical specifications
- Connection: 6-pin connection line
- Cable length 2m
- Free ends
- Strands uninsulated
- Response time moist
- > 20 secs
- Response time temperature
- > 20 s
- Output signal
- 0...10V
- Max. output current 2mA
- Output scale humidity
- 0...100% RH corresponds to 0...10 V
- Operating voltage
- 15...24 V AC/DC
- Operating temperature
- -30...+70 °C
- Housings
- Plastic housing
- Humidity accuracy
- 2% RH
- Accuracy
- ±0.2 K (0...90 °C)
- ±0.5 K (-40...+125 °C)
- Sleeve diameter
- 17 mm
- Sleeve length
- 170 mm
- Sleeve material
- Stainless steel 1.4571
- RHM Protection filter
- Polyethylene: 25 µm
- Ø 12 x 30 mm
- Product type
Humidity probe
- Pick-up time (details)
20 s
- Temperature reading range (min.)
-20 °C
- Temperature reading range (max.)
+80 °C
- Dim
(Ø x H) 12 mm x 65 mm
- Probe length
170 mm
- Humidity reading range (max.)
100 RH
- Humidity reading range (min.)
0 RH
- Temperature reading range
-20 up to +80 °C
- Width
38 mm
- Height
65 mm
- Length
59 mm
- (Ø)
12 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3089236 B + B Thermo-Technik 0551 3140 Humidity probe -20 up to +80 °C 0 up to 100 RH
Description
High-quality and precise sensors with integrated measuring transducer in the COMPACT design for building control systems or industrial applications. Measured variables: Temperature, humidity output signal 0-10V or 4-20mA
