Name: B + B Thermo-Technik Pressure transducer 1 pc(s) 0550 1291-005 0 bar up to 4 bar ISO 4400 square connector
Brand: B + B Thermo-Technik
SKU: 3089314
Price: 159.99 EUR
Availability: BackOrder

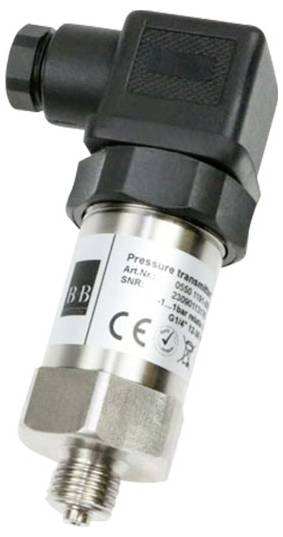

Close-up of a metal pressure transducer sensor with a black right-angle connector and threaded fitting.

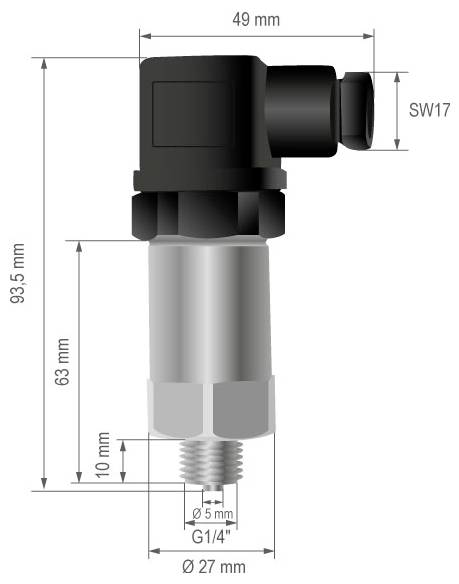

Dimensioned technical drawing of a right-angle fitting, showing overall height 93.5 mm, width 49 mm, 27 mm diameter base, 10 mm thread, G1/4 inch connection, and SW17 hex size.

1/2

Image similar

Product type

Pressure transducer

Connector

ISO 4400 square connector

Model

Relative pressure

Pressure reading range (max.)

4 bar

Max. operating voltage

24 V DC

Datasheet (PDF)

EAN:

Part number:

Item no:

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 159.99 / piece)

€ 159.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Pressure transmitter with DIN-Square connector

High-quality stainless steel housing; very sturdy construction

Technical specifications

Output signal, 4...20 mA, burst pressure, 12 bar, designation, Pressure transmitter stainless steel, pressure measuring type, relative pressure, operating temperature, -20...+80 °C, Electrical connection, 4-pin industrial plug, DIN 43650, EMC emission, EN 61000-6-3: 2011, EMC immunity, EN 61000-6-1: 2007, pressure measuring range, 0...4 bar, process connection, G1/4", residual error linearity/hysteresis, <±0.4% FS, protection class, IP65, power supply, 14...24 V DC, temperature coefficient, TCO < ±0.015 % FS/K ; TCG < ±0.010 % FS/K, material housing, stainless steel 1.4305, material, sensor: ceramic measuring cell, Allowable Burden, Ra[?]<(UV[volts]-10V) / 0.02 A (with output 4…20 mA)

Product type: Pressure transducer

Type: 0550 1291-005

Connector: ISO 4400 square connector

Model: Relative pressure

Outputs: Current (analogue)

Output signal (min.): 4 mA

Output signal (max.): 20 mA

Interfaces: DIN plug

Accuracy: 0.4 %

Pressure reading range (min.): 0 bar

Pressure reading range (max.): 4 bar

Pressure reading range: 0 bar up to 4 bar

Min. operating voltage: 14 V DC

Max. operating voltage: 24 V DC

Operating voltage: 14 - 24 V DC

Burst load: 12 bar

: IP65

Min. temperature: -20 °C

Max. temperature: 80 °C

RoHS-compliant: Yes

Content: 1 pc(s)

Documents & Downloads

Datasheet

Datasheet 3089314 B + B Thermo-Technik Pressure transducer 1 pc(s) 0550 1291-005 0 bar up to 4 bar ISO 4400 square connector

User & Safety Instructions

User & Safety Instructions 3089314 B + B Thermo-Technik Pressure transducer 1 pc(s) 0550 1291-005 0 bar up to 4 bar ISO 4400 square connector

Description

The pressure sensors with Hirschmann plugs are Ideal for measuring static and dynamic relative pressures in liquids or gases.

This text is machine translated.

Description

The pressure sensors with Hirschmann plugs are Ideal for measuring static and dynamic relative pressures in liquids or gases.
