Buy Bachmann 938.202 Worktop socket Black

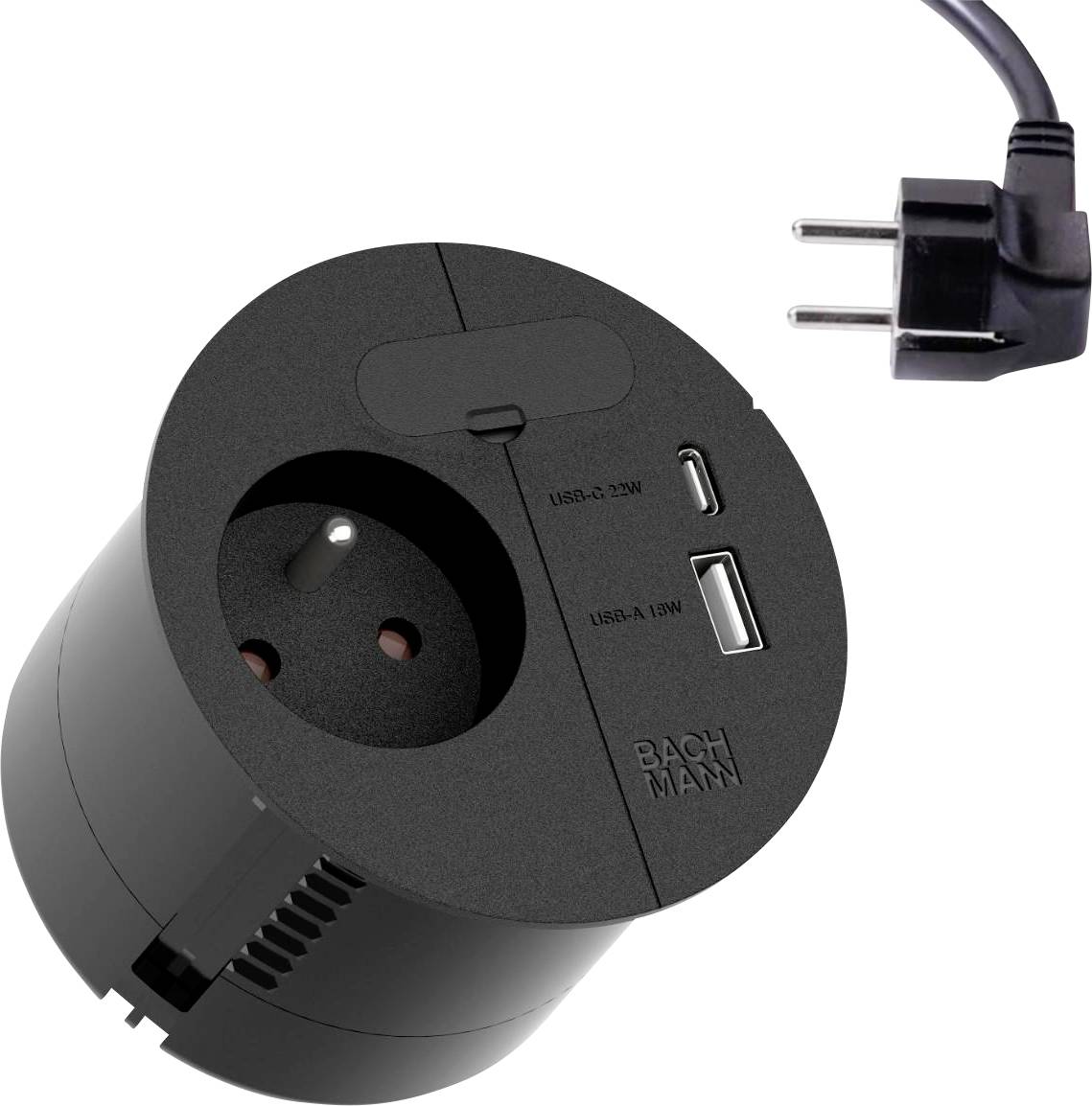

A black round tabletop power outlet with one standard socket and two USB-A ports on the side, connected by a power cable.

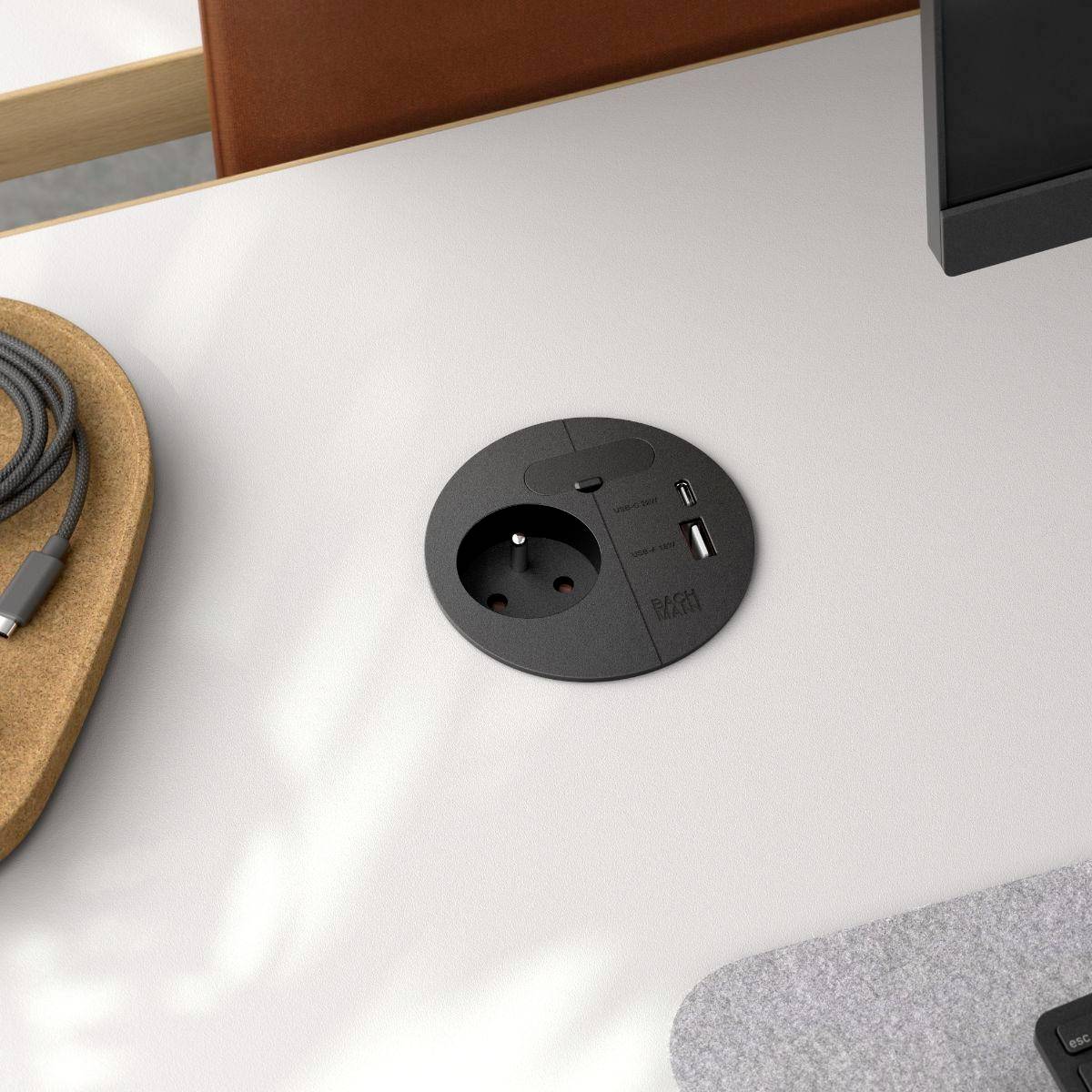

A round black power outlet with USB and power socket is embedded in a light-colored desk. Nearby are a textured mat and a coiled cable.

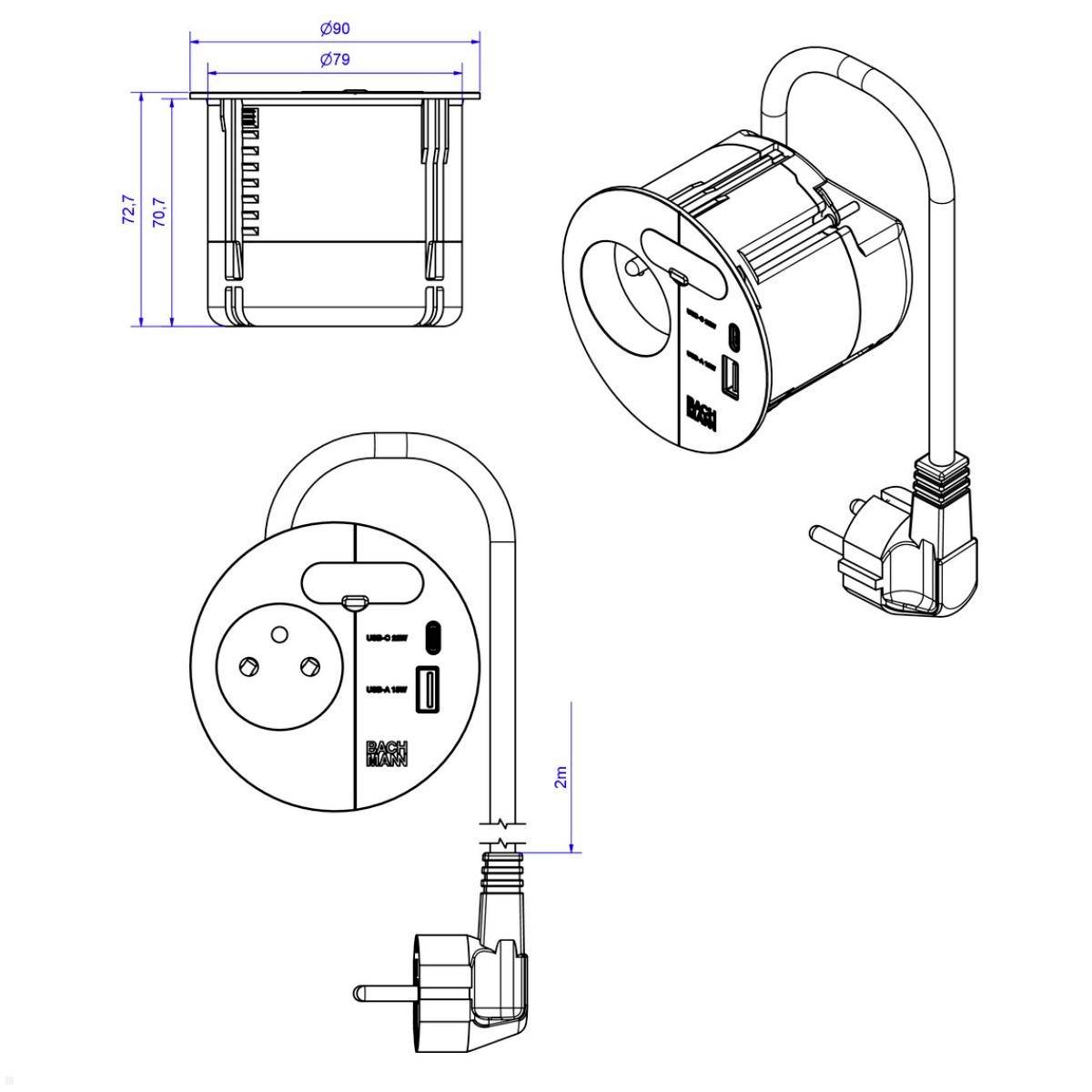

Technical drawing of a retractable power extension reel, showing dimensions, plug, and USB port. Includes front, side, and top views.

1/3

Datasheet (PDF)

Fast track dispatch on Tue, 22 Sep

4 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 80.66 / piece)

€ 80.66

plus VAT.

Only 4 Piece(s) available

14-day return policy included

Report legal concerns

French UTE panel plug with USB A/C charger

Highlights & Details

Technical specifications

1x French UTE socket (Type E)
1x charger USB-C 22 W
1x charger USB-A: 18 W
Charging standard: USB 3.1 Power delivery (PD)
Integrated cable outlet (23 x 12 mm) with rubber cover
Drilled hole: ⌀ 80 mm
Table thickness 10 - 40 mm
Dimensions (⌀ x H) 90 x 72.7 mm
Supply line: H05VV-F | 3G1.5 mm², length: 2.0 m.
Connector type: Right-angle plug
Rated current / rated voltage 16 A / 250 V
Frequency: 50 Hz

Product type: Worktop socket

Light bulb features: incl. USB
incl. USB charging port

Outlets: 1

Cable length: 0 cm

Used at: Indoors
Fixed

Mounting type: Recess-mount

Cable standard: H05VV-F 3G 1,5 mm²

Operating voltage: 250 V

Factory colour: Black

Height: 72.7 mm

(Ø): 90 mm

: IP20

Cable design: Round

Version: Cable

Keyboard layout: German, QWERTZ

Cable use: C13/C14 appliances

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3453319 Bachmann 938.202 Worktop socket Black

User & Safety Instructions

User & Safety Instructions 3453319 Bachmann 938.202 Worktop socket Black

Description

With loop in charge, Bachmann presents an elegant table connection panel for all-round use in the office: The flush-mounted socket offers power supply and charging function in one. The USB A/C charger with Power delivery enables you to charge mobile phones and other smaller devices while working at the desk. Space-saving and hidden in the table surface with concealed mounting screw, the black furniture socket fits seamlessly into any environment. The integrated cable inlet with rubber cover also simultaneously acts as a convenient cable management at the table. The power connection is established via angled plugs. To install the in-built socket with USB A/C charger , only a 80 mm drilled hole must be placed in the table top.
