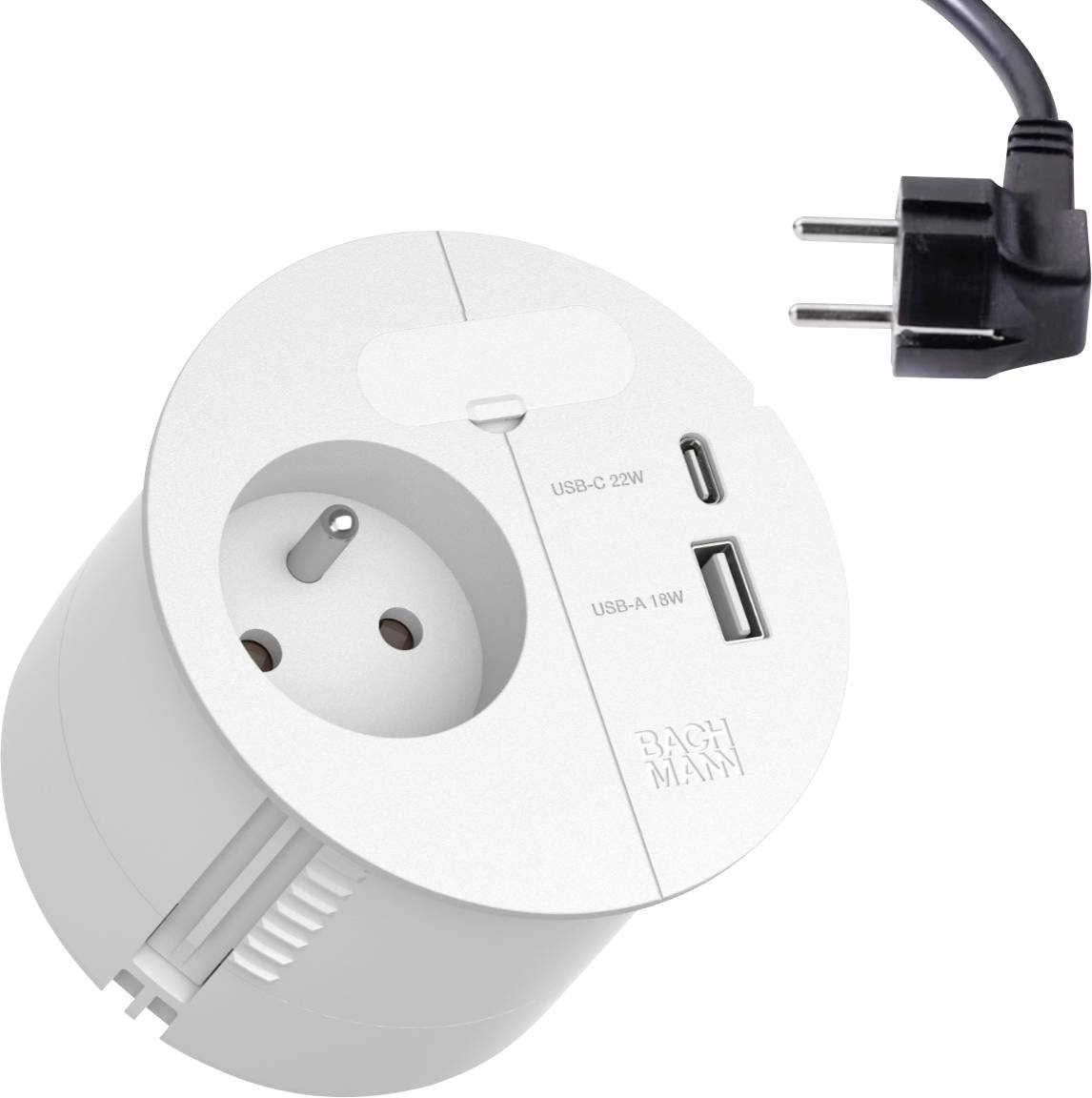

Bachmann 938.302 Worktop socket White
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 95.99 / piece)
€ 95.99
incl. VAT
Only 9 Piece(s) available
Technical specifications
- 1x French UTE socket (Type E)
- 1x charger USB-C 22 W
- 1x charger USB-A: 18 W
- Charging standard: USB 3.1 Power delivery (PD)
- Integrated cable outlet (23 x 12 mm) with rubber cover
- Drilled hole: ⌀ 80 mm
- Table thickness 10 - 40 mm

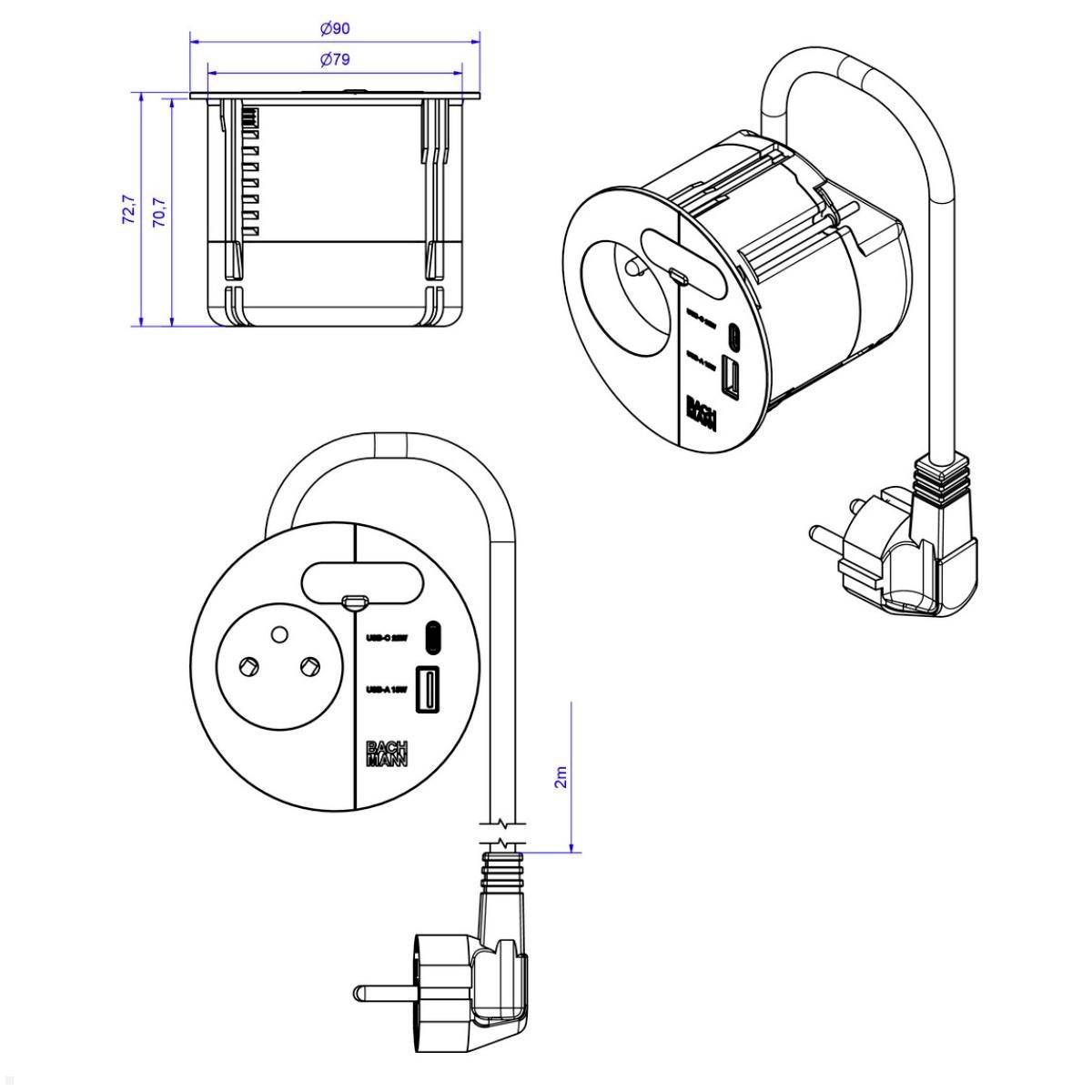

- Dimensions (⌀ x H) 90 x 72.7 mm
- Supply line: H05VV-F | 3G1.5 mm², length: 2.0 m.
- Connector type: Right-angle plug
- Rated current / rated voltage 16 A / 250 V
- Frequency: 50 Hz
- Product type
Worktop socket
- Light bulb features
incl. USB
incl. USB charging port
- Outlets
1
- Cable length
2 m
- Used at
Indoors
Fixed
- Mounting type
Recess-mount
- Cable standard
H05VV-F 3G 1,5 mm²
- Operating voltage
250 V
- Factory colour
White
- Length
400 cm
- Width
100 mm
- Height
72.7 mm
- (Ø)
90 mm
IP20
- Depth
400 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3453323 Bachmann 938.302 Worktop socket White
User & Safety Instructions
User & Safety Instructions 3453323 Bachmann 938.302 Worktop socket White
Description

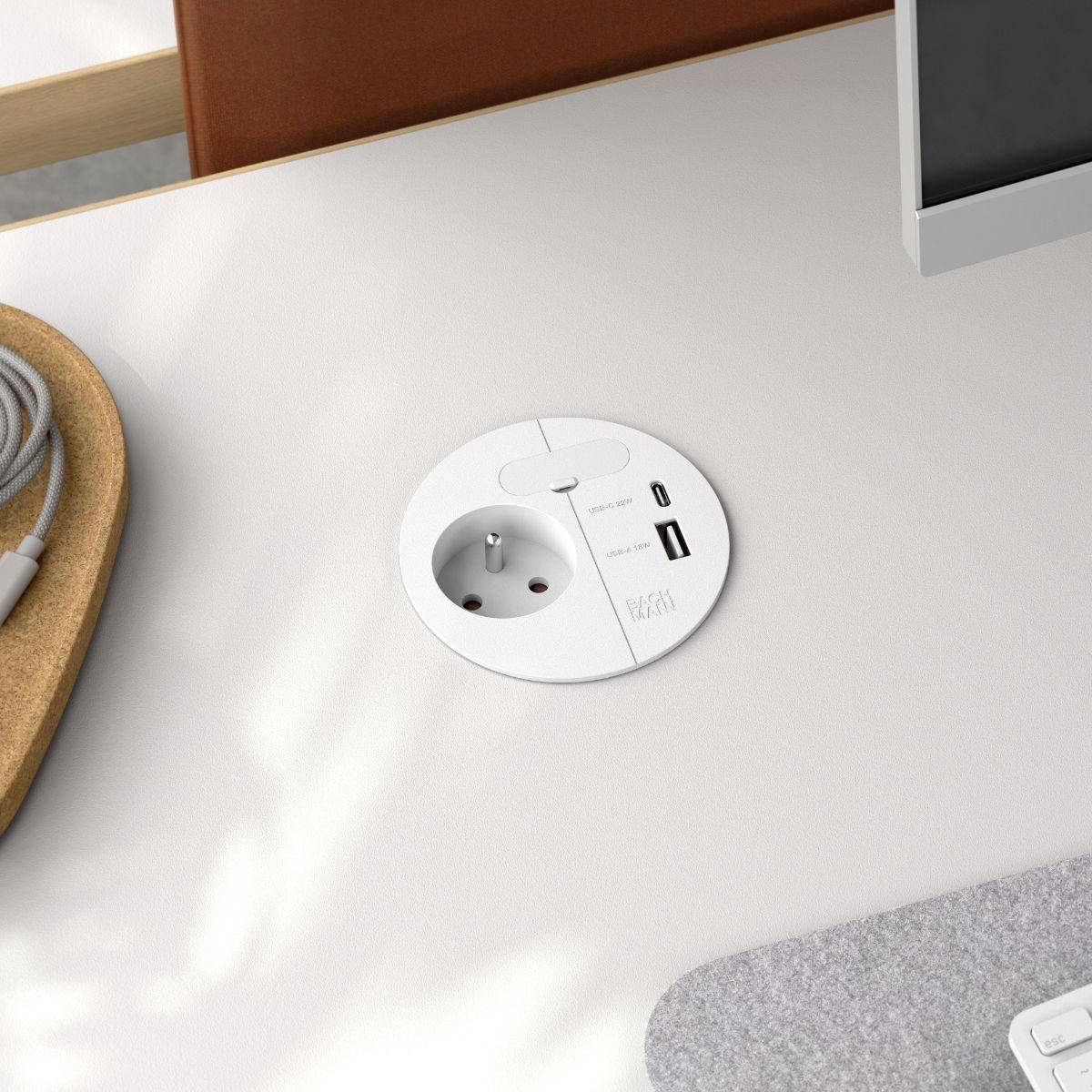

With loop in charge, Bachmann presents an elegant table connection panel for all-round use in the office: The flush-mounted socket offers power supply and charging function in one. The USB A/C charger with Power delivery enables you to charge mobile phones and other smaller devices while working at the desk. Space-saving and hidden in the table surface with concealed mounting screw, the black furniture socket fits seamlessly into any environment. The integrated cable inlet with rubber cover also simultaneously acts as a convenient cable management at the table. The power connection is established via angled plugs. To install the in-built socket with USB A/C charger , only a 80 mm drilled hole must be placed in the table top.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Including mounting screw
