Bachmann 938.304 Worktop socket White
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 80.66 / piece)
€ 80.66
plus VAT.
Only 10 Piece(s) available

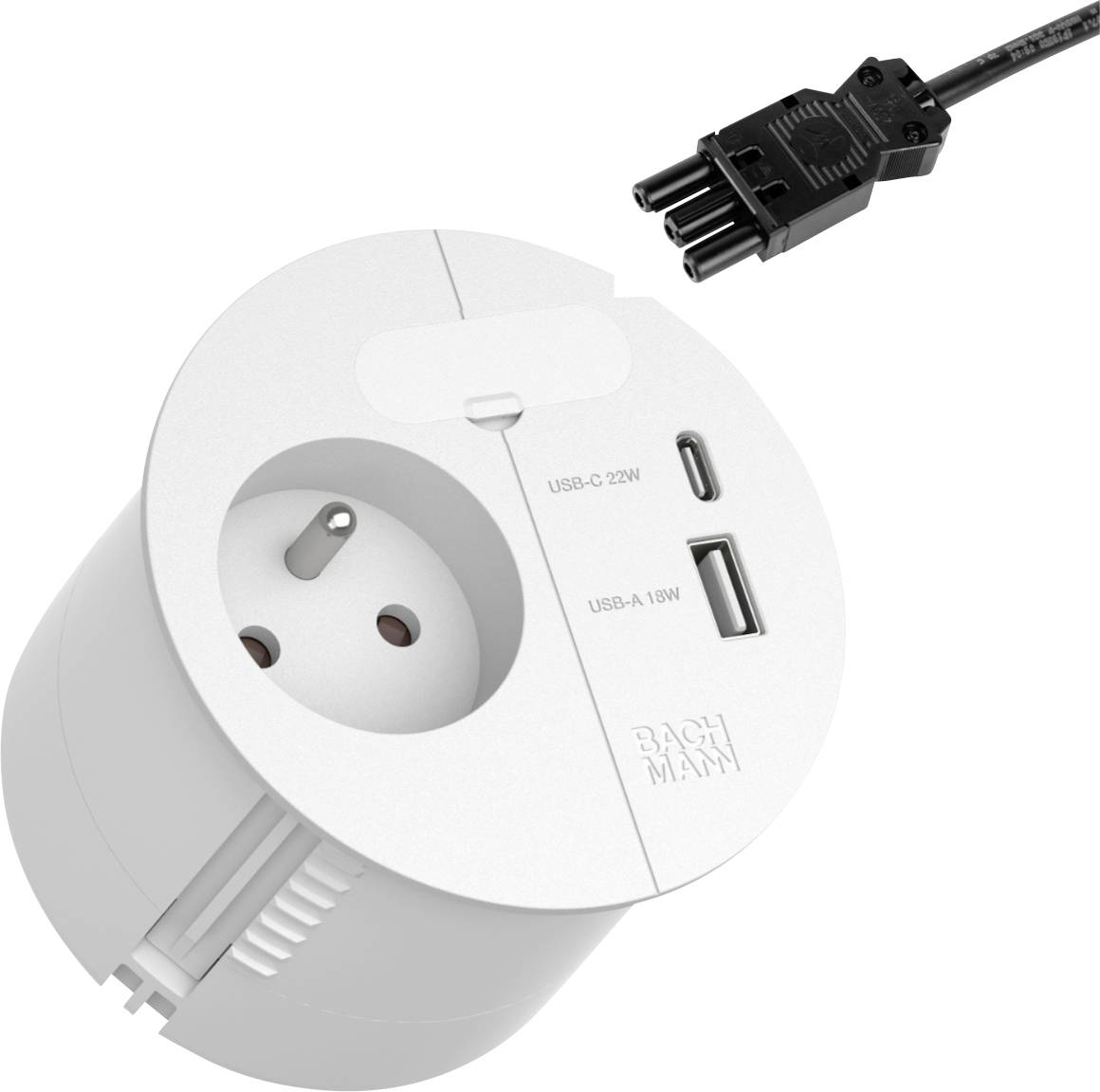

French UTE panel plug with USB A/C charger
Technical specifications
- 1x French UTE socket (Type E)
- 1x charger USB-C 22 W
- 1x charger USB-A: 18 W
- Charging standard: USB 3.1 Power delivery (PD)
- Integrated cable outlet (23 x 12 mm) with rubber cover
- Drilled hole: ⌀ 80 mm
- Table thickness 10 - 40 mm

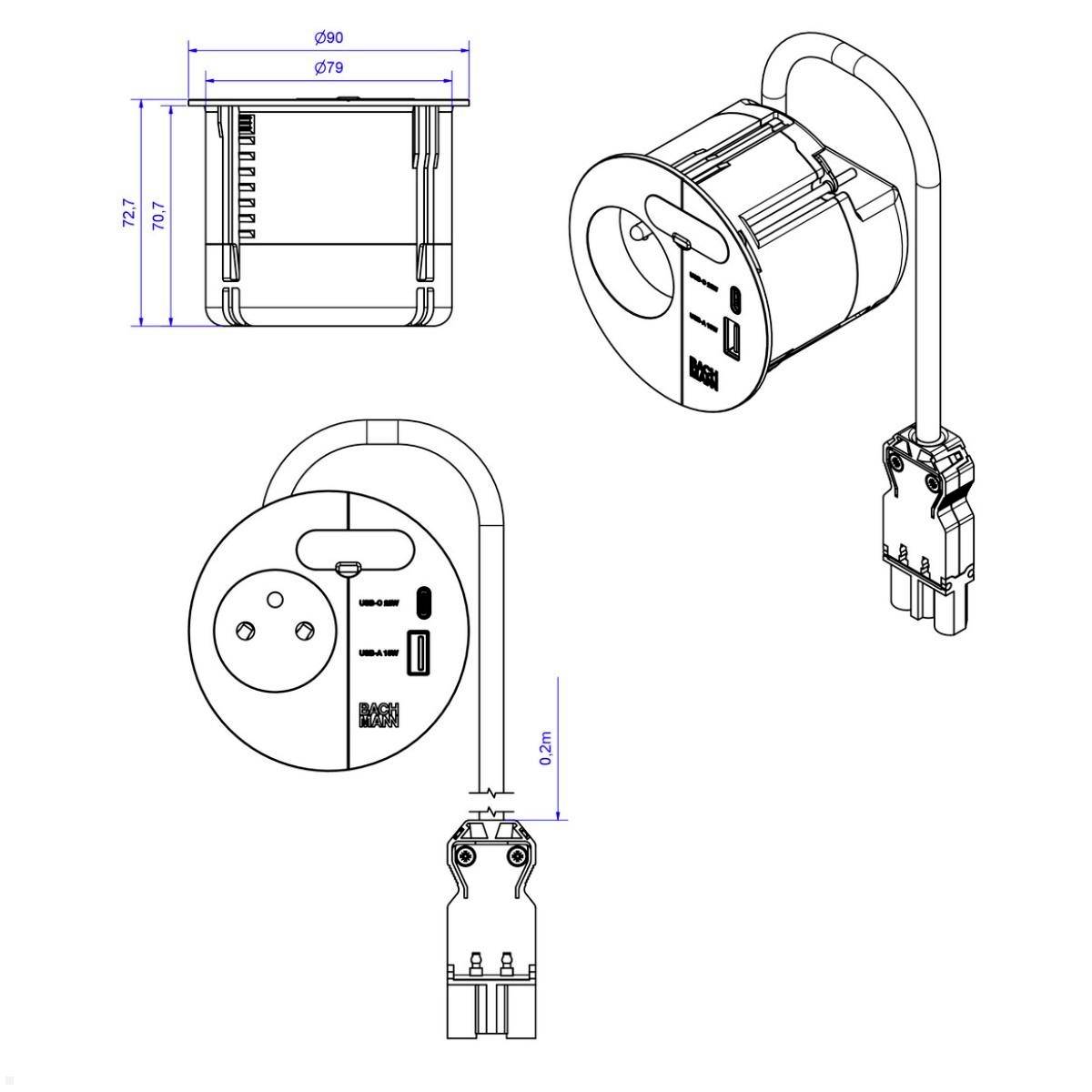

- Dimensions (⌀ x H) 90 x 72.7 mm
- Supply line: H05VV-F | 3G1.5 mm², length: 0.2 m.
- Plug type: Installation connector (GST18)
- Rated current / rated voltage 16 A / 250 V
- Frequency: 50 Hz
- Product type
Worktop socket
- Light bulb features
incl. USB
incl. USB charging port
- Outlets
1
- Cable length
0.20 m
- Used at
Indoors
Fixed
- Mounting type
Recess-mount
- Cable standard
H05VV-F 3G 1,5 mm²
- Operating voltage
250 V
- Factory colour
White
- Height
72.7 mm
- (Ø)
90 mm
IP20
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3453325 Bachmann 938.304 Worktop socket White
User & Safety Instructions
User & Safety Instructions 3453325 Bachmann 938.304 Worktop socket White
Description

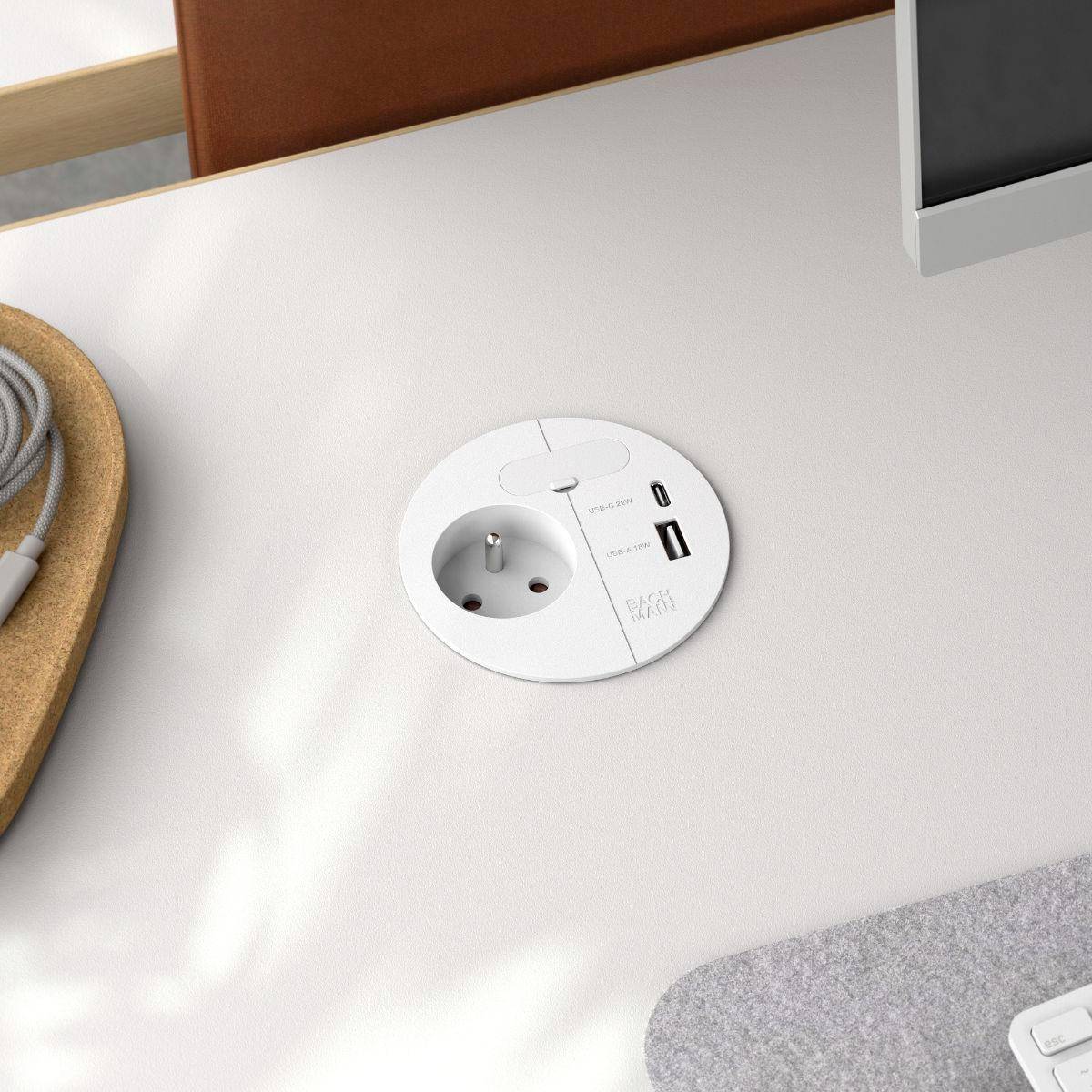

With loop in charge, Bachmann presents an elegant table connection panel for all-round use in the office: The French standard (UTE) type E flush-mounted socket offers power supply and charging function in one. The USB A/C charger with Power delivery enables you to charge mobile phones and other smaller devices while working at the desk. Space-saving and hidden in the table surface with concealed mounting screw, the black furniture socket fits seamlessly into any environment. The integrated cable inlet with rubber cover also simultaneously acts as a convenient cable management at the table. The unit is connected to the mains via a connector. To install the French UTE socket with cable guide, only a 80 mm hole needs to be placed in the table top.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Including mounting screw
