Name: Bachmann 938.204 Worktop socket Black
Brand: Bachmann
SKU: 3453321
Availability: InStock

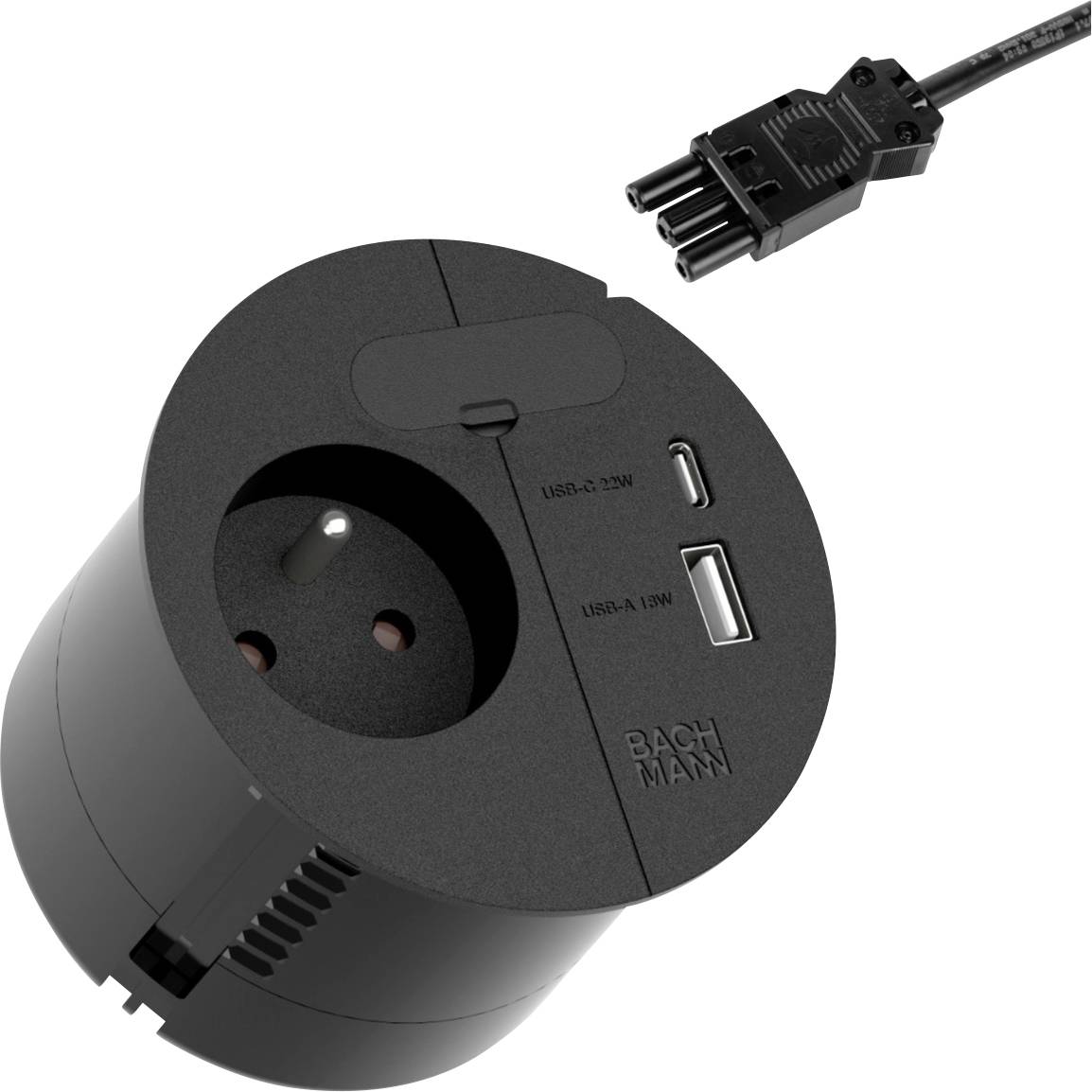

A round black power outlet with two USB ports and a plug is shown. The outlet is branded with 'BACHMANN' and supports USB charging.

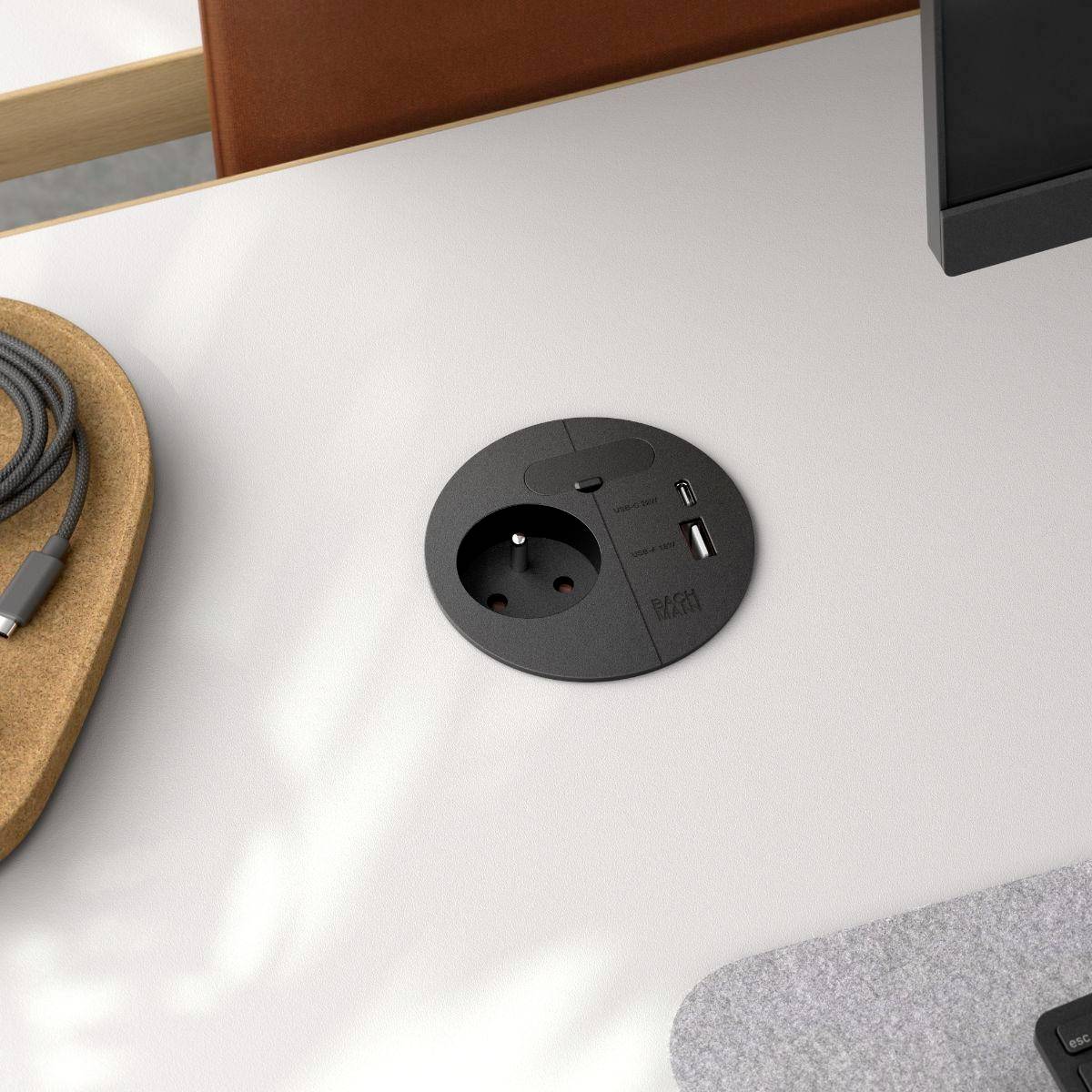

A round desk installed power hub with an electrical outlet and a USB port next to a leather chair and a gray felt mat, in an office setting.

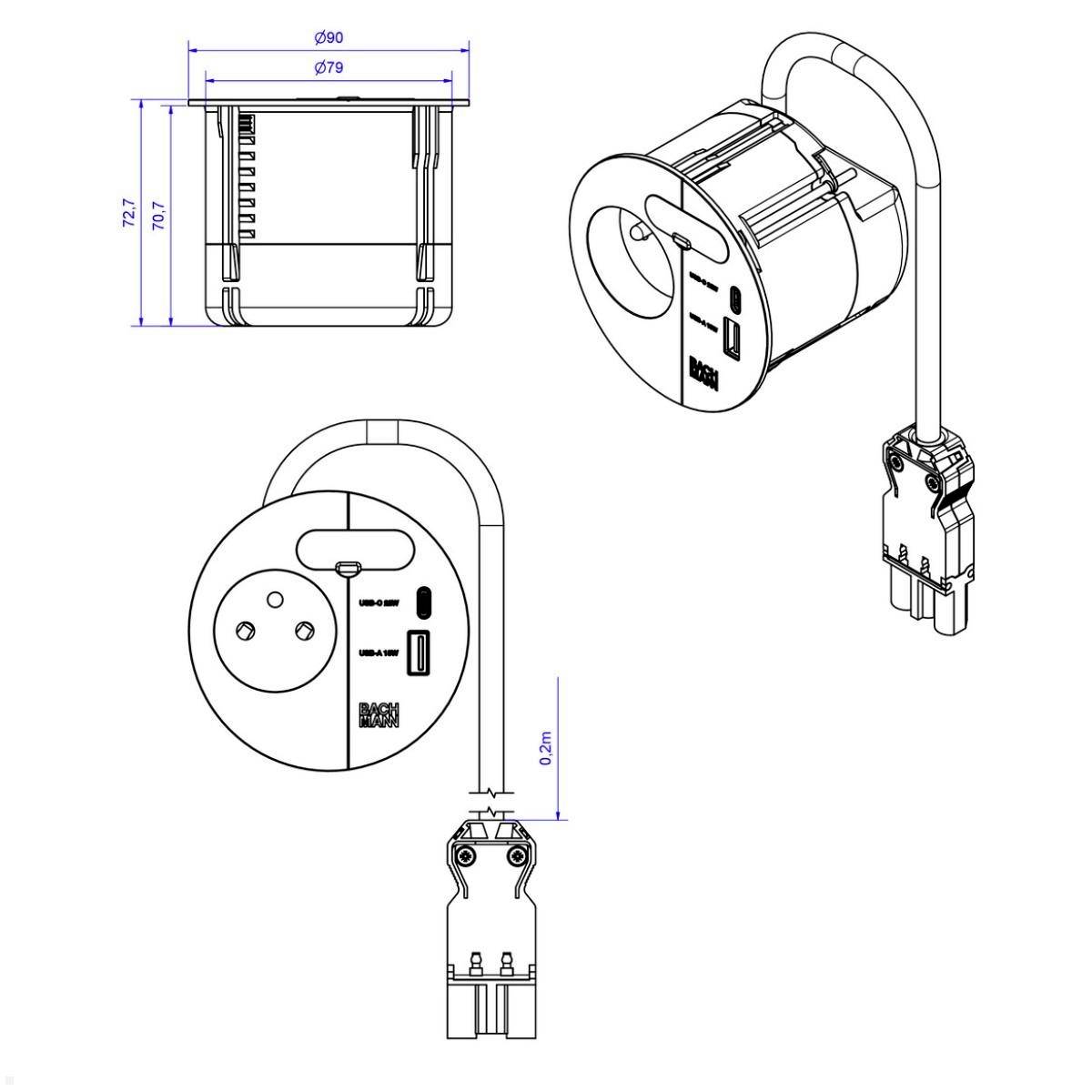

'Technical drawing of a round electrical plug adapter with measurements. Features include ports and plug configurations.'

1/3

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

9 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 95.99 / piece)

€ 95.99

incl. VAT

Only 9 Piece(s) available

14-day return policy included

Report legal concerns

Technical specifications

1x French UTE socket (Type E)
1x charger USB-C 22 W
1x charger USB-A: 18 W
Charging standard: USB 3.1 Power delivery (PD)
Integrated cable outlet (23 x 12 mm) with rubber cover
Drilled hole: ⌀ 80 mm
Table thickness 10 - 40 mm
Dimensions (⌀ x H) 90 x 72.7 mm
Supply line: H05VV-F | 3G1.5 mm², length: 0.2 m.
Plug type: Installation connector (GST18)
Rated current / rated voltage 16 A / 250 V
Frequency: 50 Hz

Product type: Worktop socket

Light bulb features: incl. USB
incl. USB charging port

Outlets: 1

Cable length: 0.20 m

Used at: Indoors
Fixed

Mounting type: Recess-mount

Cable standard: H05VV-F 3G 1,5 mm²

Operating voltage: 250 V

Factory colour: Black

Length: 400 cm

Width: 100 mm

Height: 72.7 mm

(Ø): 90 mm

: IP20

Depth: 400 mm

Weight: 1000 g

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3453321 Bachmann 938.204 Worktop socket Black

User & Safety Instructions

User & Safety Instructions 3453321 Bachmann 938.204 Worktop socket Black

Description

With loop in charge, Bachmann presents an elegant table connection panel for all-round use in the office: The French standard (UTE) type E flush-mounted socket offers power supply and charging function in one. The USB A/C charger with Power delivery enables you to charge mobile phones and other smaller devices while working at the desk. Space-saving and hidden in the table surface with concealed mounting screw, the black furniture socket fits seamlessly into any environment. The integrated cable inlet with rubber cover also simultaneously acts as a convenient cable management at the table. The unit is connected to the mains via a connector. To install the French UTE socket with cable guide, only a 80 mm hole needs to be placed in the table top.

This text is machine translated.
