Bachmann 938.303 Worktop socket White
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 80.66 / piece)
€ 80.66
plus VAT.
Only 9 Piece(s) available

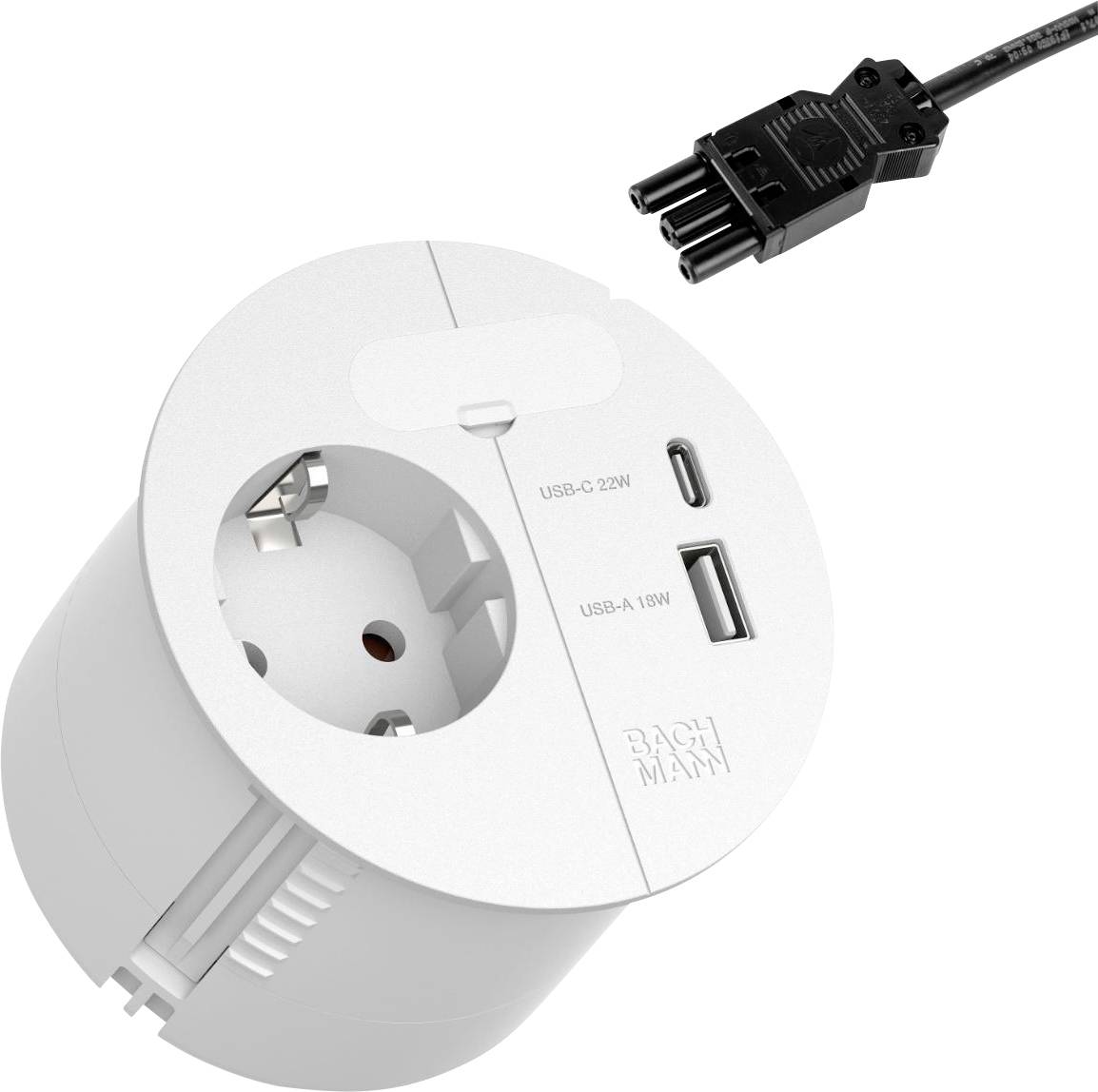

Flush-mounted socket with USB A/C charger
Technical specifications
- 1x Earth contact socket, 1x USB-A, 1x USB-C
- USB-C 22 W
- USB-A 18 W
- Charging standard: USB 3.1 Power delivery (PD)
- Integrated cable outlet (23 x 12 mm) with rubber cover
- Drilled hole: ⌀ 80 mm
- Table thickness 10 - 40 mm

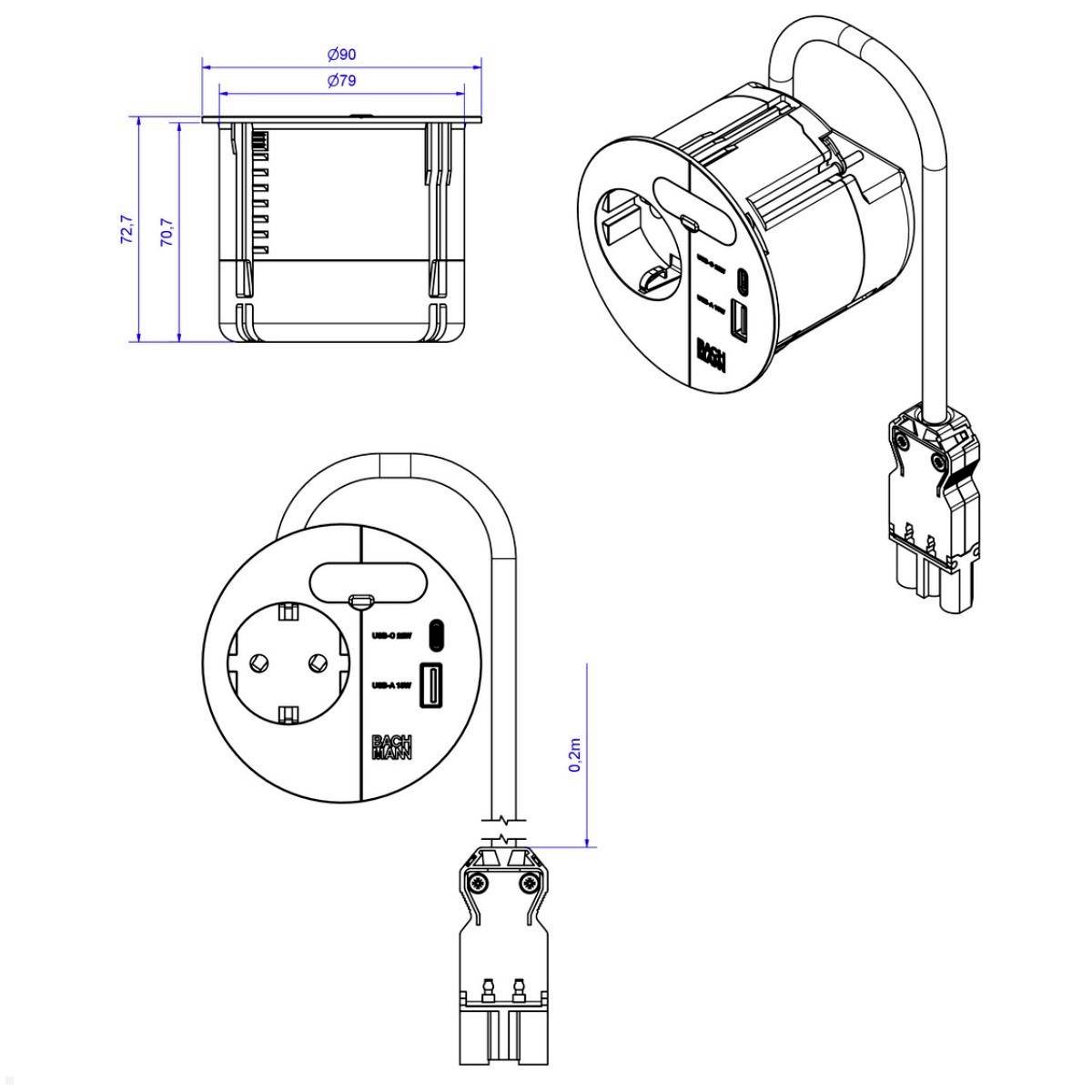

- Dimensions (⌀ x H) 90 x 72.7 mm
- Supply line: H05VV-F | 3G1.5 mm², length: 0.2 m.
- Plug type: Installation connector (GST18)
- Rated current / rated voltage 16 A / 250 V
- Frequency: 50 Hz
- Product type
Worktop socket
- Light bulb features
incl. USB
incl. USB charging port
- Outlets
1
- Cable length
0.20 m
- Used at
Indoors
Fixed
- Mounting type
Recess-mount
- Material
Plastic
- Cable standard
H05VV-F 3G 1,5 mm²
- Operating voltage
250 V
- Factory colour
White
- Height
72.7 mm
- (Ø)
90 mm
IP20
- Cable design
Round
- Version
Cable
- Cable use
C13/C14 appliances
- Weight
1000 g
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3453324 Bachmann 938.303 Worktop socket White
User & Safety Instructions
User & Safety Instructions 3453324 Bachmann 938.303 Worktop socket White
Description
Scope of delivery
- Including mounting screw
- This text is machine translated.
