Buy Bauser 3811/008.3.1.7.0.2-003

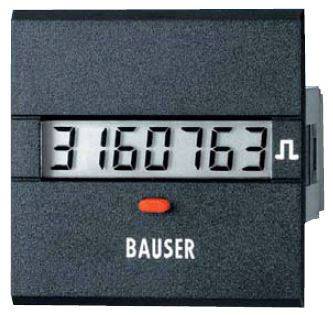

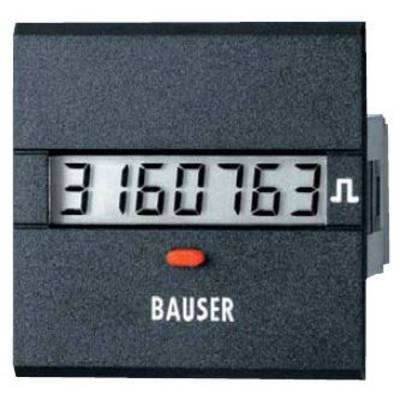

A black counter device with a digital display shows the number '3160763'. Below this is the text 'BAUSER'.

Datasheet (PDF)

Fast track dispatch on Wed, 8 Jul

8 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 38.65 / piece)

€ 38.65

plus VAT.

Only 8 Piece(s) available

Report legal concerns

Highlights & Details

Digital timer or pulse counter - new! Twin solution

Assembly dimensions 45 x 45 mm

Technical specifications

Electrical connection: Clamp connection
Ambient temperature: -30 to +70 °C
Counter frequency: 30 Hz for DC-counters
Pulse counter: 10 Hz for AC-counters
Mounting: spanning bracket

Reading type: Pulse

Type: 3811/008.3.1.7.0.2-003

: IP54 (front)

Recess width: 48 mm

Recess height: 48 mm

Dim: (W x H x D) 48 x 48 x 37 mm

Weight: 42 g

Factory colour: Black

Width: 48 mm

Height: 48 mm

Frame width: 48 mm

Interfaces: EEPROM

Digit height: 7 mm

Depth: 37 mm

Type: PULSE COUNTER 115-240 V AC

Digits: 7

Display (details): LCD

Assembly dimensions: 45 x 45 mm

Total dimensions: 48 x 48 mm

Counter range: 9999999

Counter type: Pulse counter

Reset: Electrically/Button

Temperature range: -30 to +70 °C

Input voltage: 115 - 240 V AC

Operating voltage: 115 - 240 V AC

Documents & Downloads

Datasheet

Datasheet 120667 Bauser 3811/008.3.1.7.0.2-003

User & Safety Instructions

User & Safety Instructions 120667 Bauser 3811/008.3.1.7.0.2-003

Description

Modern Bauser technology makes it possible Even without batteries your data is saved in the EEPROM memory! The new electronic timers and pulse counters are characterised by their attractive design, high quality and reliability. Optimally suited for the rigours of industrial applications or in commercial vehicles. And that’s what you can count on with Bauser counters.
