Beha Amprobe PRM-5-EUR Rotating EMF indicator CAT IV 600 V LED

Phase tester with three LED lights to indicate phase position and rotation direction, labelled 'PRM-5-EUR Phase Rotation Tester'.

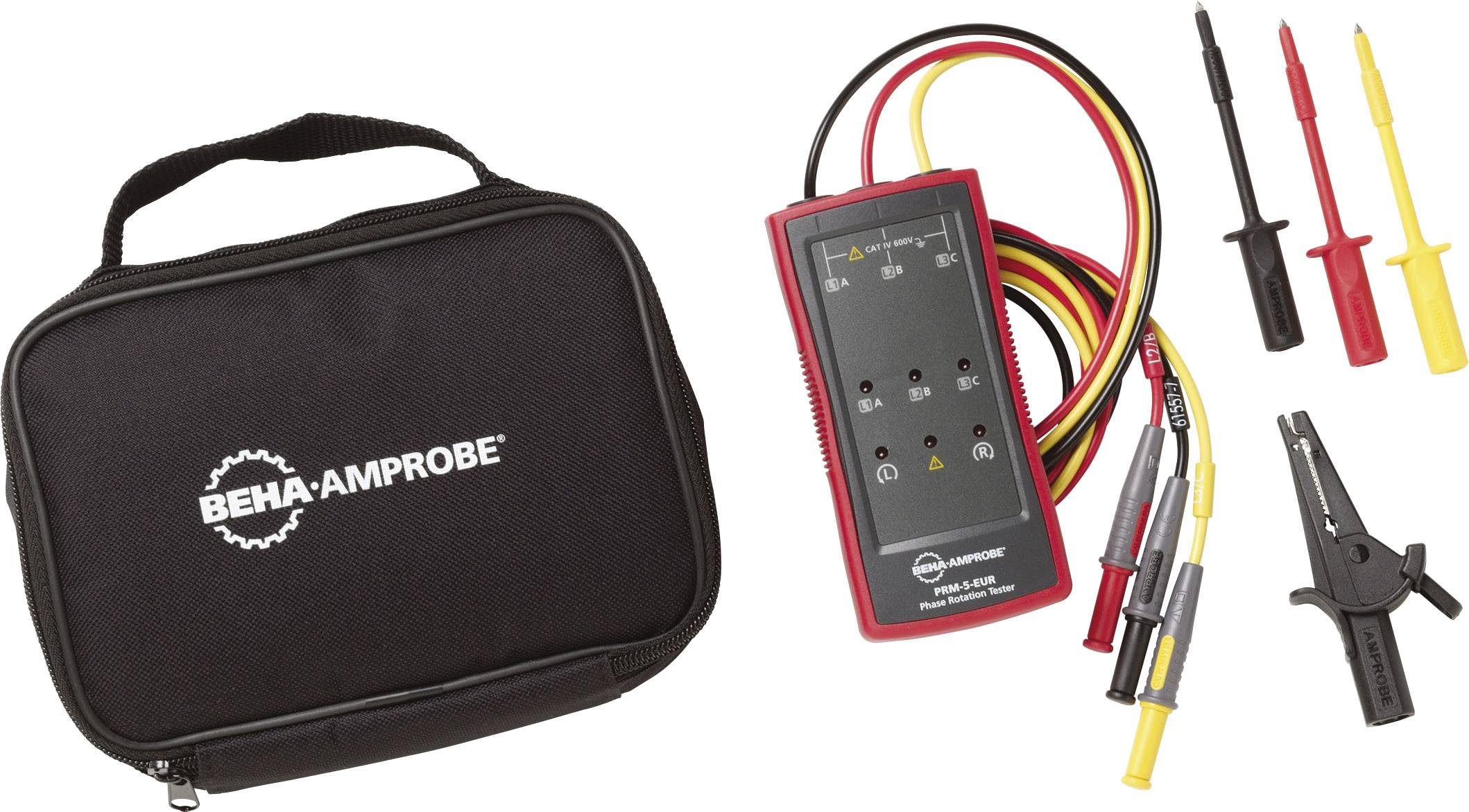

Carry bag and an electrical voltage tester with cables and clips, suitable for checking electrical connections.
Carry bag and an electrical voltage tester with cables and clips, suitable for checking electrical connections.

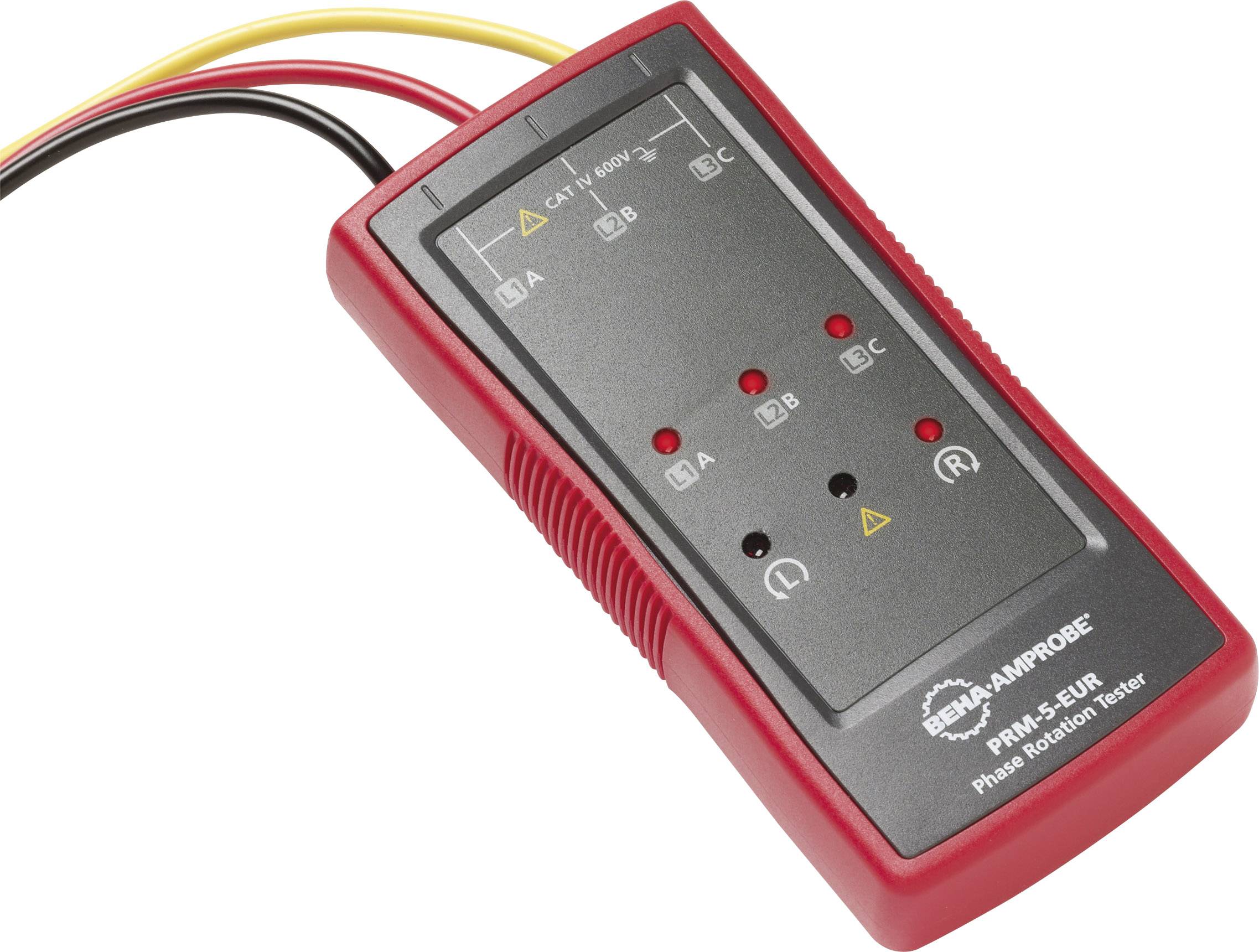

A phase tester with a red casing and three connected cables in black, yellow, and red. Indicators and symbols visible.

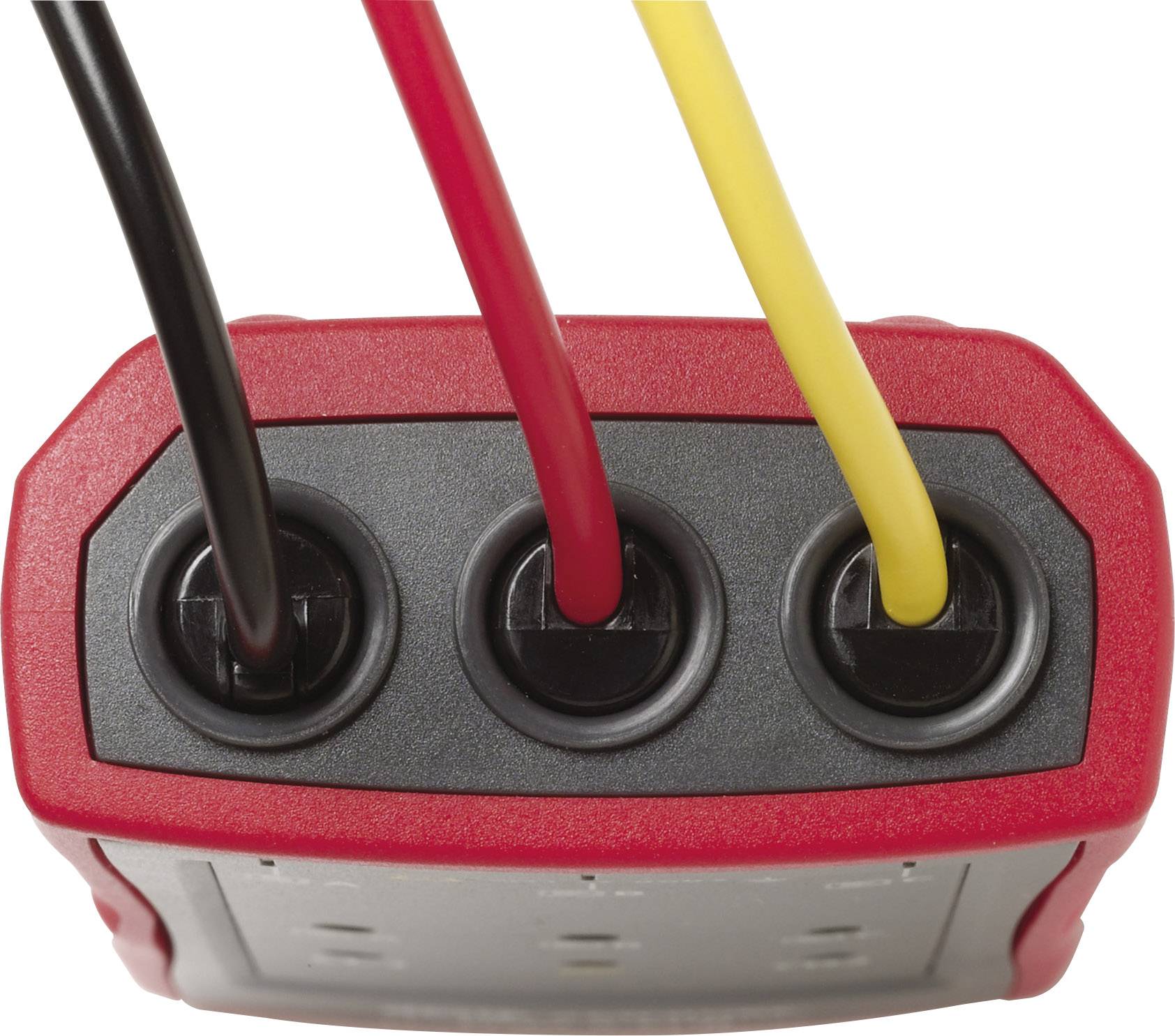

A red device with three coloured cables (black, red, yellow) plugged into sockets.

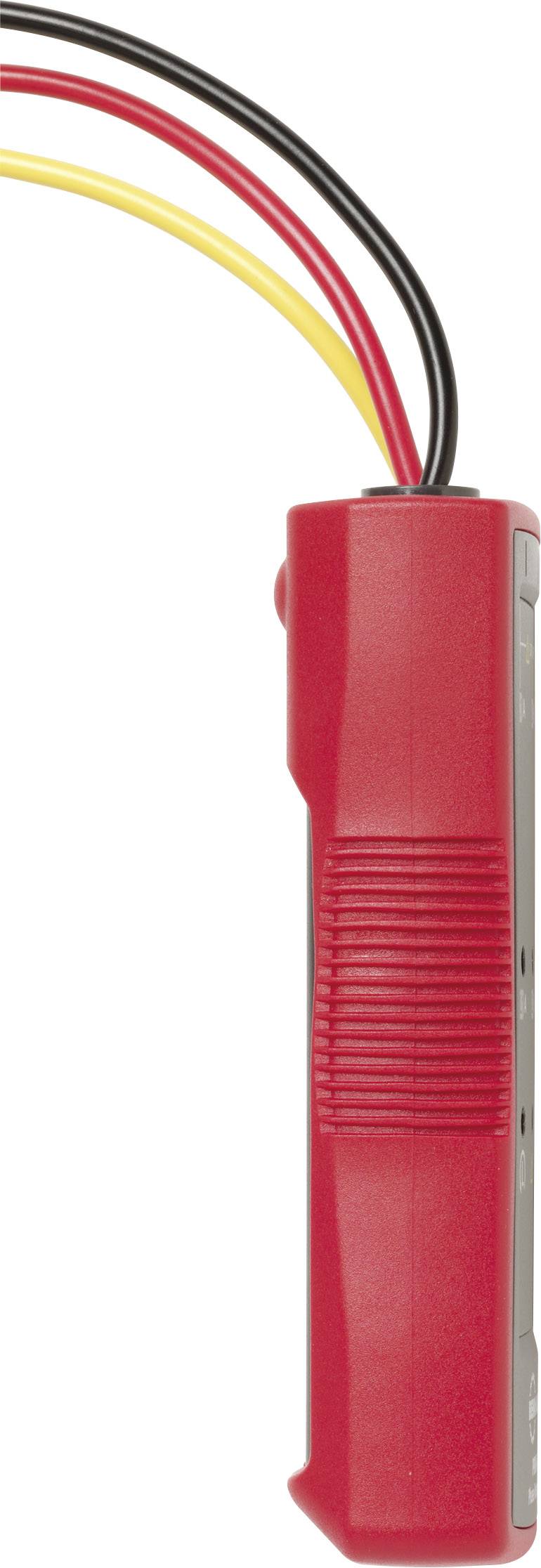

A red multimeter with red, yellow, and black cables visible from the side. It is used for measuring electrical quantities.

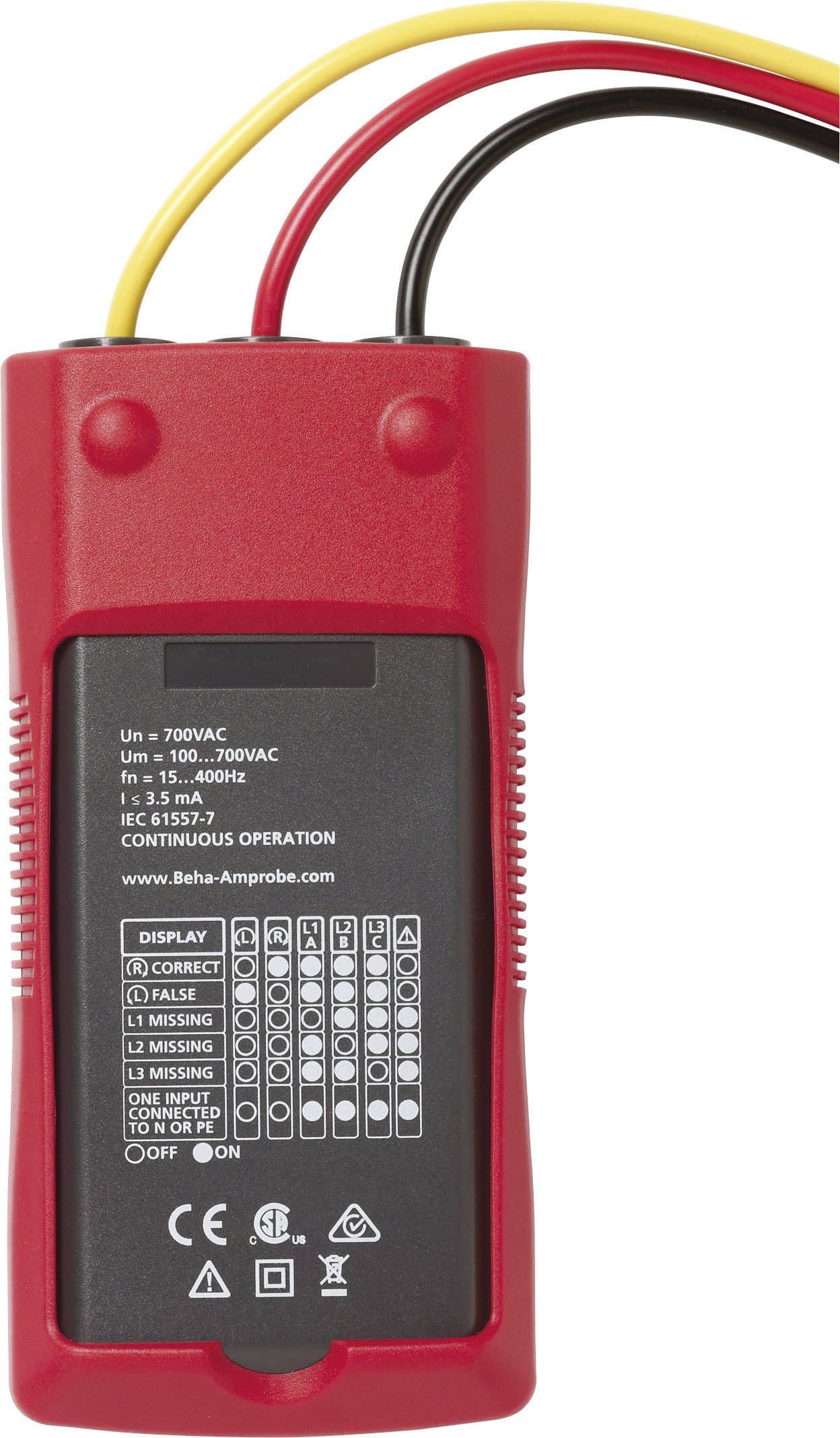

A voltage tester with a red casing shows various test modes and symbolised LED indicators for voltage status on the front.
A red device with three coloured cables (black, red, yellow) plugged into sockets.
A red multimeter with red, yellow, and black cables visible from the side. It is used for measuring electrical quantities.
A voltage tester with a red casing shows various test modes and symbolised LED indicators for voltage status on the front.
1/10
EAN:
Part number:
Item no:
Fast track dispatch on Thu 29 Oct
62 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 154.99 / piece)
€ 154.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Phase rotation tester PRM-5-EUR

  • Display of the direction of the rotating field with three-phase cables
  • Fault indicator

Technical specifications

Product type

Rotating EMF indicator

Reading type

Rotating magnetic field

Display

LED

V AC reading range

100 up to 700 V

Reading category

CAT IV 600 V

Manufacturer's standards (no certificate)

Dim

(L x W x H) 220 x 135 x 60 cm

Weight

0.26 kg

Max. frequency

400 Hz

Min. frequency

16 Hz

Frequency range

16 Hz - 400 Hz

V AC reading range (max.)

700 V

V AC reading range (min.)

100 V

Width

135 cm

Height

60 cm

Length

220 cm

Type

PRM-5-EUR

UKCA

yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1405224 Beha Amprobe PRM-5-EUR Rotating EMF indicator CAT IV 600 V LED

Description

The PRM-5-EUR can be operated without a battery and is a simple and reliable tester for the correct direction of rotating field with three-phase cables and sockets. It has a stable construction with an outer cover made of rubber, is classified in the category CAT IV 600V and complies with the standards EN 61010 and EN 61557. It is therefore best suited for testing the motor rotation direction and rotational field direction in electrical systems up to 700 V in commercial and industrial environments.

This text is machine translated.

Features

  • Error display: missing phase, an input is connected with a neutral or PE or the voltage difference between the phases exceeds 30% of phase to phase or 65% between phase and neutral

Scope of delivery

  • 3 test probes
  • 1 alligator clip
  • User manual
  • Carrying case.
