Name: Beha Amprobe PRM-6-EUR Rotating EMF indicator CAT IV 600 V LCD
Brand: Beha Amprobe
SKU: 1405225
Availability: InStock

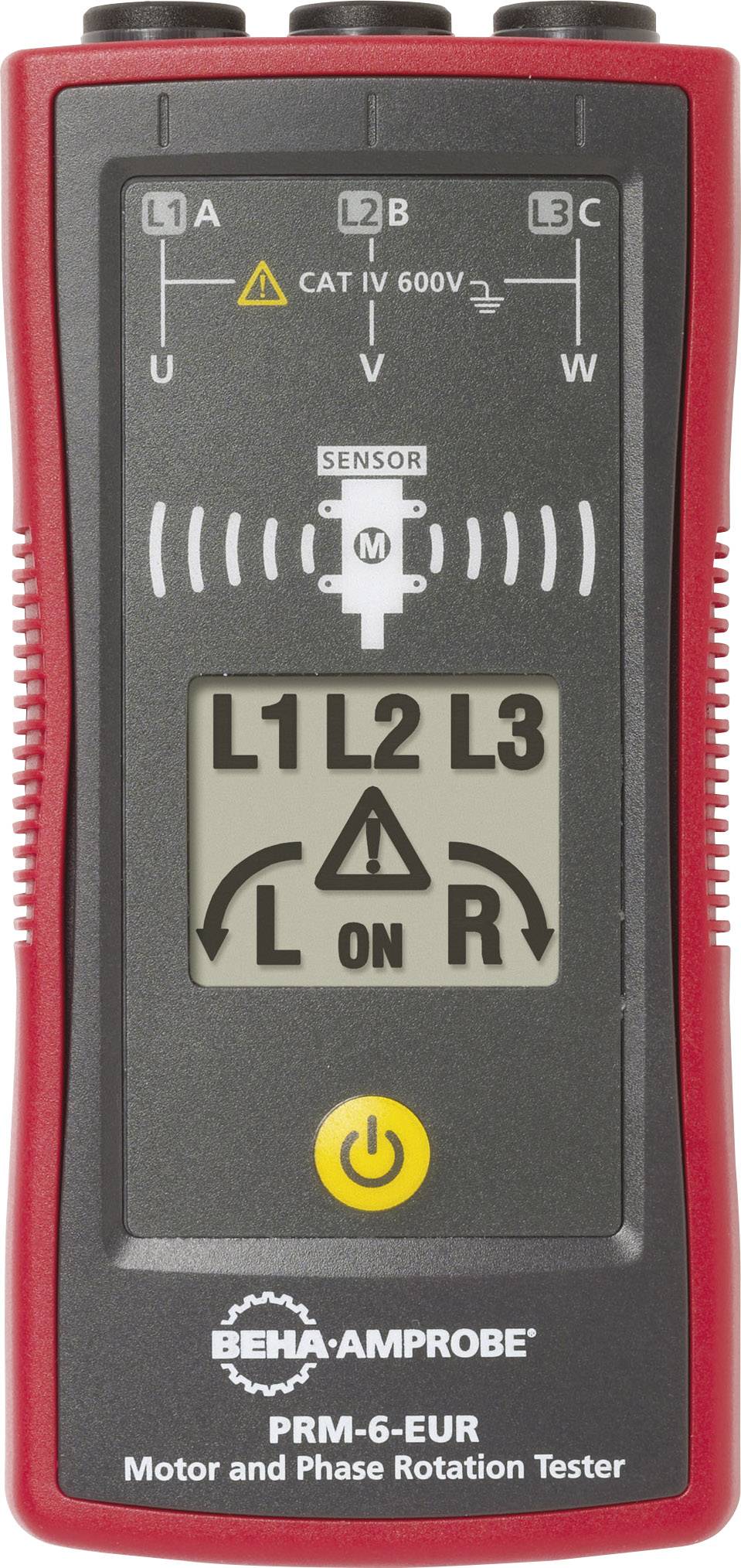

Handheld device for checking motor and phase direction, Model PRM-6-EUR, with three connections L1, L2, L3, and sensor on top.

'Multimeter Set with Measuring Device, Test Leads, Crocodile Clips and Carry Case. Ideal for Electrical Measurements and Fault Diagnostics.'

A red phase tester with a display, showing 'L1 L2 L3' and 'ON R'. Buttons and warning symbols are visible.

Three-pin electrical connector on a red electronic device, most likely a measuring instrument or charger.

A red vehicle testing device in side view with a ribbed surface and black control elements.

Back of an electrical test device with technical specifications and warning about electrical shocks.

1/10

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

28 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 194.99 / piece)

€ 194.99

incl. VAT

14-day return policy included

Report legal concerns

Alternative article by VOLTCRAFT

VOLTCRAFT VC35 Rotating EMF tester CAT IV 600 V LCD

Fast track dispatch on Thu 29 Oct

€ 76.99

€ 63.99

incl. VAT plus

Highlights & Details

Motor rotation and phase rotation tester PRM-6-EUR

Display of the direction of the rotating field with three-phase cables
Synchronous or asynchronous motor rotation direction
Fault indicator
Touch and wireless detection of the direction of rotation of the motor when the engine is running.
Clear, backlit LCD display with easy-to-read symbols

Technical specifications

Product type: Rotating EMF indicator

Reading type: Rotating magnetic field

Display: LCD

V AC reading range: 40 up to 700 V

Reading category: CAT IV 600 V

: Manufacturer's standards (no certificate)

Dim: (L x W x H) 220 x 135 x 60 cm

Weight: 660 g

Max. frequency: 400 Hz

Min. frequency: 16 Hz

Frequency range: 16 Hz - 400 Hz

V AC reading range (max.): 700 V

V AC reading range (min.): 40 V

Width: 135 cm

Height: 60 cm

Length: 220 cm

Type: PRM-6-EUR

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1405225 Beha Amprobe PRM-6-EUR Rotating EMF indicator CAT IV 600 V LCD

Conformity certificate

Conformity certificate 1405225 Beha Amprobe PRM-6-EUR Rotating EMF indicator CAT IV 600 V LCD

Description

The PRM-6-EUR is a simple and reliable tester for the correct direction of rotating field with three-phase cables and sockets, it has a clear, illuminated LCD display and can with the help of test leads the direction of rotation of the motor separate check motors. An advanced function of the PRM-6 is the non-contact detection of the rotational direction of the motor, the rotational direction of the motor without measuring lines. This is particularly useful with fast running motors, in which the direction of rotation of the motor not visually, or if the drive shaft is not visible.
The PRM-6-EUR has a stable construction with an outer cover made of rubber, is classified in the category CAT IV 600V and complies with the standards EN 61010 and EN 61557. It is therefore best suited for testing the motor rotation direction and rotational field direction in electrical systems up to 700 V in commercial and industrial environments.

This text is machine translated.

Features

Error display: missing phase, an input is connected with a neutral or PE or the voltage difference between the phases exceeds 30% of phase to phase or 65% between phase and neutral

Description

Features

Error display: missing phase, an input is connected with a neutral or PE or the voltage difference between the phases exceeds 30% of phase to phase or 65% between phase and neutral
