Name: Benning TRITEST easy Multifunction tester CAT III 1000 V, CAT IV 600 V LED, Acoustic
Brand: Benning
SKU: 441111
Availability: InStock

Highlights & Details

Contactless phase and phase tester TRITEST® easy

Simple rotating field direction test in three-phase current networks via green/red LED probe tip (right/left)
CAT IV 600 V, CAT III 1000 V
Voltage range 200 - 1000 V AC
Cable break detector

Technical specifications

Power supply: 2x AAA battery

Product type: Multifunction tester

Reading type: Rotating magnetic field
Phase

Display: LED
Acoustic

V AC reading range: 200 up to 1000 V

Reading category: CAT III 1000 V
CAT IV 600 V

: Manufacturer's standards (no certificate)

Dim: (L x W x H) 153 x 20 x 25 mm

Weight: 40 g

Max. frequency: 65 Hz

Min. frequency: 45 Hz

Frequency range: 45 Hz - 65 Hz

V AC reading range (max.): 1000 V

V AC reading range (min.): 200 V

Width: 20 mm

Height: 25 mm

Length: 153 mm

Type: TRITEST easy

Factory colour: Multicolour

: 45-65 MHz

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 441111 Benning TRITEST easy Multifunction tester CAT III 1000 V, CAT IV 600 V LED, Acoustic

User & Safety Instructions

User & Safety Instructions 441111 Benning TRITEST easy Multifunction tester CAT III 1000 V, CAT IV 600 V LED, Acoustic

Information

Information 441111 Benning TRITEST easy Multifunction tester CAT III 1000 V, CAT IV 600 V LED, Acoustic

Description

Simple and fast testing of the phase (external conductor) and the direction of the rotating field in electrical systems and devices. Compact and simple tester for domestic, commercial and industrial use. Ideal for quick troubleshooting.

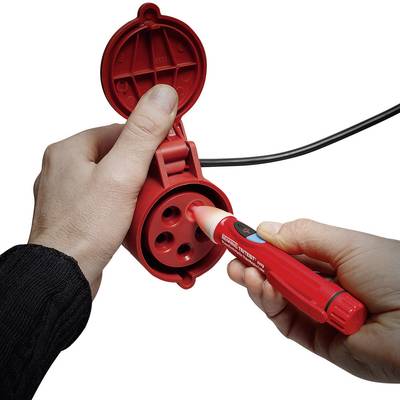

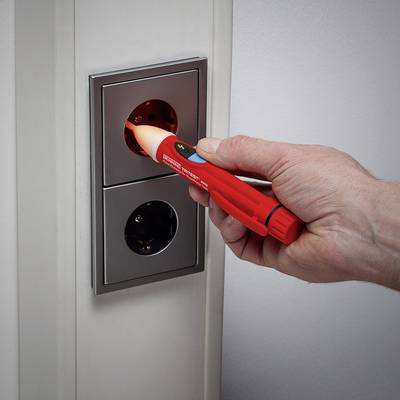

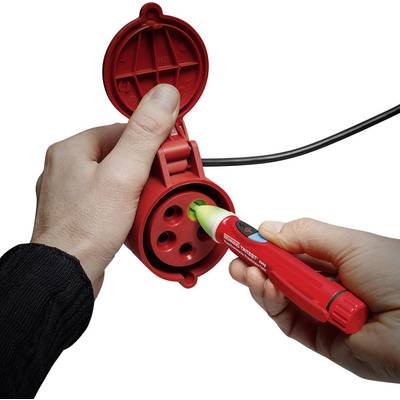

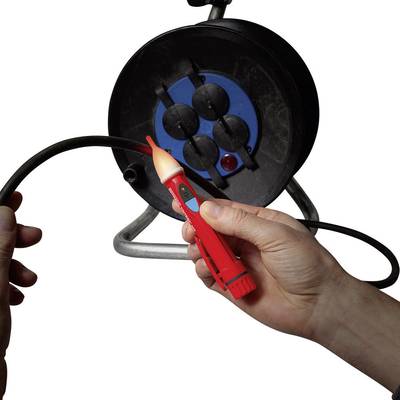

Phase test at plug and branch sockets: Red LED probe tip + signal tone · Phase rotation test in three-phase networks: Green/red LED probe tip for right/left rotating field · Testing for phase consistency · Finding cable breaks in insulated and live lines · Flashing frequency of LED probe tip and signal tone frequency rising to voltage level · ON/OFF switch with ready LED for phase and rotating field test · Breakproof ABS housing and easy operation.

This text is machine translated.

Scope of delivery

Batteries
User manual

Description

Simple and fast testing of the phase (external conductor) and the direction of the rotating field in electrical systems and devices. Compact and simple tester for domestic, commercial and industrial use. Ideal for quick troubleshooting.
Phase test at plug and branch sockets: Red LED probe tip + signal tone · Phase rotation test in three-phase networks: Green/red LED probe tip for right/left rotating field · Testing for phase consistency · Finding cable breaks in insulated and live lines · Flashing frequency of LED probe tip and signal tone frequency rising to voltage level · ON/OFF switch with ready LED for phase and rotating field test · Breakproof ABS housing and easy operation.

This text is machine translated.
