binder 09 0124 370 06 Mini DIN connector Sleeve socket Total number of pins: 6 1 pc(s)

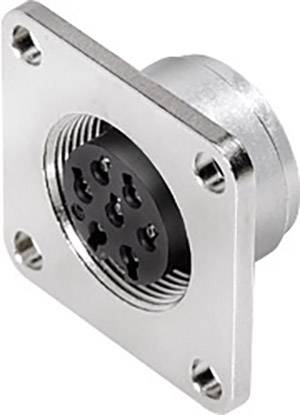

A silver 9-pin plug in a square metal socket, used for connecting electronic devices.
Technical drawing of an electrical connector with M10x thread. It shows front and side views with dimensional specifications.
The figure shows a circular disc with six numbered holes, along with a table containing XY coordinates for each hole.
Technical drawing of a circle with a diameter of 1, surrounded by dimension lines. Contains angle markings and diameter notations.
1/4
Image similar
Product type
Mini DIN connector
Connector type
Sleeve socket
Total no. of pins
6
Content
1 pc(s)
Nominal current - rounded value
5 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 12.99 / piece)
€ 12.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

Type

09 0124 370 06

Product type

Mini DIN connector

Connector type

Sleeve socket

Total no. of pins

6

Content

1 pc(s)

Max. temperature

+100 °C

Nominal current

5 A

Min. temperature

-40 °C

Nominal current - rounded value

5 A

Seal

Screws

Leading contact (PE)

No

Nominal voltage

250 V

Case material

PBT, UL94V-0

Connection angle

180°

Manufacturer part #

09 0124 370 06

Number of pins

6

IP67

Documents & Downloads

Datasheet

Datasheet 1663619 binder 09 0124 370 06 Mini DIN connector Sleeve socket Total number of pins: 6 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1663619 binder 09 0124 370 06 Mini DIN connector Sleeve socket Total number of pins: 6 1 pc(s)

Description

Hints

Crimp contacts must be ordered separately.
