binder 09 0127 300 07 Mini DIN connector Sleeve plug Total number of pins: 7 1 pc(s)

A multi-pin metal connector for mounting on a surface, suitable for electronic connections.
Technical drawing of a circular connector with dimensions and connections, showing front and side views. Includes dimensional specifications.

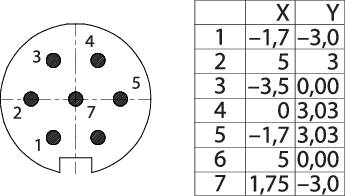

Circuit diagram with seven numbered circles on the left. Table on the right shows 'X', 'Y' coordinates for each number: 1(-1.7,-3), 7 (1.75,-3).
Technical drawing of a circle with diameter line and dimensional annotations. The circle is positioned in the centre of a grid.
1/4
Image similar
Product type
Mini DIN connector
Connector type
Sleeve plug
Total no. of pins
7
Connection
Soldering
Content
1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Wed 11 Nov
14 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 14.99 / piece)
€ 14.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

Type

09 0127 300 07

Product type

Mini DIN connector

Connector type

Sleeve plug

Total no. of pins

7

Connection

Soldering

Content

1 pc(s)

Max. temperature

+95 °C

Nominal current

5 A

Min. temperature

-40 °C

Nominal current - rounded value

5 A

Seal

Screws

Leading contact (PE)

No

Nominal voltage

125 V

Contact material

CuZn

Case material

PBT, UL94V-0

20

Connection angle

180°

Manufacturer part #

09 0127 300 07

Number of pins

7

max. cross section

0.75 mm²

Cross-section range

0.75 mm² (max)

IP67
