Connectors & CablesConnectorsIndustrial ConnectorsKeyed Connectors

binder 09 0174 320 08 Mini DIN connector Sleeve socket Total number of pins: 8 1 pc(s)

Metallic connector with multiple coloured cables (yellow, green, brown, grey, white), suitable for electrical connections.
Technical drawing of a circle with diameter specifications. The diameter is 30 cm. Dash-dotted lines show intersection points.
Technical drawing of a circular connector with front and side view. Dimensions and holes specified in millimetres.

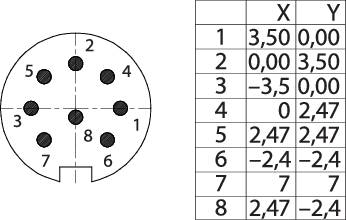

Pin configuration of an 8-pin connector with corresponding XY coordinate table. Table shows coordinates for positions 1 to 8.
1/4
Image similar
Product type
Mini DIN connector
Connector type
Sleeve socket
Total no. of pins
8
Connection
Open end cable
Content
1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Wed 11 Nov
15 Piece(s) (Only while stocks last)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 27.99 / piece)
€ 27.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

Type

09 0174 320 08

Product type

Mini DIN connector

Connector type

Sleeve socket

Total no. of pins

8

Connection

Open end cable

Content

1 pc(s)

Max. temperature

+85 °C

Nominal current

5 A

Min. temperature

-30 °C

Nominal current - rounded value

5 A

Seal

Screws

Leading contact (PE)

No

Nominal voltage

100 V

Contact material

CuSn

Case material

PBT, UL94V-0

22

Connection angle

180°

Manufacturer part #

09 0174 320 08

Number of pins

8

IP67

Documents & Downloads

Datasheet

Datasheet 1663606 binder 09 0174 320 08 Mini DIN connector Sleeve socket Total number of pins: 8 1 pc(s)
