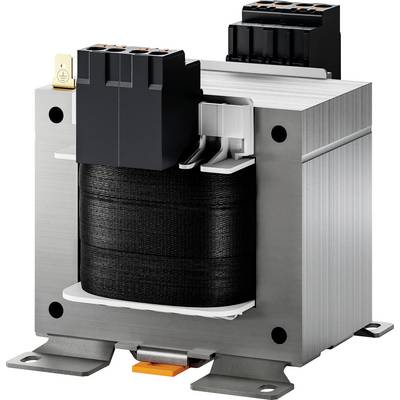

BLOCK STEU 160/48 Control transformer, Isolation transformer 1 x 215 V AC, 230 V AC, 245 V AC, 385 V AC, 400 V AC, 415 V
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 134.45 / piece)
€ 134.45
plus VAT.
Only 3 Piece(s) available
Highlights & Details
BLOCK STEU 160/48 Control transformer, Isolation transformer 1 x 215 V AC, 230 V AC, 245 V AC, 385 V AC, 400 V AC, 415 V AC 2 x 24 V AC, 48 V AC 160 VA
- 230 V and 400 V input voltage
- 63 - 2500 VA
Technical specifications
- Protection class IP 00
- Primary ±15 V taps for voltage adjustment.
- Natural cooling
- Product type
Control transformer
- Output voltage
24 V AC
48 V AC
- No. of outputs
2 x
- No. of inputs
1 x
160 VA
- Input voltage
215 V AC
230 V AC
245 V AC
385 V AC
400 V AC
415 V AC
- Standards
UL 5085-1/-2, CSA 22.2 No. 66
- Connection
Push-in connector
- Width
96 mm
- Height
104 mm
- Length
102 mm
- Dim
(L x W x H) 102 x 96 x 104 mm
- Output voltage (number x voltage)
2 x 24 V AC, 48 V AC
- Design type
Open
- Input voltage (number x voltage)
1 x 215 V AC, 230 V AC, 245 V AC, 385 V AC, 400 V AC, 415 V AC
- Frequency
50 - 60 Hz
- Weight
2.9 kg
- Content
1 pc(s)
- Insulation class
VDE = B, UL = 130
- Mounting type
L-piece
DIN rail
- Test mark
cULus recognized
- RoHS-compliant
Yes
- Protection class
I
- Features
+/- 15 V input voltage terminal
- Type
STEU 160/48
- Max. ambient temperature
+40 °C
- Efficiency
86 %
160 VA
- Mounting type
M5 screws
- Cooling
Natural cooling
- Type
STEU 160/48
- Fitting method
Screw, mounting rail (TS to 250 VA)
Documents & Downloads
Datasheet
Datasheet 717534 BLOCK STEU 160/48 Control transformer, Isolation transformer 1 x 215 V AC, 230 V AC, 245 V AC, 385 V AC, 400 V AC, 415 V
User & Safety Instructions
User & Safety Instructions 717534 BLOCK STEU 160/48 Control transformer, Isolation transformer 1 x 215 V AC, 230 V AC, 245 V AC, 385 V AC, 400 V AC, 415 V
Description
Low power on current control, safety, or isolation transformer with tension spring clamps and dual purpose foot plate for screw and rail mounting (TS-35 rail to 250 VA) as per DIN 50022.
Hints
For dimensions see technical data sheet.
