C.K T3692A Crimper Ferrules 0.14 up to 2.5 mm²
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 65.99 / piece)
€ 65.99
incl. VAT
Only 3 Piece(s) available
Highlights & Details

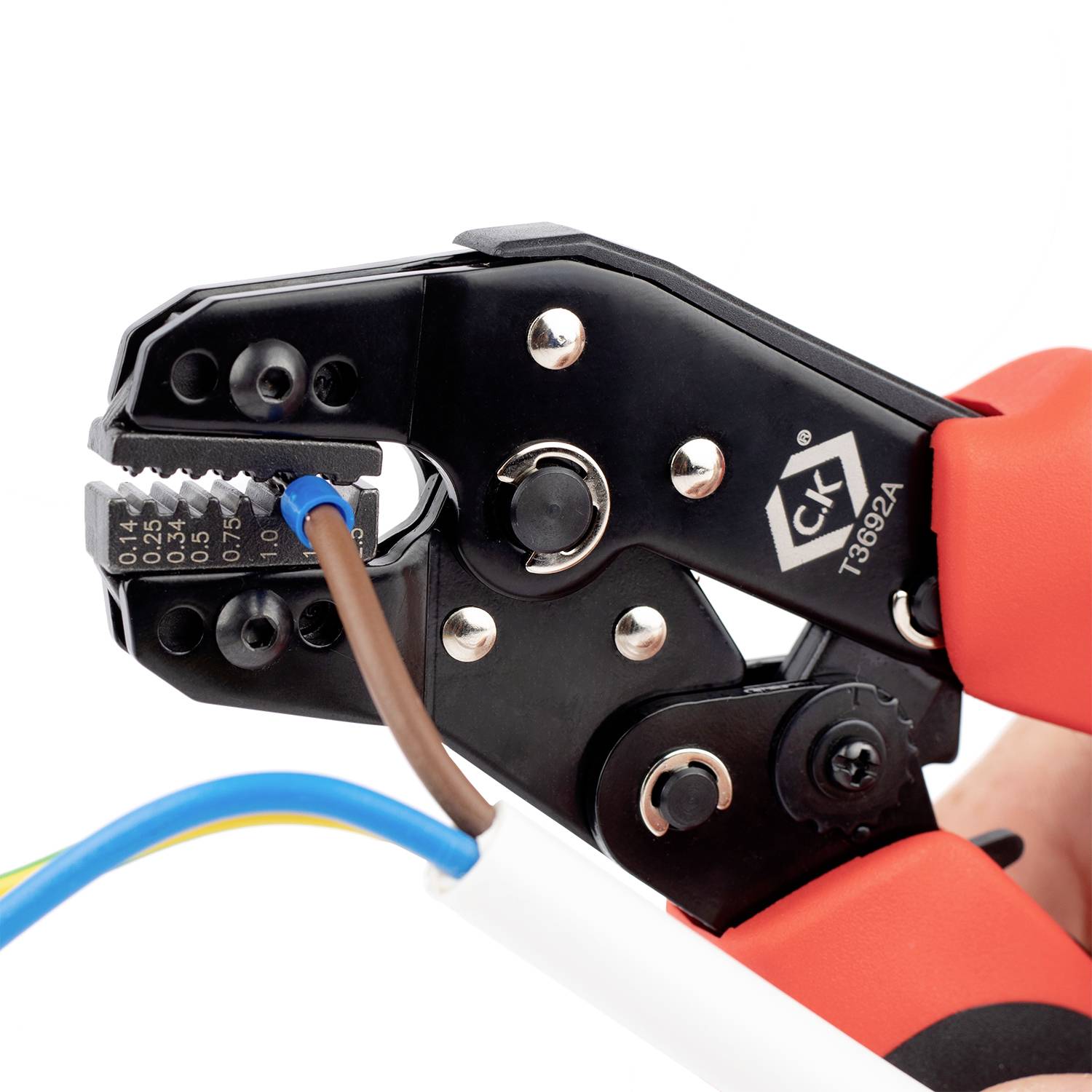

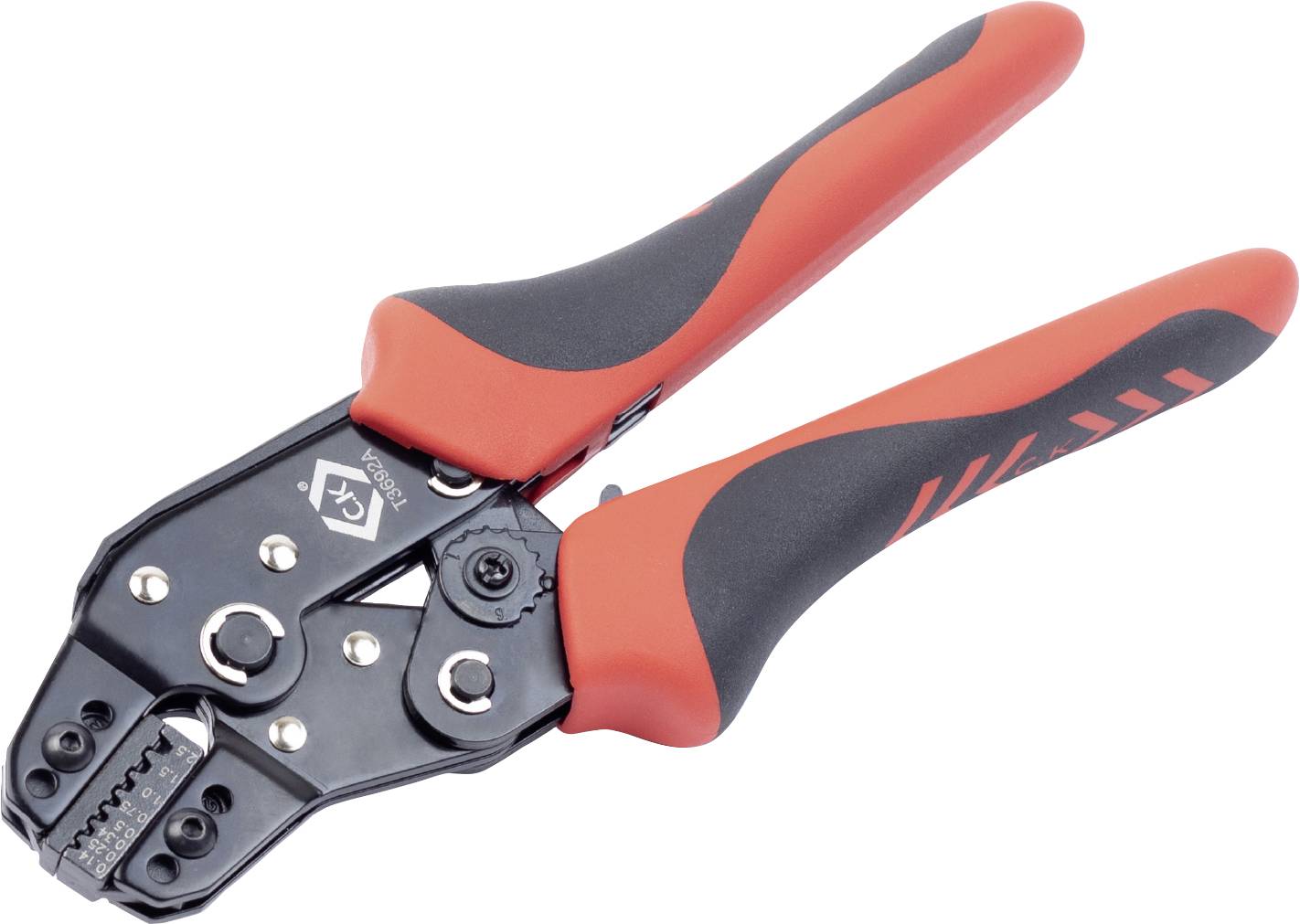

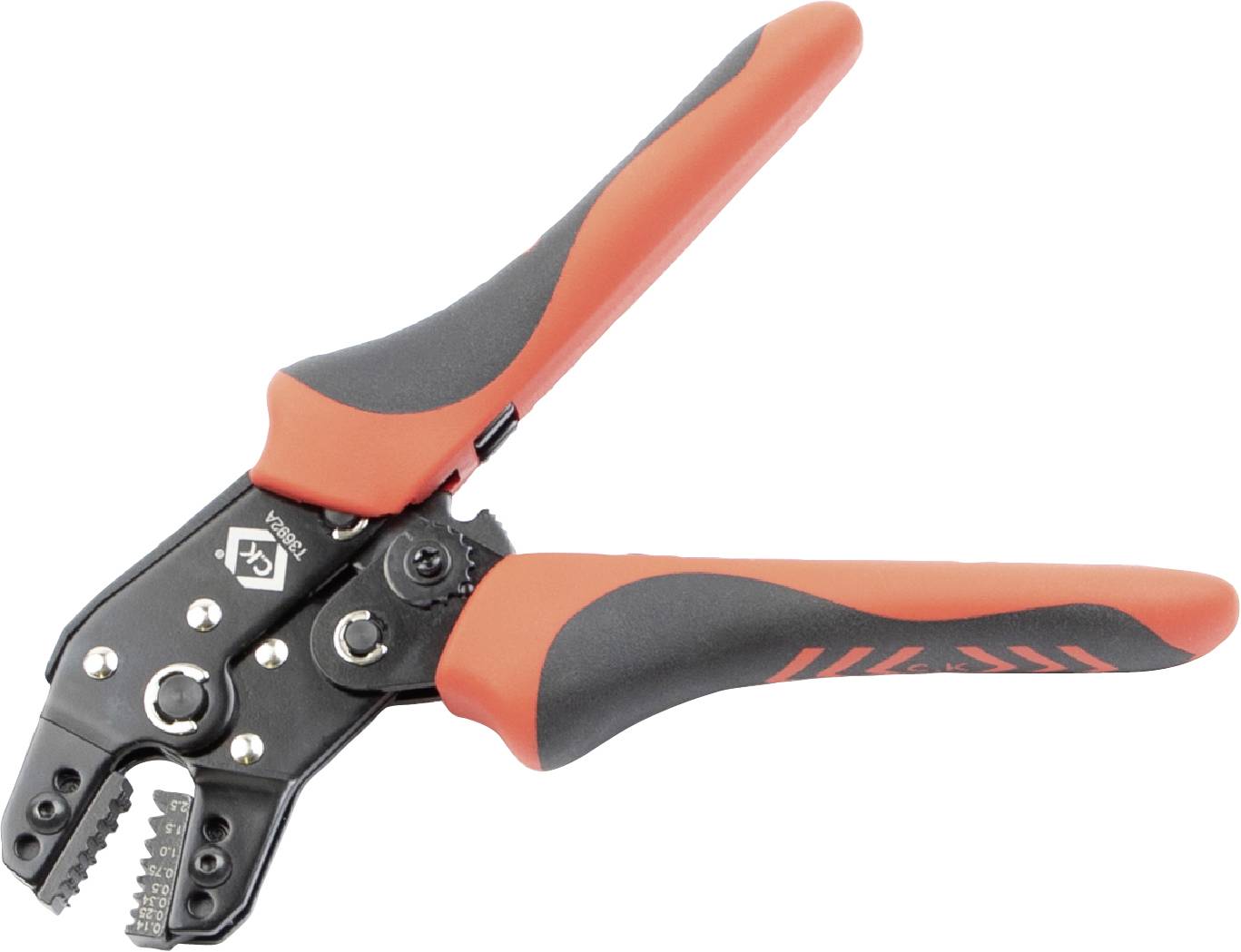

Crimping pliers with ratchet mechanism for wire-end sleeves 0.14-2.5 mm²
- Capacity: 0.14 - 2.5mm² / 26 - 14 AWGVery robust, tested up to 40,000 applications Ergonomic two-component handles for easy and comfortable working
Technical specifications
- Product type
Crimper
- Manufacturer part #
T3692A
- Range of uses
Ferrules
- Crimp area
0.14 up to 2.5 mm²
- Crimp area AWG
26 up to 14 awg
- Crimp area (min.)
0.14 mm²
- Crimp area (max.)
2.5 mm²
- Crimp area AWG (min.)
14 awg
- Crimp area AWG (max.)
26 awg
- Length
210 mm
- Material
Carbon steel
- Material properties
alloyed
- Width
80 mm
- Height
25 mm
- Weight
390 g
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2533442 C.K T3692A Crimper Ferrules 0.14 up to 2.5 mm²
User & Safety Instructions
User & Safety Instructions 2533442 C.K T3692A Crimper Ferrules 0.14 up to 2.5 mm²
Description
Developed for secure and firm crimping of small wire end sleeves. Ratchet system with automatic quick release, which releases the pliers again when the correct pressure is reached, in order to ensure precise crimping. Precision machined crimping jaws for qualitative crimping and secure connections. Made of fully hardened carbon steel for strength and durability.
This text is machine translated.
This text is machine translated.
