Name: Cable locator PCE-STM 5 PCE Instruments PCE-STM 5
Brand: PCE Instruments
SKU: 3369108
Availability: InStock

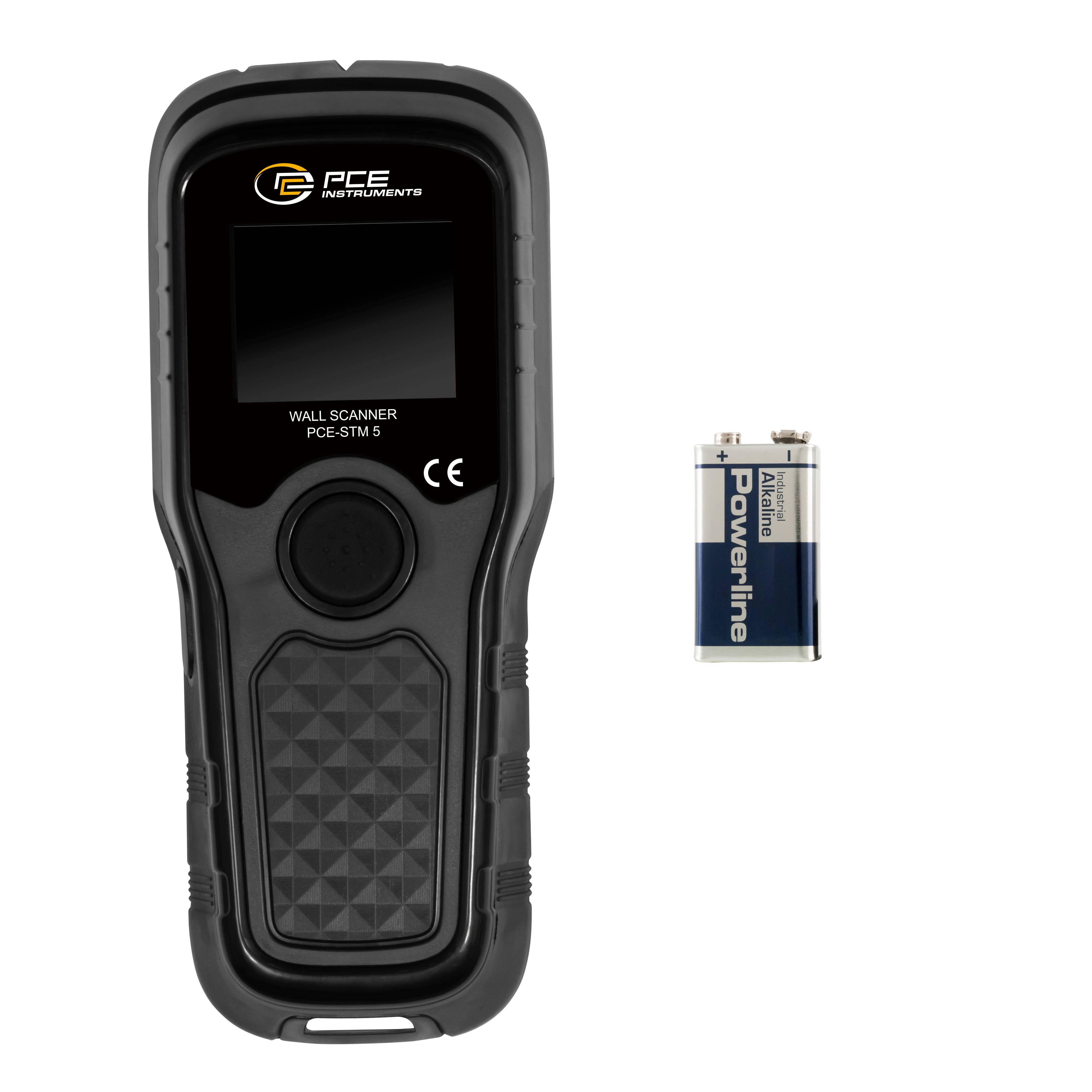

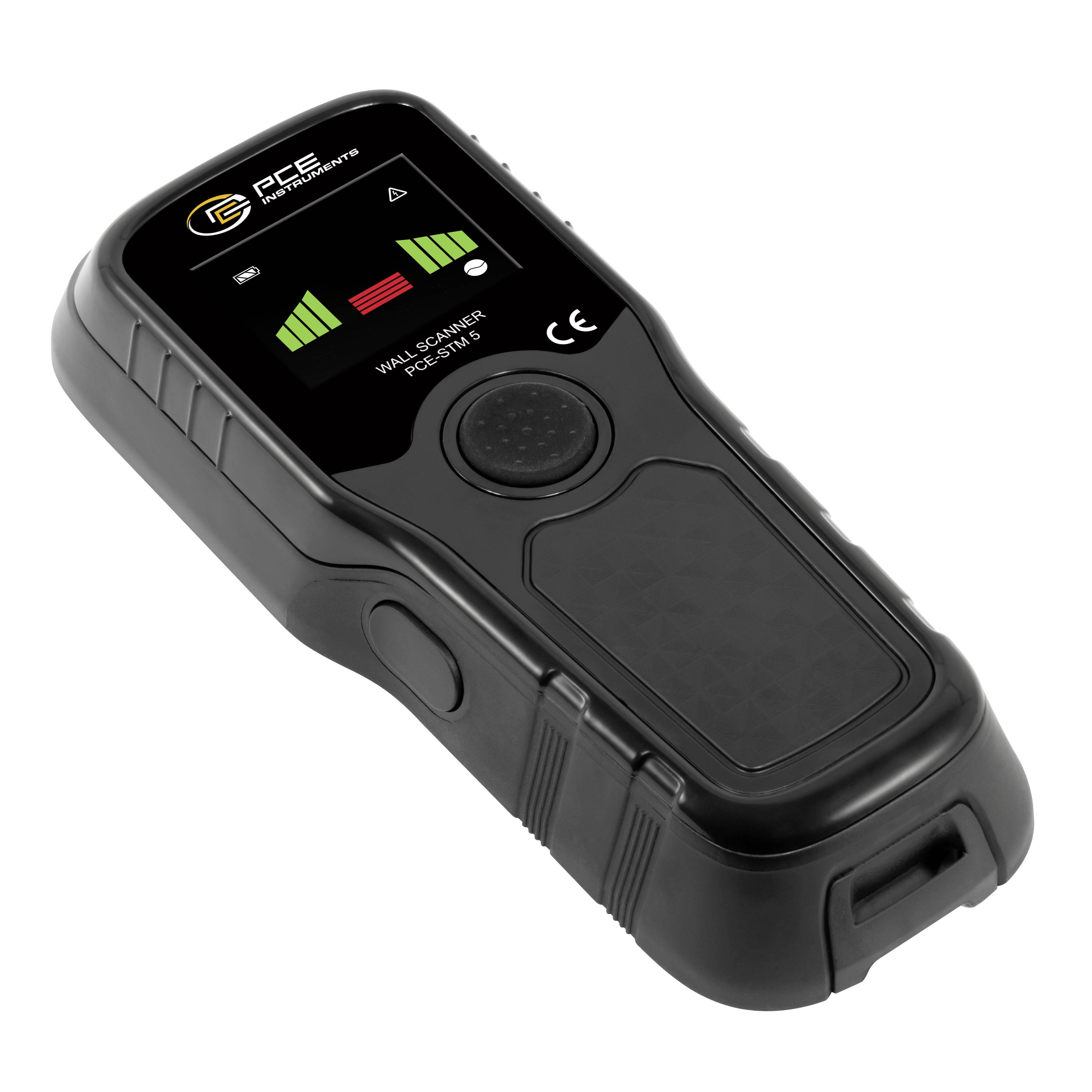

Black handheld wall scanner device with display, signal bars, and circular sensor pad, shown on a white background.

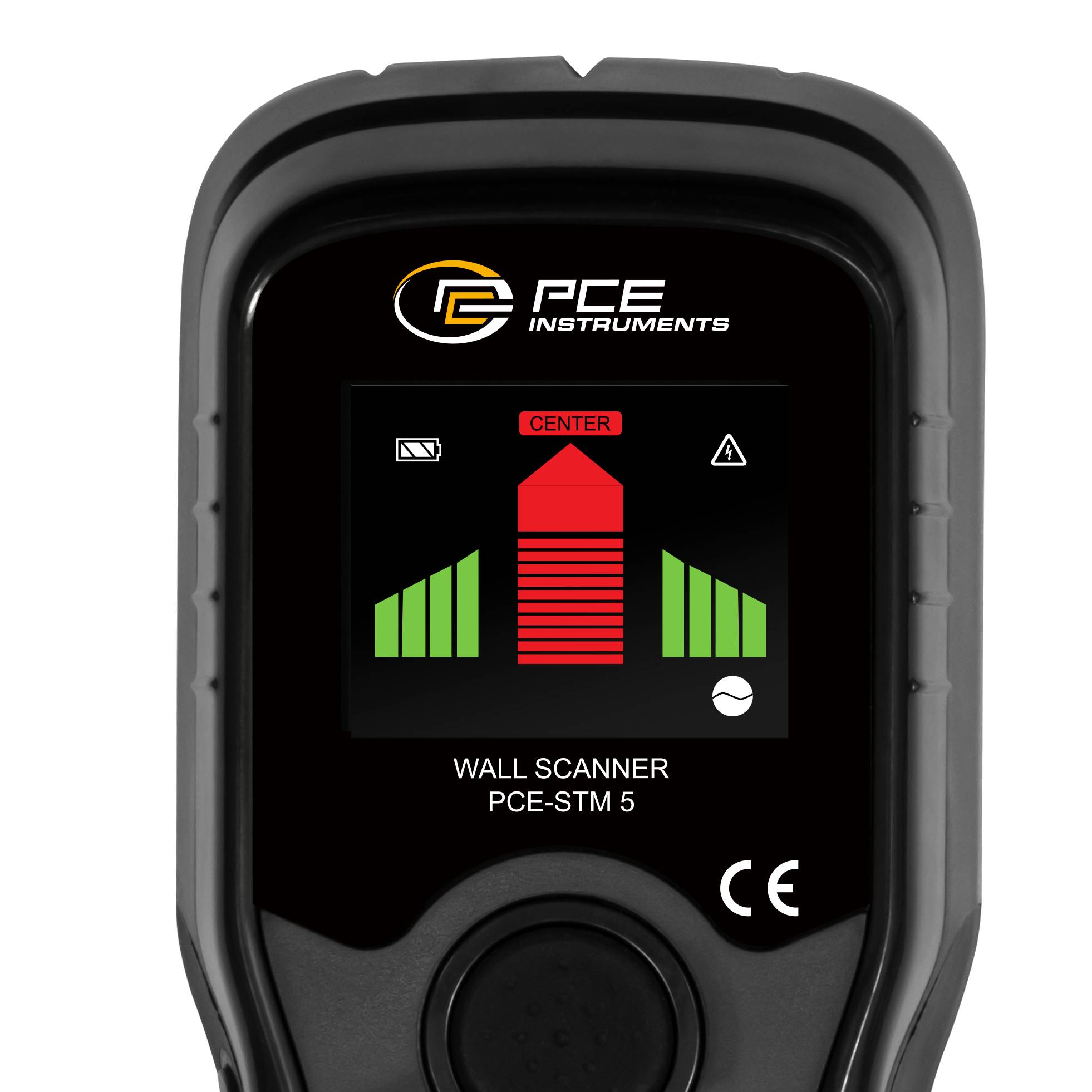

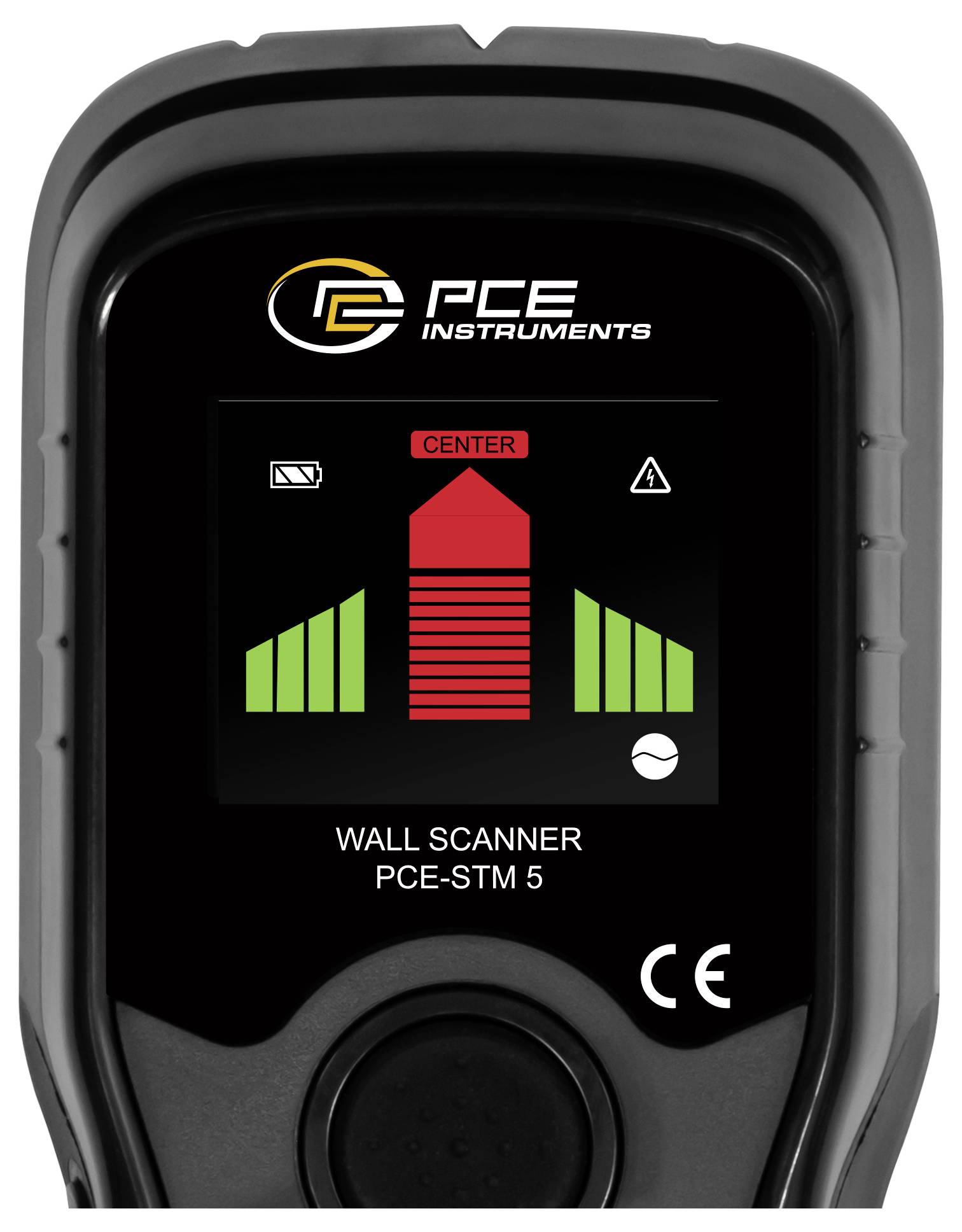

Handheld PCE Instruments wall scanner display showing centered target signal with red and green bar indicators.

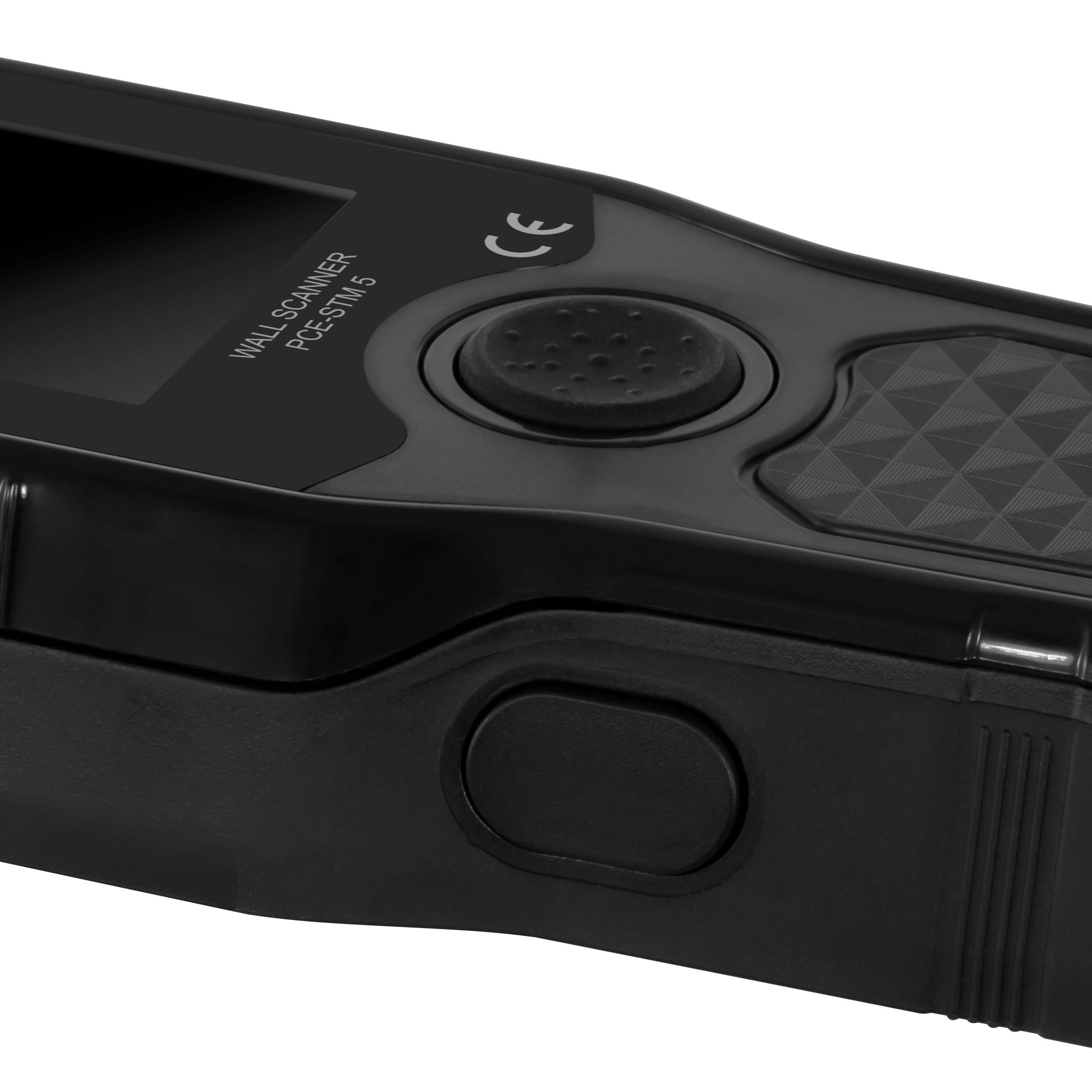

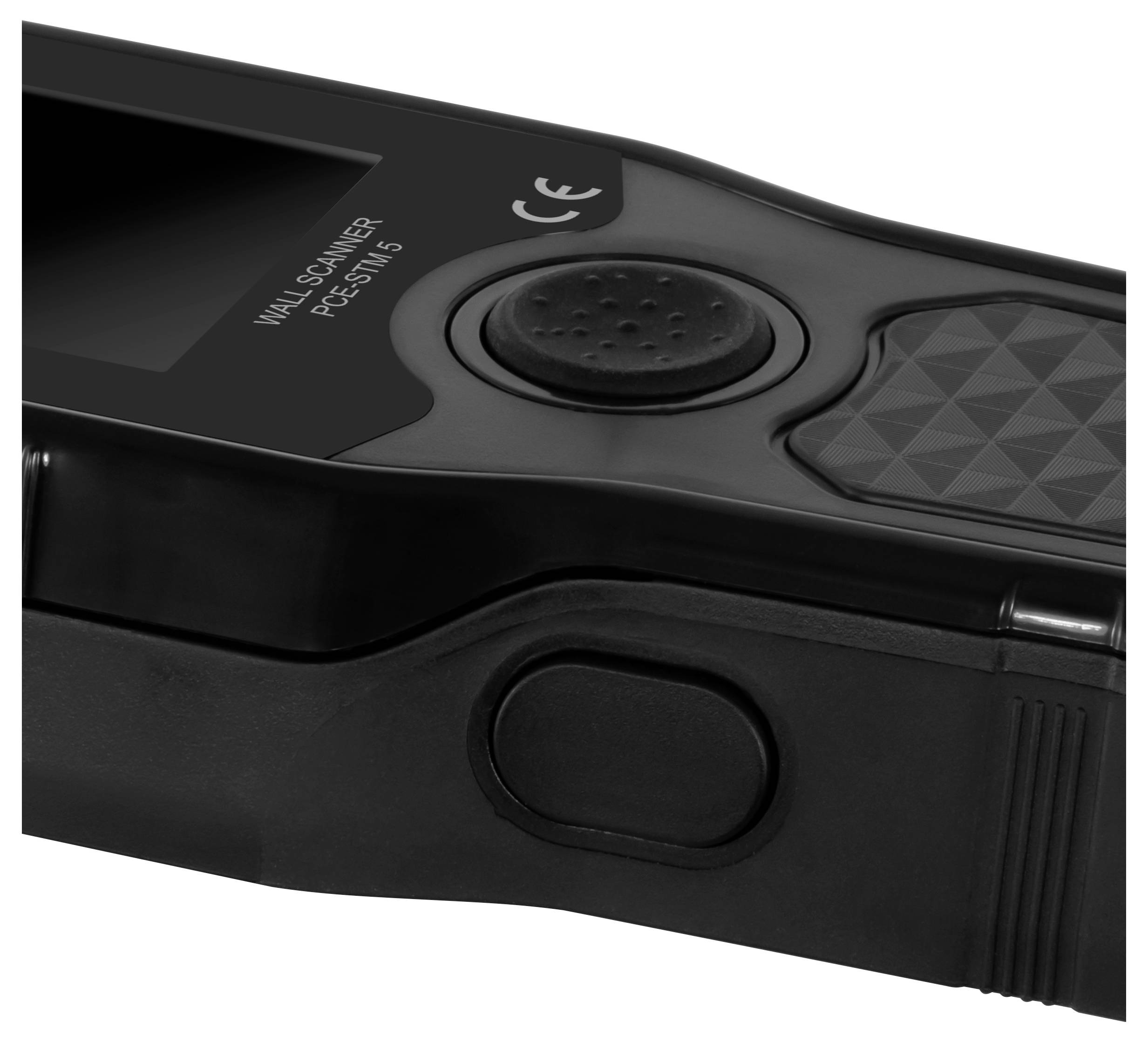

Close-up of a black handheld wireless scanner with a display, circular button, and labeled 'MALC SCANNER PCS-OM5' text.

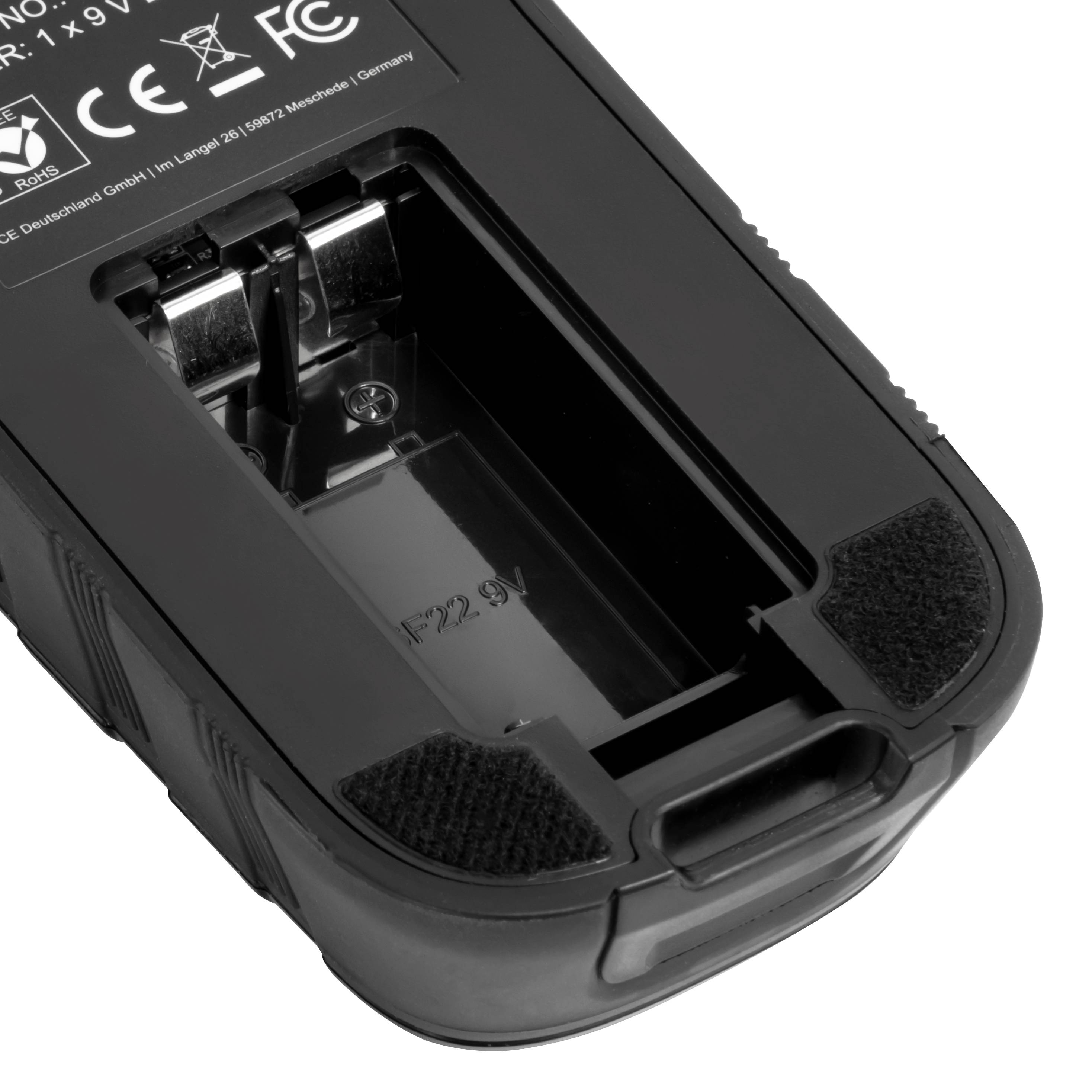

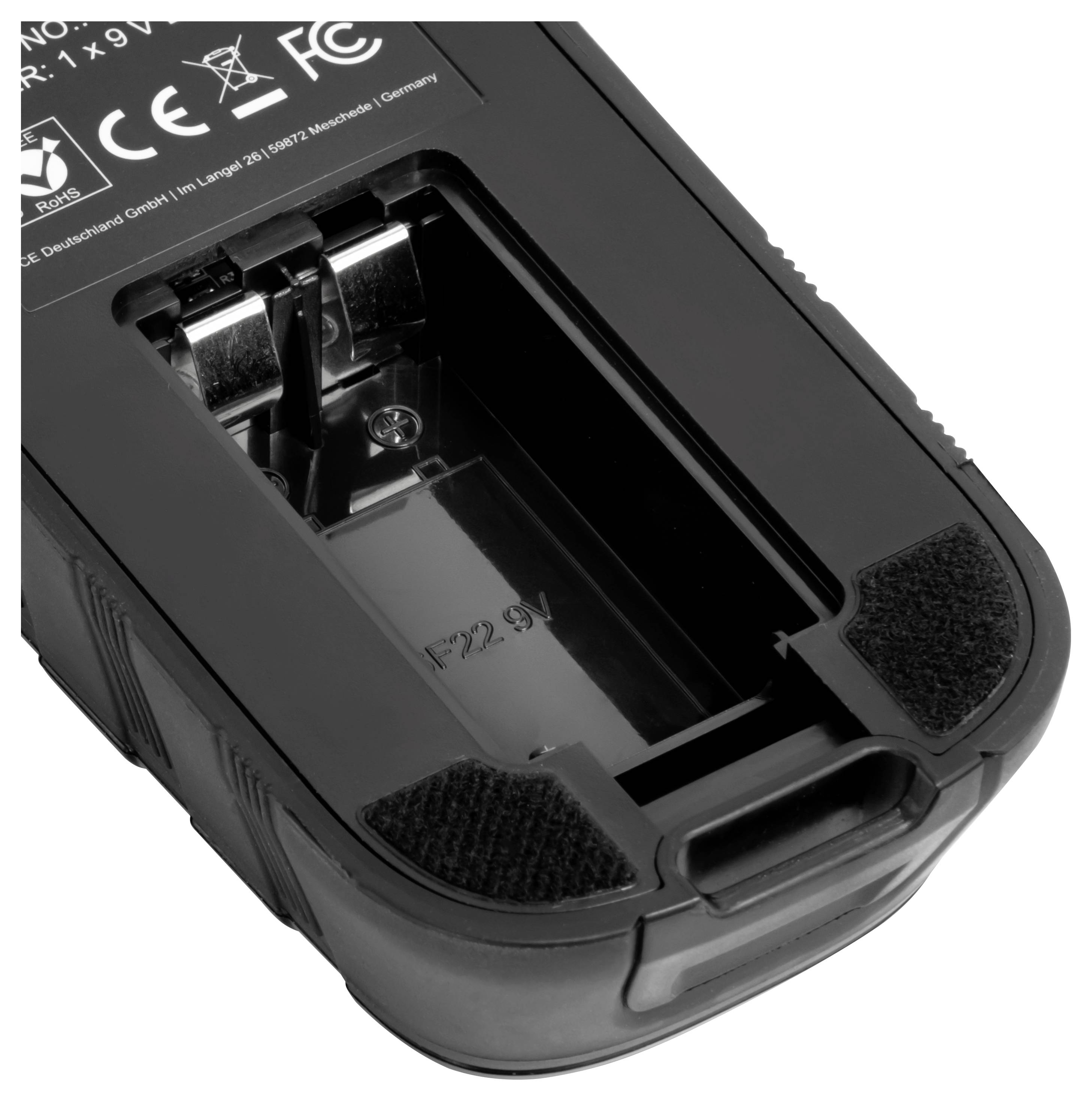

Close-up of a black electronic device battery compartment with contacts and a visible '12.6V' marking.<br>

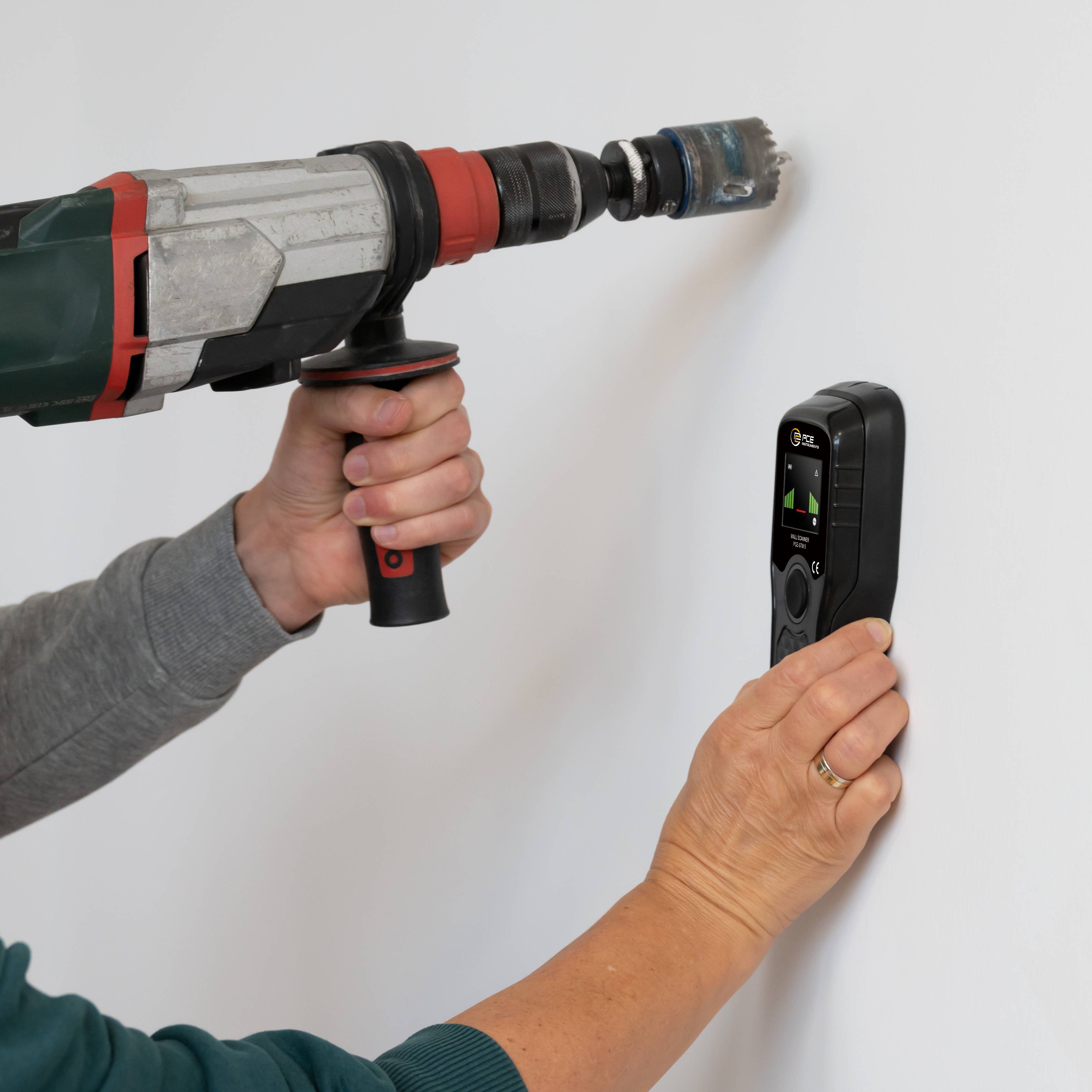

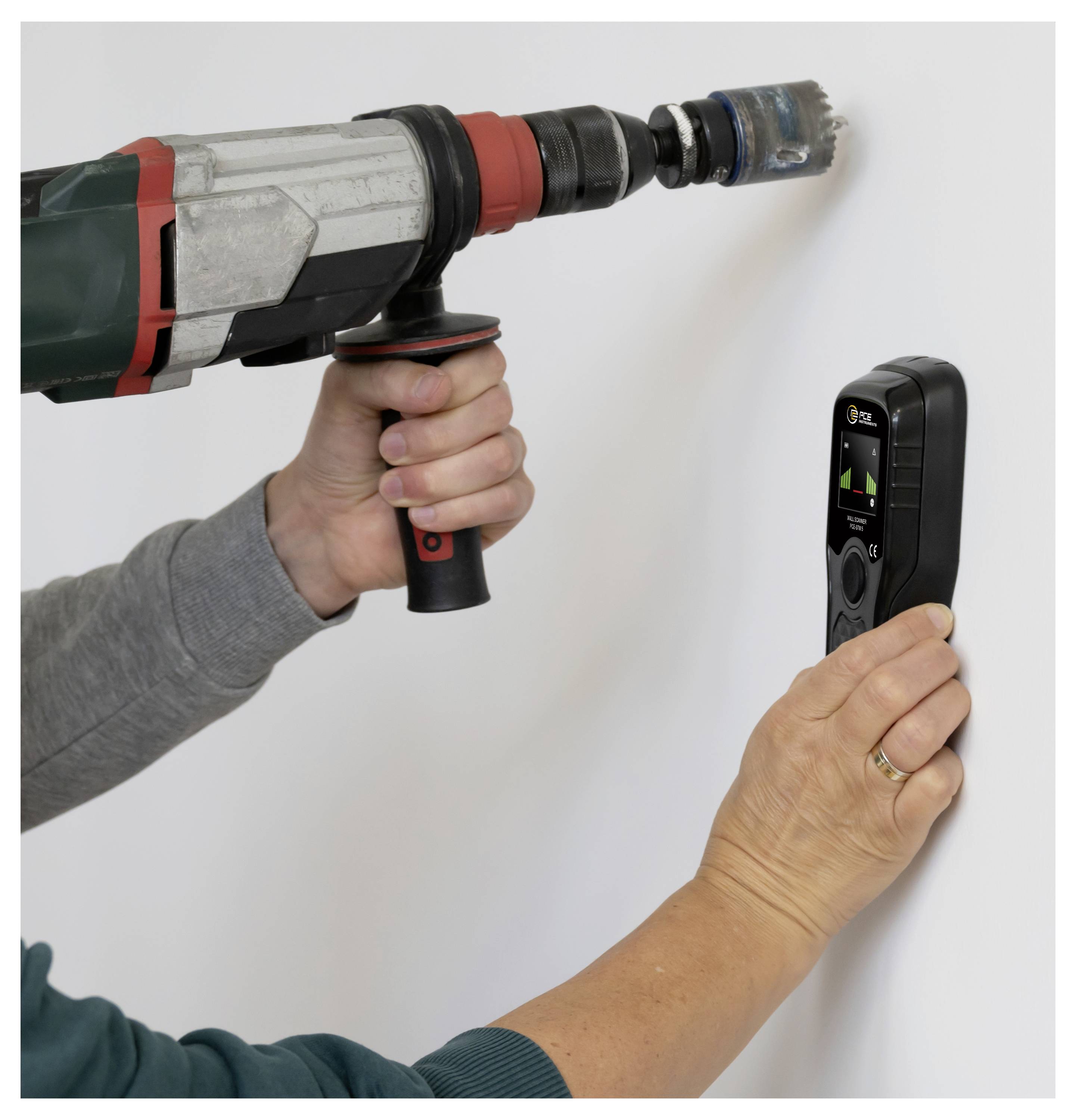

Person using a drill and a handheld detector on a wall to locate hidden studs or wiring.

Cable locator PCE-STM 5 PCE Instruments PCE-STM 5-5

Cable locator PCE-STM 5 PCE Instruments PCE-STM 5-6

1/7

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

66 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 32.99 / piece)

€ 32.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

PROFESSIONAL CALIBRATED TO EQUIPMENT. PCE-STM 5

Technical specifications

General Technical Data
Display type LCD
Display size 2 inches
Materials wood, metal , conducting cable
Current consumption of the measuring device 60 mA DC
Measuring depth max. 60 mm
Measurement depth Additional information ½ inch mode: Wooden beams up to 12 mm deep , 1 inch mode: Wooden beams up to 25 mm deep , 1½ inch mode: Wooden beams up to 38 mm deep, metal mode: Metal in up to 60 mm depth, cable mode: Live lines up to 51 mm deep
Menu language English (US), English (GB)
Protection class (device) IP20
Weighs 166 g.
Operating conditions 0 ... 50 °C , 10 ... 90 % r.F.
Storage conditions 0 ... 50 °C , 10 ... 90 % r.F.
Rechargeable battery/battery 1 x 9 V 9V Block, lead acid
Capacity 640 mAh
Dimensions ( L x W x H ) 180 x 70 x 30 mm

Product type: Cable locator

Function: Location

Acoustic signal: Yes

Display: LCD

Optical display: Yes (built-in)

Test sockets: 9V battery terminal

Dim: (L x W x H) 180 x 70 x 180 mm

: Manufacturer's standards (no certificate)

Weight: 166 g

Width: 70 mm

Height: 180 mm

Length: 180 mm

Depth: 30 mm

Type: PCE-STM 5

Documents & Downloads

Datasheet

Datasheet 3369108 Cable locator PCE-STM 5 PCE Instruments PCE-STM 5

User & Safety Instructions

User & Safety Instructions 3369108 Cable locator PCE-STM 5 PCE Instruments PCE-STM 5

Description

The cable detector offers a reliable solution for the precise detection of objects hidden in walls, floors and ceilings. The built-in calibration function enables exact calibration before each scan, in order to maximize the accuracy and reliability. The device quickly and efficiently finds metal, wood, beams and conductor cables.

The cable detector is equipped with an HD-color LCD display, which enables a clear visual display of the scan results. In addition to the acoustic signal, the cable detector provides a visual display that takes the user exactly to the location of the detected object. The direction arrows and signal bars on the display provide information about the proximity and the direction of approaching objects in real time.

The cable detector is equipped with five different scanning modes, which cover different requirements and enable the detection of different materials and depths. These include ½ inch, 1 inch and 1½ inch bar modes, metal and power line detection. The cable detector reliably locates the center and the edges of metal, beams and supports in up to a depth of 38 mm. The metal mode detects iron and non-ferrous metals up to a depth of 60 mm, while the cable mode detects current-carrying not shielded cables up to a depth of 51 mm. Our cable detector can be a useful tool for DIYers and handymen.
