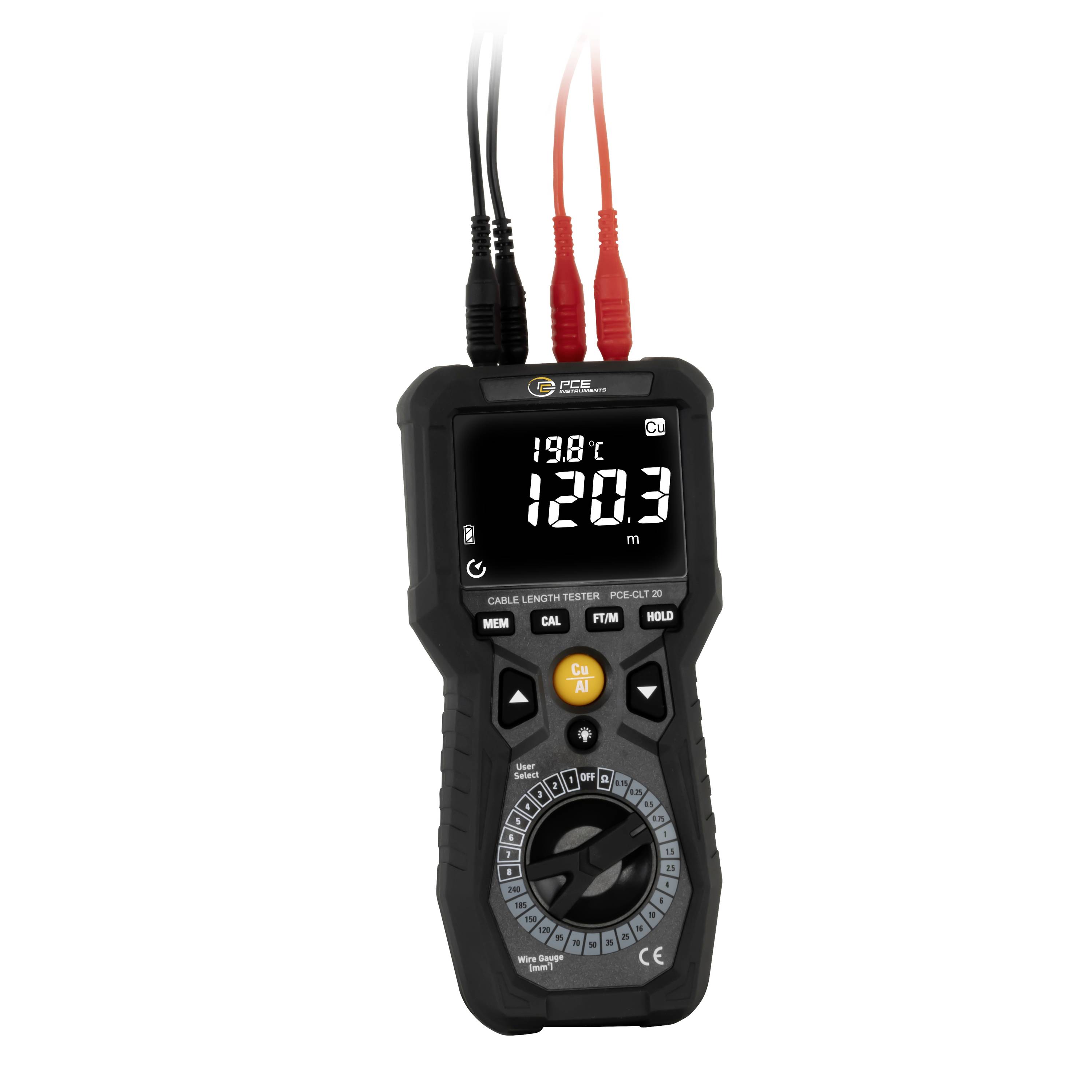

Cable meter PCE-CLT 20 PCE Instruments PCE-CLT 20 Networks, AV, Telecom
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 172.26 / piece)
€ 172.26
plus VAT.
Highlights & Details
PROFESSIONAL CALIBRATED TO EQUIPMENT. PCE-CLT 20
Technical specifications
- Length
- Measurement range 0.1 m ... +1999.9 m
- Resolution 0.1 m
- Accuracy ±(1 % from MW. , 1m
- Length
- Measuring range +1999.9 km ... +19.99 km
- 1 m release
- Accuracy ±(1 % from MW. + 0.05 km)
- Length
- Measuring range +19.9 km ... +30 km
- Resolution: 0.01 km
- Accuracy ±(1.2 % from MW. + 0.10 km)
- Resistance
- Measuring range 0.1 mΩ ... +1999.9 mΩ
- Resolution 0.1 mΩ
- Accuracy ±(1 % from MW. + 3 digits)
- Resistance
- Measuring range +19999.9 Ω ... +19.999 Ω
- Resolution 0.001 Ω
- Accuracy ±(1 % from MW. + 5 mΩ)
- Resistance
- Measuring range +19.999 Ω ... +199.99 Ω
- Resolution 0.01 Ω
- Accuracy ±(1 % from MW. + 50 mΩ)
- Resistance
- Measuring range +199.99 Ω ... +1999.9 Ω
- Resolution 0.1 Ω
- Accuracy ±(1 % from MW. + 6 digits)
- Temperature
- Measurement range -5 °C ... +50 °C
- Resolution 0.1 °C
- Accuracy ±(2 % + 1.8°C)
- General Technical Data
- Units °C, °F, m, km, ft
- Display type LCD with lighting
- Automatically switches off approx. 15 min.
- Automatic switch-off deactivated No.
- Cable length 1.2 m
- Overload protection max. 60 V
- Menu language English
- Protection class (device) IP30
- Weight 460 g
- Dimensions (L x W x H) 213 x 100 x 65 mm
- Operating conditions 0 ... 40 °C , 80 % r.h.
- Storage conditions -20 ... 60 °C , 80 % r.h.
- Alkaline-manganese batteries
- Voltage 1.5 V.
- System Primary: Disposable battery
- Number 6
- Weight 0.021 kg.
- Weight class: Class 02 (16 - 30g)
- Product type
Cable meter
- Function
Location
- Max. cable length
30 km
- Display
LCD

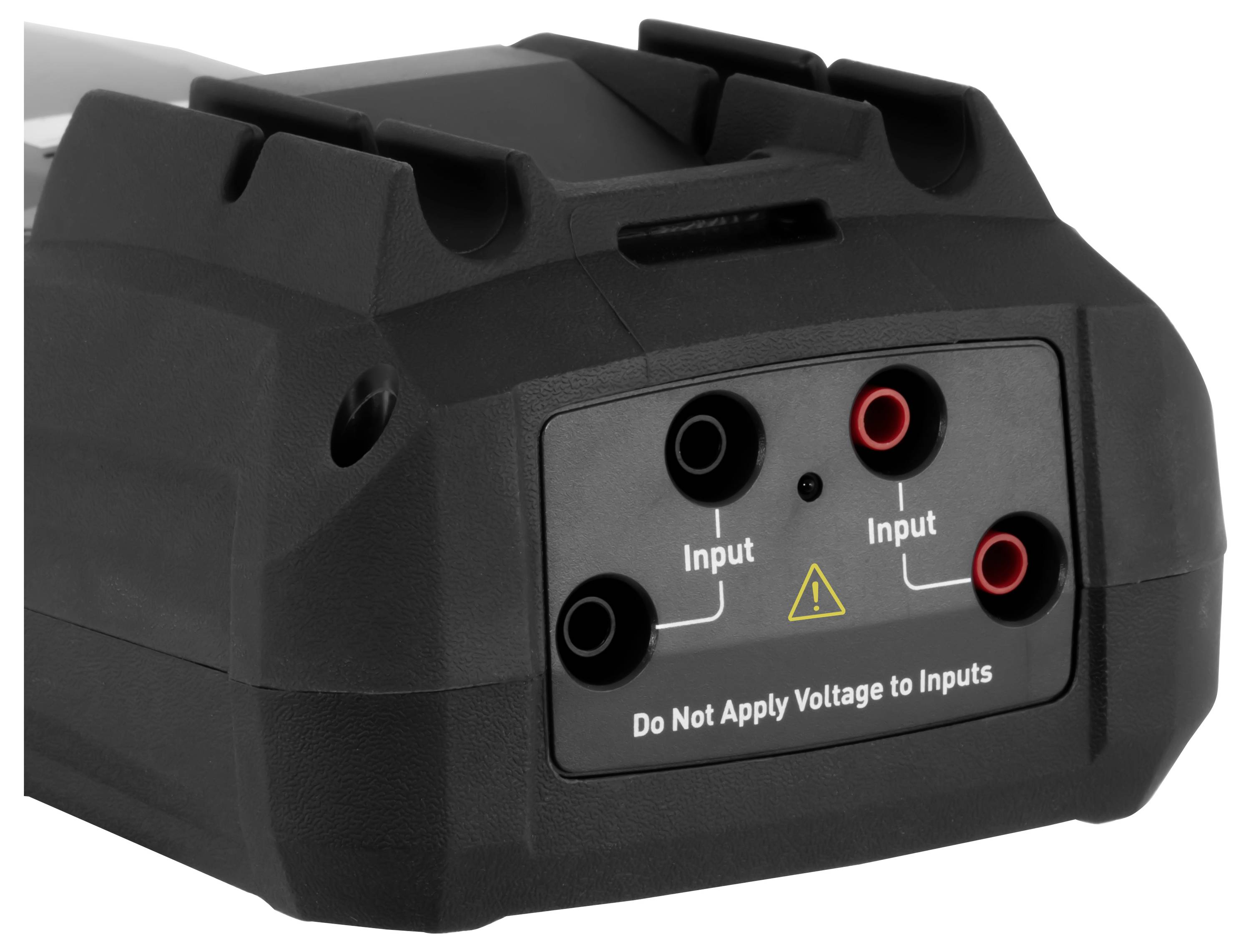

- Test sockets
4 mm safety plug
4 mm safety jack
4 mm plug
- Dim
(L x W x H) 213 x 100 x 65 mm
Manufacturer's standards (no certificate)
- Weight
0.021 kg
- Range
Networks
AV
Telecom
- Width
100 mm
- Height
65 mm
- Length
213 mm
- Type
PCE-CLT 20
Documents & Downloads
Datasheet
Datasheet 3324678 Cable meter PCE-CLT 20 PCE Instruments PCE-CLT 20 Networks, AV, Telecom
User & Safety Instructions
User & Safety Instructions 3324678 Cable meter PCE-CLT 20 PCE Instruments PCE-CLT 20 Networks, AV, Telecom
Description
The cable length measuring device is a powerful and versatile measuring instrument, which was designed especially for the exact measurement of electrical cables and wires. With an impressive measurement range from 0.1 m to an amazing 30 km, this device can measure and display cable lengths. As the cable length meter determines the length over the line resistance, it can also measure the resistance from 0.1 mΩ to 1999.9 Ω. For this measuring principle, it is also necessary to connect the Kelvin terminals with both cable ends.
The temperature monitoring function, which covers an operating range from -5 °C to +50 °C, enables the influence of temperature fluctuations on the length measurement to be taken into account. The cable length meter supports the display of the cable length in various units, including meters (m), kilometers (km) and feet (ft), in order to meet the different requirements of users and nations.
The implementation of 8 storage locations allows the user to individually configure and store cable types for quick access to frequently used settings. This function significantly increases the practicality of the device.
By integrating copper and aluminum cable support, the tester opens up applications in various industrial environments. In addition, the choice of standard cable types in the range of 0.15 mm² to 240 mm² enables the user to configure precisely according to the specific requirements of his application. The cable length meter is delivered in a transportation case and with two test leads which enable the direct use by electricians, in trade or many other areas
This text is machine translated.
The temperature monitoring function, which covers an operating range from -5 °C to +50 °C, enables the influence of temperature fluctuations on the length measurement to be taken into account. The cable length meter supports the display of the cable length in various units, including meters (m), kilometers (km) and feet (ft), in order to meet the different requirements of users and nations.
The implementation of 8 storage locations allows the user to individually configure and store cable types for quick access to frequently used settings. This function significantly increases the practicality of the device.
By integrating copper and aluminum cable support, the tester opens up applications in various industrial environments. In addition, the choice of standard cable types in the range of 0.15 mm² to 240 mm² enables the user to configure precisely according to the specific requirements of his application. The cable length meter is delivered in a transportation case and with two test leads which enable the direct use by electricians, in trade or many other areas
This text is machine translated.
Features
- LCD with lighting

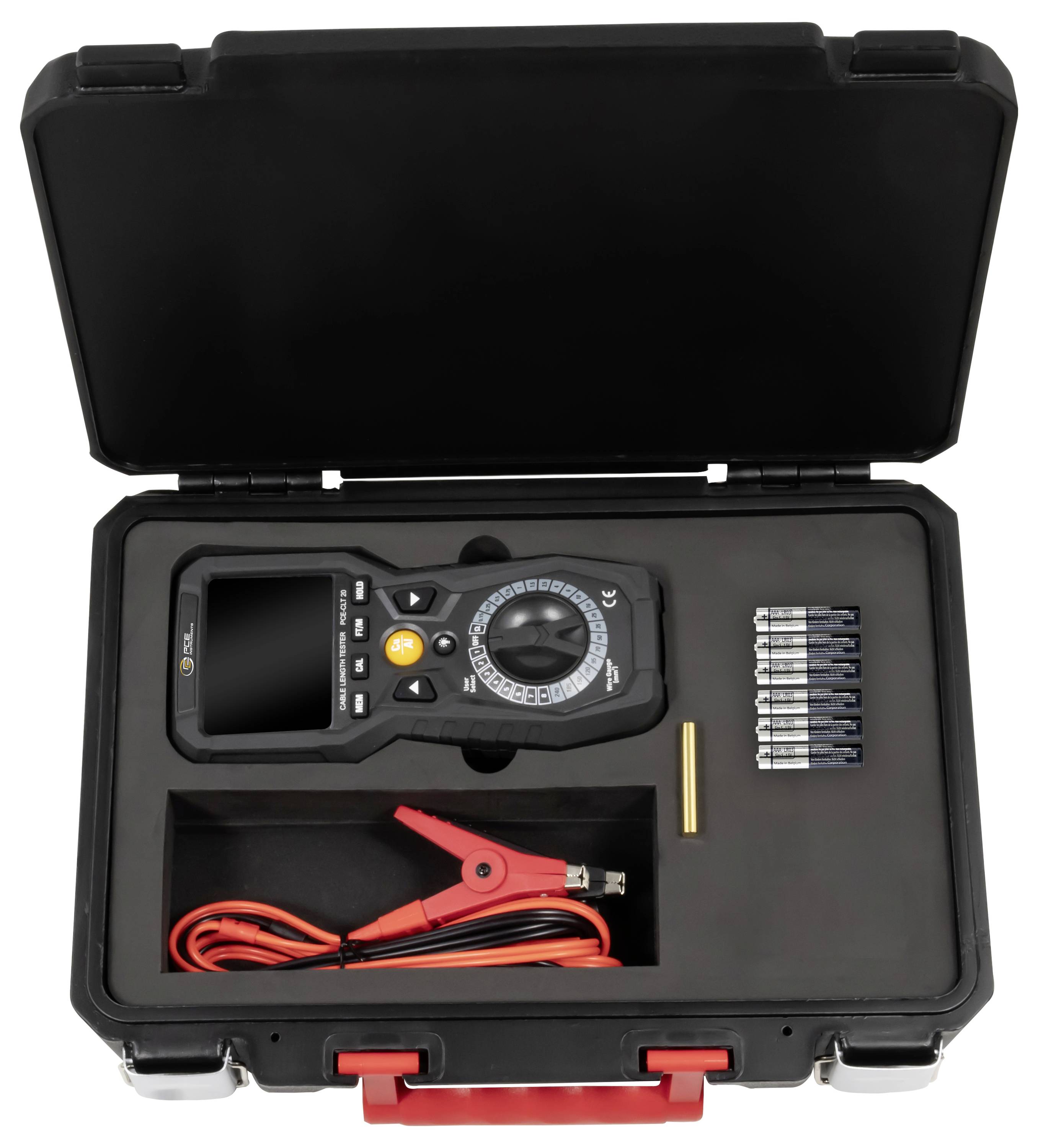

Scope of delivery
- 1 x cable length meter PCE-CLT 20
- 2 x test leads with Kelvin terminals
- 6 x AA 1.5 V batteries
- 1x user manual
- 1 x transport case
